maserati qtp v6 (1996) electrical system: engine compartment (lhd) parts diagram

058GS - Electrical System: Engine Compartment (LHD)

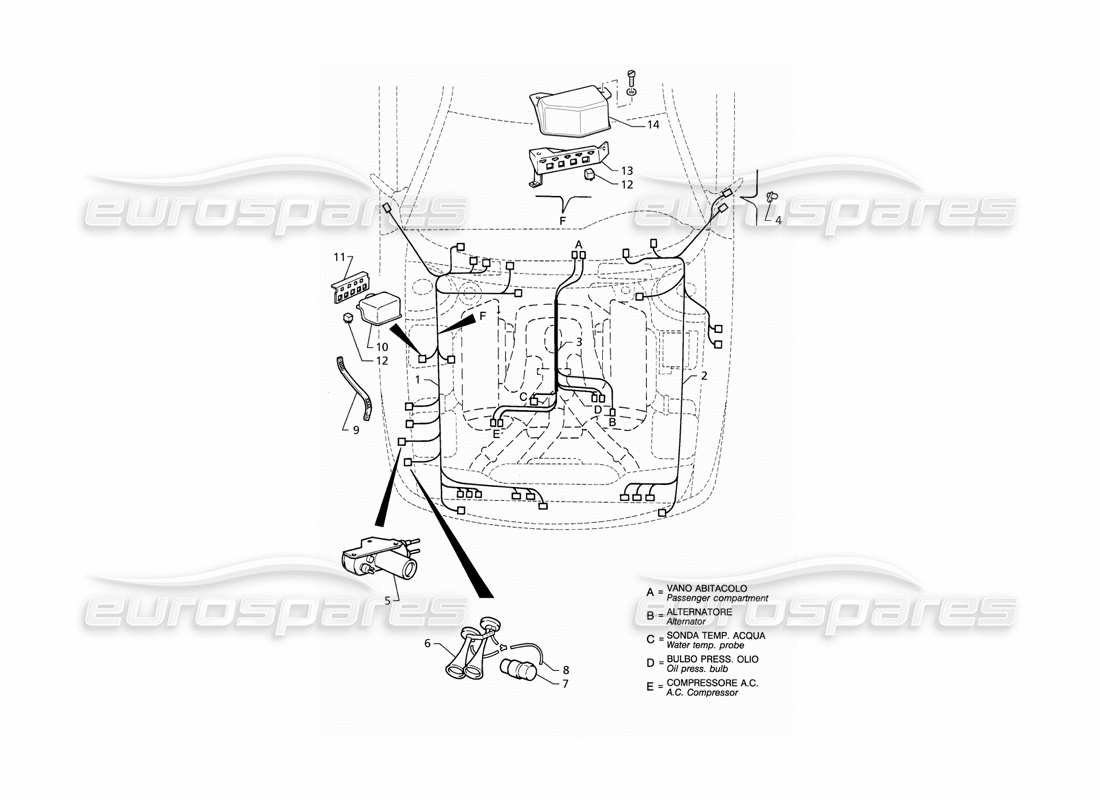

Maserati QTP V6 (1996) Electrical System: Engine Compartment (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 373001142
ENGINE COMPARTMENT RH WIRING
from £434.30
from £434.30
# 002
MPN: 373030143
ENGINE COMPARTMENT LH WIRING
from £177.86
from £177.86
# 003
MPN: 373001123
ENGINE WIRING
from £434.30
from £434.30
# 004
MPN: 393650307
EXTERNAL TEMPERATURE SENSOR
from £18.43
from £18.43
# 005
MPN: 325520172
VACUUM PUMP
from £99.75
from £99.75
# 006
MPN: 313320006
HORN ASSY
from £19.01
from £19.01
# 007
MPN: 313320146
COMPRESSOR
from £56.34
from £56.34
# 008
MPN: 314020316
TUBE
from £1.20
from £1.20
This part replaces part number 313320325
# 009
MPN: 393050151
ENGINE/CHASSIS GROUND BRAID
from £3.75
from £3.75
# 010
MPN: 313052337
RELAY PROTECTION
from £8.98
from £8.98
# 011
MPN: 313052303
RELAY SUPPORT
from £5.09
from £5.09
# 012
MPN: 313320134
BOSCH RELAY
from £16.96
from £16.96
This part replaces part number 184101
# 013
MPN: 313753109
RELAY SUPPORT
from £3.63
from £3.63
# 014
MPN: 373701321
RELAY COVER
from £8.54
from £8.54
