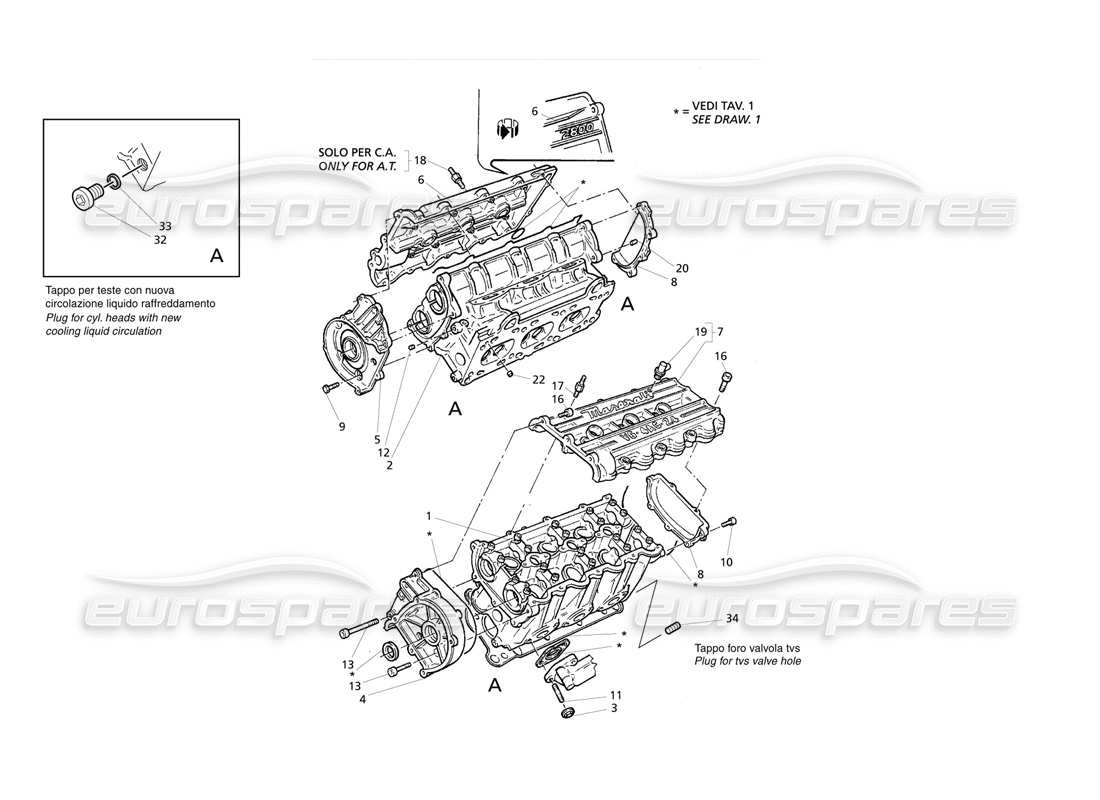

Maserati QTP V6 Evoluzione Cylinders Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 588003300
LH cylinder head
from £4,279.85
from £4,279.85
This part replaces part number 477003300
# 002
MPN: 588003200
RH cylinder head
from £5,563.81
from £5,563.81
This part replaces part number 477003200
# 003
MPN: 210971
COPPER PLATED NUT
from £1.16
from £1.16
This part replaces part number 279628 - and 1 more. Click to view details
# 004
MPN: 571000600
LH FRONT COVER, ASSY
from £130.79
from £130.79
# 005
MPN: 571000700
RH FRONT COVER, ASSY
from £135.97
from £135.97
# 006
MPN: 574008801
RH UPPER COVER
from £129.27
from £129.27
# 007
MPN: 571008701
LH UPPER COVER
from £76.23
from £76.23
# 008
MPN: 475001400
BACK COVER
Supersession
Supersession
# 009
MPN: 311053391
SCREW
from £3.12
from £3.12
# 010
MPN: 311453300
SCREW
from £3.20
from £3.20
# 011
MPN: 310620370
STUD BOLT
from £14.52
from £14.52
# 012
MPN: 600009700
PLUG
from £1.07
from £1.07
# 013
MPN: 311053390
SCREW
from £5.93
from £5.93
# 014
MPN: 14302221
SCREW
from £0.47
from £0.47
# 016
MPN: 14305321
SCREW
Supersession
Supersession
# 017
MPN: 475004400
CABLES REPLACEMENT STUD BOLT
from £5.02
from £5.02
# 018
MPN: 479009120
SCREW
- Valid for A.T. version
from £22.59
from £22.59
# 019
MPN: 475008001
OIL BLOWER
from £0.48
from £0.48
# 020
MPN: 311053312
DOWEL
from £1.90
from £1.90
# 022
MPN: 475002401
OIL CALIBRATION DOWEL
from £1.90
from £1.90
# 030
MPN: 588945000
RH CYLINDER HEAD WITH VALVE DRIVE
- Not illustrated
from £0.47
from £0.47
# 031
MPN: 588945100
LH CYLINDER HEAD WITH VALVE DRIVE
- Not illustrated
from £0.47
from £0.47
# 032
MPN: 571044400
PLUG
from £8.52
from £8.52
# 033
MPN: 571044500
GASKET
from £1.90
from £1.90
# 034
MPN: 585411800
PLUG
from £2.50
from £2.50
