011 - VACUUM SYSTEM

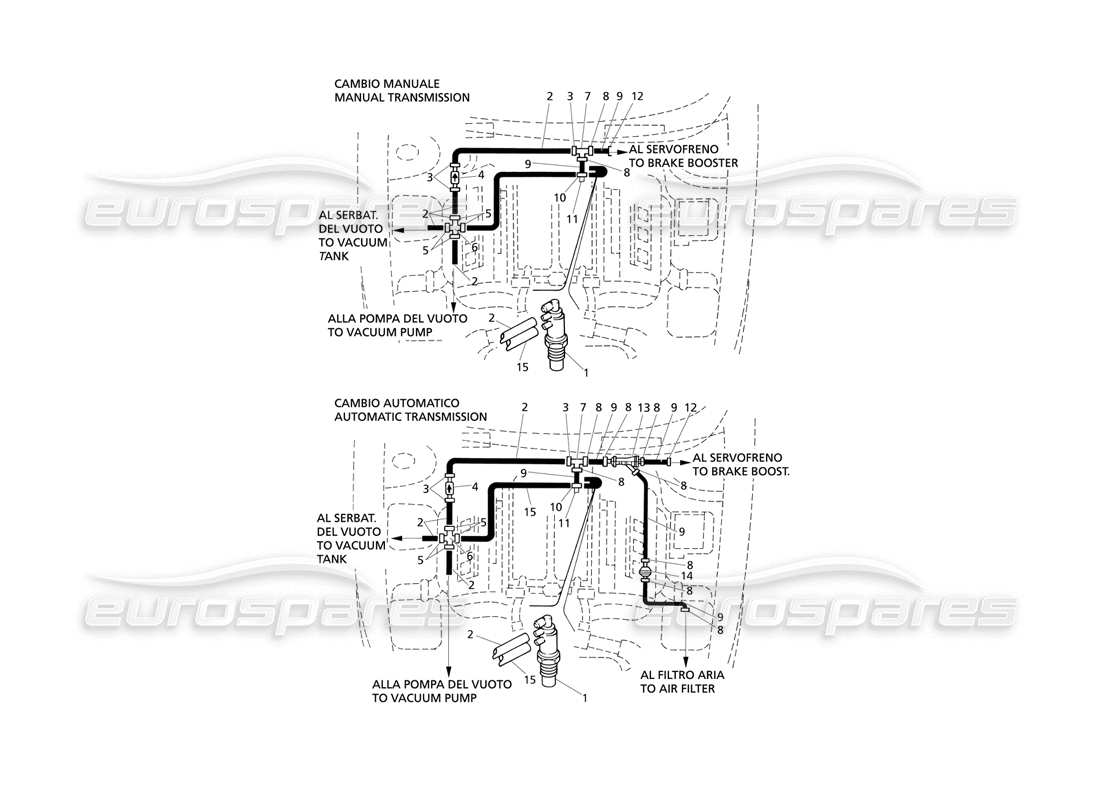

Maserati QTP V6 Evoluzione Vacuum System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 312030127
SWITCH
from £19.93
from £19.93
# 002
MPN: 300100803
RUBBER HOSE
- Section In meters - order minimum amount of 1 m or multiples
from £53.86
from £53.86
This part replaces part number 318720329
# 003
MPN: 312050310
CLAMP
from £1.07
from £1.07
# 004
MPN: 315520169
CHECK VALVE
from £6.84
from £6.84
# 005
MPN: 13121170
CLAMP
Supersession
Supersession
# 006
MPN: 312030422
UNION
- UNION
from £0.96
from £0.96
# 007
MPN: 578006700
t
from £9.96
from £9.96
# 008
MPN: 377492352
CLAMP
- Valid for M.T. version
from £1.52
from £1.52
This part replaces part number 377491352
# 008
MPN: 377492352
CLAMP
- Valid for A.T. version
from £1.52
from £1.52
This part replaces part number 377491352
# 009
MPN: 19057089
RUBBER HOSE
- Section In meters - order minimum amount of 1 m or multiples
from £24.72
from £24.72
This part replaces part number 317832385
# 010
MPN: 10187090
CLAMP
from £2.56
from £2.56
# 011
MPN: 479008900
UNION
from £20.50
from £20.50
# 012
MPN: 377492352
CLAMP
from £1.52
from £1.52
This part replaces part number 377491352
# 013
MPN: 377493347
KAISER VALVE
- Valid for A.T. version
from £106.69
from £106.69
# 014
MPN: 377490107
CHECK VALVE
- Valid for A.T. version
from £6.08
from £6.08
# 015
MPN: 300100803
RUBBER HOSE
- Section In meters - order minimum amount of 1 m or multiples
from £53.86
from £53.86
This part replaces part number 318720329
