016 - IGNITION SYSTEM

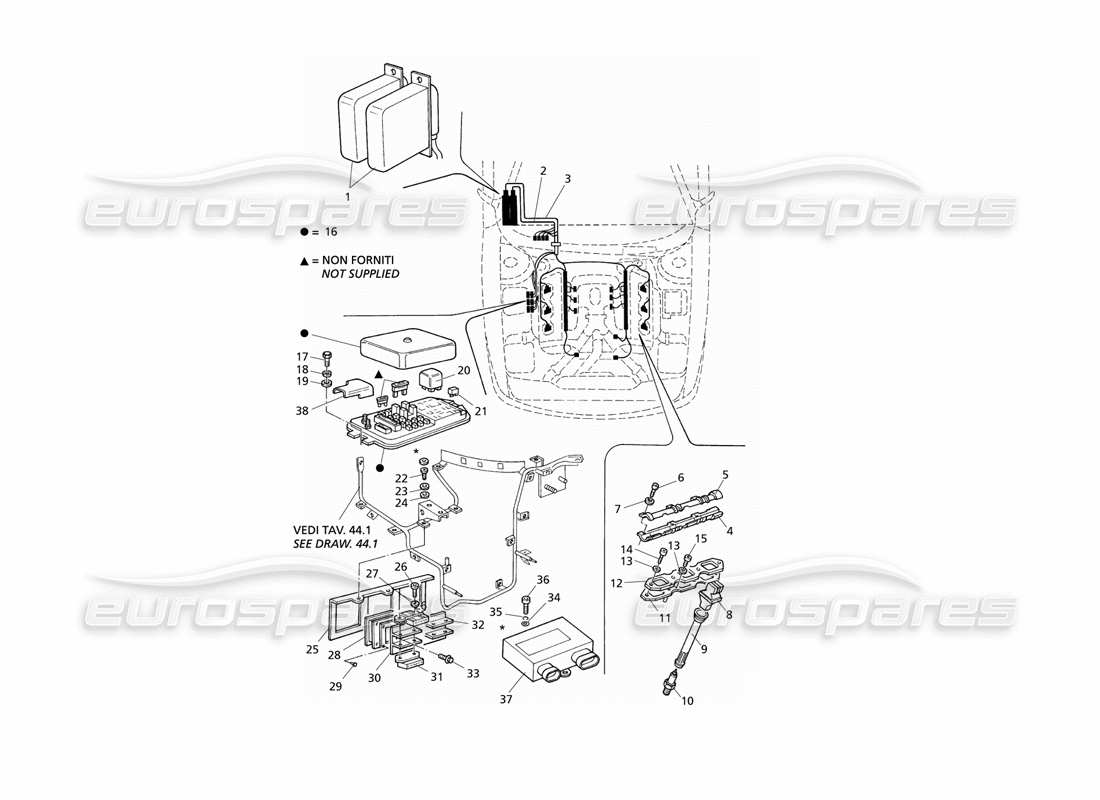

Maserati QTP V6 Evoluzione Ignition System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 373782100
CONTROL UNIT
- Valid for M.T. version
from £1,596.04
from £1,596.04
This part replaces part number 373780100
# 001
MPN: 373783100
CONTROL UNIT
- Valid for A.T. version
from £694.09
from £694.09
This part replaces part number 373781100 - and 1 more. Click to view details
# 002
MPN: 373780106
RH INJECTION WIRING
from £378.99
from £378.99
# 003
MPN: 373780105
LH INJECTION WIRING
from £378.99
from £378.99
# 004
MPN: 313753319
HALF SHELL RH UPPER/LH LOWER
from £1.90
from £1.90
# 005
MPN: 313753318
HALF SHELL RH LOWER/LH UPPER
from £1.90
from £1.90
# 006
MPN: 14304621
SCREW
from £0.52
from £0.52
# 007
MPN: 14496400
WASHER
from £0.83
from £0.83
# 008
MPN: 571084200
IGNITION COIL
from £62.63
from £62.63
This part replaces part number 571084201 - and 1 more. Click to view details
# 009
MPN: 571085101
EXTENSION
from £69.95
from £69.95
# 010
MPN: 313253225
SPARK PLUG
from £6.40
from £6.40
This part replaces part number 97143
# 011
MPN: 571982001
BOTTOM COILS SUPPORT
from £14.70
from £14.70
# 012
MPN: 571087901
TOP COILS SUPPORT
from £3.58
from £3.58
# 013
MPN: 12604279
WASHER
from £0.53
from £0.53
# 014
MPN: 14304621
SCREW
from £0.53
from £0.53
# 015
MPN: 14304821
ALLEN SCREW
from £0.53
from £0.53
# 016
MPN: 373330178
CONTROL UNIT
from £288.00
from £288.00
# 017
MPN: 10902521
SCREW
from £0.71
from £0.71
# 018
MPN: 12604279
SPRING WASHER
from £0.54
from £0.54
# 019
MPN: 14498801
FLAT WASHER
from £0.53
from £0.53
# 020
MPN: 373330188
50A RELAY
Supersession
Supersession
# 021
MPN: 373330139
20A MICRORELAY
from £4.02
from £4.02
# 022
MPN: 10902221
SCREW
from £0.57
from £0.57
# 023
MPN: 12604279
SPRING WASHER
from £0.54
from £0.54
# 024
MPN: 14498801
FLAT WASHER
from £0.53
from £0.53
# 025
MPN: 363201119
HEAT SINK SUPPORT
from £4.56
from £4.56
# 026
MPN: 167590420
SCREW
from £1.52
from £1.52
# 027
MPN: 12601079
SPRING WASHER
from £0.83
from £0.83
# 028
MPN: 393250302
HEAT SINK
from £13.09
from £13.09
This part replaces part number 393250106
# 029
MPN: 164353090
RIVET
# 030
MPN: 393250303
POWER MODULE SUPPORT
from £5.99
from £5.99
# 031
MPN: 393250107
POWER MODULE
from £57.75
from £57.75
# 032
MPN: 363201316
CENTRAL SUPPORT
from £14.83
from £14.83
# 033
MPN: 119148220
SCREW
from £1.07
from £1.07
# 034
MPN: 14498801
FLAT WASHER
from £0.53
from £0.53
# 035
MPN: 12604279
SPRING WASHER
from £0.54
from £0.54
# 036
MPN: 14305121
ALLEN SCREW
from £0.47
from £0.47
# 037
MPN: 373380177
FAN RELAY CONTROL UNIT
from £51.10
from £51.10
# 038
MPN: 373330308
GNDING POINTS COVER
from £1.52
from £1.52
