046 - Bonnet: Hinges and Bonnet Release

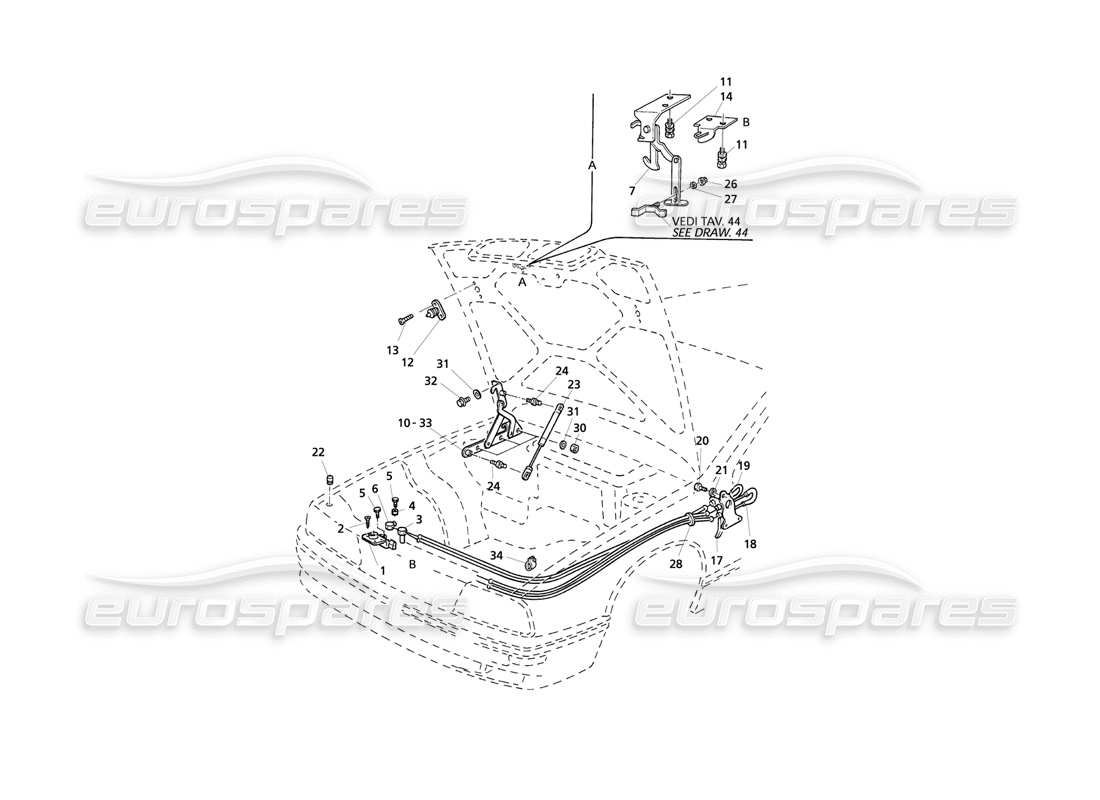

Maserati QTP V6 Evoluzione Bonnet: Hinges and Bonnet Release Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 314320005
HOOD LOCK
from £85.19
from £85.19
# 002
MPN: 314320345
SCREW
from £41.00
from £41.00
# 003
MPN: 314320379
CLAMP
from £1.90
from £1.90
# 004
MPN: 30431380
PAD FOR CLAMP
from £0.69
from £0.69
# 005
MPN: 10856821
SCREW
from £0.53
from £0.53
# 006
MPN: 53431306
CLAMP
from £2.51
from £2.51
# 007
MPN: 374330130
SAFETY LOCK
from £22.72
from £22.72
# 010
MPN: 374300115
LH HINGE WITH SPHERICAL HEAD
from £204.49
from £204.49
# 011
MPN: 11730624
SCREW + WASHERS ASSY
from £0.53
from £0.53
# 012
MPN: 314320008
PIN
from £27.46
from £27.46
# 013
MPN: 13301217
SCREW
from £1.07
from £1.07
# 014
MPN: 374330131
LOCK STRIKER PLATE
from £12.03
from £12.03
# 017
MPN: 314320107
HOOD RELEASE HANDLE
from £4.13
from £4.13
# 018
MPN: 314320010
EMERG. CABLE
from £7.90
from £7.90
# 019
MPN: 314320009
CONTROL CABLE
from £6.97
from £6.97
# 020
MPN: 15959201
SCREW
from £1.07
from £1.07
# 021
MPN: 14496301
FLAT WASHER
from £0.88
from £0.88
This part replaces part number 13506724
# 022
MPN: 374330426
PAD
from £1.07
from £1.07
This part replaces part number 53431319
# 023
MPN: 374380304
ENGINE COVER STRUT
from £51.12
from £51.12
This part replaces part number 374300304
# 024
MPN: 30471311
GAS SPRING PIN
from £3.81
from £3.81
# 026
MPN: 12575421
SELF LOCKING NUT
Supersession
Supersession
This part replaces part number 12575411
# 027
MPN: 14498801
FLAT WASHER
from £0.54
from £0.54
# 028
MPN: 314320355
FAIRLEAD
from £0.69
from £0.69
# 030
MPN: 314320326
NUT
from £1.07
from £1.07
# 031
MPN: 136110090
WASHER
from £1.07
from £1.07
# 032
MPN: 324520704
SCREW
from £1.18
from £1.18
This part replaces part number 314320325
# 033
MPN: 374300116
RH HINGE WITH SPHERICAL HEAD
from £204.49
from £204.49
# 034
MPN: 314520419
SPRING CLIP
from £0.69
from £0.69
