maserati qtp v6 evoluzione insulation parts diagram

069.1 - Insulation

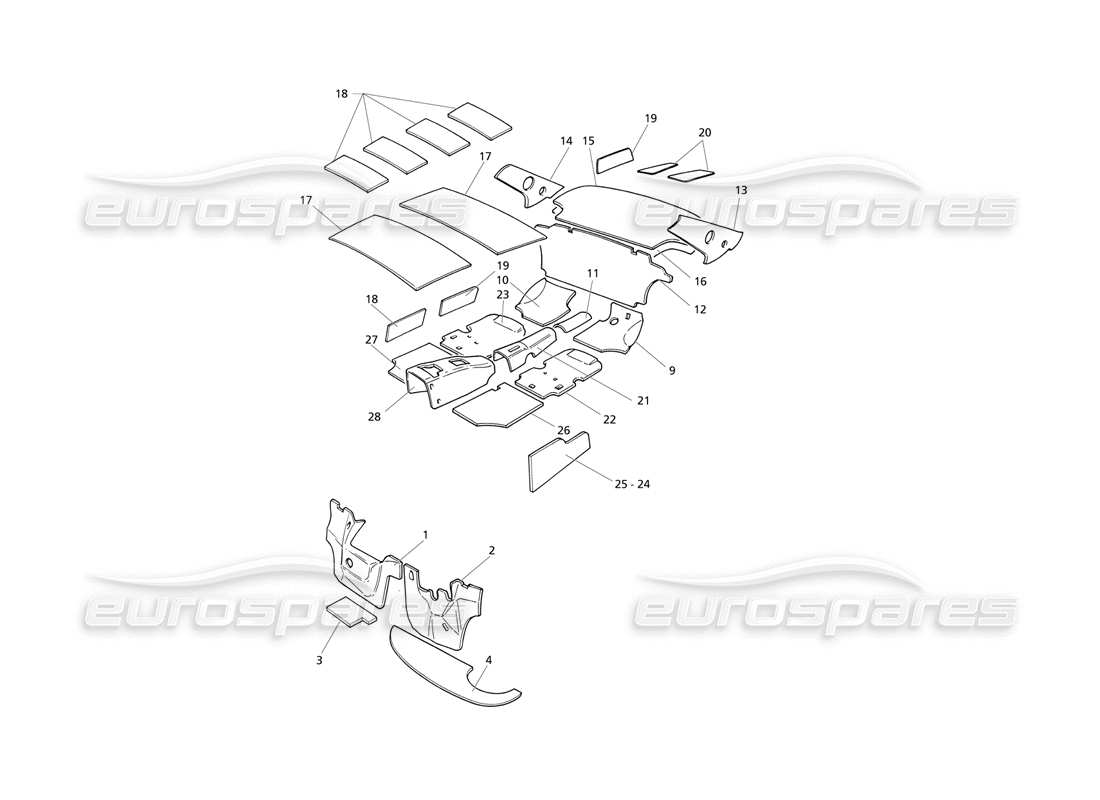

Maserati QTP V6 Evoluzione Insulation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 371580424
                                                  RH FLAMEPROOF INSULATION
                                                  from £53.96
                                                  from £53.96
                                                  # 002
                                                  MPN: 371580423
                                                  LH FLAMEPROOF INSULATION
                                                  from £64.56
                                                  from £64.56
                                                  # 003
                                                  MPN: 371501362
                                                  SOUNDPROOFING COVERING UNDER DASHBOARD ON RH SIDE
                                                  from £6.53
                                                  from £6.53
                                                  # 004
                                                  MPN: 371501361
                                                  DASHBOARD SOUNDPROOFING COVERING
                                                  from £22.30
                                                  from £22.30
                                                  # 009
                                                  MPN: 371500415
                                                  LH INSULATION UNDER REAR SEAT
                                                  from £23.65
                                                  from £23.65
                                                  # 010
                                                  MPN: 371500416
                                                  RH INSULATION UNDER REAR SEAT
                                                  from £23.65
                                                  from £23.65
                                                  # 011
                                                  MPN: 371500437
                                                  CENTRE INSULATION UNDER REAR SEAT
                                                  from £8.70
                                                  from £8.70
                                                  # 012
                                                  MPN: 371500419
                                                  REAR WALL INSULATION
                                                  from £35.20
                                                  from £35.20
                                                  # 013
                                                  MPN: 371500427
                                                  REAR LH PILLAR INSULATION
                                                  from £11.86
                                                  from £11.86
                                                  # 014
                                                  MPN: 371500428
                                                  REAR RH PILLAR INSULATION
                                                  from £11.86
                                                  from £11.86
                                                  # 015
                                                  MPN: 371501418
                                                  UPPER INSULATION UNDER REAR WINDOW
                                                  from £42.63
                                                  from £42.63
                                                  # 016
                                                  MPN: 371500417
                                                  LOWER HEAT ADHESIVE INSULATION UNDER REAR WINDOW
                                                  Supersession
                                                  Supersession
                                                  # 017
                                                  MPN: 328320466
                                                  CEILIND INSULATION
                                                  from £6.54
                                                  from £6.54
                                                  # 018
                                                  MPN: 371500443
                                                  HEAT ADHESIVE INSULATION ON FRONT DOORS/CEILING
                                                  from £46.10
                                                  from £46.10
                                                  # 019
                                                  MPN: 371500442
                                                  HEAT ADHESIVE INSULATION ON REAR DOORS/BOOT SIDE PANELS
                                                  from £2.03
                                                  from £2.03
                                                  # 020
                                                  MPN: 371500441
                                                  HEAT ADHESIVE INSULATION ON BOOT LID
                                                  from £1.57
                                                  from £1.57
                                                  # 021
                                                  MPN: 371500414
                                                  REAR TUNNEL INSULATION
                                                  from £22.75
                                                  from £22.75
                                                  # 022
                                                  MPN: 371500409
                                                  REAR LH FLOOR INSULATION
                                                  from £36.04
                                                  from £36.04
                                                  # 023
                                                  MPN: 371500410
                                                  REAR RH FLOOR INSULATION
                                                  from £37.53
                                                  from £37.53
                                                  # 024
                                                  MPN: 371501364
                                                  SOUNDPROOFING COVERING ON TUNNEL FRONT RH SIDE
                                                  from £22.67
                                                  from £22.67
                                                  # 025
                                                  MPN: 371501363
                                                  SOUNDPROOFING COVERING ON TUNNEL FRONT LH SIDE
                                                  from £16.51
                                                  from £16.51
                                                  # 026
                                                  MPN: 371500405
                                                  FRONT LH FLOOR INSULATION
                                                  from £28.30
                                                  from £28.30
                                                  # 027
                                                  MPN: 371500406
                                                  FRONT RH FLOOR INSULATION
                                                  from £24.10
                                                  from £24.10
                                                  # 028
                                                  MPN: 371500413
                                                  FRONT TUNNEL INSULATION
                                                  from £41.73
                                                  from £41.73
