maserati qtp v8 (1998) engine block and oil sump parts diagram

003 - engine block and oil sump

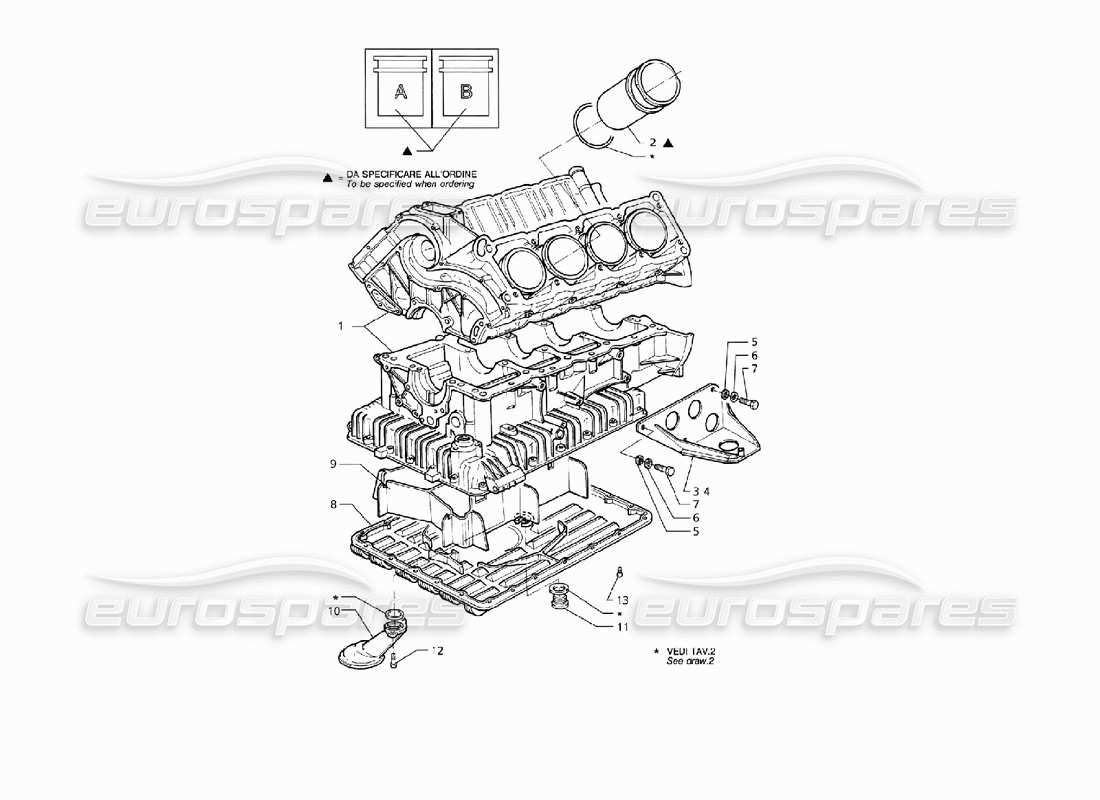

Maserati QTP V8 (1998) Engine Block and Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 578942200
                            CYLINDER BLOCK ASSY
                            from £2,202.63
                            from £2,202.63
                            CYLINDER BLOCK ASSY Genuine Maserati Part - New (to order)
                            # 001
                            MPN: MASENG032

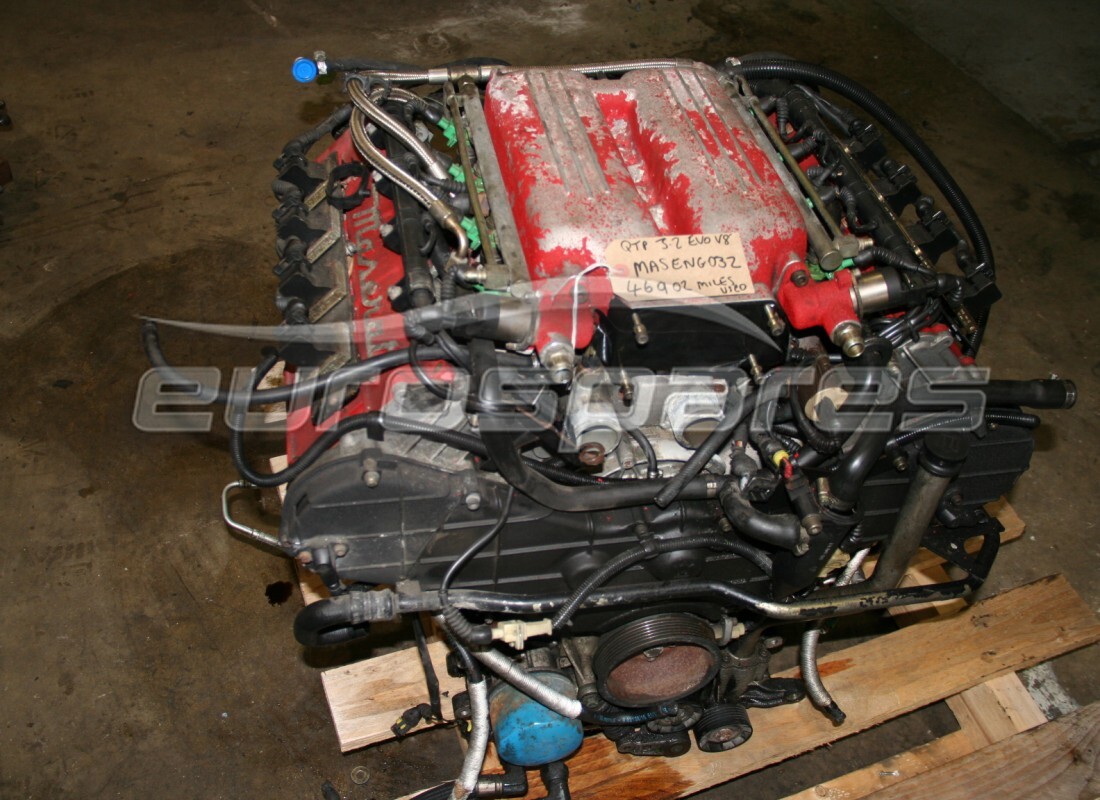

                            COMPLETE ENGINE
                            from £3,832.50
                            from £3,832.50
                            COMPLETE ENGINE Genuine Maserati Part - New (to order)
                            COMPLETE ENGINE Genuine Maserati Part - Used In stock
                            # 001
                            MPN: MENGQpV8
                            ENGINE - EXCHANGE
                            ENGINE - EXCHANGE Genuine Maserati Part - New (to order)
                            # 002
                            MPN: 479010100
                            LINER
                            from £213.23
                            from £213.23
                            CANNA CILINDRI CL. A D=80 X Genuine Maserati Part - New (to order)
                            # 003
                            MPN: 394250103
                            LH ENGINE SUPPORT
                            from £17.51
                            from £17.51
                            BRAKET Genuine Maserati Part - New (to order)
                            BRAKET Genuine Maserati Part - Used In stock
                            # 004
                            MPN: 394250104
                            RH ENGINE SUPPORT
                            from £19.21
                            from £19.21
                            BRAKET Genuine Maserati Part - New (to order)
                            BRAKET Genuine Maserati Part - Used In stock
                            # 005
                            MPN: 134700105
                            WASHER
                            from £1.08
                            from £1.08
                            WASHER Genuine Maserati Part - New In stock
                            # 006
                            MPN: 14496601
                            FLAT WASHER
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            Genuine Ferrari Part (no longer available to order)
                            # 008
                            MPN: 479010900
                            engine oil sump
                            from £73.24
                            from £73.24
                            COPPA OLIO MOTORE Genuine Maserati Part - New (to order)
                            COPPA OLIO MOTORE Genuine Maserati Part - Used In stock
                            # 009
                            MPN: 479011001
                            OIL SUMP PLATE
                            from £6.81
                            from £6.81
                            This part replaces part number 390450105 - and 1 more. Click to view details
                            OIL BULKHEAD Genuine Maserati Part - New (to order)
                            OIL BULKHEAD Genuine Maserati Part - Used In stock
                            # 010
                            MPN: 479013401
                            OIL SCOOP
                            from £10.16
                            from £10.16
                            This part replaces part number 391850110 - and 1 more. Click to view details
                            PESCANTE OLIO COMPLETO Genuine Maserati Part - New (to order)
                            PESCANTE OLIO COMPLETO Genuine Maserati Part - Used In stock
                            # 011
                            MPN: 310420303
                            OIL SUMP DRAIN PLUG
                            from £1.55
                            from £1.55
                            OIL SUMP PLUG D.30X1.5 Genuine Maserati Part - New (to order)
