maserati qtp v8 (1998) timing control parts diagram

008.1 - timing control

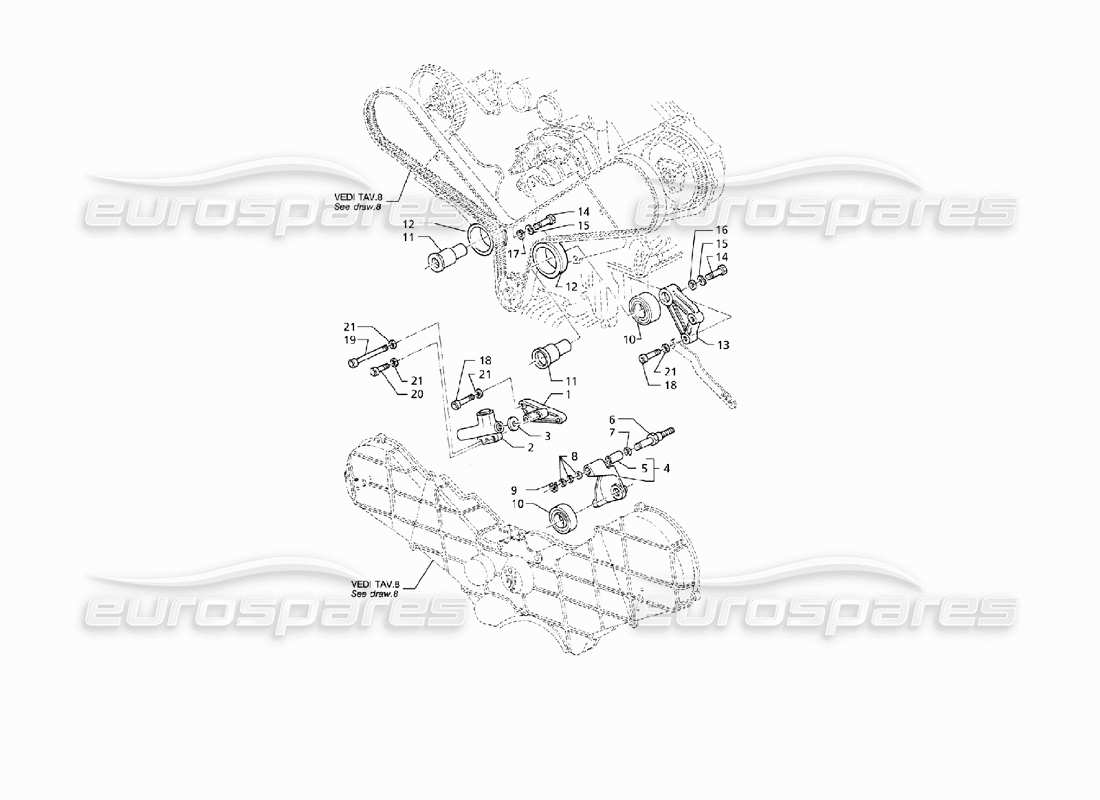

Maserati QTP V8 (1998) Timing Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 479038002
                                            TENSIONER SUPPORT
                                            from £9.29
                                            from £9.29
                                            # 002
                                            MPN: 479034800
                                            HYDRAULIC TENSIONER
                                            from £572.91
                                            from £572.91
                                            This part replaces part number 311053362 - and 1 more. Click to view details
                                            # 003
                                            MPN: 479031101
                                            3 MM ALUMINIUM SHIM
                                            from £2.01
                                            from £2.01
                                            # 004
                                            MPN: 391050110
                                            belt tensioner
                                            from £40.50
                                            from £40.50
                                            # 005
                                            MPN: 470037700
                                            BUSH
                                            from £9.25
                                            from £9.25
                                            This part replaces part number 311020336
                                            # 006
                                            MPN: 470037600
                                            PIN
                                            from £27.76
                                            from £27.76
                                            This part replaces part number 311020343
                                            # 007
                                            MPN: 96789
                                            2 MM SHIM
                                            from £1.63
                                            from £1.63
                                            This part replaces part number 135200120
                                            # 008
                                            MPN: 311020320
                                            SHIM
                                            from £1.31
                                            from £1.31
                                            # 010
                                            MPN: 311020107
                                            TIMING BEARING
                                            from £99.75
                                            from £99.75
                                            # 011
                                            MPN: 321053343
                                            PIN
                                            from £63.30
                                            from £63.30
                                            This part replaces part number 311053343
                                            # 012
                                            MPN: 311020350
                                            BEARING COVER
                                            from £56.75
                                            from £56.75
                                            # 017
                                            MPN: 97273
                                            FLAT WASHER
                                            # 018
                                            MPN: 311020320
                                            ALLEN SCREW
                                            from £1.31
                                            from £1.31
                                            # 019
                                            MPN: 97005
                                            ALLEN SCREW
