maserati qtp v8 (1998) engine oil cooling parts diagram

010 - Engine Oil Cooling

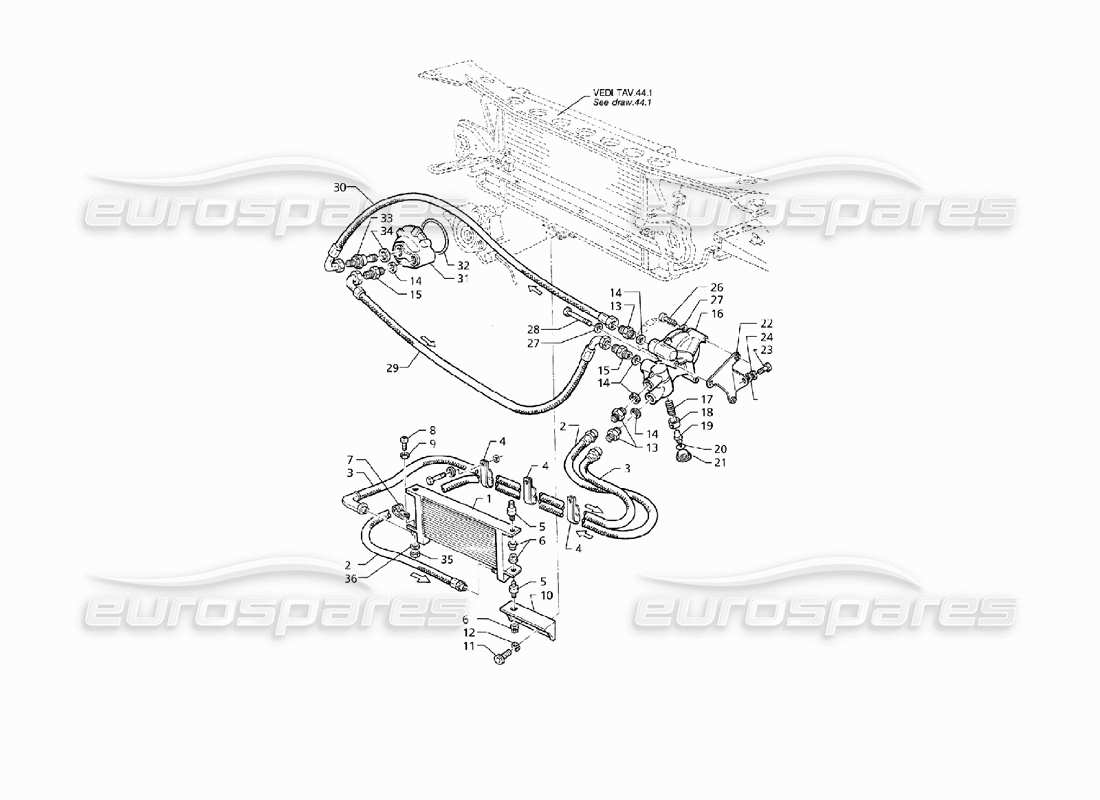

Maserati QTP V8 (1998) Engine Oil Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 001
                                                                          MPN: 372831108
                                                                          ENGINE OIL RADIATOR
                                                                          from £300.87
                                                                          from £300.87
                                                                          RADIATORE OLIO MOTORE Genuine Maserati Part - New (to order)
                                                                          # 002
                                                                          MPN: 372831104
                                                                          OIL DELIVERY TO RADIATOR TUBE
                                                                          from £196.51
                                                                          from £196.51
                                                                          OIL PIPE FROM FILTER HOLDER TO RA Genuine Maserati Part - New (to order)
                                                                          # 003
                                                                          MPN: 372831105
                                                                          OIL RETURN FROM RADIATOR TUBE
                                                                          from £188.98
                                                                          from £188.98
                                                                          OIL PIPE FROM RAD. TO FILTER HOLD Genuine Maserati Part - New (to order)
                                                                          # 004
                                                                          MPN: 97598
                                                                          DOUBLE CLAMP
                                                                          from £7.73
                                                                          from £7.73
                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                          # 005
                                                                          MPN: 319220139
                                                                          VIBRATION-PROOF SUPPORT
                                                                          from £3.08
                                                                          from £3.08
                                                                          ANTI-VIBRATION MOUNT Genuine Maserati Part - New (to order)
                                                                          # 009
                                                                          MPN: 163020060
                                                                          WASHER
                                                                          from £2.55
                                                                          from £2.55
                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                          # 010
                                                                          MPN: 371330395
                                                                          BRACKET
                                                                          from £4.63
                                                                          from £4.63
                                                                          RADIATOR MOUNTING BRACKET Genuine Maserati Part - New (to order)
                                                                          # 013
                                                                          MPN: 372830306
                                                                          UNION
                                                                          from £7.48
                                                                          from £7.48
                                                                          THREADED NIPPLE Genuine Maserati Part - New (to order)
                                                                          THREADED NIPPLE Genuine Maserati Part - Used In stock
                                                                          # 014
                                                                          MPN: 97762
                                                                          GASKET
                                                                          from £4.17
                                                                          from £4.17
                                                                          GUARNIZIONE D.30X2 Genuine Maserati Part - New In stock
                                                                          # 015
                                                                          MPN: 362802306
                                                                          UNION
                                                                          from £10.97
                                                                          from £10.97
                                                                          NIPPLE (0704)D.22-26X1.5 Genuine Maserati Part - New In stock
                                                                          # 016
                                                                          MPN: 479041200
                                                                          FILTER HOLDER
                                                                          from £53.26
                                                                          from £53.26
                                                                          THERMOSTATIC VALVE BODY Genuine Maserati Part - New (to order)
                                                                          THERMOSTATIC VALVE BODY Genuine Maserati Part - Used In stock
                                                                          # 017
                                                                          MPN: 571044600
                                                                          SPRING
                                                                          from £1.41
                                                                          from £1.41
                                                                          SPRING FOR THERMOSTATIC VALV Genuine Maserati Part - New (to order)
                                                                          # 018
                                                                          MPN: 571044200
                                                                          VALVE
                                                                          from £6.13
                                                                          from £6.13
                                                                          THERMOSTATIC BULB VALVE Genuine Maserati Part - New (to order)
                                                                          # 019
                                                                          MPN: 571044100
                                                                          BULB
                                                                          from £13.60
                                                                          from £13.60
                                                                          THERMOSTATIC BULB Genuine Maserati Part - New (to order)
                                                                          # 020
                                                                          MPN: 571044500
                                                                          GASKET
                                                                          from £1.93
                                                                          from £1.93
                                                                          GUARNIZIONE PER TAPPO Genuine Maserati Part - New (to order)
                                                                          # 021
                                                                          MPN: 571044400
                                                                          SCREW PLUG
                                                                          from £8.66
                                                                          from £8.66
                                                                          PLUG ON THERMOSTATIC VALVE B Genuine Maserati Part - New In stock
                                                                          # 022
                                                                          MPN: 371331239
                                                                          PLATE SEC. FILTER HOLDER
                                                                          from £5.57
                                                                          from £5.57
                                                                          This part replaces part number 391350239
                                                                          PLATE Genuine Maserati Part - New (to order)
                                                                          # 028
                                                                          MPN: 97005
                                                                          ALLEN SCREW
                                                                          ALLEN SCREW Genuine Maserati Part - New (to order)
                                                                          # 029
                                                                          MPN: 392850110
                                                                          OIL DELIVERY TO FILTER HOLDER TUBE
                                                                          from £141.75
                                                                          from £141.75
                                                                          HOSE Genuine Maserati Part - New (to order)
                                                                          HOSE Genuine Maserati Part - Used In stock
                                                                          # 030
                                                                          MPN: 372831114
                                                                          OIL RETURN FROM FILTER HOLDER TUBE
                                                                          from £50.54
                                                                          from £50.54
                                                                          PIPE FROM ENGINE TO FILTER HOLDER Genuine Maserati Part - New (to order)
                                                                          PIPE FROM ENGINE TO FILTER HOLDER Genuine Maserati Part - Used In stock
                                                                          # 031
                                                                          MPN: 479047500
                                                                          OIL PUMP COVER
                                                                          from £29.15
                                                                          from £29.15
                                                                          COMPLETE OIL PUMP COVER Genuine Maserati Part - New (to order)
                                                                          # 032

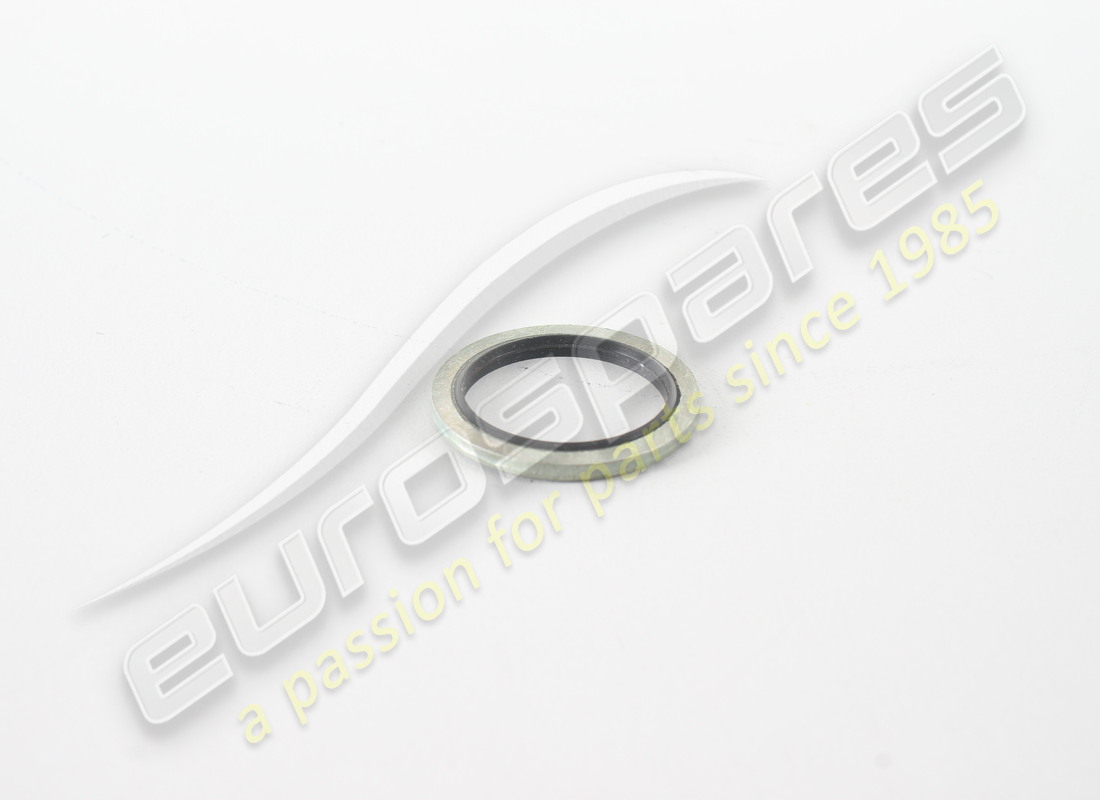

                                                                          MPN: 14464981
                                                                          RUBBER GASKET
                                                                          from £3.63
                                                                          from £3.63
                                                                          OR RUBBER WASHER 4262 FPM 70SH Genuine Maserati Part - New In stock
                                                                          # 033
                                                                          MPN: 479041301
                                                                          UNION
                                                                          from £51.01
                                                                          from £51.01
                                                                          PIN Genuine Maserati Part - New (to order)
                                                                          # 034

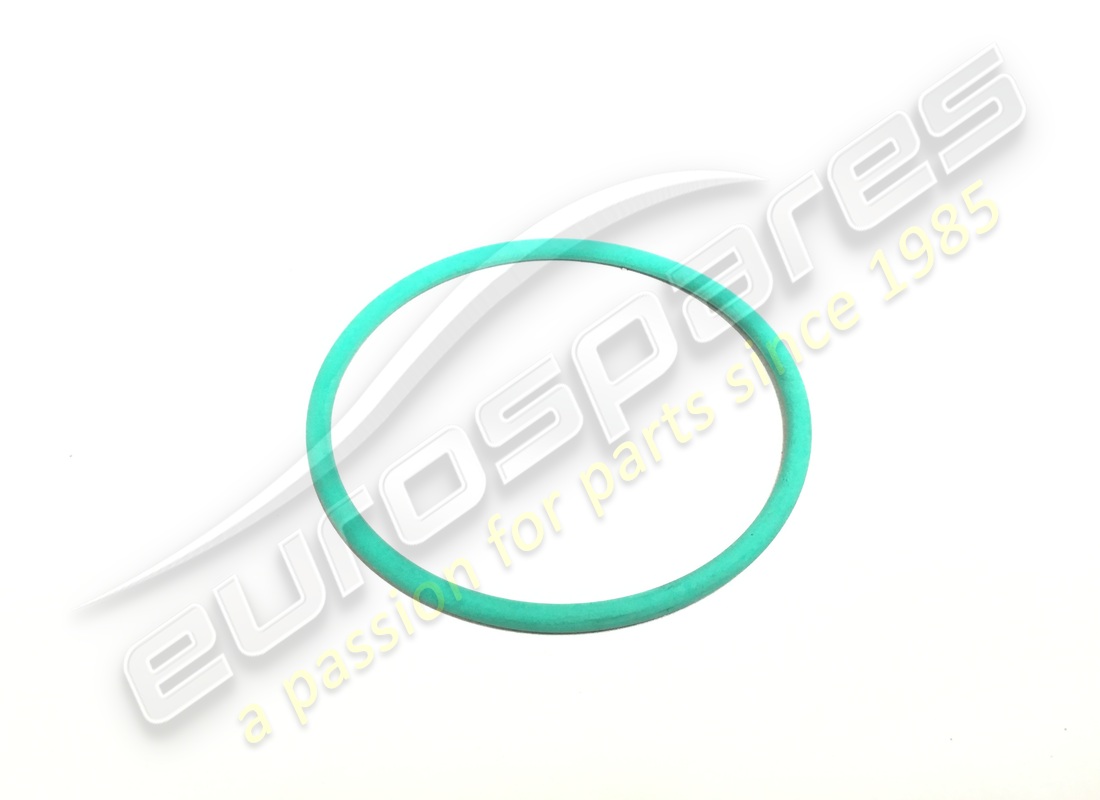

                                                                          MPN: 14458381
                                                                          RUBBER GASKET
                                                                          from £0.70
                                                                          from £0.70
                                                                          O-RING TYPE GASKET 32.99X2. Genuine Maserati Part - New (to order)
                                                                          O-RING TYPE GASKET 32,99X2, Genuine Ferrari Part - New (to order)
                                                                          # 036
                                                                          MPN: 169020406
                                                                          WASHER
                                                                          from £0.77
                                                                          from £0.77
                                                                          FLAT WASHER Genuine Maserati Part - New In stock
