maserati qtp v8 (1998) auxiliary services vacuum system (lhd) parts diagram

011GS - Auxiliary Services Vacuum System (LHD)

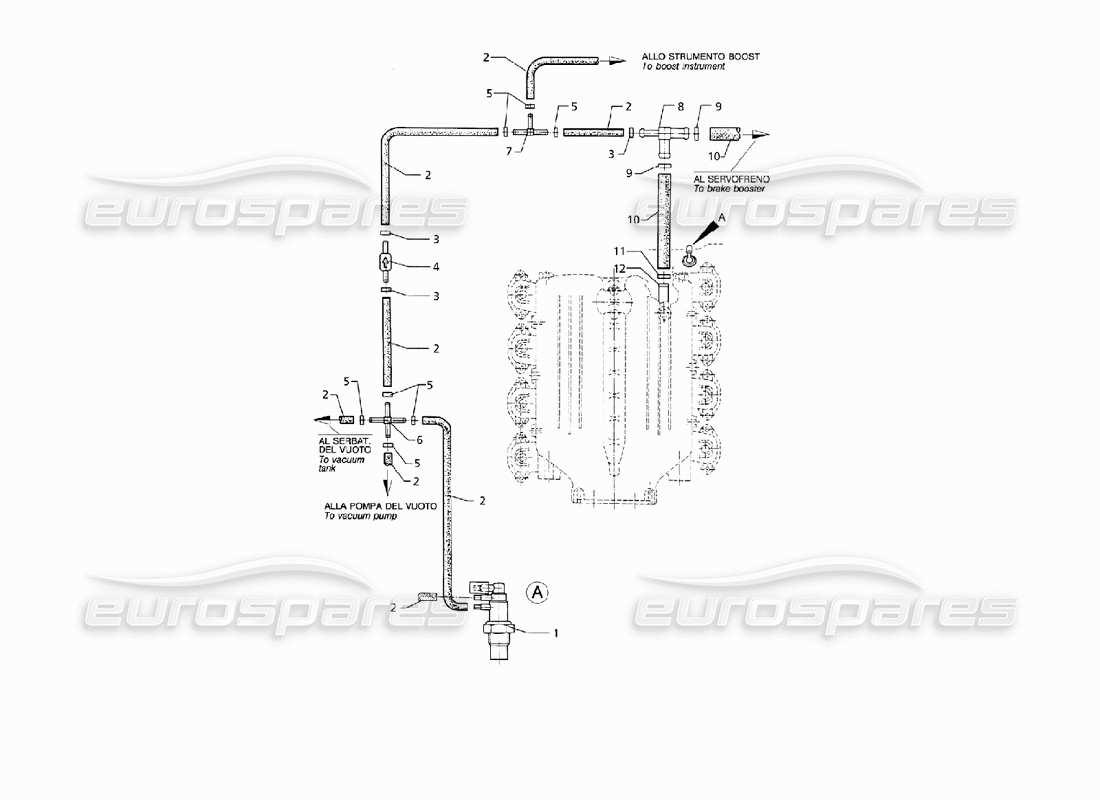

Maserati QTP V8 (1998) Auxiliary Services Vacuum System (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 312030127
                      SWITCH
                      from £20.25
                      from £20.25
                      COMPLETE INTERRUTTORE X VUOTO Genuine Maserati Part - New (to order)
                      # 002
                      MPN: 300100803
                      SLEEVE
                      - Section in metres - order minimum amount of 10 m or multiples
                      from £54.96
                      from £54.96
                      This part replaces part number 318720329
                      RUBBER HOSE E 2F-10 8X3.5 9AT4 Genuine Maserati Part - New (to order)
                      # 003
                      MPN: 312050310
                      CLAMP
                      from £1.08
                      from £1.08
                      CLICK CLAMP 55080 Genuine Maserati Part - New (to order)
                      # 004
                      MPN: 315520169
                      CHECK VALVE
                      from £6.98
                      from £6.98
                      CHECK VALVE Genuine Maserati Part - New (to order)
                      # 006
                      MPN: 312030422
                      UNION
                      from £0.99
                      from £0.99
                      4-WAY UNION-KS 4 Genuine Maserati Part - New (to order)
                      # 007
                      MPN: 312030448
                      T-UNION
                      from £0.56
                      from £0.56
                      3-WAY UNION TS4 Genuine Maserati Part - New In stock
                      # 008
                      MPN: 312020337
                      T-UNION
                      from £18.25
                      from £18.25
                      3-WAY UNION Genuine Maserati Part - New (to order)
                      # 009
                      MPN: 312020404
                      CLAMP
                      from £4.17
                      from £4.17
                      CLAMP VISA-CV220 Genuine Maserati Part - New (to order)
                      # 010
                      MPN: 95742
                      SLEEVE
                      - Section in metres - order minimum amount of 10 m or multiples
                      from £10.43
                      from £10.43
                      This part replaces part number 312048302 - and 5 more. Click to view details
                      AEROQUIP FUEL PIPE 19.1X1X12.7 Genuine Maserati Part - New (to order)
                      # 012
                      MPN: 479008900
                      SLEEVE
                      from £20.92
                      from £20.92
                      UNION Genuine Maserati Part - New (to order)
