012.1 - turbo cooling pipes

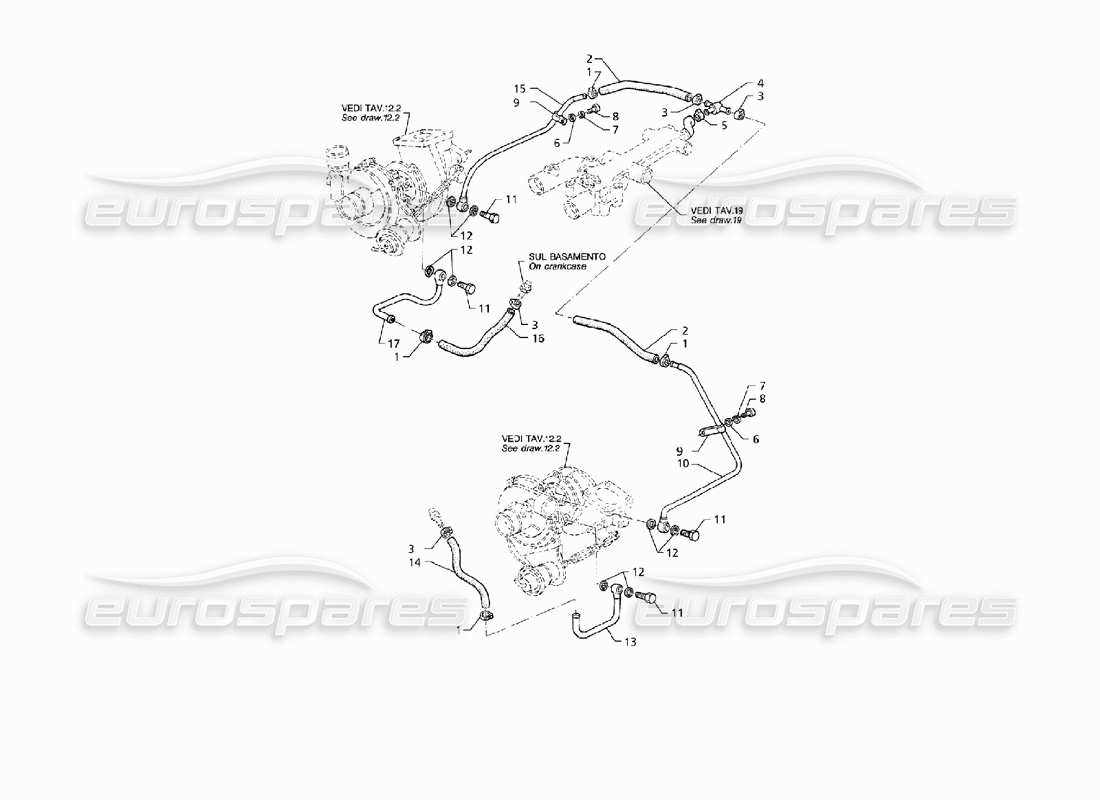

Maserati QTP V8 (1998) Turbo Cooling Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 002
                                  MPN: 452369701
                                  SLEEVE
                                  from £13.04
                                  from £13.04
                                  TUBO MANDATA ACQUA SX Genuine Maserati Part - New (to order)
                                  # 003
                                  MPN: 312020404
                                  CLAMP
                                  from £4.17
                                  from £4.17
                                  CLAMP VISA-CV220 Genuine Maserati Part - New (to order)
                                  # 004
                                  MPN: 312020407
                                  T-UNION
                                  from £70.82
                                  from £70.82
                                  3-WAY UNION Genuine Maserati Part - New In stock
                                  # 005
                                  MPN: 312020410
                                  CLAMP
                                  from £2.16
                                  from £2.16
                                  CLAMP VISA CV250 Genuine Maserati Part - New In stock
                                  # 006
                                  MPN: 312220411
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  ROSETTA Genuine Maserati Part - New (to order)
                                  # 008
                                  MPN: 108006012
                                  SCREW
                                  from £0.54
                                  from £0.54
                                  VITE M6X1X12 Genuine Maserati Part - New (to order)
                                  # 009
                                  MPN: 312020433
                                  HOLDING CLAMP
                                  from £1.69
                                  from £1.69
                                  CLAMP Genuine Maserati Part - New In stock
                                  # 012
                                  MPN: 312020430
                                  GASKET
                                  (minimum order quantity = 10)
                                  from £0.74
                                  from £0.74
                                  GASKET Genuine Maserati Part - New In stock
                                  # 013
                                  MPN: 578360600
                                  LH WATER DELIVERY TUBE
                                  from £10.35
                                  from £10.35
                                  This part replaces part number 578361000 - and 1 more. Click to view details
                                  COMPLETE PIPE WATER DEL.FROM CRAN Genuine Maserati Part - New (to order)
                                  COMPLETE PIPE WATER DEL.FROM CRAN Genuine Maserati Part - Used In stock
                                  # 014
                                  MPN: 452369701
                                  SLEEVE
                                  from £13.04
                                  from £13.04
                                  TUBO MANDATA ACQUA SX Genuine Maserati Part - New (to order)
                                  # 016
                                  MPN: 392050409
                                  RH WATER DELIVERY SLEEVE
                                  Maserati PART 392050409 Genuine Maserati Part - New (to order)
                                  # 017
                                  MPN: 578360800
                                  RH WATER DELIVERY TUBE
                                  from £10.35
                                  from £10.35
                                  This part replaces part number 578361200 - and 1 more. Click to view details
                                  TUBO COMPLETE MAND.H2O DA BAS.A Genuine Maserati Part - New (to order)
                                  TUBO COMPLETE MAND.H2O DA BAS.A Genuine Maserati Part - Used In stock
