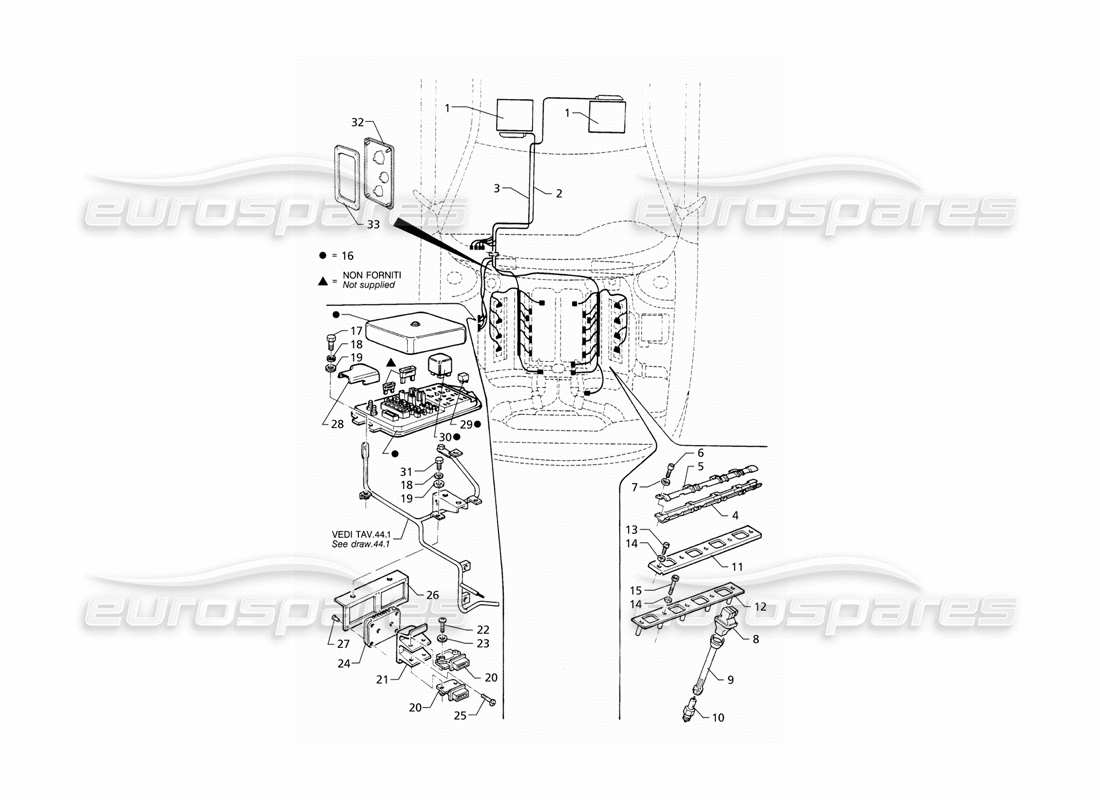

016GS - Ignition System (LHD)
Maserati QTP V8 (1998) Ignition System (LHD) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 373733149
CONTROL UNIT
- Valid for A.T. version - Specific for Japan
from £777.64
from £777.64
# 001
MPN: 578079500
CONTROL UNIT
- Valid for M.T. version
from £892.50
from £892.50
# 001
MPN: 578079510
CONTROL UNIT
- Valid for A.T. version
from £877.82
from £877.82
# 002
MPN: 373730106
RH INJECTION WIRING
from £415.61
from £415.61
# 003
MPN: 373730105
LH INJECTION WIRING
from £415.61
from £415.61
# 004
MPN: 393750318
HALF SHELL
# 005
MPN: 393750319
HALF SHELL
# 006
MPN: 108006030
ALLEN SCREW
# 007
MPN: 135900064
WASHER
from £0.47
from £0.47
# 008
MPN: 571084200
IGNITION COIL
from £62.63
from £62.63
This part replaces part number 571084201 - and 1 more. Click to view details
# 009
MPN: 571085101
EXTENSION
from £69.95
from £69.95

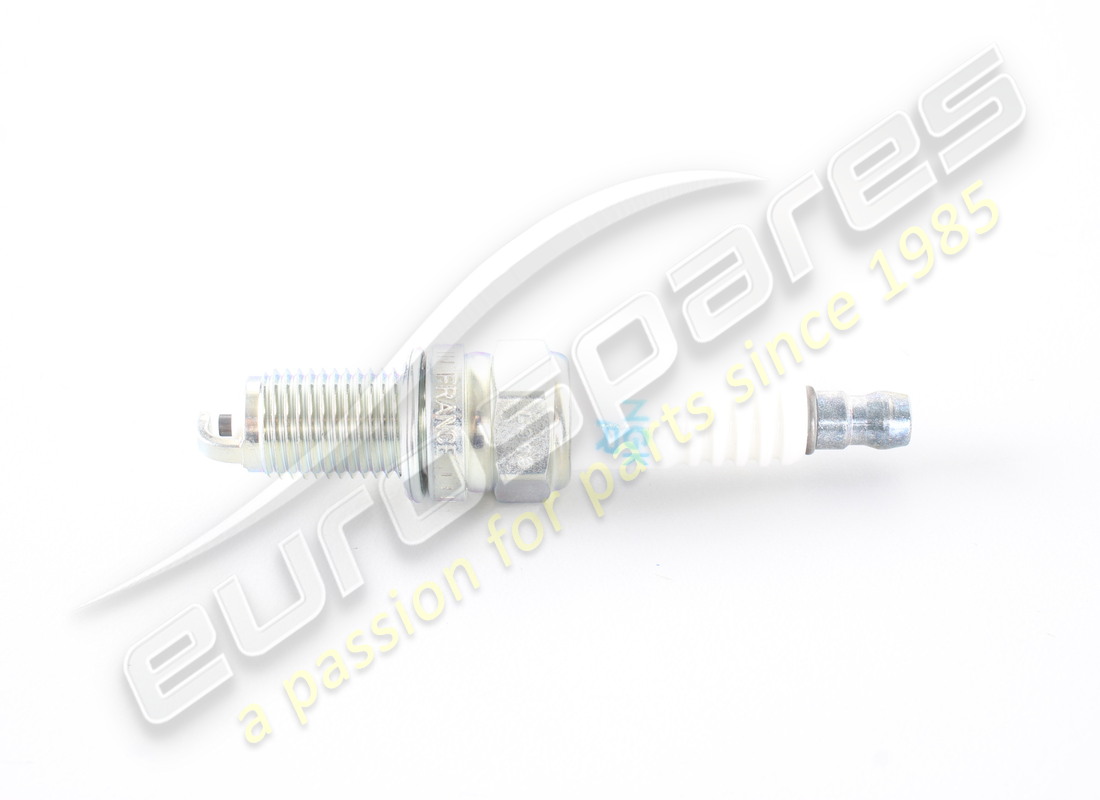

# 010
MPN: 313253225

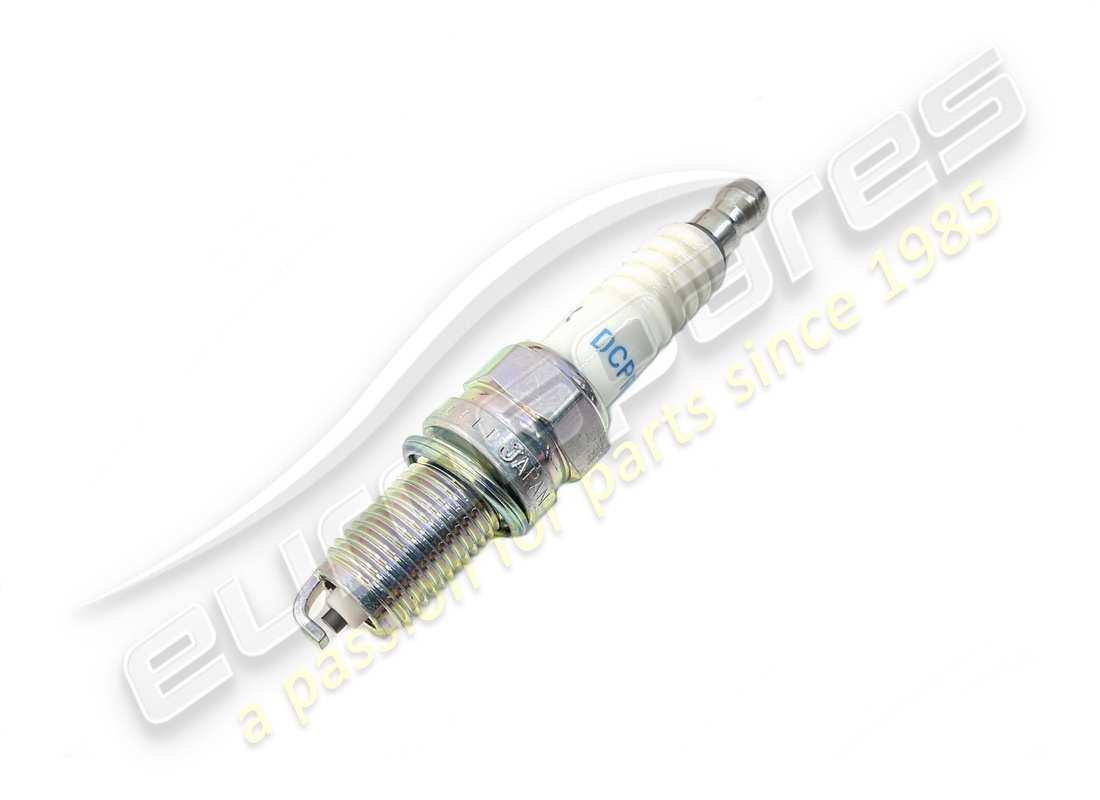

SPARK PLUG
from £6.40
from £6.40
This part replaces part number 97143
# 011
MPN: 578982000
TOP COILS SUPPORT
from £15.64
from £15.64
# 012
MPN: 578982700
BOTTOM COILS SUPPORT
from £26.25
from £26.25
# 013
MPN: 108006012
ALLEN SCREW
from £0.54
from £0.54
# 014
MPN: 84157
SPRING WASHER
Supersession
Supersession
# 015
MPN: 95988
ALLEN SCREW

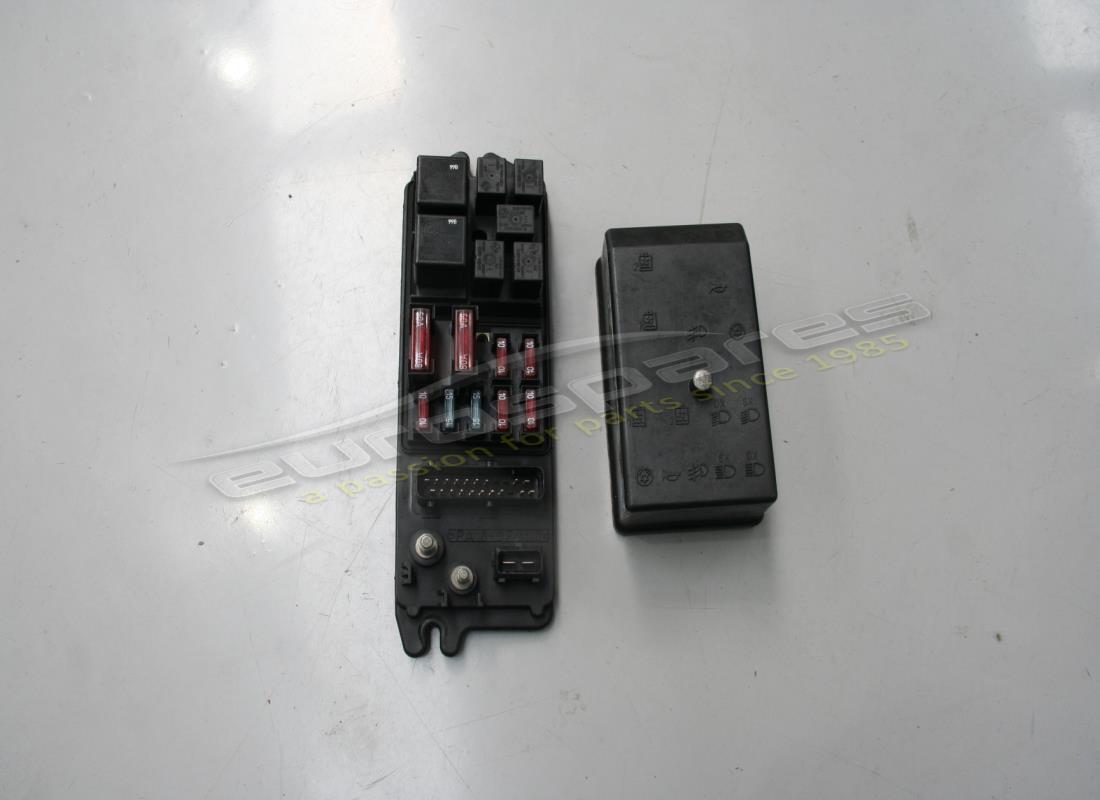

# 016
MPN: 373330178
CONTROL UNIT
from £288.00
from £288.00
# 017
MPN: 101206022
SCREW
# 018
MPN: 138410060
SPRING WASHER
# 019
MPN: 135000064
FLAT WASHER
# 020
MPN: 393250107
POWER MODULE
from £57.75
from £57.75
# 021
MPN: 393250303
MODULES SUPPORT
from £5.99
from £5.99
# 022
MPN: 112804020
SCREW
# 023
MPN: 135300043
WASHER
# 024
MPN: 393250302
HEAT SINK
from £13.09
from £13.09
This part replaces part number 393250106
# 025
MPN: 119148220
SELF-THREADING SCREW
from £1.07
from £1.07
# 026
MPN: 373230119
SUPPORT
from £3.69
from £3.69
# 027
MPN: 164354090
RIVET
# 028
MPN: 373330308
GNDING POINTS COVER
from £1.52
from £1.52
# 029
MPN: 373330139
20A MICRORELAY
from £4.02
from £4.02
# 030
MPN: 373330188
50A RELAY
Supersession
Supersession
# 031
MPN: 101206016
SCREW
# 032
MPN: 373000105
PLATE
from £4.11
from £4.11
# 033
MPN: 373000329
GASKET
from £1.07
from £1.07
