maserati qtp v8 (1998) front exhaust system parts diagram

024 - Front Exhaust System

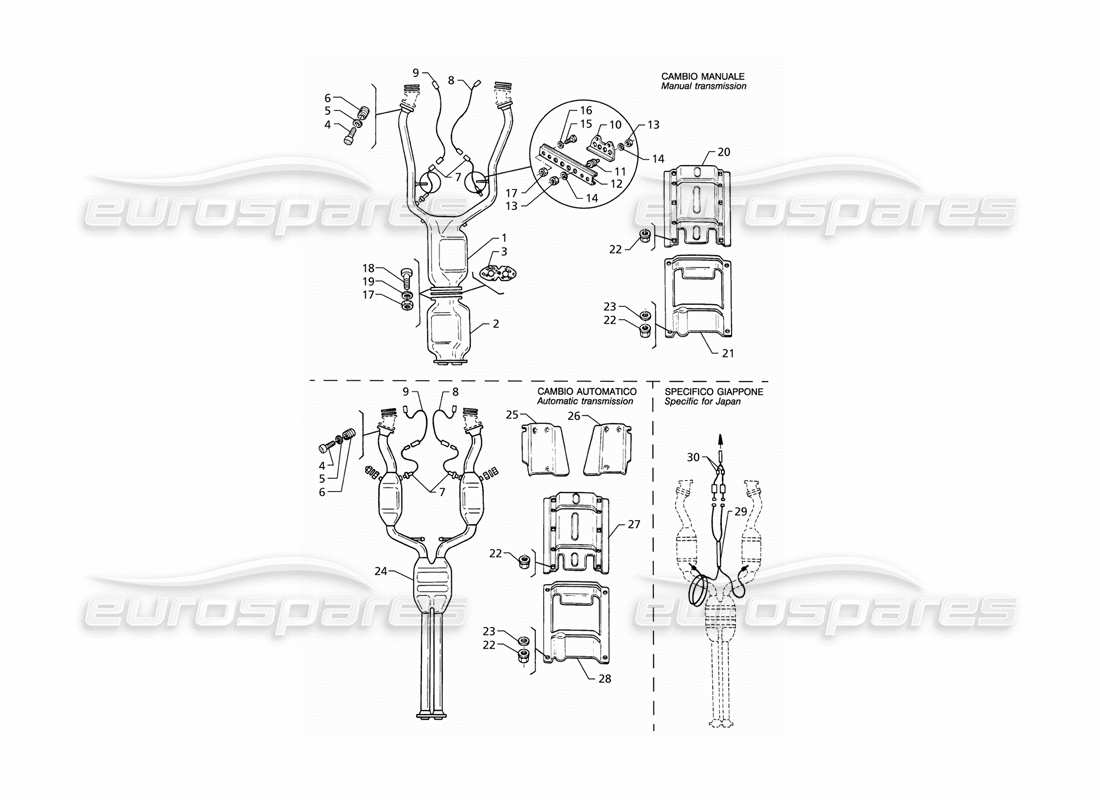

Maserati QTP V8 (1998) Front Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  MPN: 379040104
                  CATALYSED FRONT PIPE
                  - Valid for M.T. version
                  from £1,688.73
                  from £1,688.73
                  This part replaces part number 379030104
                  COMPLETE FRONT MANIFOLD,3.2. MAN. Genuine Maserati Part - New (to order)
                  # 002
                  MPN: 379001105
                  CATALYSED CENTRE PIPE
                  - Valid for M.T. version
                  from £637.19
                  from £637.19
                  This part replaces part number 369001105
                  CENTRAL CATALYST CONVERTER, THICK: 15MM Genuine Maserati Part - New (to order)
                  # 003
                  MPN: 369000343
                  GASKET
                  - Valid for M.T. version
                  from £4.63
                  from £4.63
                  GASKET Genuine Maserati Part - New (to order)
                  # 004
                  MPN: 349000301
                  ALLEN SCREW
                  from £3.16
                  from £3.16
                  VITE A BRUGOLA D. 10X1.5X52 Genuine Maserati Part - New (to order)
                  # 005
                  MPN: 14496601
                  WASHER
                  Supersession
                  Supersession
                  Genuine Maserati Part (no longer available to order)
                  Genuine Ferrari Part (no longer available to order)
                  # 006
                  MPN: 319030313
                  SPRING
                  from £1.41
                  from £1.41
                  CENTRAL CATALYST TEN. SPRING Genuine Maserati Part - New (to order)
                  # 007
                  MPN: 473082340
                  LAMBDA SENSOR
                  from £489.53
                  from £489.53
                  OXYGEN SENSOR NTK -2800 USA-CH- Genuine Maserati Part - New In stock
                  OXYGEN SENSOR NTK -2800 USA-CH- Genuine Maserati Part - Used In stock
                  # 008
                  MPN: 393750108
                  RH SIDE LAMBDA SENSOR EXTENSION
                  from £18.70
                  from £18.70
                  EXTENSION Genuine Maserati Part - New (to order)
                  # 009
                  MPN: 393750111
                  LH SIDE LAMBDA SENSOR EXTENSION
                  from £15.89
                  from £15.89
                  PROLUNGA SONDA LAMBDA SX Genuine Maserati Part - New (to order)
                  # 010
                  MPN: 379000338
                  UPPER PLATE
                  - Valid for M.T. version
                  from £5.57
                  from £5.57
                  FRONT PLATE FOR INTAKE MANIF. MOU Genuine Maserati Part - New (to order)
                  # 011
                  MPN: 324853120
                  SPRING SUPPORT
                  - Valid for M.T. version
                  from £11.28
                  from £11.28
                  This part replaces part number 314855119 - and 1 more. Click to view details
                  GEARBOX MOUNT Genuine Maserati Part - New (to order)
                  # 012
                  MPN: 379000339
                  LOWER CROSS BEAM
                  - Valid for M.T. version
                  from £5.57
                  from £5.57
                  REAR PLATE FOR MANIFOLD MOUNT Genuine Maserati Part - New (to order)
                  # 013
                  MPN: 128350080
                  STOP NUT
                  - Valid for M.T. version
                  Supersession
                  Supersession
                  Genuine Maserati Part (no longer available to order)
                  # 014
                  MPN: 369000341
                  FLAT WASHER
                  - Valid for M.T. version
                  from £1.08
                  from £1.08
                  WASHER Genuine Maserati Part - New (to order)
                  # 015
                  MPN: 101208020
                  SCREW
                  - Valid for M.T. version
                  Maserati PART 101208020 Genuine Maserati Part - New (to order)
                  # 016
                  MPN: 163020080
                  WASHER
                  - Valid for M.T. version
                  from £1.08
                  from £1.08
                  FLAT WASHER Genuine Maserati Part - New (to order)
                  # 017
                  MPN: 14058519
                  COPPER COVERED NUT
                  - Valid for M.T. version
                  from £0.52
                  from £0.52
                  This part replaces part number 312051309 which we have in stock
                  NUT. Genuine Maserati Part - New (to order)
                  NUT Genuine Ferrari Part - New In stock
                  # 018
                  MPN: 108008045
                  ALLEN SCREW
                  - Valid for M.T. version
                  Maserati PART 108008045 Genuine Maserati Part - New (to order)
                  # 019
                  MPN: 135100084
                  WASHER
                  - Valid for M.T. version
                  Maserati PART 135100084 Genuine Maserati Part - New (to order)
                  # 020
                  MPN: 379000118
                  FRONT BULKHEAD
                  - Valid for M.T. version
                  from £88.52
                  from £88.52
                  BULKHEAD Genuine Maserati Part - New (to order)
                  # 021
                  MPN: 379000137
                  CENTRE BULKHEAD
                  - Valid for M.T. version
                  from £33.43
                  from £33.43
                  PARATIA POSTERIORE PER CATAL Genuine Maserati Part - New (to order)
                  # 023
                  MPN: 135100064
                  FLAT WASHER
                  from £1.08
                  from £1.08
                  RONDELLA D 6,4X12X1 Genuine Maserati Part - New (to order)
                  # 024
                  MPN: 379031104
                  CATALYSED TUBING
                  - Valid for A.T. version - Excluding Japan
                  from £2,682.63
                  from £2,682.63
                  CATALIZZATORE ANT.C.A. Genuine Maserati Part - New (to order)
                  # 024
                  MPN: 379032104
                  CATALYSED TUBING
                  - Valid for A.T. version - Specific for Japan
                  from £2,382.35
                  from £2,382.35
                  MANIFOLD Genuine Maserati Part - New (to order)
                  # 025
                  MPN: 379031201
                  FRONT LH BULKHEAD
                  - Valid for A.T. version
                  from £58.97
                  from £58.97
                  LH BULKHEAD Genuine Maserati Part - New (to order)
                  LH BULKHEAD Genuine Maserati Part - Used In stock
                  # 026
                  MPN: 379031200
                  FRONT RH BULKHEAD
                  - Valid for A.T. version
                  from £58.97
                  from £58.97
                  FRONT EXHAUST RH GUARD Genuine Maserati Part - New (to order)
                  FRONT EXHAUST RH GUARD Genuine Maserati Part - Used In stock
                  # 027
                  MPN: 379031118
                  CENTRE BULKHEAD
                  - Valid for A.T. version
                  from £35.08
                  from £35.08
                  REAR RH GUARD 8 CYL. Genuine Maserati Part - New (to order)
                  REAR RH GUARD 8 CYL. Genuine Maserati Part - Used In stock
                  # 028
                  MPN: 379031137
                  REAR BULKHEAD
                  - Valid for A.T. version
                  from £43.34
                  from £43.34
                  SHIELD Genuine Maserati Part - New (to order)
                  # 029
                  MPN: 363309175
                  THERMOCOUPLE
                  - Valid for A.T. version - Specific for Japan
                  from £237.19
                  from £237.19
                  THERMAL SWITCH Genuine Maserati Part - New (to order)
                  # 030
                  MPN: 363309174
                  CONTROL UNIT
                  - Valid for A.T. version - Specific for Japan
                  from £151.40
                  from £151.40
                  CONTROL UNIT Genuine Maserati Part - New (to order)
