maserati qtp v8 (1998) fixed windows parts diagram

051 - Fixed Windows

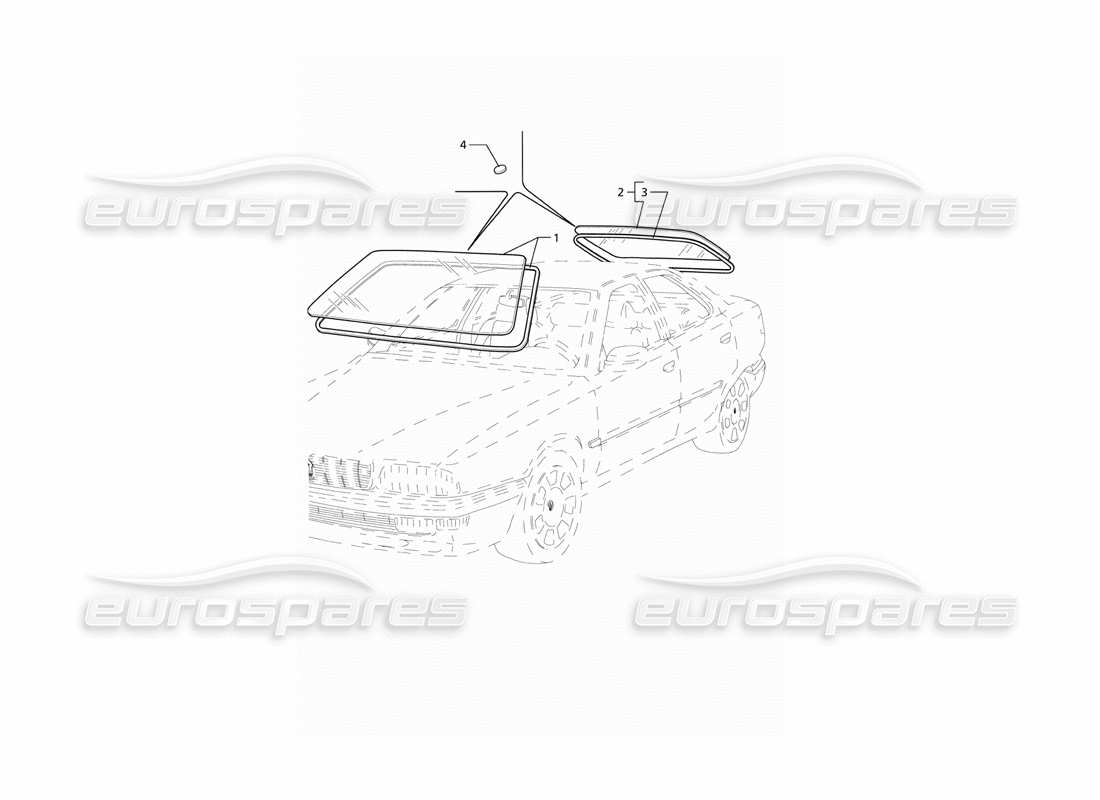

Maserati QTP V8 (1998) Fixed Windows Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 377700075
        WINDSCREEN ASSY COMPLETE WITH FRAME
        from £1,577.95
        from £1,577.95
        # 002
        MPN: 377700077
        REAR WINDOW GLASS WITH SEAL
        from £495.50
        from £495.50
        # 003
        MPN: 378700394
        REAR WINDOW SEAL
        - Section in metres - order minimum amount of 4 m or multiples
        from £4.64
        from £4.64
        # 004
        MPN: 313120305
        RUBBER SPACER
        from £2.36
        from £2.36
