maserati qtp v8 (1998) audio system parts diagram

059.2 - Audio System

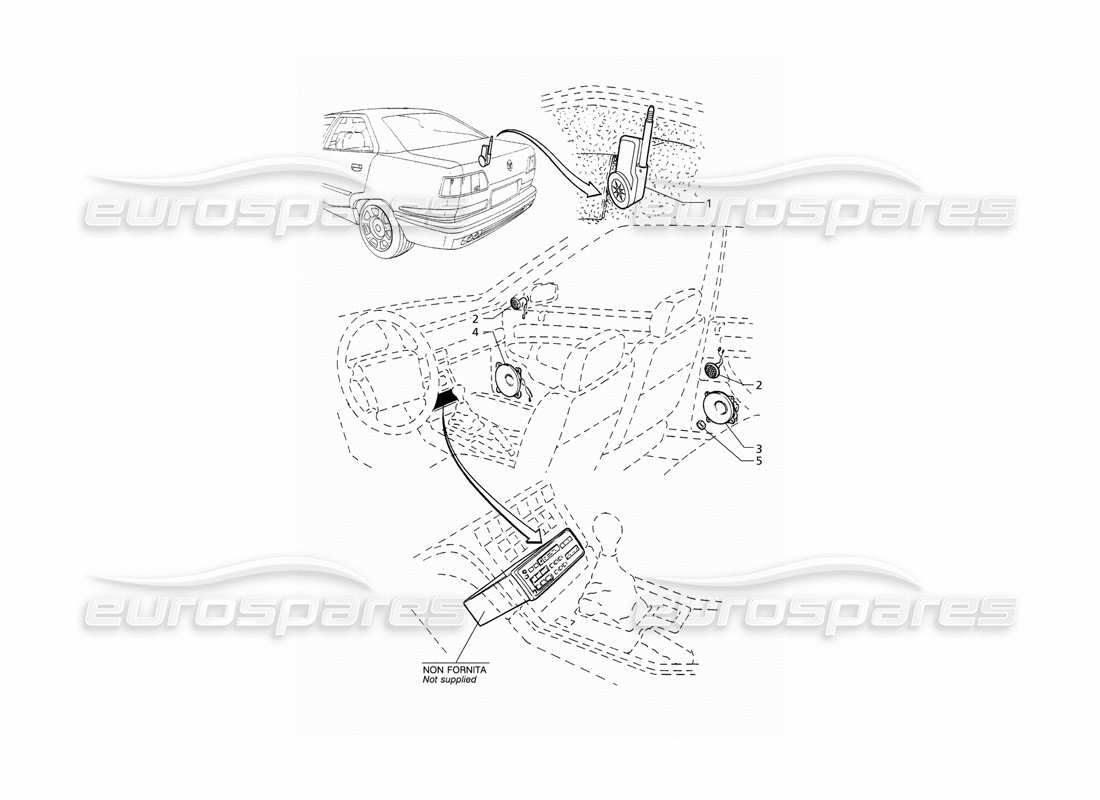

Maserati QTP V8 (1998) Audio System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 373500100
            ELECTRICAL AERIAL
            from £459.32
            from £459.32
            # 002
            MPN: 373500118
            TWEETER SPEAKER
            from £13.83
            from £13.83
            # 003
            MPN: 373500116
            WOOFER SPEAKER
            from £15.15
            from £15.15
            # 004
            MPN: 373500115
            WOOFER SPEAKER
            from £19.75
            from £19.75
