008.1 - timing control

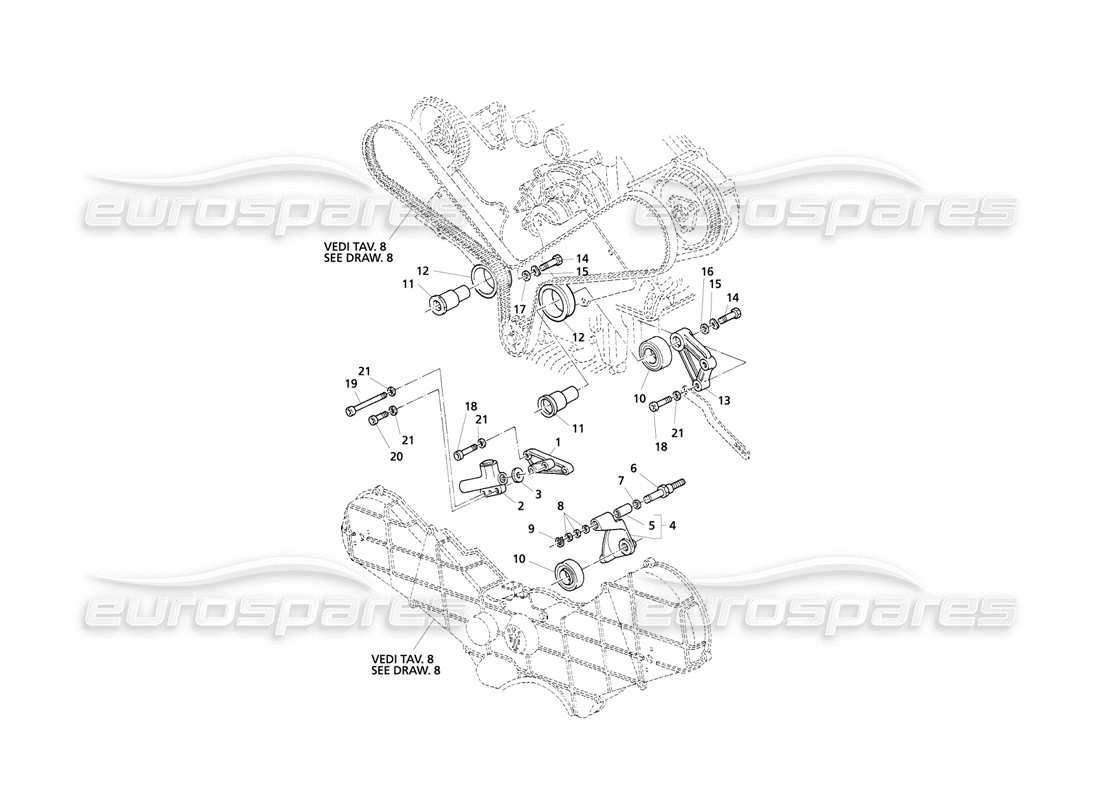

Maserati QTP V8 Evoluzione Timing Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 479038002
TENSIONER SUPPORT
from £9.29
from £9.29
# 002
MPN: 479034800

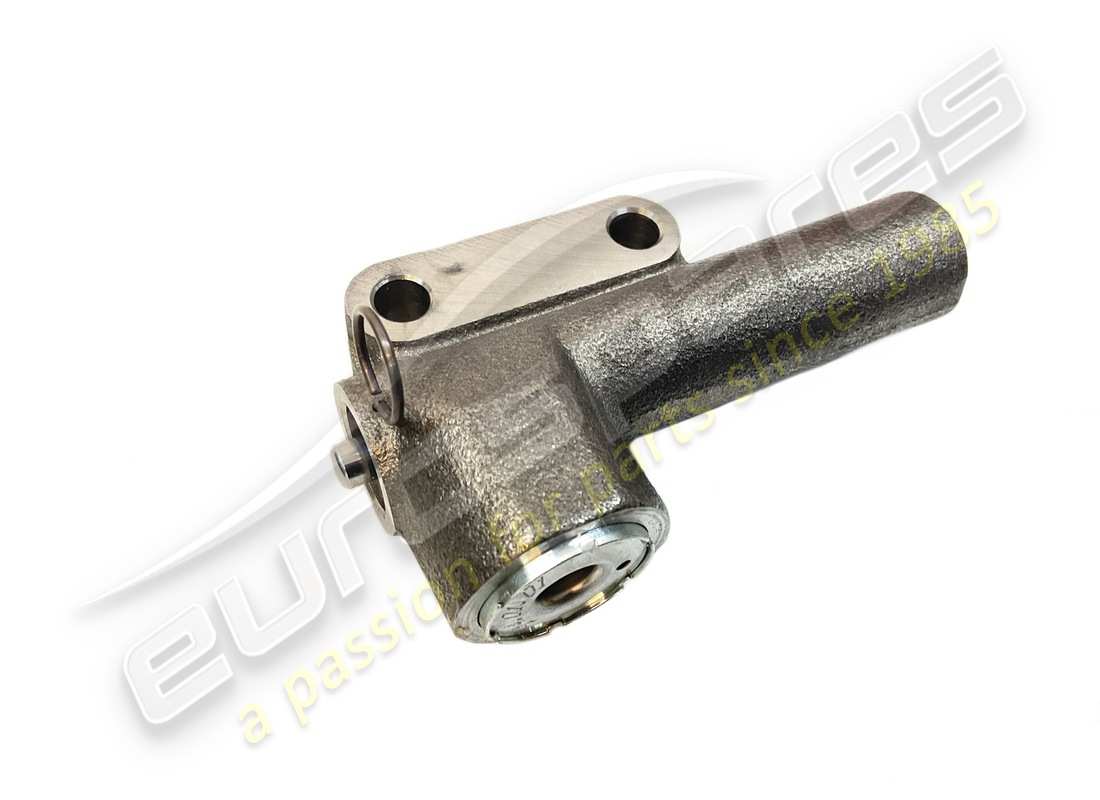

HYDRAULIC TENSIONER
from £572.91
from £572.91
This part replaces part number 311053362 - and 1 more. Click to view details
# 003
MPN: 479031101
3 MM ALUMINIUM SHIM
from £2.01
from £2.01
# 004
MPN: 391050110
belt tensioner
from £40.50
from £40.50
# 005
MPN: 470037700
BUSH
from £9.25
from £9.25
This part replaces part number 311020336
# 006
MPN: 470037600
PIN
from £27.76
from £27.76
This part replaces part number 311020343
# 007
MPN: 96789
2 MM SHIM
from £1.63
from £1.63
This part replaces part number 135200120
# 008
MPN: 311020320
SHIM
from £1.31
from £1.31
# 009
MPN: 11066070
STOP RING
from £0.77
from £0.77
# 010
MPN: 311020107
TIMING BEARING
from £99.75
from £99.75
# 011
MPN: 321053343
PIN
from £63.30
from £63.30
This part replaces part number 311053343
# 012
MPN: 311020350
BEARING COVER
from £56.75
from £56.75
# 013
MPN: 479033800
FIXED SUPPORT
from £45.00
from £45.00
# 014
MPN: 16043421
SCREW
from £2.69
from £2.69
This part replaces part number 16043411
# 015
MPN: 12604470
SPRING WASHER
from £0.93
from £0.93
# 016
MPN: 452013301
FLAT WASHER
from £34.09
from £34.09
This part replaces part number 95316
# 017
MPN: 12628920
FLAT WASHER
from £1.85
from £1.85
# 018
MPN: 311020320
ALLEN SCREW
from £1.31
from £1.31
# 019
MPN: 14359321
ALLEN SCREW
from £1.31
from £1.31
# 020
MPN: 14306520
ALLEN SCREW
from £1.31
from £1.31
# 021
MPN: 12604470
FLAT WASHER
from £0.88
from £0.88
