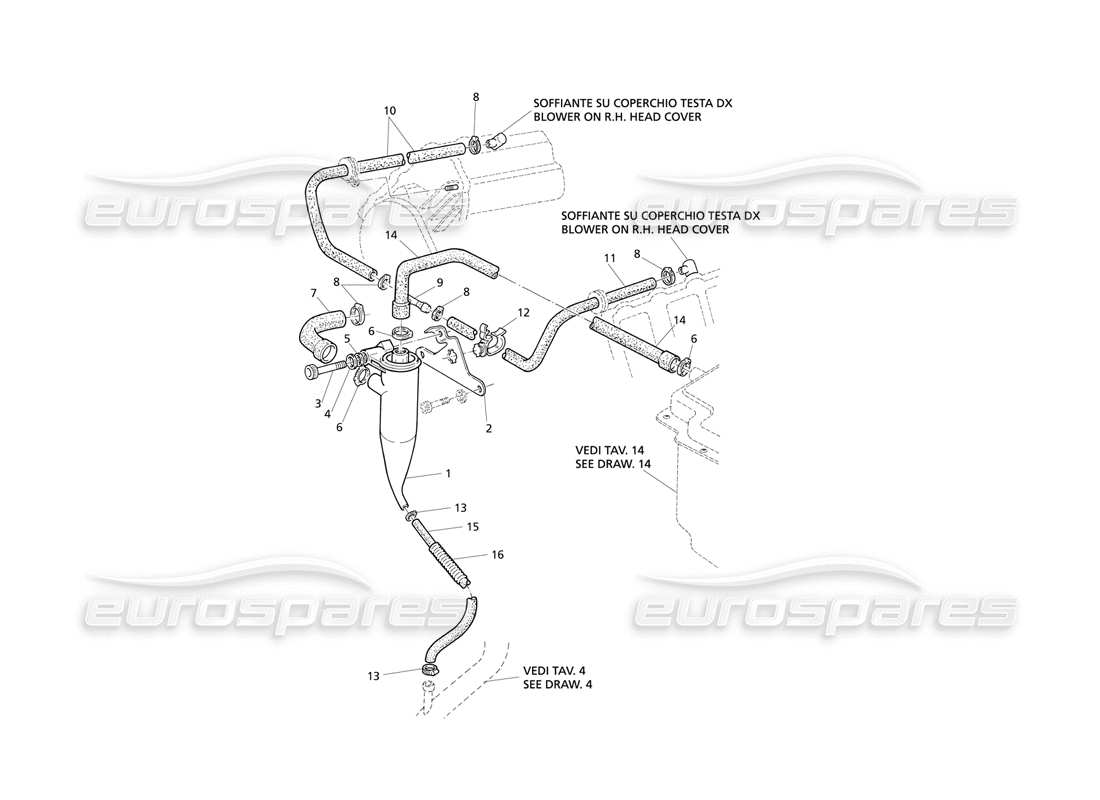

014.1 - Oil Vapour Recovery

Maserati QTP V8 Evoluzione Oil Vapour Recovery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 372431100
                              oil separator
                              from £24.82
                              from £24.82
                              # 002
                              MPN: 372431300
                              SEPARATOR SUPPORT
                              from £5.27
                              from £5.27
                              # 003
                              MPN: 14306921
                              ALLEN SCREW
                              from £0.71
                              from £0.71
                              # 004
                              MPN: 10571779
                              SPLIT WASHER
                              from £0.47
                              from £0.47
                              # 005
                              MPN: 312225445
                              FLAT WASHER
                              from £0.77
                              from £0.77
                              # 006
                              MPN: 186402028
                              CLAMP
                              from £1.55
                              from £1.55
                              # 007
                              MPN: 372430308
                              TUBE
                              from £6.54
                              from £6.54
                              # 008
                              MPN: 312030442
                              SNAP CLAMP
                              Supersession
                              Supersession
                              # 009
                              MPN: 97594
                              T UNION
                              from £2.32
                              from £2.32
                              # 010
                              MPN: 372430304
                              RH TUBE
                              from £6.20
                              from £6.20
                              # 011
                              MPN: 372430305
                              LH TUBE
                              from £5.91
                              from £5.91
                              # 012
                              MPN: 98061
                              LH TUBE SUPPORT
                              Supersession
                              Supersession
                              # 013
                              MPN: 13000390
                              CLAMP
                              from £0.53
                              from £0.53
                              This part replaces part number 13121170 - and 1 more. Click to view details
                              # 015
                              MPN: 19057089
                              OIL DRAINAGE TUBE
                              - Section in meters - order minimum amount of 1 m
                              from £25.24
                              from £25.24
                              This part replaces part number 317832385
                              # 016
                              MPN: 318720333
                              CORRUGATED TUBE
                              - Section in meters - order minimum amount of 1 m
                              from £5.14
                              from £5.14
