028 - AUTOMATIC TRANSMISSION

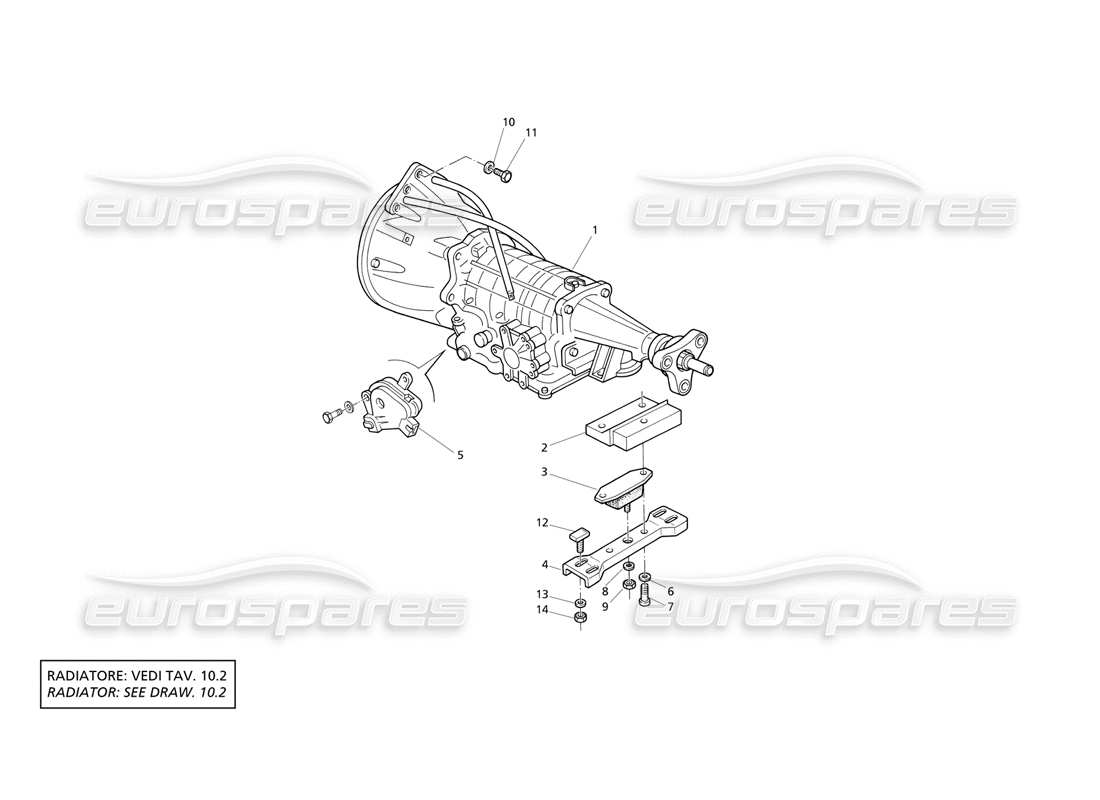

Maserati QTP V8 Evoluzione Automatic Transmission Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 374831009
COMPLETE TRANSMISSION
- Valid for A.T. version
from £1,044.75
from £1,044.75
# 002
MPN: 384805012
DAMPER
- Valid for A.T. version
from £63.50
from £63.50
This part replaces part number 374891127 - and 1 more. Click to view details
# 003
MPN: 374831121
PAD
- Valid for A.T. version
from £79.67
from £79.67
# 004
MPN: 374831308
SUPPORT
- Valid for A.T. version
from £6.86
from £6.86
# 005
MPN: 372931200
START ENABLE POTENTIOMETER
- Valid for A.T. version
from £109.83
from £109.83
# 006
MPN: 11190779
SPRING WASHER
- Valid for A.T. version
from £0.47
from £0.47
# 007
MPN: 384805385
SCREW
- Valid for A.T. version
from £1.55
from £1.55
# 008
MPN: 11190779
SPRING WASHER
- Valid for A.T. version
from £0.47
from £0.47
# 009
MPN: 12577511
SELF LOCKING NUT
- Valid for A.T. version
from £1.31
from £1.31
This part replaces part number 127900120
# 010
MPN: 12604579
WASHER
- Valid for A.T. version
from £0.65
from £0.65
# 011
MPN: 14420421
SCREW
- Valid for A.T. version
from £1.55
from £1.55
# 012
MPN: 314820303
SCREW
- Valid for A.T. version
from £12.44
from £12.44
# 013
MPN: 163020080
FLAT WASHER
- Valid for A.T. version
from £1.08
from £1.08
# 014
MPN: 314632309
SELF LOCKING NUT
- Valid for A.T. version
Supersession
Supersession
This part replaces part number 128350080
