042 - ABS Hydraulic Brake Lines (LHD)

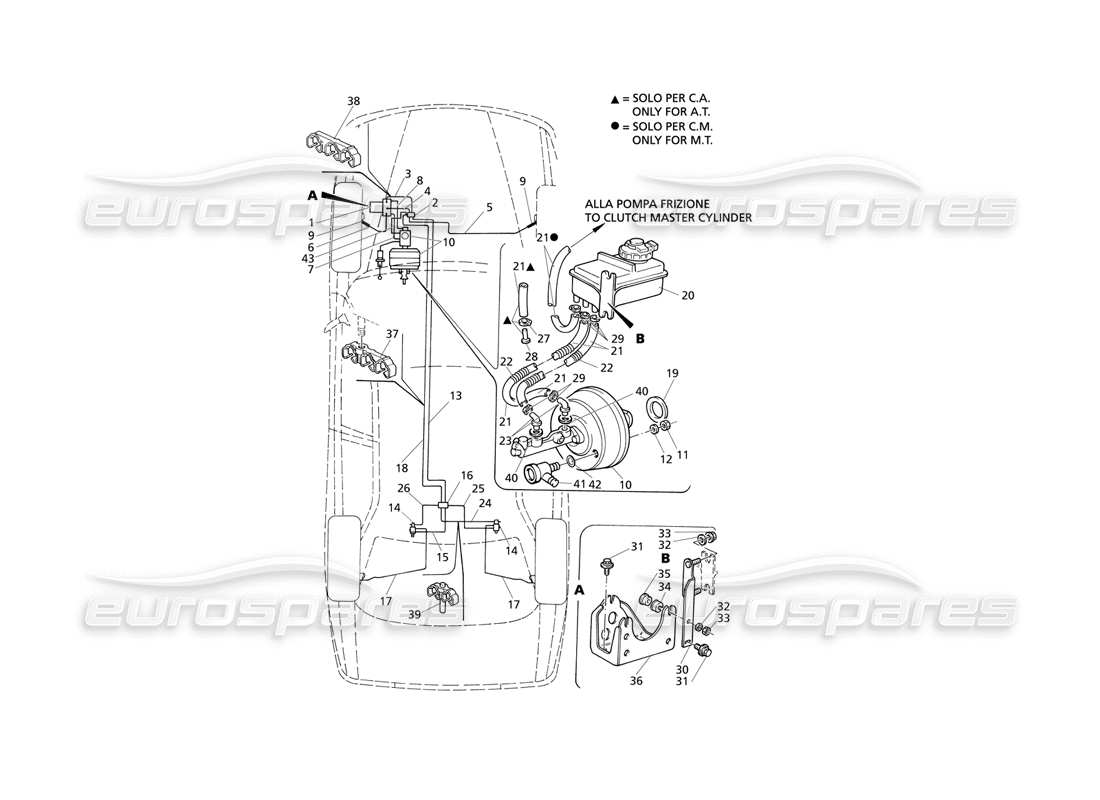

Maserati QTP V8 Evoluzione ABS Hydraulic Brake Lines (LHD) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 373830315
A.B.S. UNIT
from £472.50
from £472.50
This part replaces part number 185076 - and 1 more. Click to view details
# 002
MPN: 377401325
TUBE BRANCHING BLOCK
from £35.66
from £35.66
# 003
MPN: 377401149
RETURN TUBE FROM BLOCK
from £12.26
from £12.26
# 004
MPN: 377401144
DELIVERY TUBE TO BLOCK
from £11.76
from £11.76
# 005
MPN: 367402146
FRONT RH BRAKE CONNECTING TUBE
from £18.11
from £18.11
# 006
MPN: 377401143
FRONT LH BRAKE CONNECTING TUBE
from £14.73
from £14.73
This part replaces part number 377430143
# 007
MPN: 377401140
FRONT BRAKE UNIT PUMP CONNECTING TUBE
from £15.71
from £15.71
# 008
MPN: 377401142
REAR BRAKE UNIT PUMP CONNECTING TUBE
from £15.23
from £15.23
# 009
MPN: 367402129
FRONT BRAKE HOSE
from £10.01
from £10.01
# 010
MPN: 377430112
BRAKE BOOSTER WITH MASTER CYLINDER
from £396.92
from £396.92
This part replaces part number 377400112 which we have in stock - and 2 more. Click to view details
# 011
MPN: 16100821
NUT
from £0.71
from £0.71
# 012
MPN: 12604470
WASHER
from £0.88
from £0.88
# 013
MPN: 377400161
DELIVERY TUBE TO REAR BRAKES
from £29.04
from £29.04
This part replaces part number 377400159
# 014
MPN: 367402336
BRAKE PROPORTIONING VALVE
from £106.88
from £106.88
# 015
MPN: 377400157
LH MANIFOLD BLOCK CONNECTING TUBE
from £10.78
from £10.78
# 016
MPN: 377400325
TUBE BRANCHING BLOCK
from £38.85
from £38.85
# 017
MPN: 377400155
REAR BRAKE HOSE
from £28.19
from £28.19
# 018
MPN: 377400162
RETUR TUBE TO BLOCK
from £29.04
from £29.04
# 019
MPN: 367402309
RING
from £1.55
from £1.55
# 020
MPN: 377430104
BRAKE FLUID RESERVOIR
Supersession
Supersession
# 021
MPN: 19026489
TUBE
- Section In meters
from £5.91
from £5.91
# 022
MPN: 377430314
PROTECTIVE SPRING
from £1.41
from £1.41
# 023
MPN: 377430319
UNION ON MASTER CYLINDER
from £13.13
from £13.13
# 024
MPN: 377400154
RH MANIFOLD BLOCK CONNECTING TUBE
from £14.44
from £14.44
# 025
MPN: 377400158
RH MANIFOLD BLOCK CONNECTING TUBE
from £12.75
from £12.75
# 026
MPN: 377400153
LH MANIFOLD BLOCK CONNECTING TUBE
from £11.13
from £11.13
# 027
MPN: 314022359
CLAMP
from £0.69
from £0.69
# 028
MPN: 479362500
PLUG
- Valid for A.T. version
from £2.32
from £2.32
# 029
MPN: 314022359
CLAMP
from £0.69
from £0.69
# 030
MPN: 377430157
BRAKE FLUID TANK SUPPORT BRACKET
from £0.77
from £0.77
# 031
MPN: 11730624
SCREW
from £0.52
from £0.52
# 032
MPN: 10523401
WASHER
from £0.51
from £0.51
# 033
MPN: 12575421
NUT
Supersession
Supersession
This part replaces part number 12575411
# 034
MPN: 363802316
CUP
# 035
MPN: 363802317
RUBBER BUFFER
from £1.08
from £1.08
# 036
MPN: 373830116
A.B.S. SUPPORT
from £29.29
from £29.29
# 037
MPN: 377400332
CLAMP
- As necessary
from £0.69
from £0.69
# 038
MPN: 377419334
CLAMP
- As necessary
from £1.55
from £1.55
# 039
MPN: 83012
CLAMP
- As necessary
from £0.69
from £0.69
# 040
MPN: 377400301
RING
from £1.89
from £1.89
# 041
MPN: 387405170
VALVE
from £2.25
from £2.25
# 042
MPN: 387400304
GASKET
from £2.32
from £2.32
# 043
MPN: 377401150
BLOCK PUMP CONNECTING TUBE
from £11.34
from £11.34
