maserati qtp. (2006) 4.2 lh cylinder head parts diagram

121 - LH cylinder head

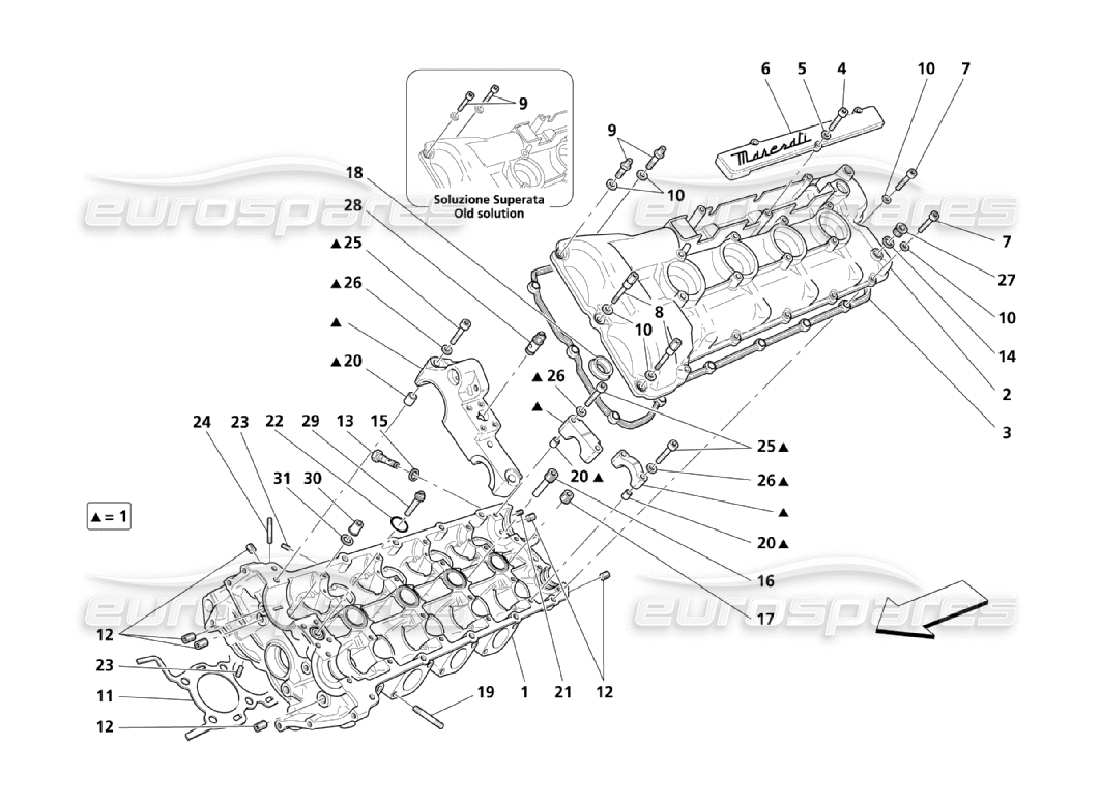

Maserati QTP. (2006) 4.2 LH Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 000
                                            MPN: 980020008
                                            TOP END GASKET SET
                                            from £510.84
                                            from £510.84
                                            # 001
                                            MPN: 217329
                                            COMPLETE LH HEAD
                                            Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274 - Valid till stock exhaustion
                                            Supersession
                                            Supersession
                                            # 001
                                            MPN: 218038
                                            COMPLETE LH HEAD
                                            Not for AUS and J - Not for cars GD opt. japan version
                                            from £1,554.74
                                            from £1,554.74
                                            This part replaces part number 217329
                                            # 001
                                            MPN: 218038
                                            COMPLETE LH HEAD
                                            Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                            from £1,554.74
                                            from £1,554.74
                                            This part replaces part number 217329
                                            # 002
                                            MPN: 216287
                                            LH CYLINDERS HEAD COVER
                                            Valid from engine Nr. 102269
                                            from £178.41
                                            from £178.41
                                            # 003
                                            MPN: 198928
                                            LH HEAD COVER GASKET
                                            Supplied also in the cover gasket revision kit (cod. 980020005 and 980020007)
                                            from £33.60
                                            from £33.60
                                            # 004
                                            MPN: 14304424
                                            SCREW
                                            from £0.52
                                            from £0.52
                                            # 005
                                            MPN: 14497878
                                            WASHER
                                            from £0.52
                                            from £0.52
                                            # 006
                                            MPN: 185313
                                            LH HARNESS SMALL COVER
                                            from £24.81
                                            from £24.81
                                            # 007
                                            MPN: 156830
                                            SCREW
                                            M 6X40
                                            from £0.57
                                            from £0.57
                                            # 007
                                            MPN: 157218
                                            SCREW
                                            M 6X25
                                            from £0.51
                                            from £0.51
                                            # 008
                                            MPN: 200414
                                            STUD
                                            M 6X25,5
                                            from £3.78
                                            from £3.78
                                            # 009
                                            MPN: 156828
                                            SCREW
                                            M 6X50 - Old solution
                                            from £2.13
                                            from £2.13
                                            # 009
                                            MPN: 187710
                                            STUD
                                            M 6X40
                                            from £6.72
                                            from £6.72
                                            # 009
                                            MPN: 187711
                                            STUD
                                            M 6X25
                                            from £52.12
                                            from £52.12
                                            # 009
                                            MPN: 209487
                                            SCREW
                                            M 6X32 - Old solution
                                            from £3.16
                                            from £3.16
                                            # 010
                                            MPN: 11197774
                                            WASHER
                                            from £0.52
                                            from £0.52
                                            # 011
                                            MPN: 184967
                                            LH HEAD GASKET
                                            Supplied also in the cylinder heads gasket revision kit (cod. 980020003)
                                            from £41.59
                                            from £41.59
                                            # 012
                                            MPN: 14326001
                                            THREADED PLUG
                                            from £0.50
                                            from £0.50
                                            # 013
                                            MPN: 180267
                                            OIL NONRETURN VALVE
                                            from £19.44
                                            from £19.44
                                            # 014
                                            MPN: 10263360
                                            GASKET
                                            from £0.54
                                            from £0.54
                                            # 015
                                            MPN: 10261060
                                            GASKET
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 274036
                                            # 016
                                            MPN: 183447
                                            THREADED PLUG
                                            from £4.63
                                            from £4.63
                                            # 017
                                            MPN: 164400
                                            THREADED PLUG
                                            from £2.16
                                            from £2.16
                                            # 018
                                            MPN: 187706
                                            GASKET
                                            Valid till engine Nr. 102268
                                            from £3.24
                                            from £3.24
                                            # 018
                                            MPN: 223982
                                            GASKET
                                            Valid from engine Nr. 102269 - Supplied also in the cover gasket revision kit (cod. 980020007)
                                            from £1.40
                                            from £1.40
                                            # 019
                                            MPN: 13543424
                                            STUD
                                            from £1.04
                                            from £1.04
                                            # 020
                                            MPN: 102725
                                            CENTERING DOWEL
                                            from £0.60
                                            from £0.60
                                            # 021
                                            MPN: 14326150
                                            THREADED PLUG
                                            from £0.53
                                            from £0.53
                                            # 022
                                            MPN: 134233
                                            O.R. GASKET
                                            Supplied also in the cover gasket revision kit (cod. 980020005 and 980020007)
                                            from £0.53
                                            from £0.53
                                            # 023
                                            MPN: 199760
                                            THREADED PLUG
                                            from £0.52
                                            from £0.52
                                            # 024
                                            MPN: 13541224
                                            STUD
                                            from £34.93
                                            from £34.93
                                            # 025
                                            MPN: 14305621
                                            SCREW
                                            M 6X35
                                            from £0.71
                                            from £0.71
                                            # 025
                                            MPN: 14305821
                                            SCREW
                                            M 6X40
                                            from £0.51
                                            from £0.51
                                            # 026
                                            MPN: 11197774
                                            WASHER
                                            from £0.51
                                            from £0.51
                                            # 027
                                            MPN: 187963
                                            PLUG
                                            from £3.63
                                            from £3.63
                                            # 028
                                            MPN: 184681
                                            OIL PRESSURE CHECK VALVE
                                            from £237.18
                                            from £237.18
                                            # 029
                                            MPN: 180266
                                            OIL FILTER
                                            Supplied also in the cover gasket revision kit (cod. 980020005 and 980020007)
                                            Supersession
                                            Supersession
                                            # 030
                                            MPN: 183524
                                            NUT
                                            from £1.20
                                            from £1.20
                                            # 031
                                            MPN: 151117
                                            WASHER
                                            from £0.31
                                            from £0.31
                                            This part replaces part number 300266 - and 1 more. Click to view details
