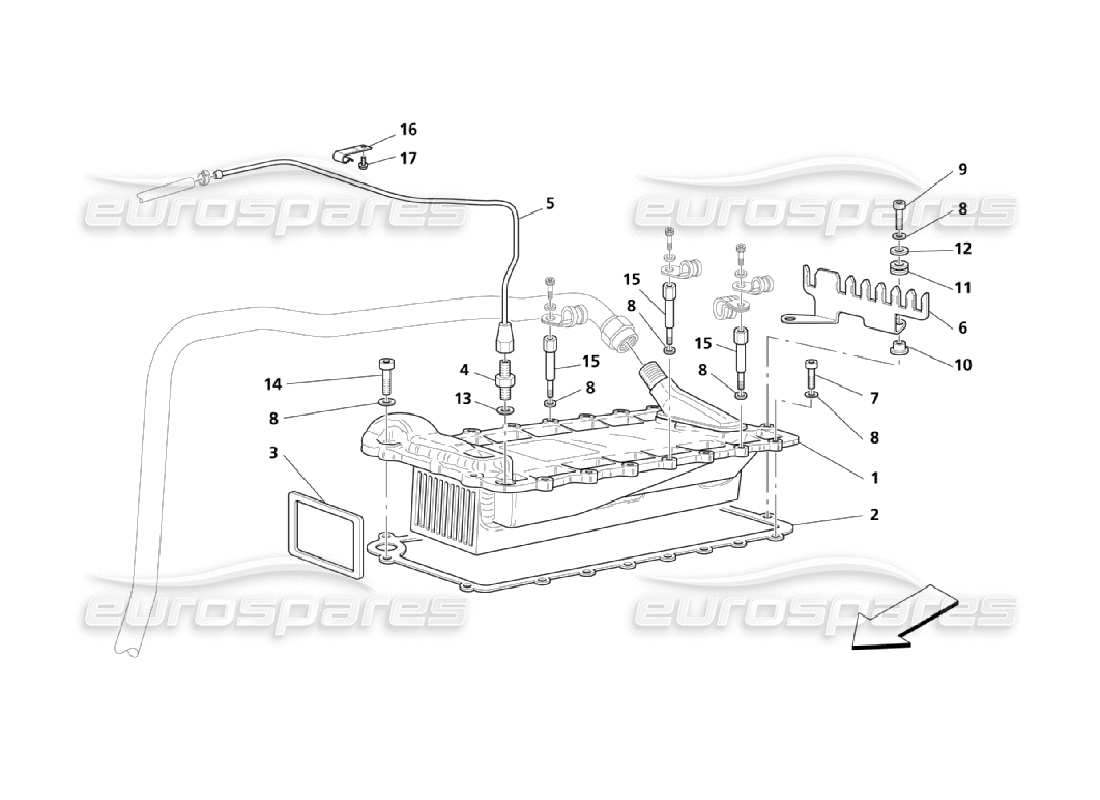

162 - HEAT EXCHANGER
Maserati QTP. (2006) 4.2 Heat Exchanger Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 186356
WATER/OIL EXCHANGER
from £1,375.79
from £1,375.79
# 002
MPN: 185581
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004)
from £26.74
from £26.74
# 003
MPN: 174600
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004)
from £4.58
from £4.58
# 004
MPN: 192327
UNION
from £2.69
from £2.69
# 005
MPN: 202143
WATER VENT PIPE
from £35.06
from £35.06
# 006
MPN: 191396
BRACKET
from £4.61
from £4.61
# 007
MPN: 14305424
SCREW
M 6X25
from £0.47
from £0.47
# 007
MPN: 14432224
SCREW
M 6X22
from £0.47
from £0.47
# 008
MPN: 11197774
WASHER
from £0.51
from £0.51
# 009
MPN: 14305624
SCREW
M 6X35
from £0.53
from £0.53
# 010
MPN: 149707
SPACER
from £0.65
from £0.65
# 011
MPN: 177576
CABLE GROMMET
from £1.11
from £1.11
# 012
MPN: 12643724
WASHER
from £0.47
from £0.47
# 013
MPN: 10284460
GASKET
from £0.47
from £0.47
# 014
MPN: 14305524
SCREW
M 6X30
from £0.47
from £0.47
# 015
MPN: 198462
STUD
from £6.55
from £6.55
# 016
MPN: 203130
CLIP
Included in the Complete suction manifold (Draw 1.40 Pos. 1)
from £4.74
from £4.74
# 017
MPN: 203133
SCREW
Included in the Complete suction manifold (Draw 1.40 Pos. 1)
from £4.98
from £4.98
