180 - Precatalyst and Catalyst

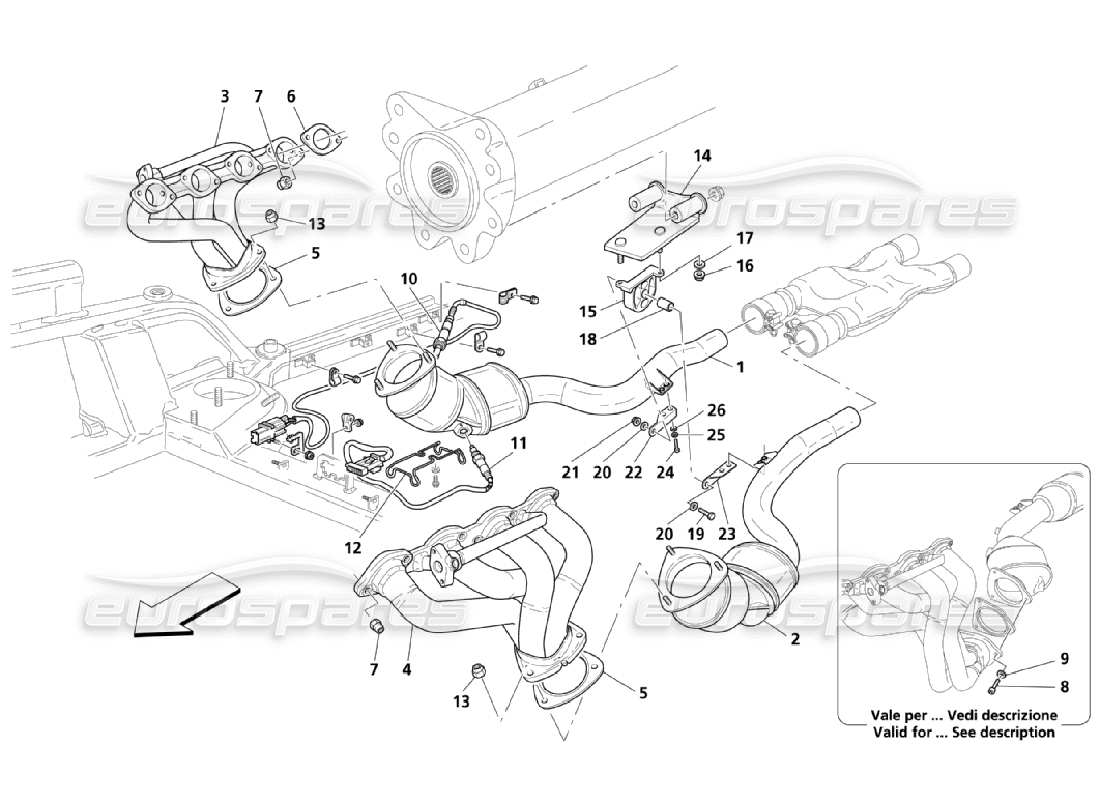

Maserati QTP. (2006) 4.2 Precatalyst and Catalyst Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 206443

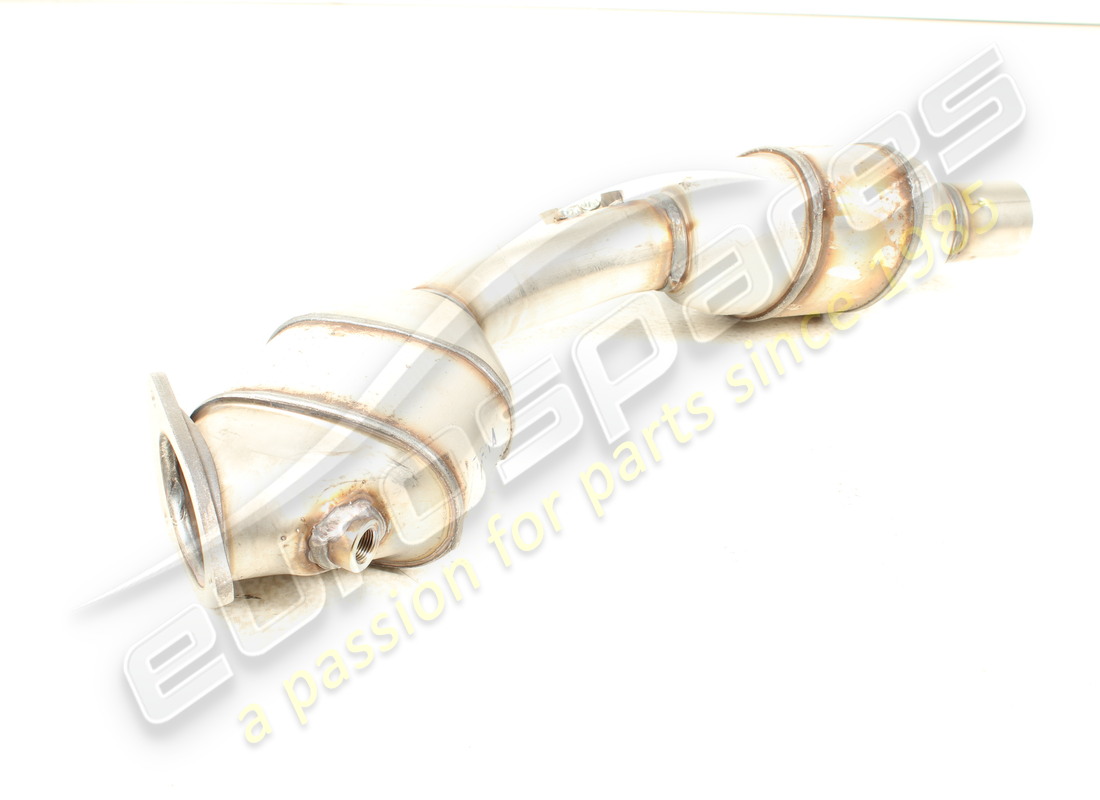

RH CATALYST
Not for AUS and J - Not for cars GD opt. japan version - Valid for cars Taiwan version
from £1,486.72
from £1,486.72
# 001
MPN: 211199
RH CATALYST
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £2,260.97
from £2,260.97
This part replaces part number 206439
# 001
MPN: 220856
RH CATALYST
Not for AUS and J - Not for cars GD opt. japan version - Not for cars Taiwan version
from £2,113.92
from £2,113.92
# 001
MPN: 220856
RH CATALYST
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £2,113.92
from £2,113.92
# 002
MPN: 206444
LH CATALYST
Not for AUS and J - Not for cars GD opt. japan version - Valid for cars Taiwan version
from £1,525.46
from £1,525.46
# 002
MPN: 211200
LH CATALYST
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £2,260.97
from £2,260.97
This part replaces part number 206442
# 002
MPN: 220857
LH CATALYST
Not for AUS and J - Not for cars GD opt. japan version - Not for cars Taiwan version
from £996.54
from £996.54
# 002
MPN: 220857
LH CATALYST
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £996.54
from £996.54
# 003
MPN: 195117

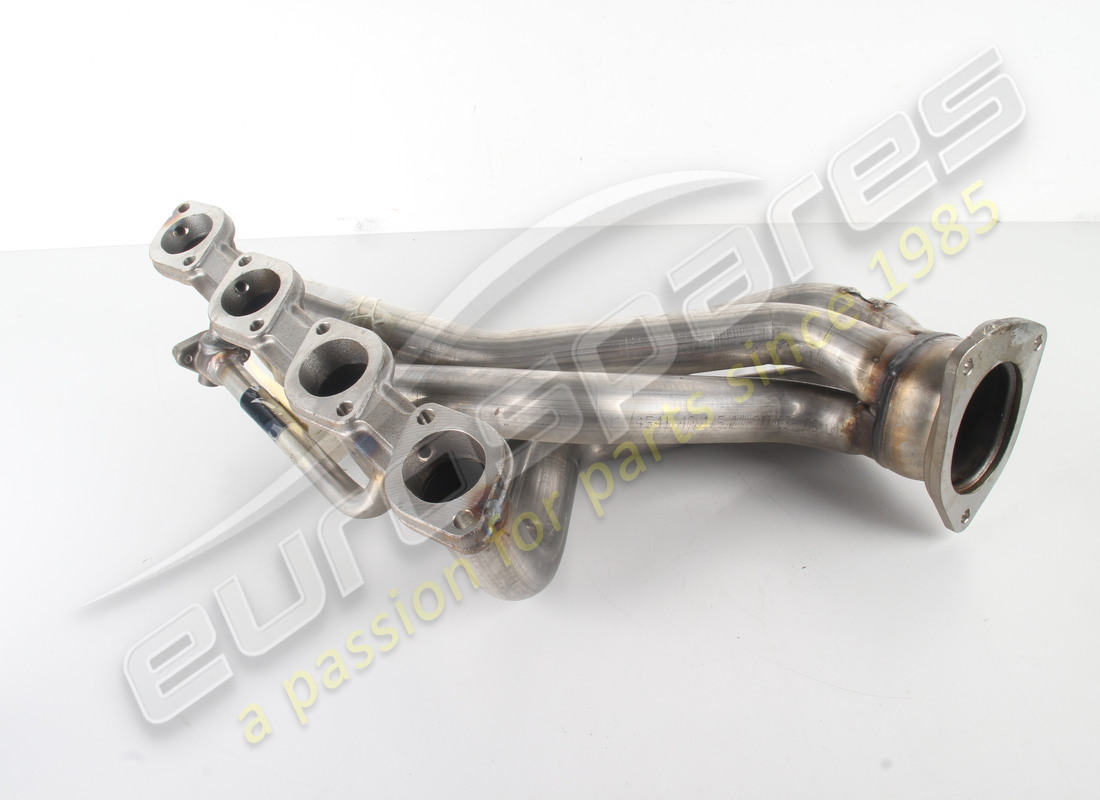

COMPLETE RH EXHAUST MANIFOLD
Valid for AUS and J -Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £253.29
from £253.29
# 003
MPN: 201255
COMPLETE RH EXHAUST MANIFOLD
Not for AUS and J - Not for cars GD opt. japan version
from £515.59
from £515.59
# 003
MPN: 201255
COMPLETE RH EXHAUST MANIFOLD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £515.59
from £515.59
# 004
MPN: 195118

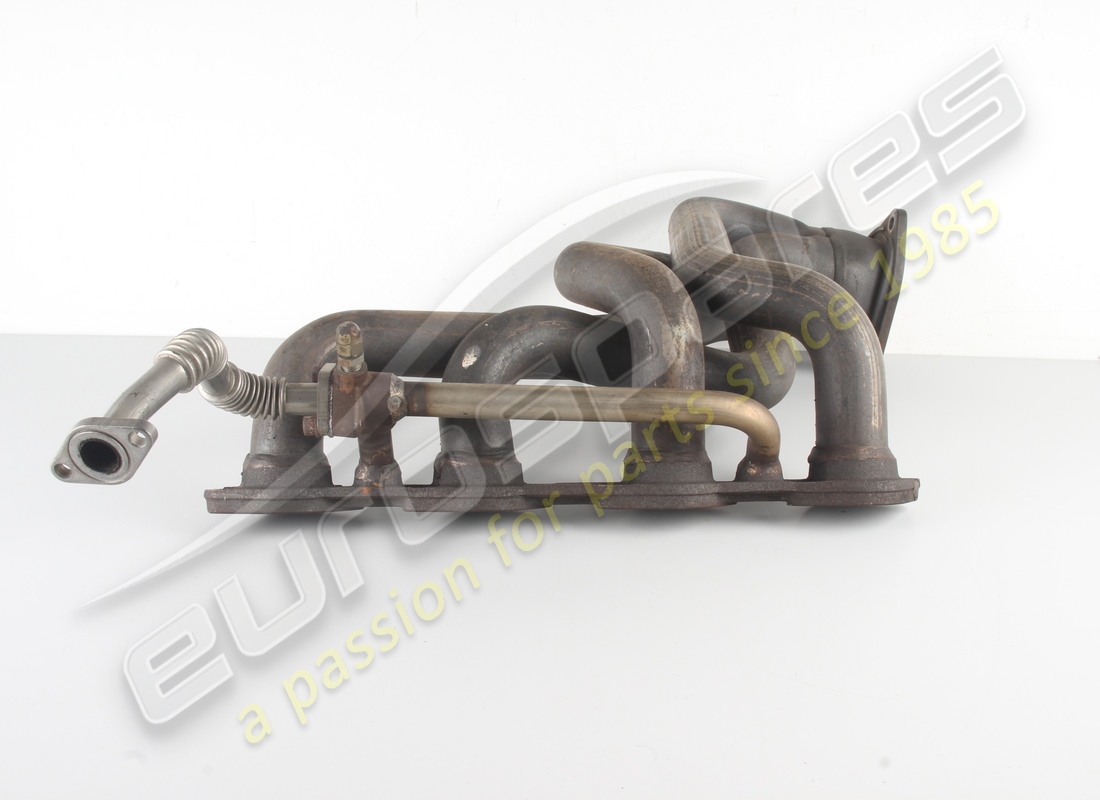

COMPLETE LH EXHAUST MANIFOLD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £523.48
from £523.48
# 004
MPN: 201256
COMPLETE LH EXHAUST MANIFOLD
Not for AUS and J - Not for cars GD opt. japan version
from £278.39
from £278.39
# 004
MPN: 201256
COMPLETE LH EXHAUST MANIFOLD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £278.39
from £278.39
# 005
MPN: 189211
GASKET
Not for AUS and J - Not for cars GD opt. japan version
from £6.34
from £6.34
# 005
MPN: 189211
GASKET
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £6.34
from £6.34
# 005
MPN: 196884
GASKET
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £24.25
from £24.25
# 006
MPN: 182868
GASKET
Supplied also in the cylinder heads gasket revision kit (cod. 980020003)
from £2.99
from £2.99
# 007
MPN: 138392
NUT
from £0.61
from £0.61
# 008
MPN: 190213
SCREW
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £2.57
from £2.57
# 009
MPN: 11193874
WASHER
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £0.53
from £0.53
# 010
MPN: 182837

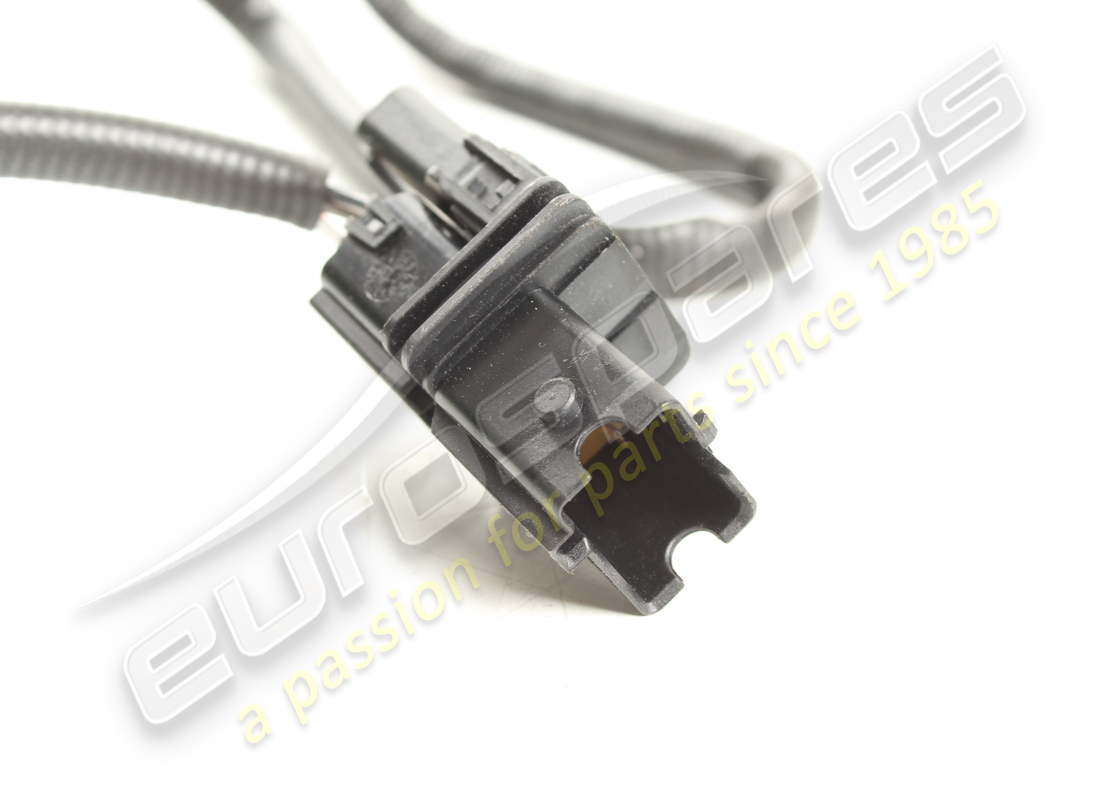

FRONT LAMBDA FEELER
Not for AUS and J - Not for cars GD opt. japan version
from £137.60
from £137.60
# 010
MPN: 182837
FRONT LAMBDA FEELER
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £137.60
from £137.60
# 010
MPN: 199612
FRONT LAMBDA FEELER
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £83.53
from £83.53
# 011
MPN: 191412
REAR LAMBDA FEELER
from £62.42
from £62.42
# 012
MPN: 199611
CABLES SUPPORT
from £4.00
from £4.00
# 013
MPN: 138392
NUT
Not for AUS, J and cars GD opt. japan version till car Ass. Nr. 24274
from £0.63
from £0.63
# 014
MPN: 209775
BRACKET
from £16.92
from £16.92
# 015
MPN: 199731
ANTIVIBRATION SUPPORT
from £38.08
from £38.08
# 016
MPN: 175283
NUT
from £0.53
from £0.53
# 017
MPN: 12638524
WASHER
from £0.54
from £0.54
# 018
MPN: 190622
SPACER
from £4.76
from £4.76
# 019
MPN: 16044324
SCREW
from £0.53
from £0.53
# 020
MPN: 12646724
WASHER
from £0.54
from £0.54
# 021
MPN: 175283
NUT
from £0.54
from £0.54
# 022
MPN: 209776

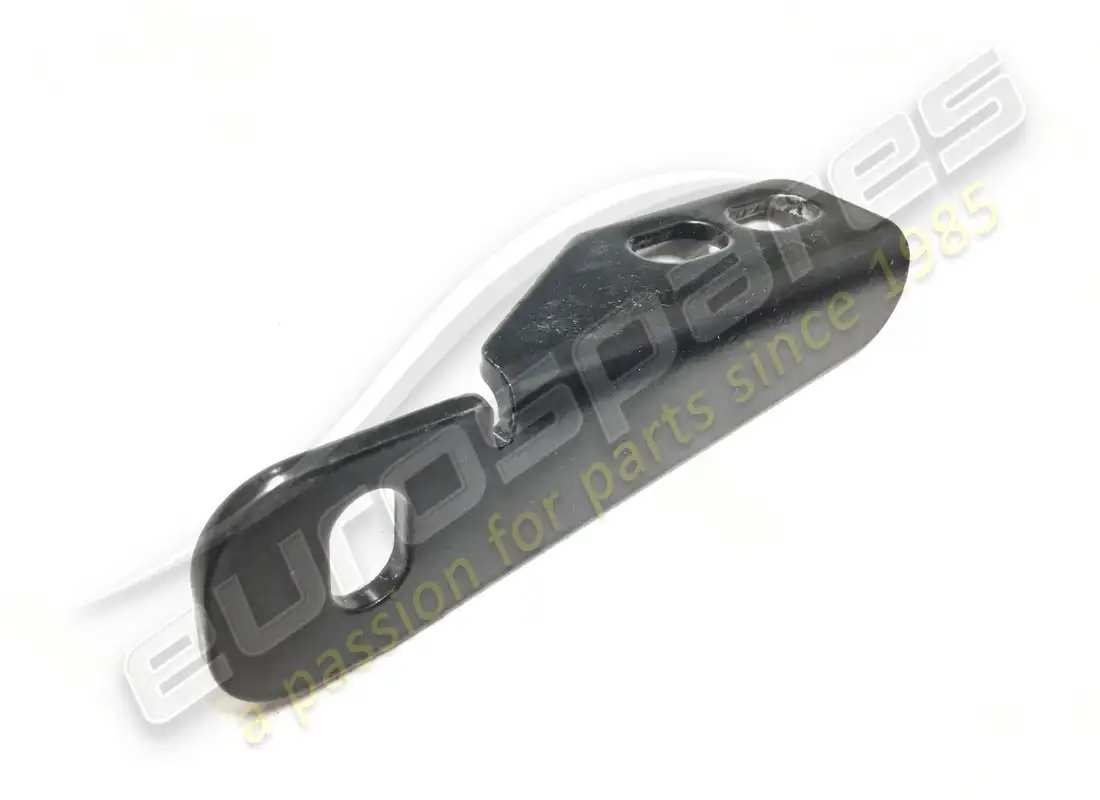

RH CATALYST SUPPORT BRACKET
Valid till stock exhaustion
from £6.70
from £6.70
# 022
MPN: 214777
RH CATALYST SUPPORT BRACKET
Valid after stock exhaustion of 209776
from £18.85
from £18.85
# 023
MPN: 209886
LH CATALYST SUPPORT BRACKET
Valid till stock exhaustion
from £6.21
from £6.21
# 023
MPN: 214778
LH CATALYST SUPPORT BRACKET
Valid after stock exhaustion of 209886
from £9.59
from £9.59
# 024
MPN: 16043424
SCREW
from £0.51
from £0.51
# 025
MPN: 12602474
WASHER
from £0.47
from £0.47
# 026
MPN: 10519624
WASHER
from £0.53
from £0.53
