420b - Piping (Page 2-4)

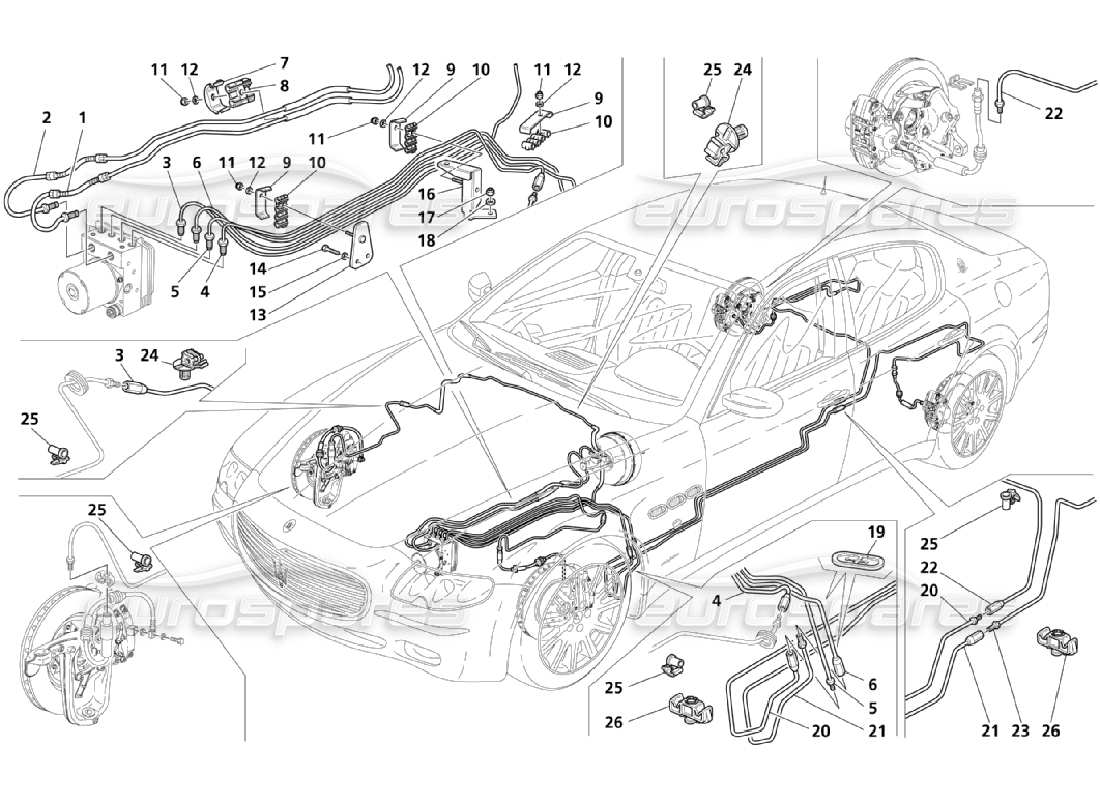

Maserati QTP. (2006) 4.2 Piping (Page 2-4) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 223145
RIGID PIPE FROM PUMP TO CONTROL UNIT (MC1)
Not for GD - Valid from car Ass. Nr. 24275
from £54.83
from £54.83
# 002
MPN: 223146
RIGID PIPE FROM PUMP TO CONTROL UNIT (MC2)
Not for GD - Valid from car Ass. Nr. 24275
from £54.83
from £54.83
# 003
MPN: 207434
RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION
Not for GD - Valid from car Ass. Nr. 24275
from £27.56
from £27.56
# 004
MPN: 207435
RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION
Not for GD - Valid from car Ass. Nr. 24275
from £10.63
from £10.63
# 005
MPN: 207436
RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE
Not for GD - Valid from car Ass. Nr. 24275
from £11.47
from £11.47
# 006
MPN: 207437
RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE
Not for GD - Valid from car Ass. Nr. 24275
from £11.47
from £11.47
# 007
MPN: 193722
RETAINER
Not for GD - Valid from car Ass. Nr. 24275
from £6.31
from £6.31
# 008
MPN: 192275
CLIP
Not for GD - Valid from car Ass. Nr. 24275
from £2.82
from £2.82
# 009
MPN: 200288
RETAINER
Not for GD - Valid from car Ass. Nr. 24275
from £6.70
from £6.70
This part replaces part number 193721
# 010
MPN: 192276
CLIP
Not for GD - Valid from car Ass. Nr. 24275
from £2.82
from £2.82
# 011
MPN: 169180
NUT
Not for GD - Valid from car Ass. Nr. 24275
from £0.53
from £0.53
# 012
MPN: 12637824
WASHER
Not for GD - Valid from car Ass. Nr. 24275
from £0.47
from £0.47
# 013
MPN: 203822
BRACKET
Not for GD - Valid from car Ass. Nr. 24275
from £5.85
from £5.85
# 014
MPN: 10977624
SCREW
Not for GD - Valid from car Ass. Nr. 24275
from £0.53
from £0.53
# 015
MPN: 12637824
WASHER
Not for GD - Valid from car Ass. Nr. 24275
from £0.47
from £0.47
# 016
MPN: 194855
BRACKET
Not for GD - Valid from car Ass. Nr. 24275
from £12.03
from £12.03
# 017
MPN: 16100814
NUT
Not for GD - Valid from car Ass. Nr. 24275
from £0.71
from £0.71
# 018
MPN: 14496524
WASHER
Not for GD - Valid from car Ass. Nr. 24275
from £0.54
from £0.54
# 019
MPN: 200467
GASKET
Not for GD - Valid from car Ass. Nr. 24275 - Valid till stock exhaustion
from £4.11
from £4.11
# 019
MPN: 221727
GASKET
Not for GD - Valid from car Ass. Nr. 24275 - Valid after stock exhaustion of 200467
from £4.11
from £4.11
# 020
MPN: 194858
RH INTERMEDIATE RIGID PIPE
Not for GD - Valid from car Ass. Nr. 24275
from £21.48
from £21.48
# 021
MPN: 194859
LH INTERMEDIATE RIGID PIPE
Not for GD - Valid from car Ass. Nr. 24275
from £18.43
from £18.43
# 022
MPN: 198081
RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
Not for GD - Valid from car Ass. Nr. 24275 - Valid till stock exhaustion
from £27.56
from £27.56
# 022
MPN: 227265
RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
Not for GD - Valid from car Ass. Nr. 24275 - Valid after stock exhaustion of 198081
from £28.44
from £28.44
# 023
MPN: 194857
RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL
Not for GD - Valid from car Ass. Nr. 24275
from £84.73
from £84.73
# 024
MPN: 192277
CLIP
Not for GD - Valid from car Ass. Nr. 24275
from £1.52
from £1.52
# 025
MPN: 192279
CLIP
Not for GD - Valid from car Ass. Nr. 24275
from £1.07
from £1.07
# 026
MPN: 192278
CLIP
Not for GD - Valid from car Ass. Nr. 24275
from £1.07
from £1.07
