851 - Tunnel Services

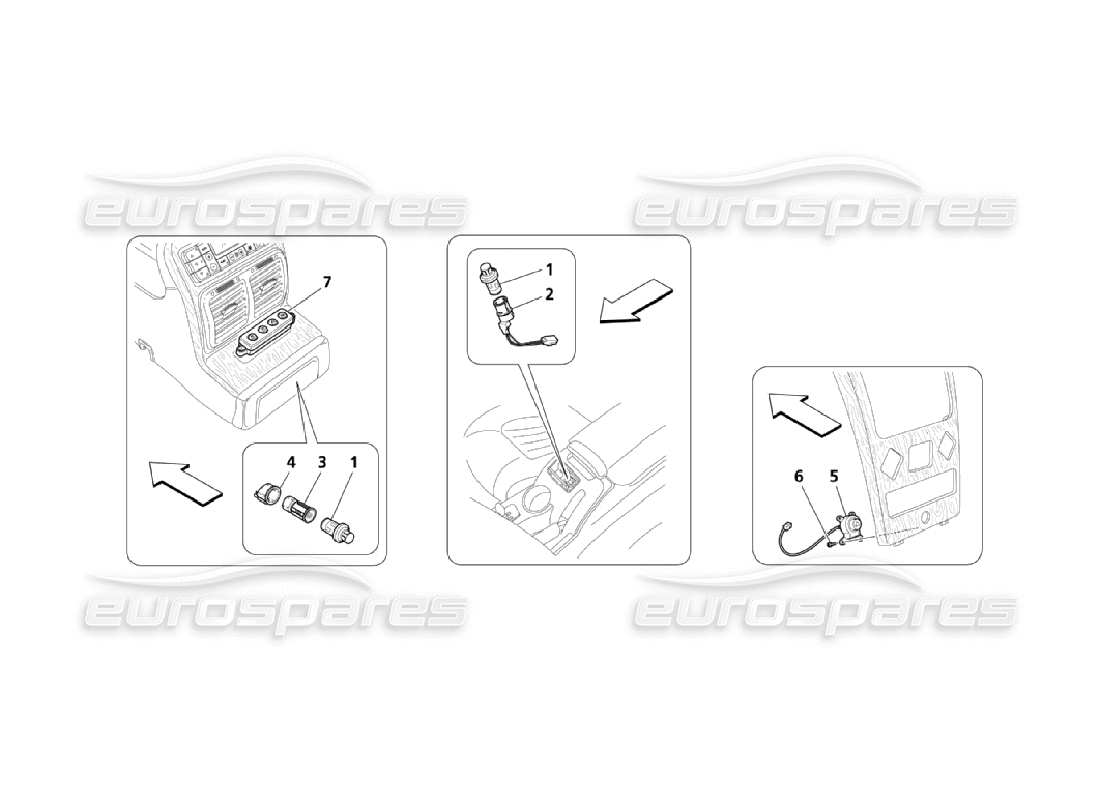

Maserati QTP. (2006) 4.2 Tunnel Services Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66704500
CIGAR LIGHTER
(Quantity 1 for cars with opt. RSE)
from £7.96
from £7.96
This part replaces part number 183270
# 002
MPN: 183271
FRONT CIGAR LIGHTER BODY
Included in the Complete central plate (Draw 9.51 Pos. 7)
from £18.92
from £18.92
# 003
MPN: 201735
REAR CIGAR LIGHTER BODY
Not for cars with opt. RSE
from £55.84
from £55.84
# 004
MPN: 188294
RING NUT ASH TRAY
Not for cars with opt. RSE
from £28.60
from £28.60
# 005
MPN: 197803

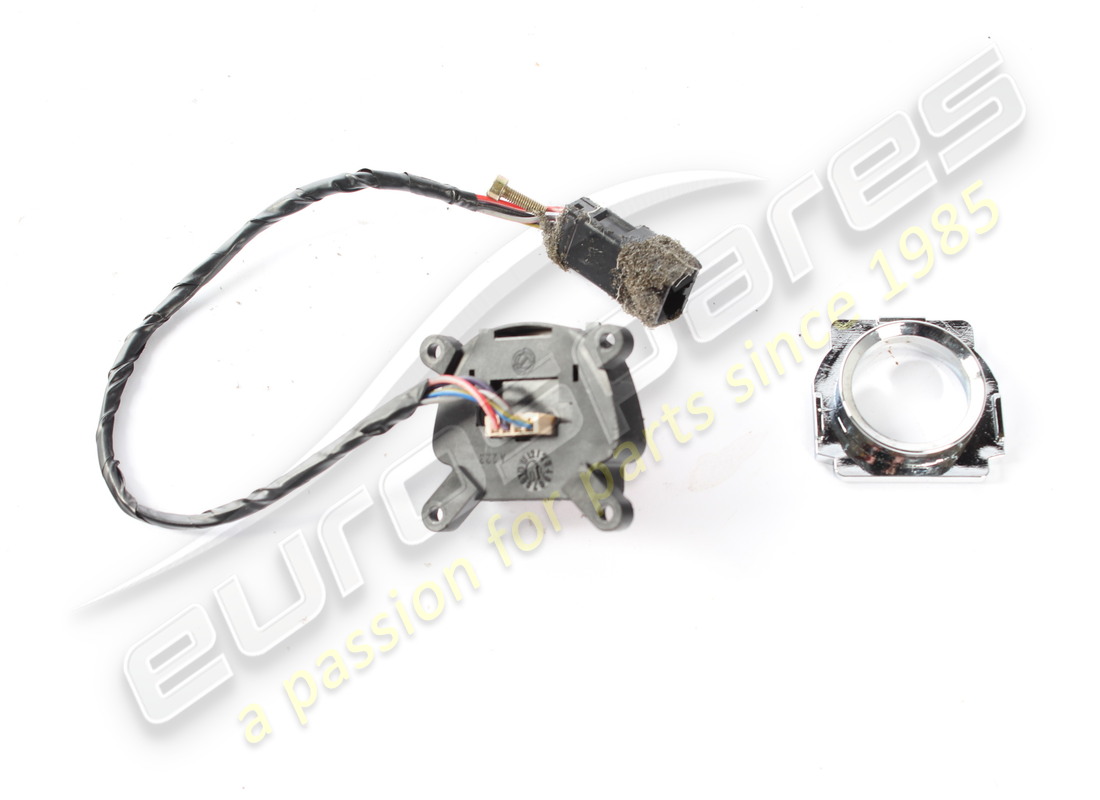

EMERGENCY CONTROL
from £26.90
from £26.90
# 006

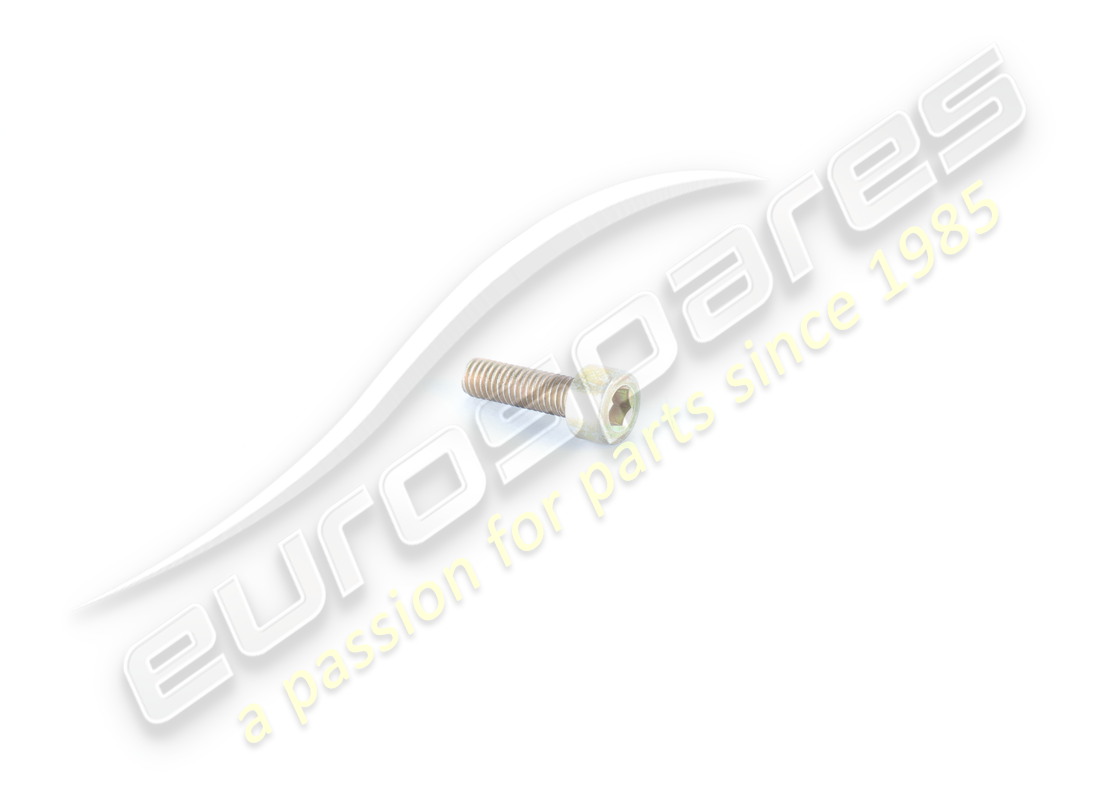

MPN: 14418131
SCREW
from £0.51
from £0.51
# 007
MPN: 198031
REAR SWITCH PANEL
from £84.93
from £84.93
