002 - gasket and oil seals for block overhaul

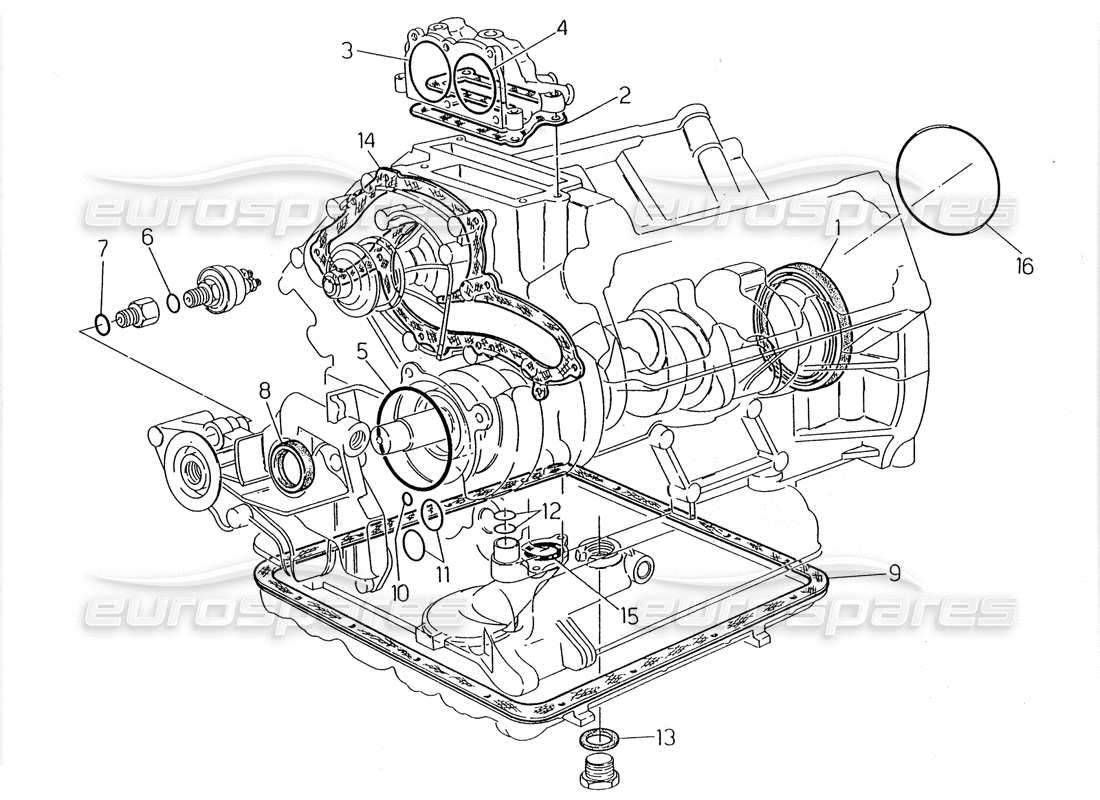

Maserati 2.24v Gasket and Oil Seals for Block Overhaul Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 310463008
GASKET SEALS FOR BLOCK OVERHAUL
# 001
MPN: 585412800
OIL SEAL
Details delivered with gaskets 310453008
from £27.00
from £27.00
This part replaces part number 311420104
# 002
MPN: 470048700
THERMOSTAT GASKET
from £3.03
from £3.03
# 003
MPN: 14460081
RUBBER RING
from £2.29
from £2.29
# 004
MPN: 14460880
RUBBER RING
from £2.10
from £2.10
# 005
MPN: 14465881
RUBBER RING
Details delivered with gaskets 310453008
from £4.56
from £4.56
# 006
MPN: 311820304
GASKET
Details delivered with gaskets 310453008, pre modif.
from £1.52
from £1.52
# 007
MPN: 311820302
GASKET
Details delivered with gaskets 310453008, pre modif.
from £1.90
from £1.90
# 008
MPN: 311020368
OIL SEAL
Details delivered with gaskets 310453008
from £9.72
from £9.72
This part replaces part number 190400351
# 009
MPN: 452014801
GASKET
from £10.06
from £10.06
# 010
MPN: 14452981
OIL PUMP RUBBER RING
Details delivered with gaskets 310453008
from £0.78
from £0.78
# 011
MPN: 14454181
OIL PUMP RUBBER RING
Details delivered with gaskets 310453008
from £1.15
from £1.15
# 012
MPN: 310453341
RING
Details delivered with gaskets 310453008
# 013
MPN: 10262260
PLUG SEAL
from £2.82
from £2.82
This part replaces part number 310420304
# 014
MPN: 580046200
WATER PUMP GASKET
Parts supplied with gaskets set
from £10.76
from £10.76
This part replaces part number 452046201
# 015
MPN: 310420341
PICK UP RUBBER
Details delivered with gaskets 310453008
# 016
MPN: 310620422
CILINDER LINER RUBBER RING
Details delivered with gaskets 310453008
from £18.45
from £18.45
