008 - timing control

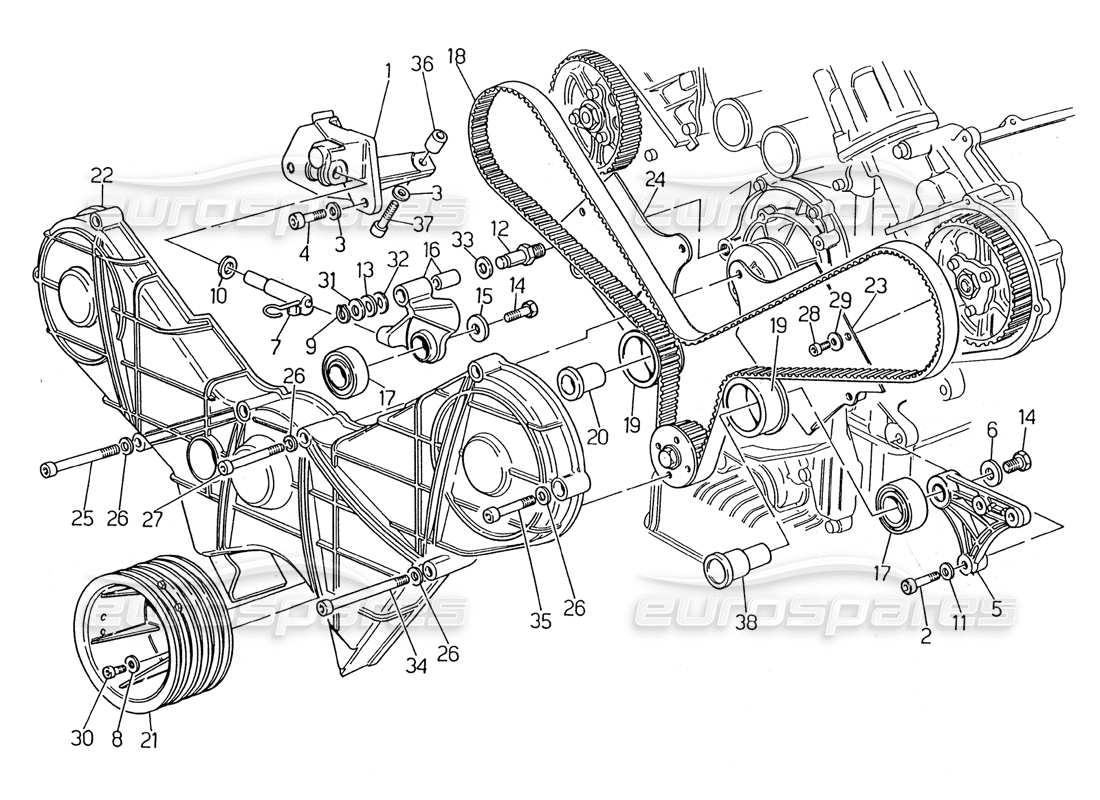

Maserati 2.24v Timing Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # 001
                                                                              MPN: 317853396
                                                                              SUPPORT
                                                                              SUPPORT Genuine Maserati Part - New (to order)
                                                                              # 002
                                                                              MPN: 311020320
                                                                              SCREW
                                                                              from £1.30
                                                                              from £1.30
                                                                              SCREW D.8X1.25X35 Z.P.G. Genuine Maserati Part - New (to order)
                                                                              # 003
                                                                              MPN: 138410080
                                                                              WASHER
                                                                              from £2.25
                                                                              from £2.25
                                                                              Maserati PART 138410080 Genuine Maserati Part - New (to order)
                                                                              # 004
                                                                              MPN: 14306424
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 14306421
                                                                              SCREW Genuine Maserati Part - New In stock
                                                                              SCREW Genuine Ferrari Part - New In stock
                                                                              # 005
                                                                              MPN: 311053346
                                                                              SUPPORT
                                                                              SUPPORT Genuine Maserati Part - New (to order)
                                                                              # 006
                                                                              MPN: 319055315
                                                                              WASHER
                                                                              from £1.07
                                                                              from £1.07
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 007
                                                                              MPN: 311053363
                                                                              HYDRAULIC TENSIONER
                                                                              HYDRAULIC TENSIONER Genuine Maserati Part - New (to order)
                                                                              # 008
                                                                              MPN: 312220411
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              ROSETTA Genuine Maserati Part - New (to order)
                                                                              # 010
                                                                              MPN: 311053365
                                                                              THRUST WASHER
                                                                              from £10.21
                                                                              from £10.21
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 012
                                                                              MPN: 470037600
                                                                              PIN
                                                                              from £27.21
                                                                              from £27.21
                                                                              This part replaces part number 311020343
                                                                              FULCRO SUPPORTO GALOP.TEND. Genuine Maserati Part - New (to order)
                                                                              # 013
                                                                              MPN: 311020334
                                                                              WASHER
                                                                              from £1.07
                                                                              from £1.07
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 016
                                                                              MPN: 311053110
                                                                              BELT ADJUSTER SUPPORT
                                                                              from £0.62
                                                                              from £0.62
                                                                              Maserati PART 311053110 Genuine Maserati Part - New (to order)
                                                                              # 017
                                                                              MPN: 311020107
                                                                              TIMING BEARING
                                                                              from £99.75
                                                                              from £99.75
                                                                              TIMING BEARING Genuine Maserati Part - New In stock
                                                                              # 018
                                                                              MPN: 97776
                                                                              TIMING BELT
                                                                              from £29.95
                                                                              from £29.95
                                                                              This part replaces part number 311053349
                                                                              TIMING BELT Genuine Maserati Part - New In stock
                                                                              TIMING BELT Eurospares Approved Part - New In stock
                                                                              # 019
                                                                              MPN: 311020350
                                                                              BEARING COVER
                                                                              from £56.75
                                                                              from £56.75
                                                                              BELT TENSIONER PULLEY BEARING COVER Genuine Maserati Part - New In stock
                                                                              PULLEY Eurospares Approved Part - New In stock
                                                                              # 020
                                                                              MPN: 311020353
                                                                              PIN
                                                                              from £130.22
                                                                              from £130.22
                                                                              PIN Genuine Maserati Part - New (to order)
                                                                              # 021
                                                                              MPN: 311050113
                                                                              ELECTRONIC INJECTION CENTRAL PULLEY
                                                                              from £26.09
                                                                              from £26.09
                                                                              PULLEY Genuine Maserati Part - New (to order)
                                                                              # 022
                                                                              MPN: 311653300
                                                                              FRONT TIMING CASE
                                                                              FRONT TIMING CASE Genuine Maserati Part - New (to order)
                                                                              # 027
                                                                              MPN: 14304821
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              SCREW 6X1X55 Genuine Maserati Part - New In stock
                                                                              Genuine Ferrari Part (no longer available to order)
                                                                              # 029
                                                                              MPN: 311620303
                                                                              WASHER
                                                                              from £1.07
                                                                              from £1.07
                                                                              WASHER Genuine Maserati Part - New In stock
                                                                              # 031
                                                                              MPN: 311020352
                                                                              WASHER
                                                                              from £1.19
                                                                              from £1.19
                                                                              WASHER 12.7X20X0.5 Genuine Maserati Part - New (to order)
                                                                              # 032
                                                                              MPN: 311020354
                                                                              WASHER
                                                                              from £1.19
                                                                              from £1.19
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 033
                                                                              MPN: 311020362
                                                                              WASHER
                                                                              from £1.30
                                                                              from £1.30
                                                                              RONDELLA D 12,5X20X1 Genuine Maserati Part - New (to order)
                                                                              # 038
                                                                              MPN: 311053343
                                                                              PIN FOR SUPPORT
                                                                              Supersession
                                                                              Supersession
                                                                              Genuine Maserati Part (no longer available to order)
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
