011.3 - Water Cooled Turboblowers

Maserati 2.24v Water Cooled Turboblowers Parts Diagram

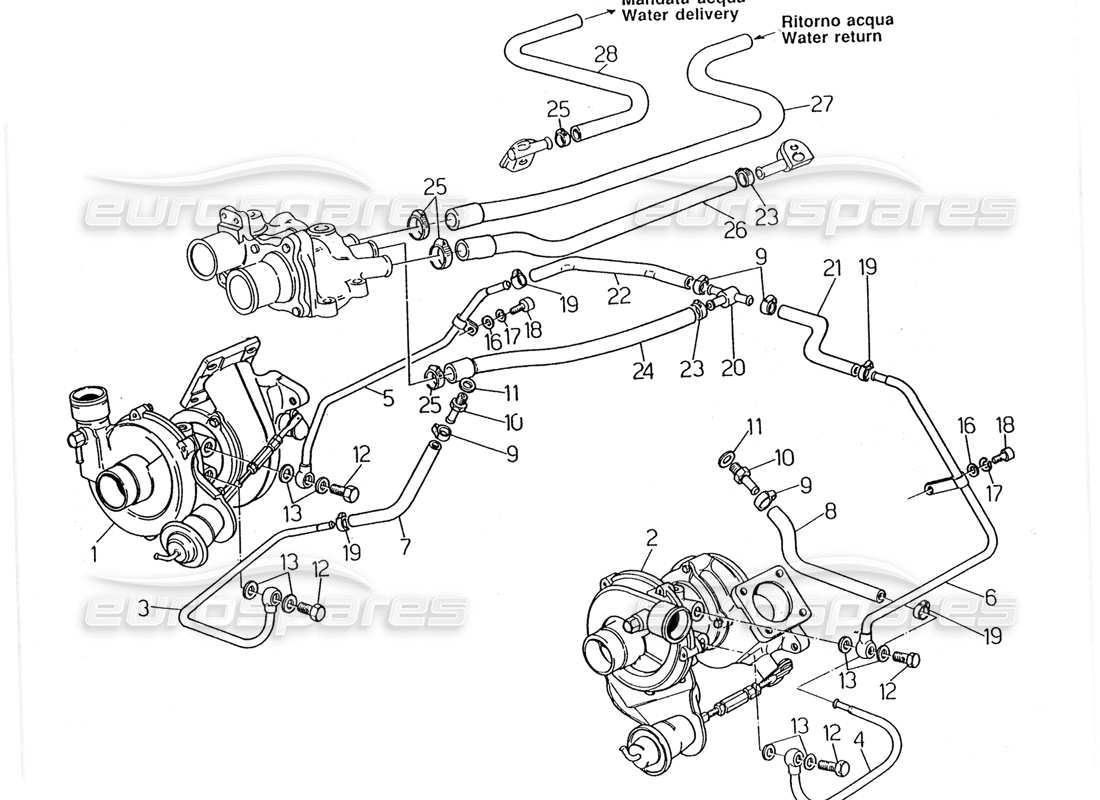

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 312053024
                                                        RH WATER COOLED TURBOBLOWER
                                                        RH WATER COOLED TURBOBLOWER Genuine Maserati Part - New (to order)
                                                        # 002
                                                        MPN: 312053023
                                                        LH WATER COOLED TURBOBLOWER
                                                        LH WATER COOLED TURBOBLOWER Genuine Maserati Part - New (to order)
                                                        # 003
                                                        MPN: 312020138
                                                        RH WATER DELIVERY PIPE
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 004
                                                        MPN: 312020137
                                                        LH WATER DELIVERY PIPE
                                                        Maserati PART 312020137 Genuine Maserati Part - New (to order)
                                                        # 005
                                                        MPN: 312020124
                                                        RH WATER RETURN
                                                        from £7.32
                                                        from £7.32
                                                        COMPLETE WATER RETURN PIPE FROM R Genuine Maserati Part - New (to order)
                                                        # 006
                                                        MPN: 312020122
                                                        LH WATER RETURN
                                                        from £14.16
                                                        from £14.16
                                                        COMPLETE WATER RETURN PIPE FROM LH TUR Genuine Maserati Part - New (to order)
                                                        # 007
                                                        MPN: 452369601
                                                        RH WATER DELIVERY SLEEVE
                                                        from £34.94
                                                        from £34.94
                                                        TUBO MANDATA ACQUA DX Genuine Maserati Part - New (to order)
                                                        # 008
                                                        MPN: 452369701
                                                        LH WATER DELIVERY SLEEVE
                                                        from £12.77
                                                        from £12.77
                                                        TUBO MANDATA ACQUA SX Genuine Maserati Part - New (to order)
                                                        # 009
                                                        MPN: 312020404
                                                        CLAMP
                                                        from £4.11
                                                        from £4.11
                                                        CLAMP VISA-CV220 Genuine Maserati Part - New (to order)
                                                        # 011
                                                        MPN: 317832381
                                                        GASKET
                                                        GASKET Genuine Maserati Part - New (to order)
                                                        # 013
                                                        MPN: 312020430
                                                        GASKET
                                                        (minimum order quantity = 10)
                                                        from £0.74
                                                        from £0.74
                                                        GASKET Genuine Maserati Part - New In stock
                                                        # 014
                                                        MPN: 312020433
                                                        RH CLAMP
                                                        from £1.70
                                                        from £1.70
                                                        CLAMP Genuine Maserati Part - New In stock
                                                        # 015
                                                        MPN: 312020432
                                                        LH CLAMP
                                                        from £1.90
                                                        from £1.90
                                                        CLAMP Genuine Maserati Part - New (to order)
                                                        # 016
                                                        MPN: 312220411
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        ROSETTA Genuine Maserati Part - New (to order)
                                                        # 018
                                                        MPN: 108006012
                                                        SCREW
                                                        from £0.54
                                                        from £0.54
                                                        VITE M6X1X12 Genuine Maserati Part - New (to order)
                                                        # 020
                                                        MPN: 312020407
                                                        Y-CONNECTOR
                                                        from £69.41
                                                        from £69.41
                                                        3-WAY UNION Genuine Maserati Part - New In stock
                                                        # 021
                                                        MPN: 470369200
                                                        LH WATER RETURN SLEEVE
                                                        from £19.20
                                                        from £19.20
                                                        This part replaces part number 312020423 - and 1 more. Click to view details
                                                        TUBO GOMMA TELATA MAND H2O D Genuine Maserati Part - New (to order)
                                                        # 022
                                                        MPN: 312020422
                                                        RH WATER RETURN SLEEVE
                                                        Maserati PART 312020422 Genuine Maserati Part - New (to order)
                                                        # 023
                                                        MPN: 312020410
                                                        CLAMP
                                                        from £2.07
                                                        from £2.07
                                                        CLAMP VISA CV250 Genuine Maserati Part - New In stock
                                                        # 024
                                                        MPN: 312020462
                                                        WATER RETURN SLEEVE
                                                        from £13.68
                                                        from £13.68
                                                        COUPLING Genuine Maserati Part - New In stock
                                                        # 025
                                                        MPN: 312420317
                                                        CLAMP
                                                        from £1.52
                                                        from £1.52
                                                        VISA CLAMP CV 300 Genuine Maserati Part - New (to order)
                                                        # 026
                                                        MPN: 315520352
                                                        HEATING SYSTEM RETURN SLEEVE
                                                        from £32.80
                                                        from £32.80
                                                        RUBBER SLEEVE Genuine Maserati Part - New (to order)
                                                        # 027
                                                        MPN: 312020517
                                                        HEATING SYSTEM WATER RETURN
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 028
                                                        MPN: 312020464
                                                        HEATING SYSTEM DELIVERY SLEEVE
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
