maserati 2.24v engine cooling pipes and thermostat parts diagram

013 - Engine Cooling Pipes and Thermostat

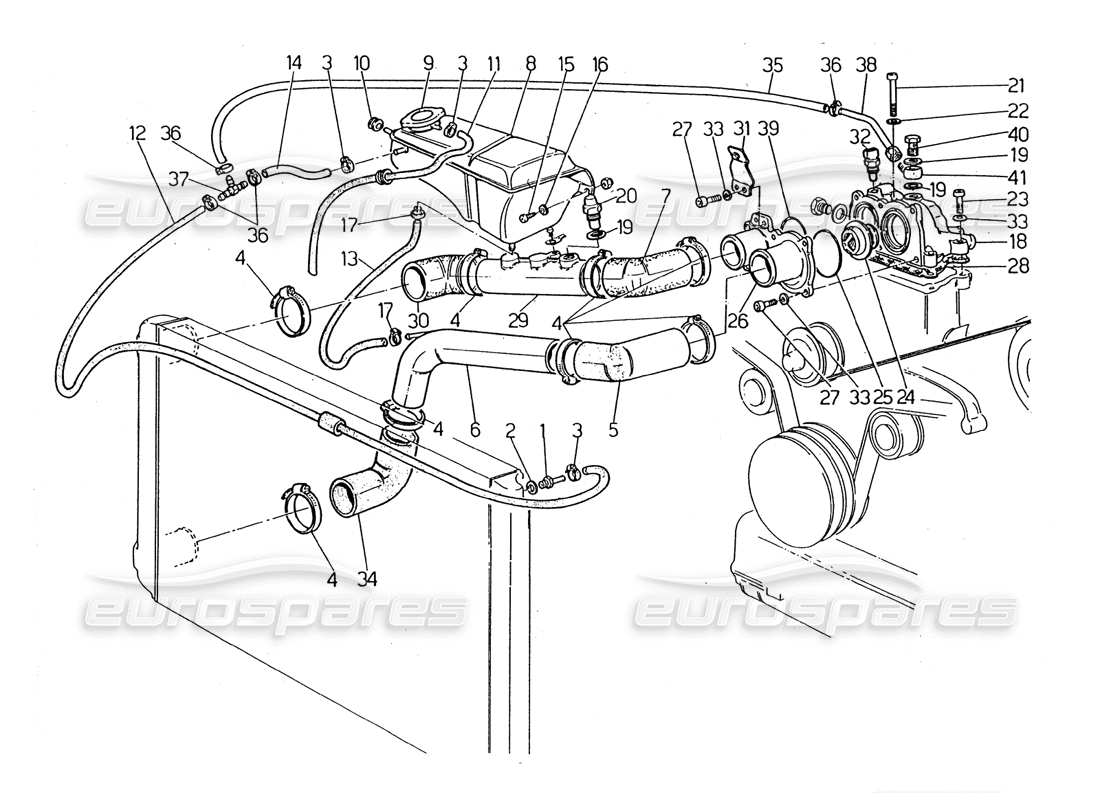

Maserati 2.24v Engine Cooling Pipes and Thermostat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 314020328
                                                                                    MANIFOLD FOR EXPANSION TANK
                                                                                    from £1.79
                                                                                    from £1.79
                                                                                    # 002
                                                                                    MPN: 314020327
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 004
                                                                                    MPN: 186403060
                                                                                    CLAMP
                                                                                    from £1.07
                                                                                    from £1.07
                                                                                    # 005
                                                                                    MPN: 324032320
                                                                                    UPPER SLEEVE
                                                                                    from £40.68
                                                                                    from £40.68
                                                                                    This part replaces part number 314053332
                                                                                    # 006
                                                                                    MPN: 314020107
                                                                                    PIPE
                                                                                    from £76.93
                                                                                    from £76.93
                                                                                    # 007
                                                                                    MPN: 314053330
                                                                                    SLEEVE
                                                                                    from £18.10
                                                                                    from £18.10
                                                                                    # 008
                                                                                    MPN: 554021102
                                                                                    EXPANSION TANK
                                                                                    from £20.46
                                                                                    from £20.46
                                                                                    This part replaces part number 314020102
                                                                                    # 009
                                                                                    MPN: 554021103
                                                                                    CAP
                                                                                    from £5.37
                                                                                    from £5.37
                                                                                    # 010
                                                                                    MPN: 53401311
                                                                                    RUBBER RING
                                                                                    from £0.69
                                                                                    from £0.69
                                                                                    # 011
                                                                                    MPN: 314020316
                                                                                    BREATHER PIPE
                                                                                    from £1.17
                                                                                    from £1.17
                                                                                    This part replaces part number 313320325
                                                                                    # 012
                                                                                    MPN: 314050317
                                                                                    PIPE FROM EXPANSION TANK TO RADIATOR (L. 1550 MM)
                                                                                    from £0.96
                                                                                    from £0.96
                                                                                    This part replaces part number 314050319
                                                                                    # 013
                                                                                    MPN: 314020318
                                                                                    PIPE FROM EXPANSION TANK TO HOSE
                                                                                    from £20.44
                                                                                    from £20.44
                                                                                    # 014
                                                                                    MPN: 314050319
                                                                                    SLEEVE (L. 1 15 MM)
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 017
                                                                                    MPN: 186402024
                                                                                    CLAMP
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 018
                                                                                    MPN: 314053355
                                                                                    THERMOSTAT HOUSING
                                                                                    # 019
                                                                                    MPN: 14453381
                                                                                    RUBBER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 020
                                                                                    MPN: 470042800
                                                                                    WATER TEMPERATURE FEELER
                                                                                    from £8.71
                                                                                    from £8.71
                                                                                    This part replaces part number 313630102
                                                                                    # 021
                                                                                    MPN: 108006080
                                                                                    SCREW
                                                                                    from £1.46
                                                                                    from £1.46
                                                                                    # 022
                                                                                    MPN: 310620364
                                                                                    GASKET
                                                                                    from £1.07
                                                                                    from £1.07
                                                                                    # 023
                                                                                    MPN: 108006025
                                                                                    SCREW Ø 6 X 1 X 25
                                                                                    # 024
                                                                                    MPN: 470045601
                                                                                    WATER THERMOSTAT 73°
                                                                                    from £71.15
                                                                                    from £71.15
                                                                                    This part replaces part number 314020123
                                                                                    # 025
                                                                                    MPN: 14460880
                                                                                    RUBBER
                                                                                    from £2.10
                                                                                    from £2.10
                                                                                    # 026
                                                                                    MPN: 314022358
                                                                                    THERMOSTAT COVER
                                                                                    from £3.16
                                                                                    from £3.16
                                                                                    # 028
                                                                                    MPN: 470048700
                                                                                    THERMOSTAT HOUSING GASKET
                                                                                    from £3.03
                                                                                    from £3.03
                                                                                    # 030
                                                                                    MPN: 314053332
                                                                                    SLEEVE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 032
                                                                                    MPN: 470079800
                                                                                    WATER TEMPERATURE SWITCH
                                                                                    from £83.68
                                                                                    from £83.68
                                                                                    # 034
                                                                                    MPN: 394050323
                                                                                    LOWER SLEEVE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 035
                                                                                    MPN: 312020511
                                                                                    SLEEVE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 036
                                                                                    MPN: 314022359
                                                                                    CLAMP
                                                                                    from £0.69
                                                                                    from £0.69
                                                                                    # 037
                                                                                    MPN: 314022364
                                                                                    CONNECTION
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 038
                                                                                    MPN: 314022125
                                                                                    HOSE
                                                                                    from £3.86
                                                                                    from £3.86
                                                                                    # 039
                                                                                    MPN: 14460081
                                                                                    RUBBER
                                                                                    from £2.29
                                                                                    from £2.29
                                                                                    # 040
                                                                                    MPN: 312020510
                                                                                    SCREW
                                                                                    from £2.63
                                                                                    from £2.63
                                                                                    This part replaces part number 193520 - and 1 more. Click to view details
