maserati 2.24v air conditioning system parts diagram

018 - air conditioning system

Maserati 2.24v Air Conditioning System Parts Diagram

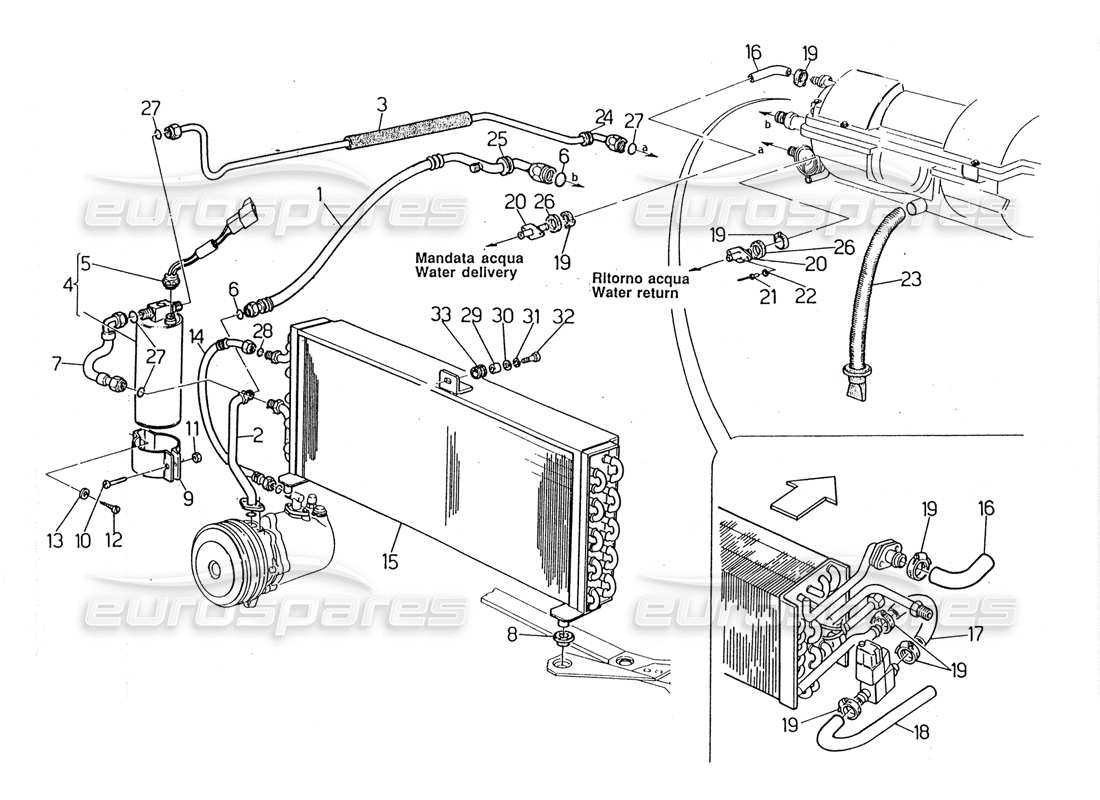

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 315521183
                                                                    UPPER FREON RETURN LINE
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 315520211
                                                                    # 002
                                                                    MPN: 315553185
                                                                    FREON RETURN LINE
                                                                    from £36.80
                                                                    from £36.80
                                                                    # 003
                                                                    MPN: 315521182
                                                                    FREON DELIVERY LINE
                                                                    from £9.80
                                                                    from £9.80
                                                                    # 004
                                                                    MPN: 365502174
                                                                    FREON FILTER
                                                                    from £101.93
                                                                    from £101.93
                                                                    This part replaces part number 315520174
                                                                    # 005
                                                                    MPN: 315520175
                                                                    MAX. AND MIN. CAPACITY PRESSURE SWITCH
                                                                    Supersession
                                                                    Supersession
                                                                    # 006
                                                                    MPN: 315520445
                                                                    O-RING 1/2 FREON LINE
                                                                    from £0.69
                                                                    from £0.69
                                                                    # 007
                                                                    MPN: 315521181
                                                                    FREON LINE
                                                                    Supersession
                                                                    Supersession
                                                                    # 008
                                                                    MPN: 189453
                                                                    BUSH
                                                                    from £1.07
                                                                    from £1.07
                                                                    This part replaces part number 374030312
                                                                    # 009
                                                                    MPN: 315520301
                                                                    CLAMP
                                                                    from £16.89
                                                                    from £16.89
                                                                    # 011
                                                                    MPN: 128300060
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 013
                                                                    MPN: 169020005
                                                                    WASHER
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 014
                                                                    MPN: 315553179
                                                                    FREON DELIVERY LINE
                                                                    from £27.83
                                                                    from £27.83
                                                                    # 015
                                                                    MPN: 315553177
                                                                    Upper double-rank condenser
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 315537177
                                                                    # 016
                                                                    MPN: 315520479
                                                                    WATER LINE
                                                                    from £8.01
                                                                    from £8.01
                                                                    # 017
                                                                    MPN: 315520480
                                                                    WATER LINE
                                                                    from £2.00
                                                                    from £2.00
                                                                    # 018
                                                                    MPN: 315520481
                                                                    WATER LINE
                                                                    from £7.67
                                                                    from £7.67
                                                                    # 019
                                                                    MPN: 186402028
                                                                    CLAMP
                                                                    from £1.52
                                                                    from £1.52
                                                                    # 020
                                                                    MPN: 315520370
                                                                    CONNECTION
                                                                    from £0.69
                                                                    from £0.69
                                                                    # 021
                                                                    MPN: 164323413
                                                                    POP RIVET
                                                                    # 022
                                                                    MPN: 169020005
                                                                    WASHER
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 023
                                                                    MPN: 315520017
                                                                    EXHAUST LINE
                                                                    from £1.73
                                                                    from £1.73
                                                                    # 024
                                                                    MPN: 31331303
                                                                    GROMMET
                                                                    from £1.03
                                                                    from £1.03
                                                                    # 025
                                                                    MPN: 315520371
                                                                    GROMMET
                                                                    from £0.62
                                                                    from £0.62
                                                                    # 026
                                                                    MPN: 315520372
                                                                    GASKET
                                                                    from £0.69
                                                                    from £0.69
                                                                    # 027
                                                                    MPN: 315520443
                                                                    O-RING 3/8 FREON LINE
                                                                    from £0.69
                                                                    from £0.69
                                                                    # 028
                                                                    MPN: 315520444
                                                                    O-RING 5/8 FREON LINE
                                                                    from £0.69
                                                                    from £0.69
                                                                    # 029
                                                                    MPN: 315553376
                                                                    SPACER
                                                                    from £4.11
                                                                    from £4.11
                                                                    # 030
                                                                    MPN: 14496601
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 033
                                                                    MPN: 315520375
                                                                    RING
                                                                    Supersession
                                                                    Supersession
                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
