maserati 2.24v front subframe and steering box parts diagram

033 - Front Subframe and Steering Box

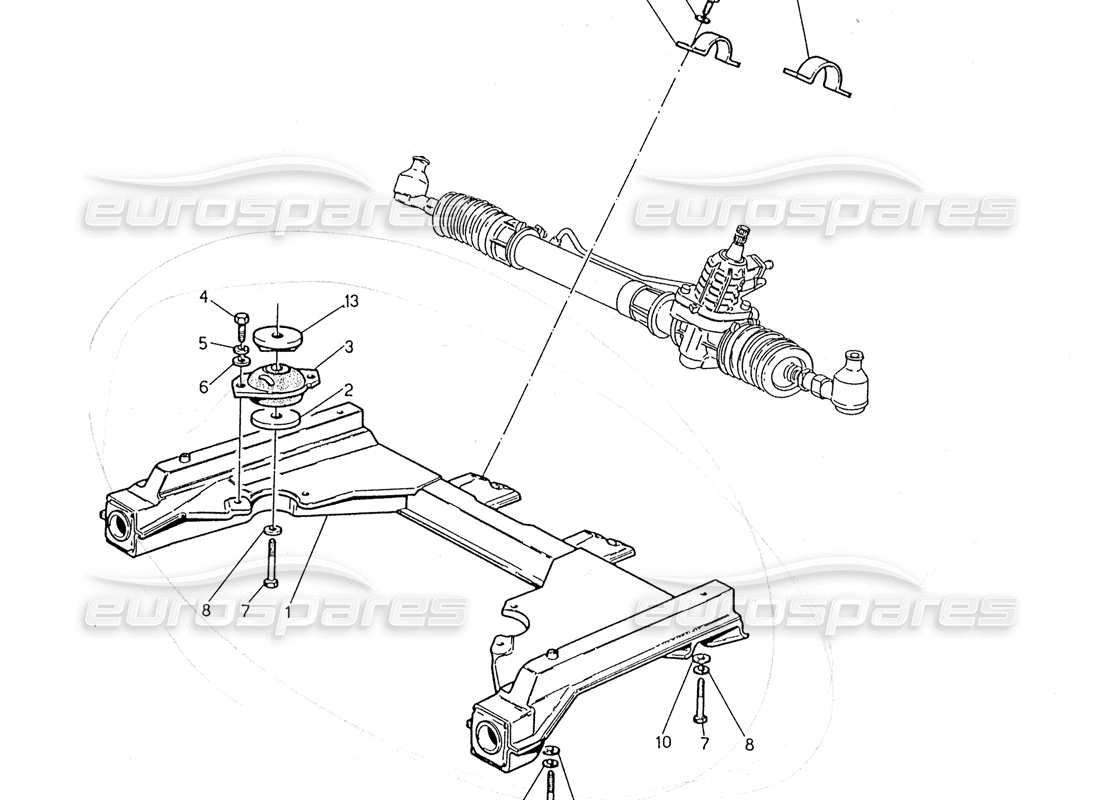

Maserati 2.24v Front Subframe and Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 312750100
                              FRONT FRAME
                              Supersession
                              Supersession
                              # 002
                              MPN: 314220312

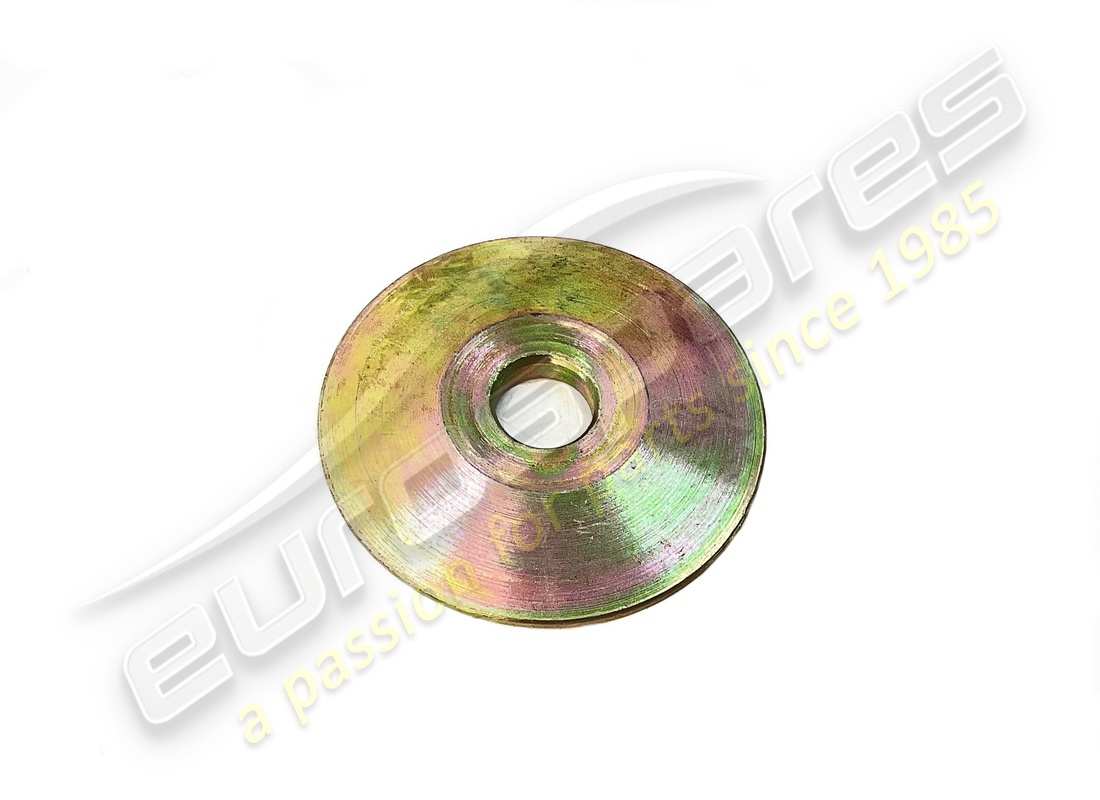

                              WASHER
                              from £2.13
                              from £2.13
                              # 003
                              MPN: 314220100
                              ENGINE SILENTBLOC
                              from £31.97
                              from £31.97
                              # 006
                              MPN: 314220314
                              WASHER
                              from £1.07
                              from £1.07
                              # 008
                              MPN: 138200120
                              SPRING WASHER
                              from £0.77
                              from £0.77
                              # 011
                              MPN: 100710035
                              SCREW-GH
                              after modif
                              # 011
                              MPN: 101210025
                              SCREW-GH
                              pro modif
                              # 013
                              MPN: 316220312
                              WASHER
                              from £1.07
                              from £1.07
                              # 014
                              MPN: 327856343
                              LH RETAINER
                              from £1.52
                              from £1.52
                              # 015
                              MPN: 327856344
                              RH RETAINER
                              from £1.90
                              from £1.90
