034 - Power Steering System

Maserati 2.24v Power Steering System Parts Diagram

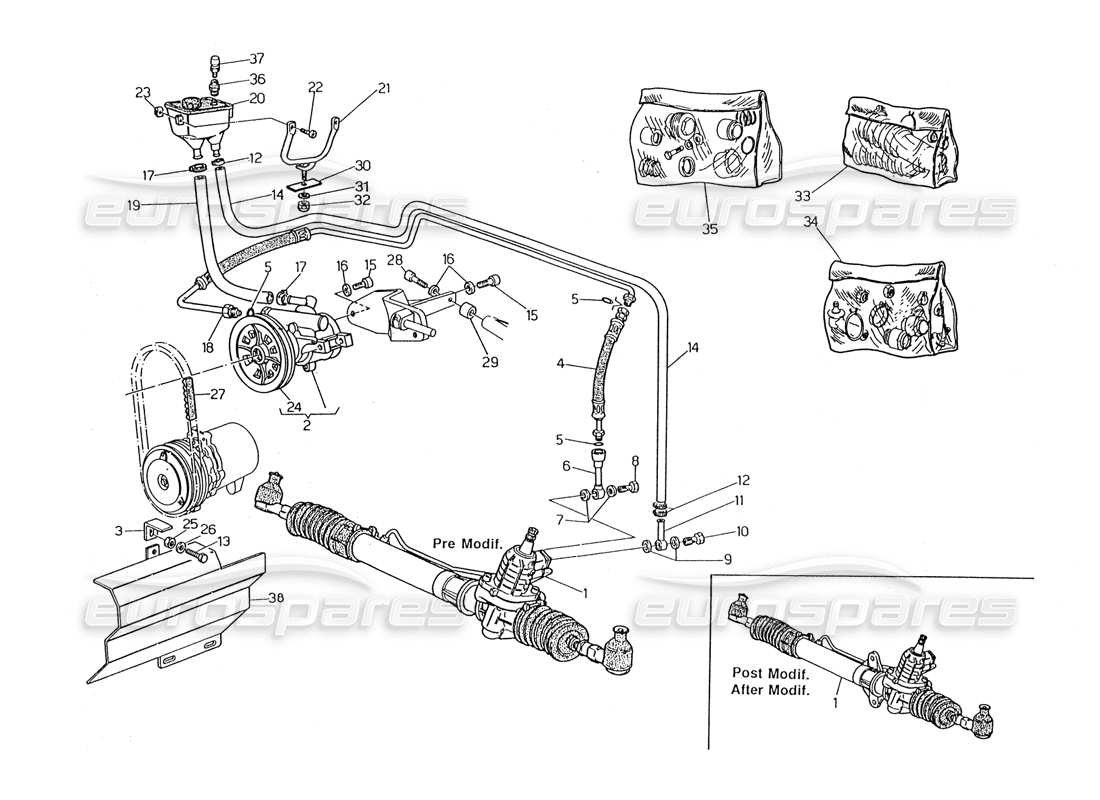

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 397850225
                                                                    LHD POWER STEERING BOX (POST. MOD.)
                                                                    Replaces 397850125
                                                                    from £475.81
                                                                    from £475.81
                                                                    This part replaces part number 397850125
                                                                    # 001
                                                                    MPN: 397870225
                                                                    RHD POWER STEERING BOX
                                                                    from £486.56
                                                                    from £486.56
                                                                    This part replaces part number 317870125
                                                                    # 002
                                                                    MPN: 317832104
                                                                    PUMP WITH PULLEY
                                                                    from £173.89
                                                                    from £173.89
                                                                    # 003
                                                                    MPN: 317853351
                                                                    PLATE
                                                                    from £6.31
                                                                    from £6.31
                                                                    # 004
                                                                    MPN: 317832139
                                                                    PIPE
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 317832138
                                                                    # 005
                                                                    MPN: 192415108
                                                                    RUBBER
                                                                    from £1.58
                                                                    from £1.58
                                                                    # 006
                                                                    MPN: 317832127
                                                                    PIPE
                                                                    Supersession
                                                                    Supersession
                                                                    # 007
                                                                    MPN: 317832381
                                                                    GASKET
                                                                    # 008
                                                                    MPN: 317832380
                                                                    SCREW
                                                                    from £8.91
                                                                    from £8.91
                                                                    # 009
                                                                    MPN: 317832378
                                                                    GASKET
                                                                    pre. modif.
                                                                    from £0.69
                                                                    from £0.69
                                                                    # 009
                                                                    MPN: 317851388
                                                                    GASKET
                                                                    after, modif.
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 010
                                                                    MPN: 317832377
                                                                    SCREW
                                                                    pre. modif.
                                                                    from £3.58
                                                                    from £3.58
                                                                    # 010
                                                                    MPN: 317851387
                                                                    SCREW
                                                                    after, modif.
                                                                    Supersession
                                                                    Supersession
                                                                    # 011
                                                                    MPN: 317832135
                                                                    UNION
                                                                    pre. modif.
                                                                    from £18.50
                                                                    from £18.50
                                                                    # 011
                                                                    MPN: 317851386
                                                                    UNION
                                                                    after, modif.
                                                                    from £5.67
                                                                    from £5.67
                                                                    # 012
                                                                    MPN: 317832389
                                                                    CLAMP
                                                                    from £1.90
                                                                    from £1.90
                                                                    # 013
                                                                    MPN: 108006012
                                                                    SCREW
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 014
                                                                    MPN: 317832385
                                                                    COUPLING
                                                                    Supersession
                                                                    Supersession
                                                                    # 015
                                                                    MPN: 14306424
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 14306421
                                                                    # 016
                                                                    MPN: 138410080
                                                                    WASHER
                                                                    from £2.25
                                                                    from £2.25
                                                                    # 017
                                                                    MPN: 168403022
                                                                    CLAMP
                                                                    # 018
                                                                    MPN: 327853207
                                                                    PIPE
                                                                    from £124.93
                                                                    from £124.93
                                                                    This part replaces part number 317832139
                                                                    # 019
                                                                    MPN: 317832370
                                                                    COUPLING
                                                                    Supersession
                                                                    Supersession
                                                                    # 020
                                                                    MPN: 397850130
                                                                    OIL TANK
                                                                    from £20.54
                                                                    from £20.54
                                                                    This part replaces part number 317853130
                                                                    # 021
                                                                    MPN: 317853131
                                                                    BRACKET
                                                                    from £7.61
                                                                    from £7.61
                                                                    This part replaces part number 317832131
                                                                    # 022
                                                                    MPN: 119148130
                                                                    SCREW
                                                                    from £0.83
                                                                    from £0.83
                                                                    # 023
                                                                    MPN: 163610050
                                                                    CLIP
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 024
                                                                    MPN: 317832368
                                                                    BELT PULLEY (NON SUPPLIED)
                                                                    # 027
                                                                    MPN: 317837372
                                                                    POWER STEERING BELT
                                                                    from £12.50
                                                                    from £12.50
                                                                    # 031
                                                                    MPN: 138410080
                                                                    WASHER
                                                                    from £2.25
                                                                    from £2.25
                                                                    # 033
                                                                    MPN: 390250080
                                                                    CUPS AND CLAMPS OVERHAUL KIT
                                                                    from £124.88
                                                                    from £124.88
                                                                    This part replaces part number 320250033
                                                                    # 034
                                                                    MPN: 320250034
                                                                    Track Rod Ends
                                                                    Track rod ends only
                                                                    from £303.16
                                                                    from £303.16
                                                                    # 035
                                                                    MPN: 310232040
                                                                    PIPES AND RACCORDS OVERHAUL KIT
                                                                    from £46.82
                                                                    from £46.82
                                                                    # 036
                                                                    MPN: 317853391
                                                                    NUT
                                                                    from £2.13
                                                                    from £2.13
                                                                    # 037
                                                                    MPN: 316220107
                                                                    BREATHER VALVE
                                                                    from £17.33
                                                                    from £17.33
                                                                    # 038
                                                                    MPN: 317853350
                                                                    SHILD
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 397850200
