039 - Wheels, Hubs and Front Brakes

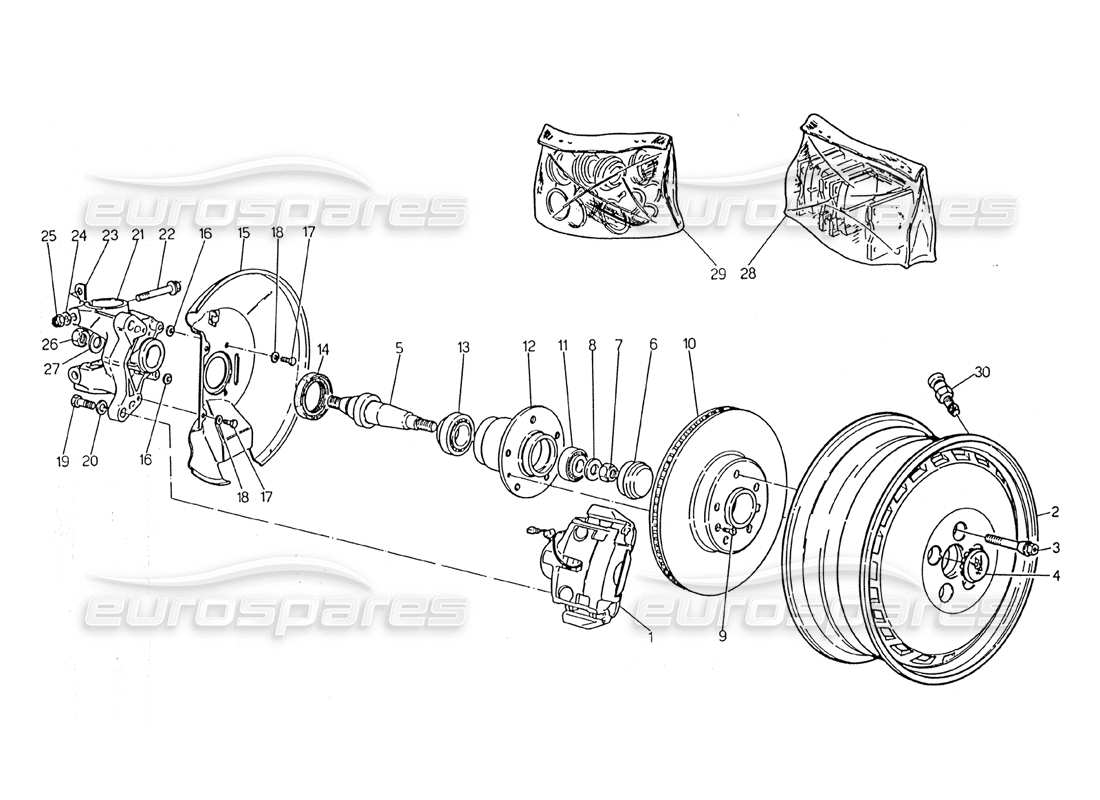

Maserati 2.24v Wheels, Hubs and Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 327256107
                                                      FRONT CALIPER. LH
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 327256108
                                                      FRONT CALIPER. RH
                                                      Supersession
                                                      Supersession
                                                      # 002
                                                      MPN: 327256119
                                                      WHEEL RIM EN ALUMINIUM 7J X 15
                                                      from £46.45
                                                      from £46.45
                                                      This part replaces part number 327256122
                                                      # 003
                                                      MPN: 327256306
                                                      BOLT
                                                      from £3.94
                                                      from £3.94
                                                      This part replaces part number 317220306
                                                      # 004
                                                      MPN: 317220106
                                                      MARQUE FOR WHEEL RIM
                                                      from £12.22
                                                      from £12.22
                                                      # 005
                                                      MPN: 326656326
                                                      FUSE
                                                      Not supplied in single part
                                                      from £53.85
                                                      from £53.85
                                                      # 006
                                                      MPN: 557201324
                                                      WASHER
                                                      from £0.69
                                                      from £0.69
                                                      # 007
                                                      MPN: 317220314
                                                      NUT
                                                      from £14.37
                                                      from £14.37
                                                      # 008
                                                      MPN: 317220315
                                                      WASHER
                                                      from £1.07
                                                      from £1.07
                                                      # 009
                                                      MPN: 108506016
                                                      SCREW
                                                      from £1.10
                                                      from £1.10
                                                      # 010
                                                      MPN: 327256321
                                                      BRAKE DISC
                                                      from £72.06
                                                      from £72.06
                                                      # 011
                                                      MPN: 317220311
                                                      OUTSIDE BEARING
                                                      from £23.41
                                                      from £23.41
                                                      # 012
                                                      MPN: 327256313
                                                      wheel carrier
                                                      from £42.68
                                                      from £42.68
                                                      # 013
                                                      MPN: 317220312
                                                      INSIDE BEARING
                                                      from £29.50
                                                      from £29.50
                                                      # 014
                                                      MPN: 317220316
                                                      RETAINER RING
                                                      from £1.07
                                                      from £1.07
                                                      # 015
                                                      MPN: 326656105
                                                      LH DUST RING
                                                      from £14.52
                                                      from £14.52
                                                      # 015
                                                      MPN: 326656106
                                                      RH DUST RING
                                                      from £4.56
                                                      from £4.56
                                                      # 016
                                                      MPN: 326656364
                                                      SPACER
                                                      from £9.53
                                                      from £9.53
                                                      # 018
                                                      MPN: 135600060
                                                      SPRING WASHER
                                                      from £0.77
                                                      from £0.77
                                                      # 019
                                                      MPN: 327256319
                                                      SCREW
                                                      from £1.07
                                                      from £1.07
                                                      # 020
                                                      MPN: 138420120
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 021
                                                      MPN: 326656115
                                                      LH FUSE HOLDER
                                                      With pos. 5-26-27
                                                      from £187.69
                                                      from £187.69
                                                      # 021
                                                      MPN: 326656116
                                                      RH FUSE HOLDER
                                                      With pos. 5-26-27
                                                      from £184.67
                                                      from £184.67
                                                      # 022
                                                      MPN: 326656309
                                                      SCREW
                                                      from £2.82
                                                      from £2.82
                                                      # 023
                                                      MPN: 326656313
                                                      SPACER
                                                      from £2.82
                                                      from £2.82
                                                      # 024
                                                      MPN: 14496601
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 025
                                                      MPN: 326656321
                                                      NUT
                                                      from £3.50
                                                      from £3.50
                                                      # 026
                                                      MPN: 326656314
                                                      NUT
                                                      Not supplied in single part
                                                      from £19.85
                                                      from £19.85
                                                      # 027
                                                      MPN: 326656320
                                                      WASHER
                                                      Not supplied in single part
                                                      from £10.88
                                                      from £10.88
                                                      # 028
                                                      MPN: 310254039
                                                      FRONT BRAKE PADS, SET WITH AMIANTHUS
                                                      from £74.68
                                                      from £74.68
                                                      This part replaces part number 327256130
                                                      # 029
                                                      MPN: 320256031
                                                      KIT FOR BRAKE CALIPER OVERHAUL
                                                      from £161.60
                                                      from £161.60
                                                      # 030
                                                      MPN: 317250104
                                                      TUBELESS VALVE
                                                      from £5.32
                                                      from £5.32
                                                      This part replaces part number 317220103
