049 - Doors: Windows and Regulations

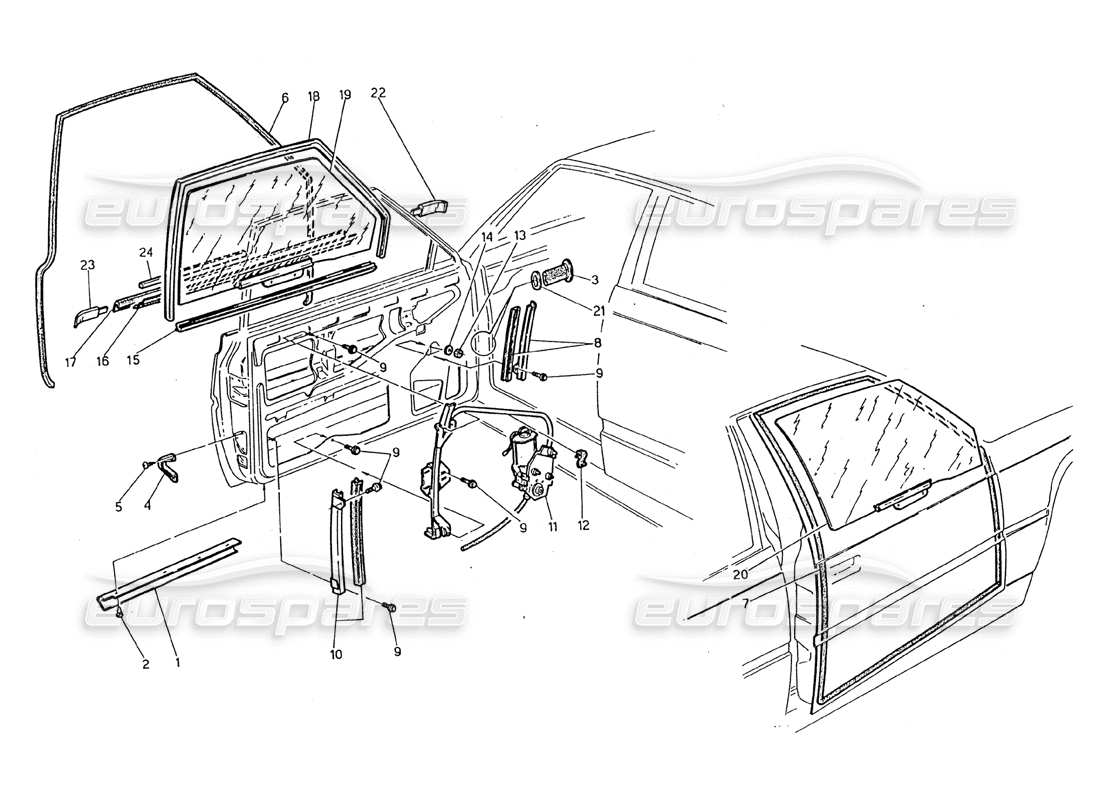

Maserati 2.24v Doors: Windows and Regulations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 314520009
LH DUST CHANNEL, ASSY
from £5.47
from £5.47
# 001
MPN: 314520010
RH DUST CHANNEL, ASSY
from £5.47
from £5.47
# 002
MPN: 314520456
SPRING CLAMP
from £0.70
from £0.70
# 003
MPN: 324520438
GROMMET
Supersession
Supersession
# 004
MPN: 314520405
COVER PLATE
from £0.90
from £0.90
# 005
MPN: 113305016
BOLT
# 006
MPN: 314520159
DUST CHANNEL LH DOOR, ASSY
from £162.24
from £162.24
# 006
MPN: 314520160
DUST CHANNEL RH DOOR, ASSY
from £217.09
from £217.09
# 007
MPN: 364502158
WEATHERSTRIP (BLACK COLOR)
from £91.65
from £91.65
This part replaces part number 314550158 - and 1 more. Click to view details
# 008
MPN: 317720111
LH FRONT GLASS-GUIDE, ASSY
from £5.63
from £5.63
# 008
MPN: 317720112
RH FRONT GLASS-GUIDE, ASSY
from £5.63
from £5.63
# 009
MPN: 317720335
BOLT
from £3.12
from £3.12
This part replaces part number 317720355
# 010
MPN: 317720115
LH REAR GLASS-GUIDE, ASSY
from £5.90
from £5.90
# 010
MPN: 317720116
RH REAR GLASS-GUIDE, ASSY
from £95.74
from £95.74
# 011
MPN: 317751022
RH WINDOW REGULATOR
Supersession
Supersession
This part replaces part number 317720020
# 011
MPN: 367702021
LH WINDOW REGULATOR
from £274.38
from £274.38
This part replaces part number 317751021
# 012
MPN: 317720336
SPRING CLAMP
from £0.69
from £0.69
# 013
MPN: 125100060
NUT
# 014
MPN: 135600060
SPRING WASHER
from £0.77
from £0.77
# 015
MPN: 317720011
INSIDE WEATHERSTRIP
from £21.02
from £21.02
# 016
MPN: 317720324
OUTSIDE WEATHERSTRIP
from £9.50
from £9.50
This part replaces part number 327720324
# 017
MPN: 317720337
LH FINISHER
Supersession
Supersession
# 017
MPN: 317720338
RH FINISHER
Supersession
Supersession
This part replaces part number 317721326
# 018
MPN: 317720124
CHANNEL
from £4.19
from £4.19
# 019
MPN: 317720105
LH GLASS (GREEN COLOR)
from £98.51
from £98.51
# 020
MPN: 317720106
RH GLASS (GREEN COLOR)
from £98.51
from £98.51
# 021
MPN: 324520432
GROMMET
from £0.60
from £0.60
This part replaces part number 314520433
# 022
MPN: 317720319
LH FRONT FERRULE
from £1.07
from £1.07
# 022
MPN: 317720320
RH FRONT FERRULE
from £1.07
from £1.07
# 023
MPN: 317720321
LH REAR FERRULE
from £1.07
from £1.07
# 023
MPN: 317720322
RH REAR FERRULE
from £1.07
from £1.07
# 024
MPN: 388300665
GASKET
from £3.58
from £3.58
This part replaces part number 317720436
# 024
MPN: 388300665
GASKET
from £3.58
from £3.58
This part replaces part number 317720436
