maserati 2.24v rear tail light parts diagram

057 - Rear Tail Light

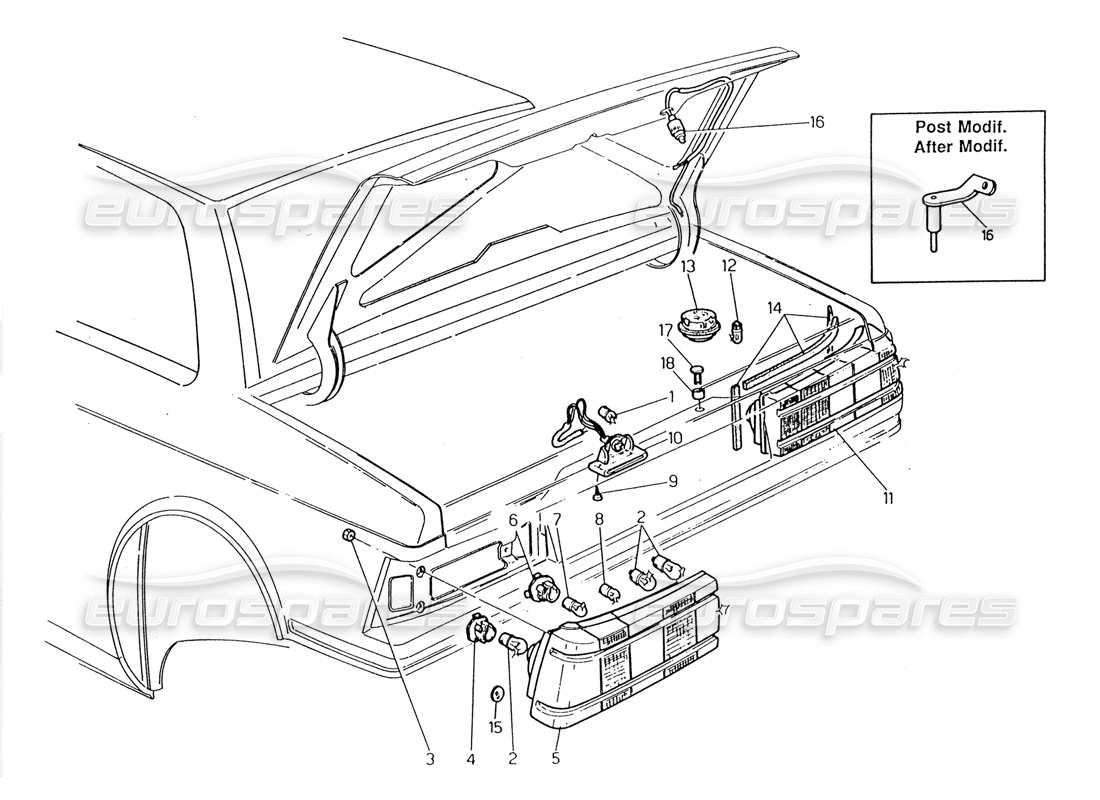

Maserati 2.24v Rear Tail Light Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 87540500
                              BULB 12V 5W
                              from £0.51
                              from £0.51
                              # 002
                              MPN: 87720021
                              BULB 12V 21W
                              from £0.96
                              from £0.96
                              # 004
                              MPN: 313120404
                              BULB HOLDER
                              from £3.97
                              from £3.97
                              # 005
                              MPN: 313120138
                              LH REAR LAMP
                              Supersession
                              Supersession
                              This part replaces part number 313120210
                              # 006
                              MPN: 313120405
                              BULBHOLDER.
                              from £0.83
                              from £0.83
                              # 007
                              MPN: 87720521
                              BULB 12V 5/21W
                              from £2.96
                              from £2.96
                              # 008
                              MPN: 87541000
                              BULB 12V 10W
                              # 010
                              MPN: 30311111
                              NUMBER - PLATE LAMP
                              # 011
                              MPN: 313120137
                              RH REAR LAMP
                              Supersession
                              Supersession
                              This part replaces part number 313120211 which we have in stock
                              # 012
                              MPN: 87760005
                              BULB12V 5W
                              from £0.64
                              from £0.64
                              # 013
                              MPN: 313153118
                              LUGGAGE ROOM LIGHT
                              from £9.83
                              from £9.83
                              # 014
                              MPN: 313120407
                              GASKET FOR TAIL LIGHT
                              minimum order quantity = 4
                              from £1.52
                              from £1.52
                              # 015
                              MPN: 313120305
                              RUBBER PAD
                              from £2.36
                              from £2.36
                              # 016
                              MPN: 30331111
                              SWITCH
                              after.modif.
                              # 016
                              MPN: 323356104
                              SWITCH
                              pre.modif.
                              Supersession
                              Supersession
                              # 017
                              MPN: 318320499
                              PLUG
                              pre.modif.
                              from £0.77
                              from £0.77
                              # 018
                              MPN: 323356304
                              SPACER
                              pre.modif.
                              from £0.69
                              from £0.69
