maserati 2.24v front and rear seats parts diagram

065 - Front and Rear Seats

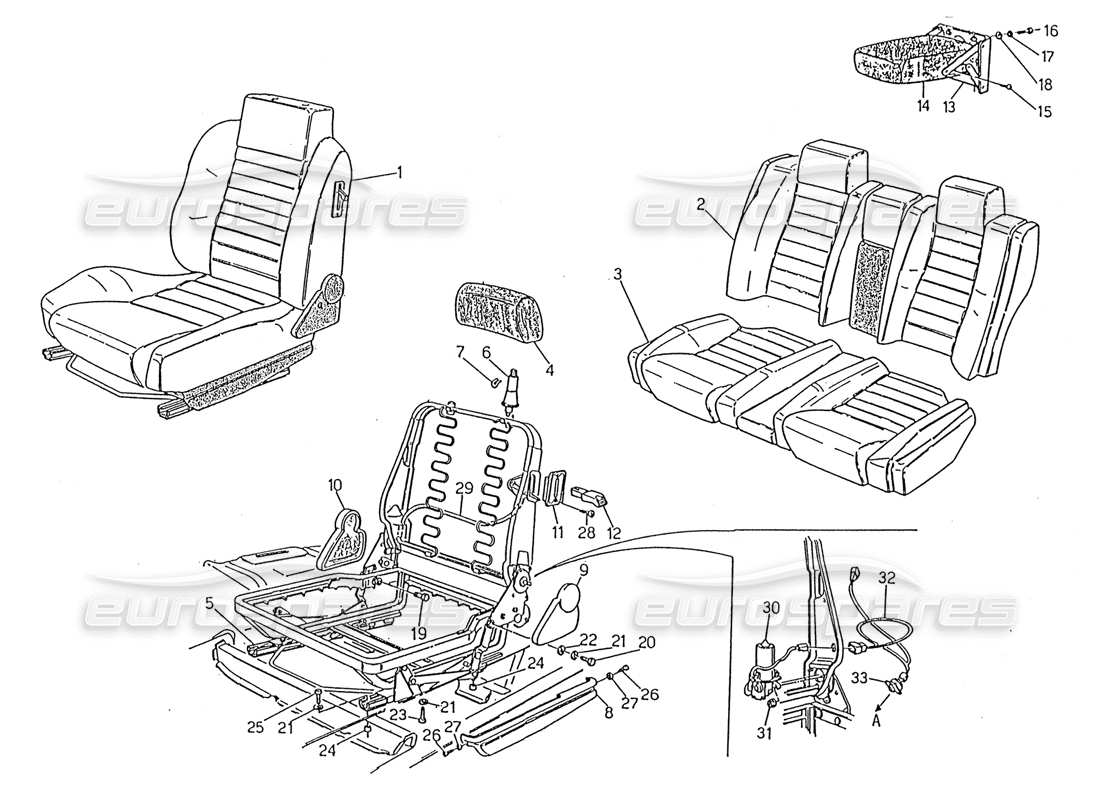

Maserati 2.24v Front and Rear Seats Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 001
                                                                    MPN: 316953189
                                                                    LH FRONT SET (GREY LEATHER AND GREY ALCANTARA)
                                                                    from £731.26
                                                                    from £731.26
                                                                    LH FRONT SEAT Genuine Maserati Part - New (to order)
                                                                    # 001
                                                                    MPN: 316953190
                                                                    RH FRONT SET (GREY LEATHER AND GREY ALCANTARA)
                                                                    from £613.26
                                                                    from £613.26
                                                                    RH FRONT SEAT Genuine Maserati Part - New (to order)
                                                                    # 001
                                                                    MPN: 316953193
                                                                    LH FRONT SET (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    LH FRONT SET (AVIO PELT AND LIGHT BLUE ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 001
                                                                    MPN: 316953194
                                                                    RH FRONT SET (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    RH FRONT SET (AVIO PELT AND LIGHT BLUE ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 001
                                                                    MPN: 316953195
                                                                    LH FRONT SET (BLACK PELT AND GREY ALCANTARA)
                                                                    from £641.56
                                                                    from £641.56
                                                                    LH FRONT SEAT Genuine Maserati Part - New (to order)
                                                                    # 001
                                                                    MPN: 316953196
                                                                    RH FRONT SET (BLACK PELT AND GREY ALCANTARA)
                                                                    from £784.56
                                                                    from £784.56
                                                                    RH FRONT SEAT Genuine Maserati Part - New (to order)
                                                                    # 002
                                                                    MPN: 316953255
                                                                    REAR SEAT ARMREST (GREY PELT AND GREY ALCANTARA)
                                                                    from £547.05
                                                                    from £547.05
                                                                    REAR SEAT SQUAB Genuine Maserati Part - New (to order)
                                                                    # 002
                                                                    MPN: 316953259
                                                                    REAR SEAT ARMREST (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    REAR SEAT ARMREST (AVIO PELT AND LIGHT BLUE ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 002
                                                                    MPN: 316953265
                                                                    REAR SEAT ARMREST (BLACK PELT AND GREY ALCANTARA)
                                                                    from £543.01
                                                                    from £543.01
                                                                    REAR SEAT SQUAB Genuine Maserati Part - New (to order)
                                                                    # 003
                                                                    MPN: 316953254
                                                                    REAR SEAT CUSHION (LIGHT GREY PELT AND GREY ALCANTARA)
                                                                    from £371.71
                                                                    from £371.71
                                                                    REAR SEAT CUSHION Genuine Maserati Part - New (to order)
                                                                    # 003
                                                                    MPN: 316953258
                                                                    REAR SEAT CUSHION (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    REAR SEAT CUSHION (AVIO PELT AND LIGHT BLUE ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 003
                                                                    MPN: 316953264
                                                                    REAR SEAT CUSHION (BLACK PELT AND GREY ALCANTARA)
                                                                    from £369.30
                                                                    from £369.30
                                                                    REAR SEAT CUSHION Genuine Maserati Part - New (to order)
                                                                    # 004
                                                                    MPN: 326956153
                                                                    HEADREST (LIGHT GREY PELT)
                                                                    from £88.80
                                                                    from £88.80
                                                                    headrest Genuine Maserati Part - New (to order)
                                                                    # 004
                                                                    MPN: 326956163
                                                                    HEADREST (BLACK PELT)
                                                                    from £78.22
                                                                    from £78.22
                                                                    headrest Genuine Maserati Part - New (to order)
                                                                    # 004
                                                                    MPN: 326956173
                                                                    HEADREST (AVIO PELT)
                                                                    from £78.22
                                                                    from £78.22
                                                                    headrest Genuine Maserati Part - New (to order)
                                                                    # 005
                                                                    MPN: 316930009
                                                                    LH /RH FRONT SEAT FEED
                                                                    from £379.17
                                                                    from £379.17
                                                                    SEAT SLIDING CONTROL Genuine Maserati Part - New (to order)
                                                                    # 006
                                                                    MPN: 326956154
                                                                    SHAFT JOINT (LIGHT GREY PELT)
                                                                    from £2.21
                                                                    from £2.21
                                                                    HEADREST JOINT,GREY Genuine Maserati Part - New (to order)
                                                                    # 006
                                                                    MPN: 326956164
                                                                    SHAFT JOINT (BLACK PELT)
                                                                    from £2.21
                                                                    from £2.21
                                                                    HEADREST JOINT,BLACK L. Genuine Maserati Part - New (to order)
                                                                    # 006
                                                                    MPN: 326956174
                                                                    SHAFT JOINT (AVIO PELT)
                                                                    Maserati PART 326956174 Genuine Maserati Part - New (to order)
                                                                    # 007
                                                                    MPN: 30691352
                                                                    SPRING
                                                                    from £0.96
                                                                    from £0.96
                                                                    MOLLA REGOLAZIONE APPOGGIATE Genuine Maserati Part - New (to order)
                                                                    # 008
                                                                    MPN: 316953439
                                                                    LH DEVICE FINISHER (ANTRACITE COL.)
                                                                    from £4.69
                                                                    from £4.69
                                                                    LH COVER,ANTRACITE Genuine Maserati Part - New (to order)
                                                                    # 008
                                                                    MPN: 316953440
                                                                    RH DEVICE FINISHER (ANTRACITE COL.)
                                                                    from £1.59
                                                                    from £1.59
                                                                    RH COVER,ANTRACITE Genuine Maserati Part - New (to order)
                                                                    # 009
                                                                    MPN: 316953446
                                                                    LH FRONT FINISHER (ANTRACITE COL.)
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 316920443
                                                                    Genuine Maserati Part (no longer available to order)
                                                                    # 010
                                                                    MPN: 316953445
                                                                    RH FRONT FINISHER (ANTRACITE COL.)
                                                                    from £2.21
                                                                    from £2.21
                                                                    This part replaces part number 316920444 - and 1 more. Click to view details
                                                                    FRONT RH SEAT COVER,ANTRACITE Genuine Maserati Part - New (to order)
                                                                    # 011
                                                                    MPN: 566905531
                                                                    FINISHER TAB (BADGE) (BLACK COL.)
                                                                    from £0.75
                                                                    from £0.75
                                                                    LEVER PLATE Genuine Maserati Part - New (to order)
                                                                    # 012
                                                                    MPN: 53696532
                                                                    KNOB (BLACK COL.)
                                                                    from £1.20
                                                                    from £1.20
                                                                    SAF.HOOK CONTROL LEVER BALL GRIP Genuine Maserati Part - New (to order)
                                                                    # 013
                                                                    MPN: 316920221
                                                                    ARMREST BRACKET
                                                                    from £11.26
                                                                    from £11.26
                                                                    ARMREST BRACKET Genuine Maserati Part - New (to order)
                                                                    # 014
                                                                    MPN: 316953256
                                                                    ARMREST (LIGHT GREY ALCANTARA)
                                                                    ARMREST (LIGHT GREY ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 014
                                                                    MPN: 316953260
                                                                    ARMREST (DARK LIGHT BLUE ALCANTARA)
                                                                    ARMREST (DARK LIGHT BLUE ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 014
                                                                    MPN: 316953266
                                                                    ARMREST (DARK GREY ALCANTARA)
                                                                    ARMREST (DARK GREY ALCANTARA) Genuine Maserati Part - New (to order)
                                                                    # 015
                                                                    MPN: 113104014
                                                                    SCREW
                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                    # 016
                                                                    MPN: 112806016
                                                                    SCREW
                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                    # 017
                                                                    MPN: 135600060
                                                                    SPRING WASHER
                                                                    from £0.77
                                                                    from £0.77
                                                                    WASHER 6.15X11.8 Genuine Maserati Part - New In stock
                                                                    # 018
                                                                    MPN: 163030060
                                                                    PLANE WASHER
                                                                    from £1.07
                                                                    from £1.07
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 019
                                                                    MPN: 316920324
                                                                    PIN
                                                                    PIN Genuine Maserati Part - New (to order)
                                                                    # 024
                                                                    MPN: 153691357
                                                                    SPACER (10 THICKNESS)
                                                                    SPACER (10 THICKNESS) Genuine Maserati Part - New (to order)
                                                                    # 024
                                                                    MPN: 316320334
                                                                    SPACER (4,5 THICKNESS)
                                                                    from £1.14
                                                                    from £1.14
                                                                    SPACER FOR FR. BUMPER SIDE COUPLI Genuine Maserati Part - New In stock
                                                                    # 027
                                                                    MPN: 136200037
                                                                    PLANE WASHER
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 029
                                                                    MPN: 316920025
                                                                    CABLE, ASSY
                                                                    from £13.42
                                                                    from £13.42
                                                                    SEAT BACK RELEASE CABLE Genuine Maserati Part - New (to order)
                                                                    # 030
                                                                    MPN: 313321190
                                                                    SQUAB ROTATION MOTOR
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Maserati Part (no longer available to order)
                                                                    # 031
                                                                    MPN: 122700050
                                                                    MOTOR FIXING NUT
                                                                    Maserati PART 122700050 Genuine Maserati Part - New (to order)
                                                                    # 032
                                                                    MPN: 313021134
                                                                    MOTOR WIRING HARNESS
                                                                    from £8.39
                                                                    from £8.39
                                                                    GRUPPO CAVI SEDILI S/D Genuine Maserati Part - New (to order)
                                                                    # 033
                                                                    MPN: 323350130
                                                                    SWITCH
                                                                    from £8.78
                                                                    from £8.78
                                                                    This part replaces part number 330915700
                                                                    TOGGLE SWITCH Genuine Maserati Part - New (to order)
