003 - moving parts

Maserati Ghibli 4.7 / 4.9 Moving Parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Key
                                                                      Price
                                                                      # 001
                                                                      MPN: 115 MM 64207
                                                                      SEALING SEGMENT WITH STEP
                                                                      SEALING SEGMENT WITH STEP Genuine Maserati Part - New (to order)
                                                                      # 002
                                                                      MPN: 115 MM 64206
                                                                      CONICAL SEAL SEGMENT
                                                                      CONICAL SEAL SEGMENT Genuine Maserati Part - New (to order)
                                                                      # 003
                                                                      MPN: 115 MM 64204
                                                                      Pistone per canna Ø 93,9
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 004
                                                                      MPN: 107MM57318
                                                                      PIN RETAINER .
                                                                      RETAINER FOR PIN Genuine Maserati Part - New (to order)
                                                                      # 005
                                                                      MPN: 115 MM 64208
                                                                      UPPER OIL SCRAPER
                                                                      UPPER OIL SCRAPER Genuine Maserati Part - New (to order)
                                                                      # 005
                                                                      MPN: 115 MM 64209
                                                                      LOWER OIL SCRAPER
                                                                      LOWER OIL SCRAPER Genuine Maserati Part - New (to order)
                                                                      # 006
                                                                      MPN: 101 - 2702 46431
                                                                      SPINOTTO PER PISTONE
                                                                      from £508.47
                                                                      from £508.47
                                                                      SPINOTTO PER PISTONE Genuine Maserati Part - New (to order)
                                                                      # 007
                                                                      MPN: 103 2520 52032
                                                                      BUSH
                                                                      from £35.60
                                                                      from £35.60
                                                                      BUSH Genuine Maserati Part - New (to order)
                                                                      # 008
                                                                      MPN: 107 2502 54705
                                                                      CONNECTING ROD AND CAP
                                                                      CONNECTING ROD AND CAP Genuine Maserati Part - New (to order)
                                                                      # 009
                                                                      MPN: 107.2504.52011
                                                                      BUSHING FOR CONNECTING ROD
                                                                      from £100.41
                                                                      from £100.41
                                                                      BUSHING FOR CONNECTING ROD Genuine Maserati Part - New (to order)
                                                                      # 010
                                                                      MPN: 104 2530 52185

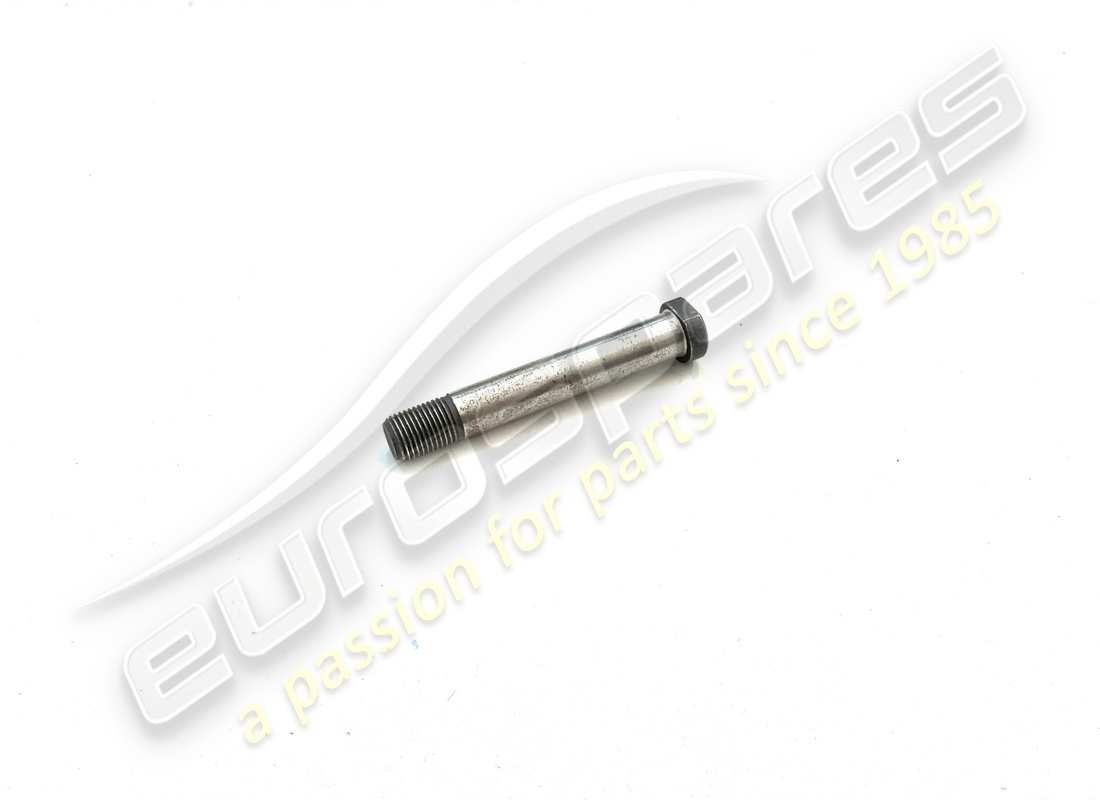

                                                                      BOLT
                                                                      from £29.40
                                                                      from £29.40
                                                                      BOLT Genuine Maserati Part - New In stock
                                                                      # 011
                                                                      MPN: C 114 .MM 66790
                                                                      NUT
                                                                      NUT Genuine Maserati Part - New (to order)
                                                                      # 012
                                                                      MPN: CN. 43776
                                                                      COPIGLIA PER DADI BIELLA (SOLO FINO A GIUGNO ' 68 PER DADI NON AUTOBLOCCANTI)
                                                                      from £0.84
                                                                      from £0.84
                                                                      Copiglia Ø 2 x 15 Genuine Maserati Part - New (to order)
                                                                      # 013
                                                                      MPN: 115 MM 63211
                                                                      Pulley on the crankshaft.
                                                                      Pulley on the crankshaft. Genuine Maserati Part - New (to order)
                                                                      # 014
                                                                      MPN: 107/1 M ,M 65984
                                                                      Volano motore per frizione da 101/2 con angus intero (fino alla 301ª vettura)
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 014
                                                                      MPN: 107/1 MM 60309
                                                                      ENGINE FLYWHEEL FOR 91/2 DOUBLE DISC CLUTCH.
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 014
                                                                      MPN: 107/1 MM 62549
                                                                      Volano motore per frizione da 101/2 con angus tagliato (fino alla 300ª vettura)
                                                                      Volano motore per frizione da 101/2 con angus tagliato (fino alla 300ª vettura) Genuine Maserati Part - New (to order)
                                                                      # 015
                                                                      MPN: 101243048737
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 016
                                                                      MPN: 101/3 2422 48728
                                                                      REAR CRANKSHAFT BEARING
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 017
                                                                      MPN: 103 2421 50484
                                                                      Central and front main bearing
                                                                      Central and front main bearing Genuine Maserati Part - New (to order)
                                                                      # 018
                                                                      MPN: 101243248738
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 020
                                                                      MPN: CSC46424
                                                                      Bearing on rear crankshaft
                                                                      Bearing on rear crankshaft Genuine Maserati Part - New (to order)
                                                                      # 021
                                                                      MPN: GRN44931
                                                                      Grain between flywheel and crankshaft
                                                                      Grain between flywheel and crankshaft Genuine Maserati Part - New (to order)
                                                                      # 022
                                                                      MPN: ART/49644
                                                                      RING
                                                                      RING Genuine Maserati Part - New (to order)
                                                                      # 023
                                                                      MPN: BN 50546
                                                                      BOLT
                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                      # 023
                                                                      MPN: BN 65982
                                                                      BOLT
                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                      # 024
                                                                      MPN: DCN33939
                                                                      NUT
                                                                      from £14.40
                                                                      from £14.40
                                                                      Crowned nut Ø 9x1,25 for flywheel fixing bolt Genuine Maserati Part - New (to order)
                                                                      # 024
                                                                      MPN: RDL 65983
                                                                      WASHER
                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                      # 025
                                                                      MPN: CN. 43776
                                                                      PIN FOR CROWNED FLYWHEEL NUTS
                                                                      from £0.84
                                                                      from £0.84
                                                                      Copiglia Ø 2 x 15 Genuine Maserati Part - New (to order)
                                                                      # 026
                                                                      MPN: 107/3-MM-67068
                                                                      Albero motore con angus intero dalla 301ª vettura .
                                                                      Albero motore con angus intero dalla 301ª vettura . Genuine Maserati Part - New (to order)
                                                                      # 026
                                                                      MPN: 107MM53992
                                                                      ALBERO MOTORE CON ANGUS TAGLIATO FINO ALLA 300ª VETTURA .
                                                                      ALBERO MOTORE Genuine Maserati Part - New (to order)
                                                                      # 027
                                                                      MPN: RUL55977
                                                                      RULLINO Ø 5 TRAINO POMPA OLIO .
                                                                      Rullino Ø 5 traino pompa olio Genuine Maserati Part - New (to order)
                                                                      # 028
                                                                      MPN: 101212247645
                                                                      Chain gear key on crankshaft
                                                                      Chain gear key on crankshaft Genuine Maserati Part - New (to order)
                                                                      # 029
                                                                      MPN: 103 3502 49731
                                                                      Triple chain gear on the crankshaft
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Maserati Part (no longer available to order)
                                                                      # 030
                                                                      MPN: RN 57168
                                                                      WASHER
                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                      # 031
                                                                      MPN: RDL 55575
                                                                      WASHER
                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                      # 032
                                                                      MPN: BNT 65419
                                                                      BOLT
                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                      # 033
                                                                      MPN: GRN 61848
                                                                      GRANO CENTRAGGIO FRIZIONE 9 1/2 BIDISCO .
                                                                      GRANO CENTRAGGIO FRIZIONE 9 1/2 BIDISCO . Genuine Maserati Part - New (to order)
                                                                      # 033
                                                                      MPN: GRN 62551
                                                                      GRANO CENTRAGGIO FRIZIONE 10 1/2 ‹‹ BORG-BECK ››
                                                                      Grub screw Ø 8 x 7 x 23 centering clutch on flywheel Genuine Maserati Part - New (to order)
                                                                      # 034
                                                                      MPN: RUL 47881
                                                                      ROLLER Ø 3 X 19,8 TO DRIVE THE RECOVERY OIL PUMP GEAR
                                                                      ROLLER DRIVING GEARS OF RECOVERY OIL PUMP Genuine Maserati Part - New (to order)
