Lamborghini Murcielago Coupe (2005) Part Diagrams

Explore the parts diagrams to find exactly what you need to keep your Lamborghini Murcielago Coupe (2005) running smoothly.

Diagram Filter: Filter the part diagrams below by typing keywords such as brake, trim, or engine.

lamborghini murcielago coupe (2005) cylinder head right part diagram
11.01.00

CYLINDER HEAD RIGHT

lamborghini murcielago coupe (2005) cylinder head left part diagram
11.02.00

CYLINDER HEAD LEFT

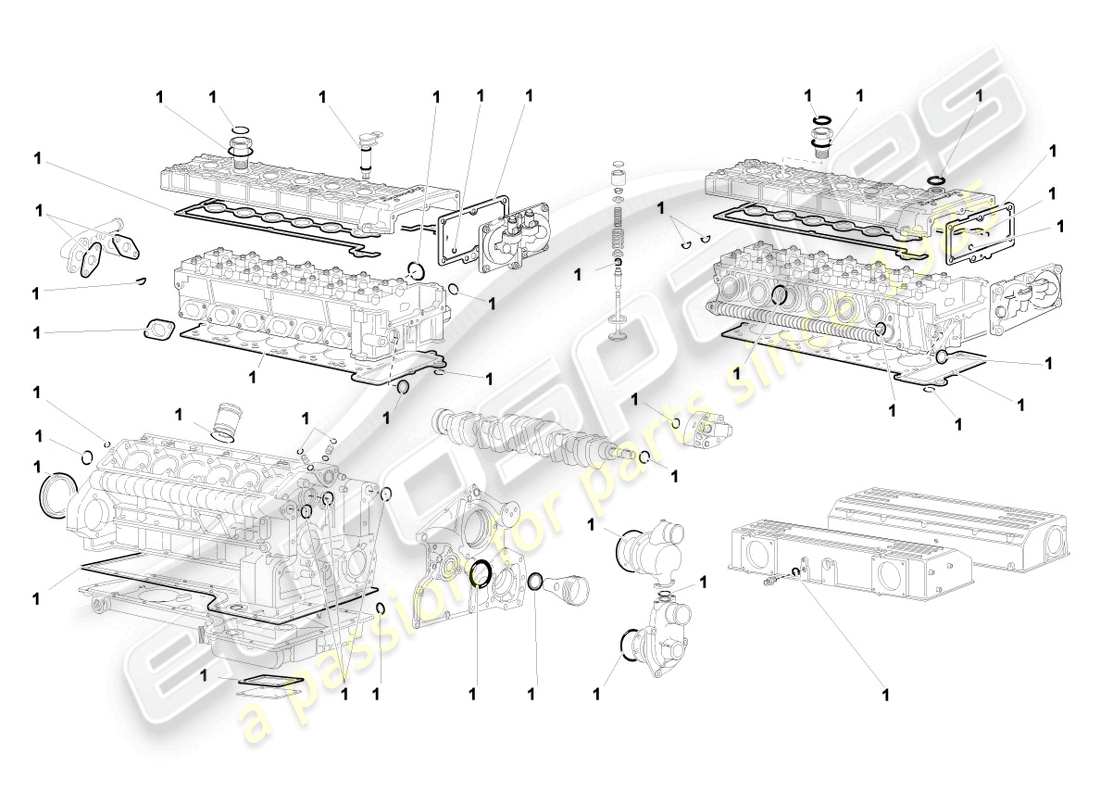

lamborghini murcielago coupe (2005) gasket set for engine part diagram
11.03.00

GASKET SET FOR ENGINE

lamborghini murcielago coupe (2005) camshaft, valves left part diagram
12.01.00

CAMSHAFT, VALVES LEFT

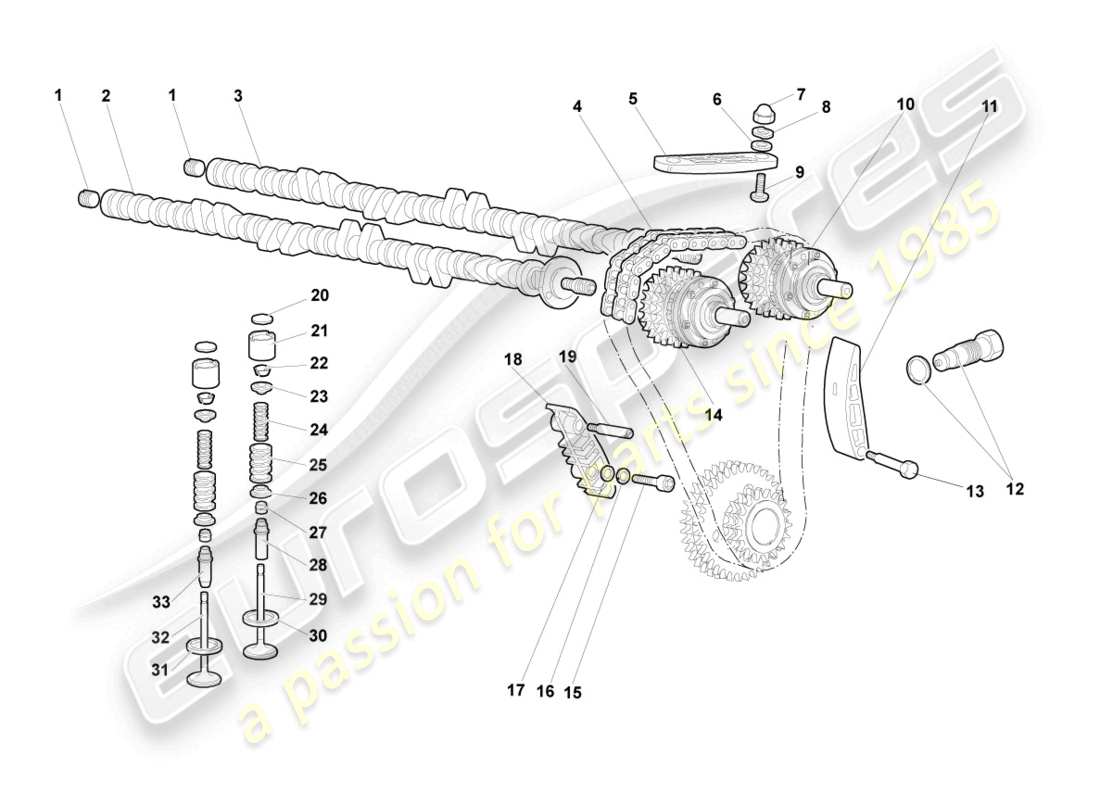

lamborghini murcielago coupe (2005) camshaft, valves right part diagram
12.02.00

CAMSHAFT, VALVES RIGHT

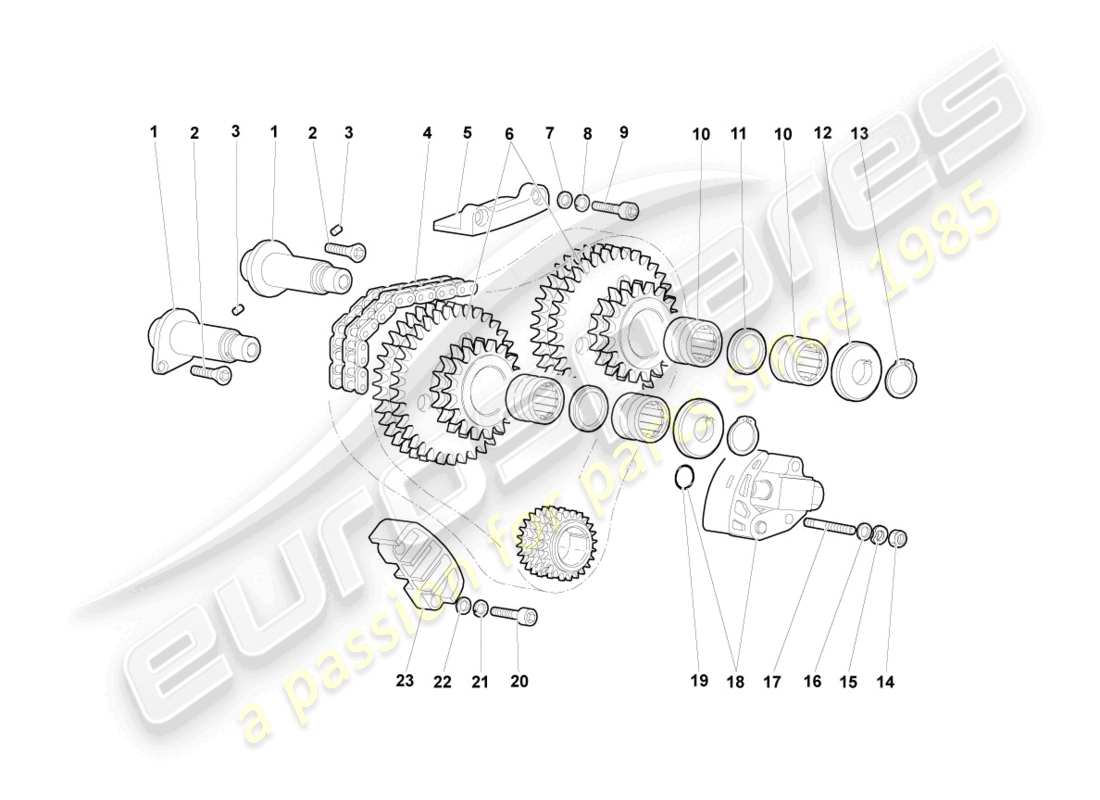

lamborghini murcielago coupe (2005) timing chain part diagram
12.03.00

TIMING CHAIN

lamborghini murcielago coupe (2005) intake system part diagram
13.01.00

INTAKE SYSTEM

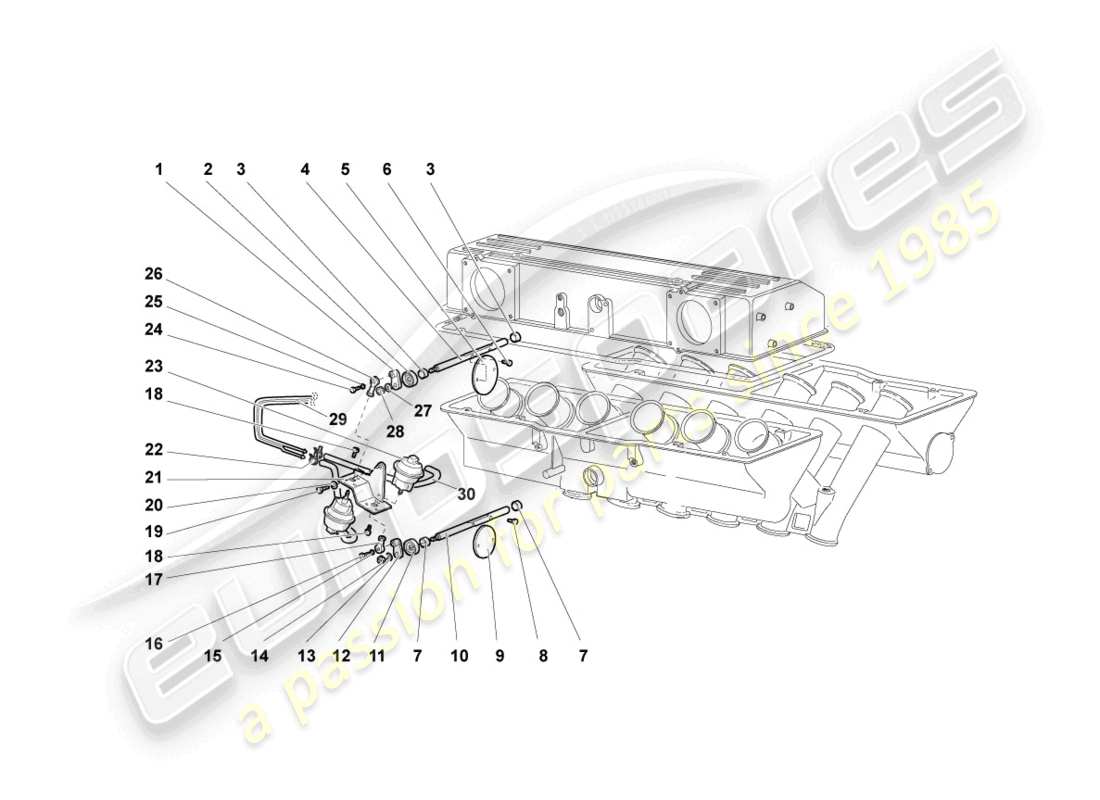

lamborghini murcielago coupe (2005) vacuum system part diagram
13.02.00

VACUUM SYSTEM

lamborghini murcielago coupe (2005) air filter with connecting parts part diagram
13.03.00

AIR FILTER WITH CONNECTING PARTS

lamborghini murcielago coupe (2005) crankshaft part diagram
14.01.00

CRANKSHAFT

lamborghini murcielago coupe (2005) oil pump part diagram
15.01.00

OIL PUMP

lamborghini murcielago coupe (2005) oil cooler part diagram
15.03.00

OIL COOLER

lamborghini murcielago coupe (2005) spark plug part diagram
16.01.00

SPARK PLUG

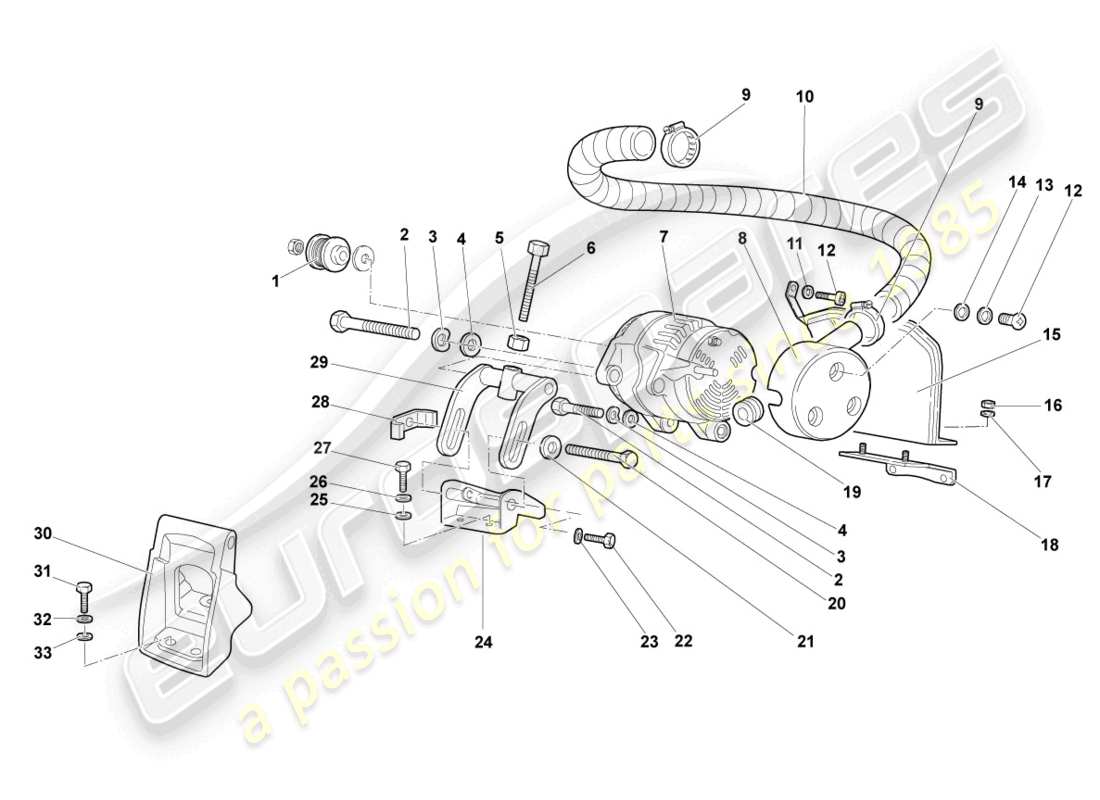

lamborghini murcielago coupe (2005) alternator part diagram
16.02.00

ALTERNATOR

lamborghini murcielago coupe (2005) control unit for injection pump part diagram
16.03.00

CONTROL UNIT FOR INJECTION PUMP

lamborghini murcielago coupe (2005) engine control unit part diagram
16.04.00

ENGINE CONTROL UNIT

lamborghini murcielago coupe (2005) coolant pump part diagram
17.01.00

COOLANT PUMP

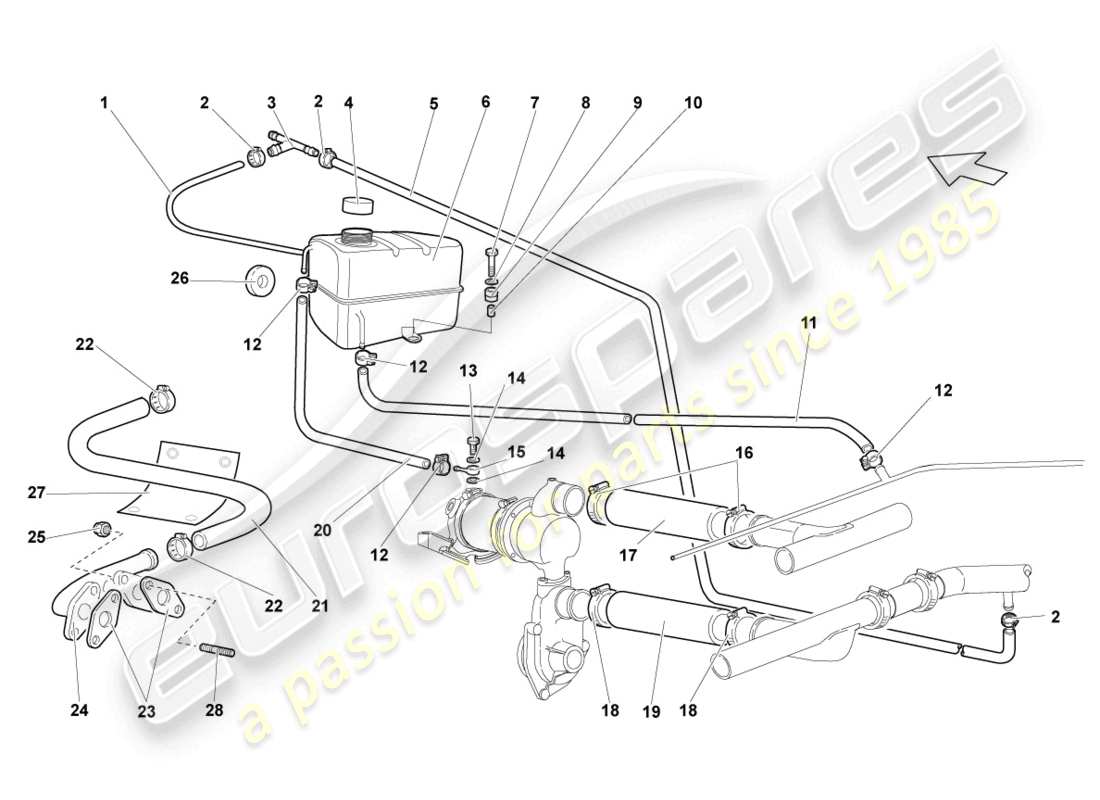

lamborghini murcielago coupe (2005) coolant cooling system part diagram
17.02.00

COOLANT COOLING SYSTEM

lamborghini murcielago coupe (2005) cooler for coolant part diagram
17.03.00

COOLER FOR COOLANT

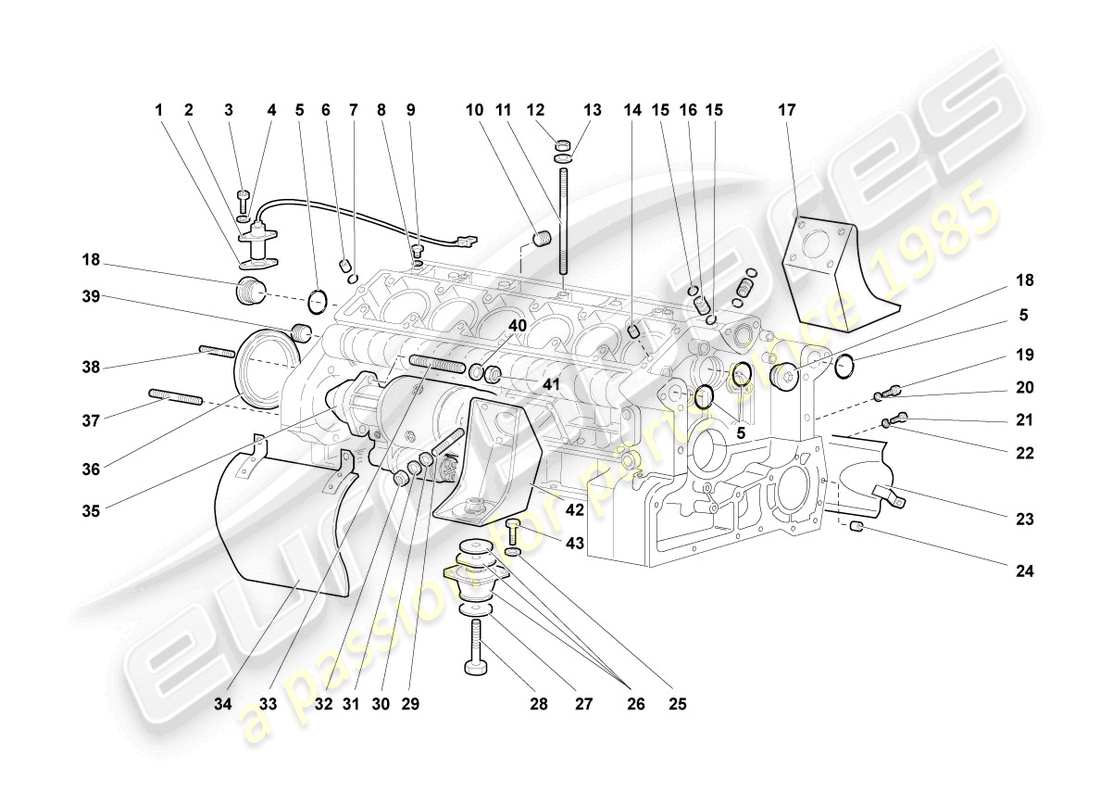

lamborghini murcielago coupe (2005) crankcase housing part diagram
18.01.00

CRANKCASE HOUSING

lamborghini murcielago coupe (2005) crankcase housing part diagram
18.02.00

CRANKCASE HOUSING

lamborghini murcielago coupe (2005) oil sump part diagram
18.03.00

OIL SUMP

lamborghini murcielago coupe (2005) base engine part diagram
18.04.00

BASE ENGINE

lamborghini murcielago coupe (2005) coupling lhd part diagram
21.01.00

COUPLING LHD

lamborghini murcielago coupe (2005) coupling rhd part diagram
21.01.74

COUPLING RHD

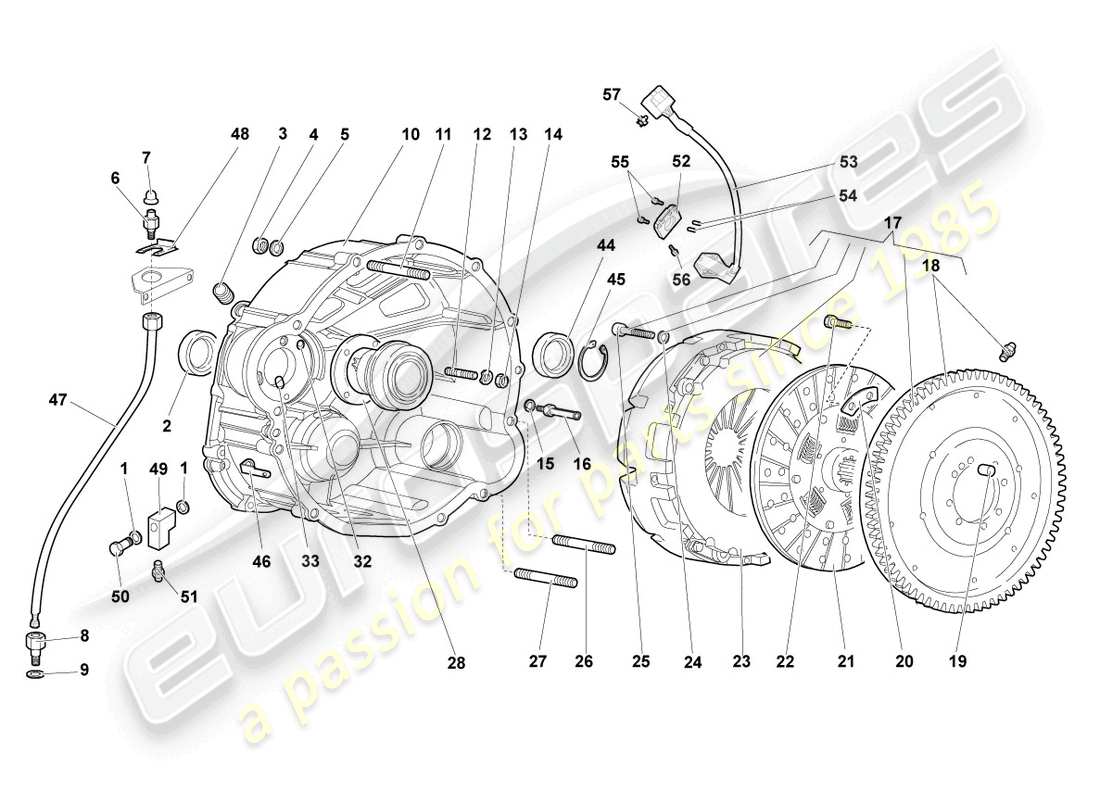

lamborghini murcielago coupe (2005) coupling e-gear part diagram
21.02.00

COUPLING E-GEAR

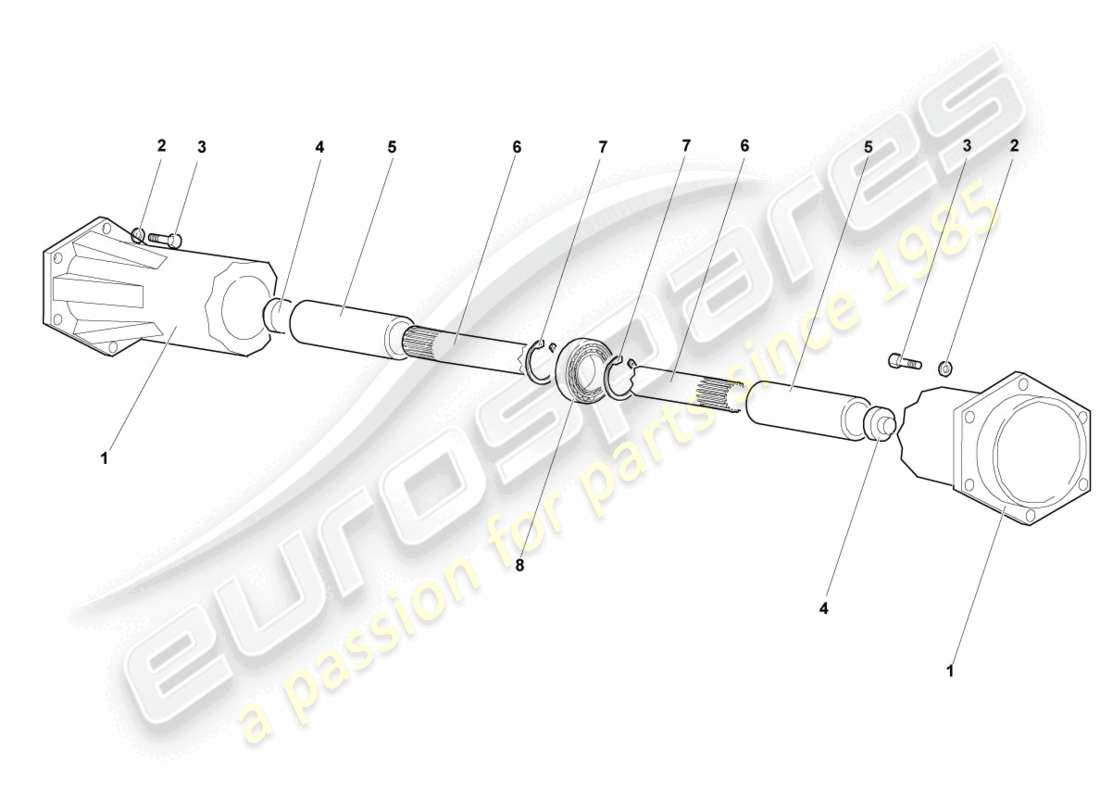

lamborghini murcielago coupe (2005) cardan shaft part diagram
22.01.00

CARDAN SHAFT

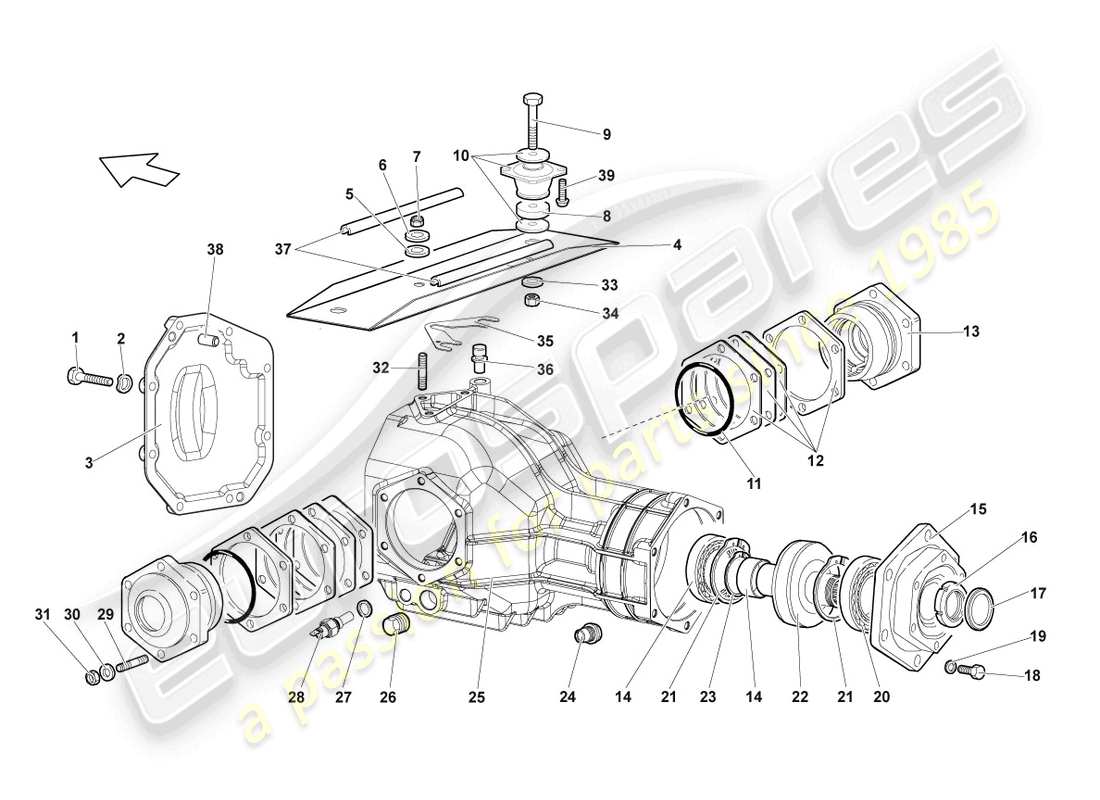

lamborghini murcielago coupe (2005) housing for differential part diagram
23.01.00

HOUSING FOR DIFFERENTIAL

lamborghini murcielago coupe (2005) differential with crown wheel and pinion front part diagram
23.02.00

DIFFERENTIAL WITH CROWN WHEEL AND PINION FRONT

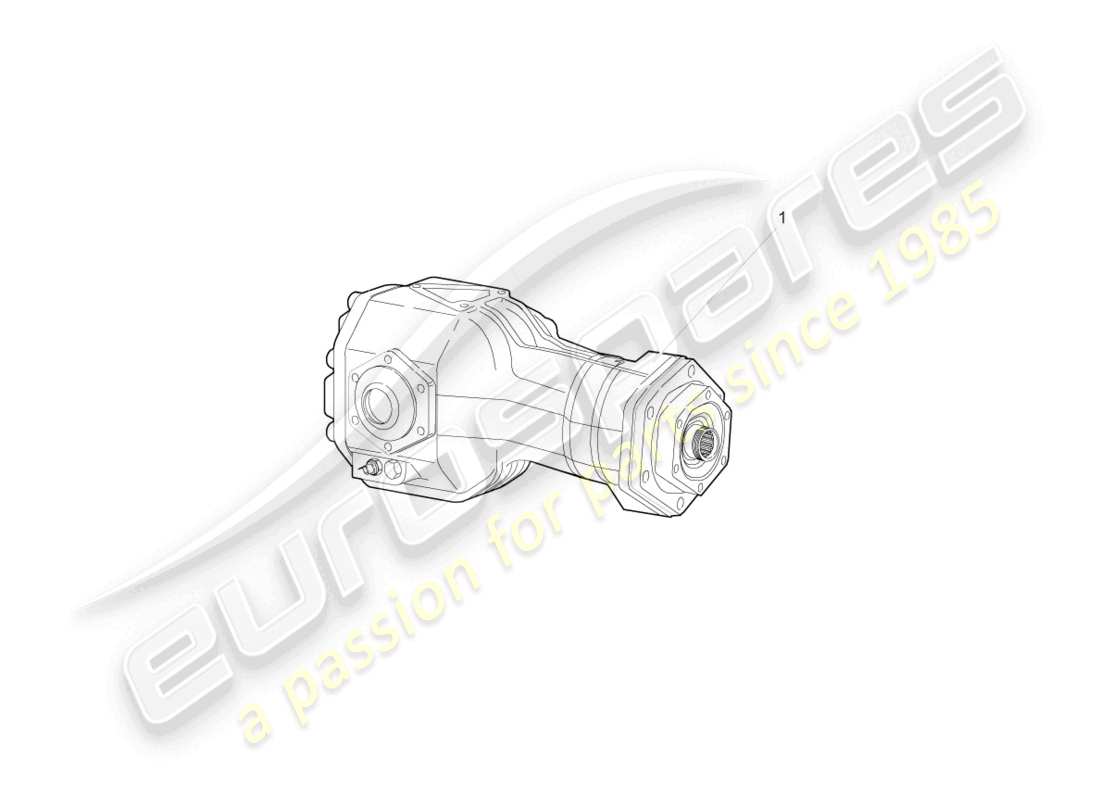

lamborghini murcielago coupe (2005) differential front part diagram
23.03.00

DIFFERENTIAL FRONT

lamborghini murcielago coupe (2005) mounting for shift mechanism part diagram
24.01.00

MOUNTING FOR SHIFT MECHANISM

lamborghini murcielago coupe (2005) selector mechanism part diagram
24.02.00

SELECTOR MECHANISM

lamborghini murcielago coupe (2005) gearbox housing and attachments part diagram
24.03.00

GEARBOX HOUSING AND ATTACHMENTS

lamborghini murcielago coupe (2005) oil pump part diagram
24.04.00

OIL PUMP

lamborghini murcielago coupe (2005) input shaft part diagram
24.05.00

INPUT SHAFT

lamborghini murcielago coupe (2005) output shaft part diagram
24.06.00

OUTPUT SHAFT

lamborghini murcielago coupe (2005) gear selector part diagram
24.08.00

GEAR SELECTOR

lamborghini murcielago coupe (2005) gearbox, complete part diagram
24.09.00

GEARBOX, COMPLETE

lamborghini murcielago coupe (2005) drive shaft front part diagram
25.01.00

DRIVE SHAFT FRONT

lamborghini murcielago coupe (2005) housing for differential part diagram
26.01.00

HOUSING FOR DIFFERENTIAL

lamborghini murcielago coupe (2005) differential rear part diagram
26.02.00

DIFFERENTIAL REAR

lamborghini murcielago coupe (2005) final drive, complete rear part diagram
26.03.00

FINAL DRIVE, COMPLETE REAR

lamborghini murcielago coupe (2005) disc brake front part diagram
31.01.00

DISC BRAKE FRONT

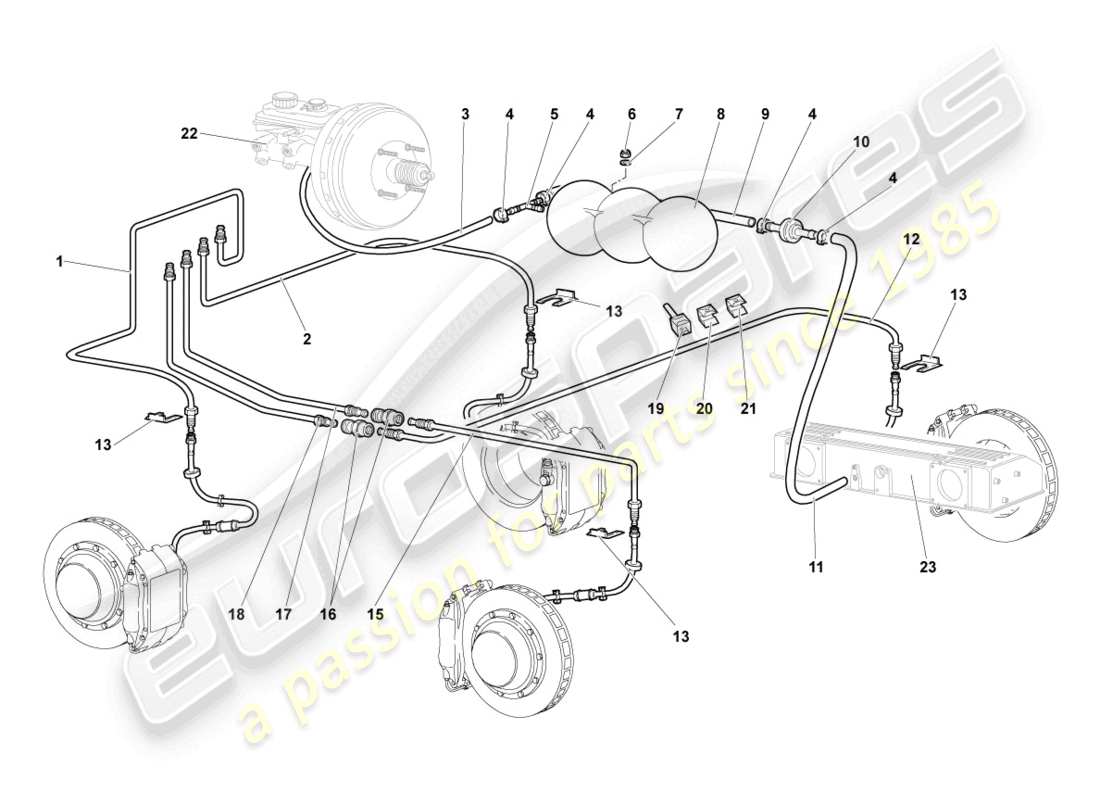

lamborghini murcielago coupe (2005) brake pipe part diagram
31.02.00

BRAKE PIPE

lamborghini murcielago coupe (2005) anti-locking brake syst. -abs- part diagram
31.03.00

ANTI-LOCKING BRAKE SYST. -ABS-

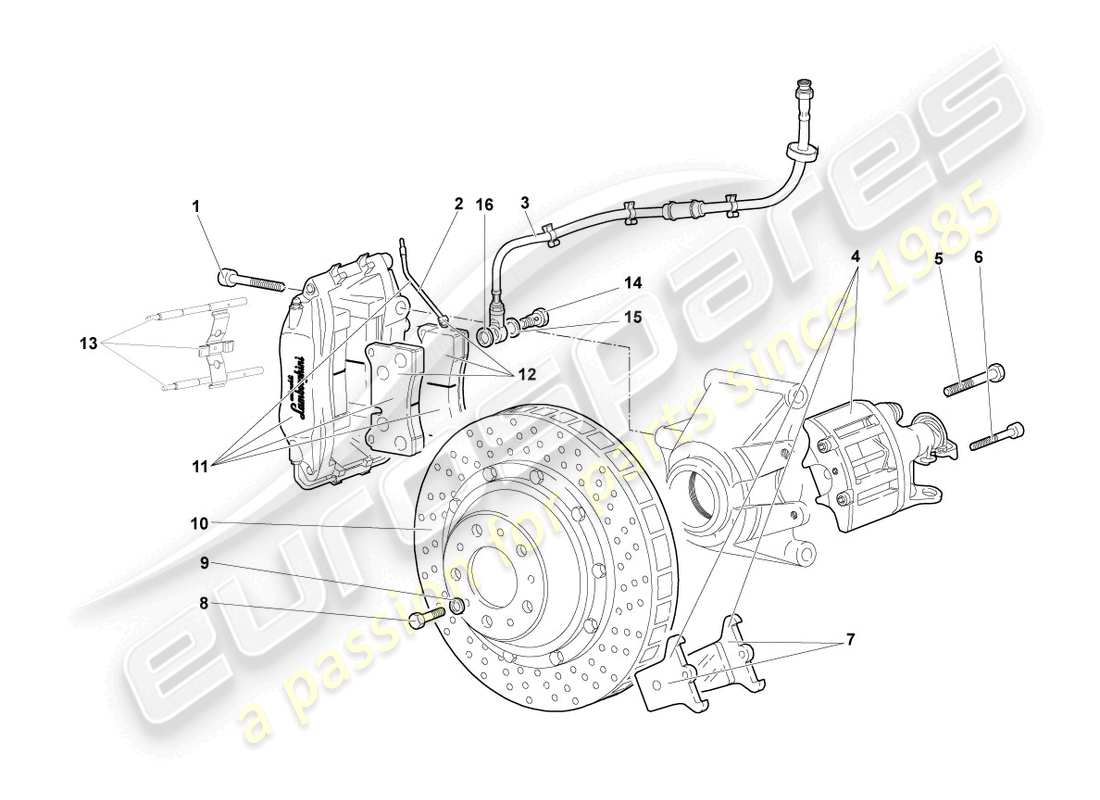

lamborghini murcielago coupe (2005) disc brake rear part diagram
32.01.00

DISC BRAKE REAR

lamborghini murcielago coupe (2005) brake lever part diagram
33.01.00

BRAKE LEVER

lamborghini murcielago coupe (2005) brake lever rhd part diagram
33.01.74

BRAKE LEVER RHD

lamborghini murcielago coupe (2005) hydraulic system and fluid container with connect. pieces part diagram
40.02.00

HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES

lamborghini murcielago coupe (2005) frame part diagram
41.01.00

FRAME

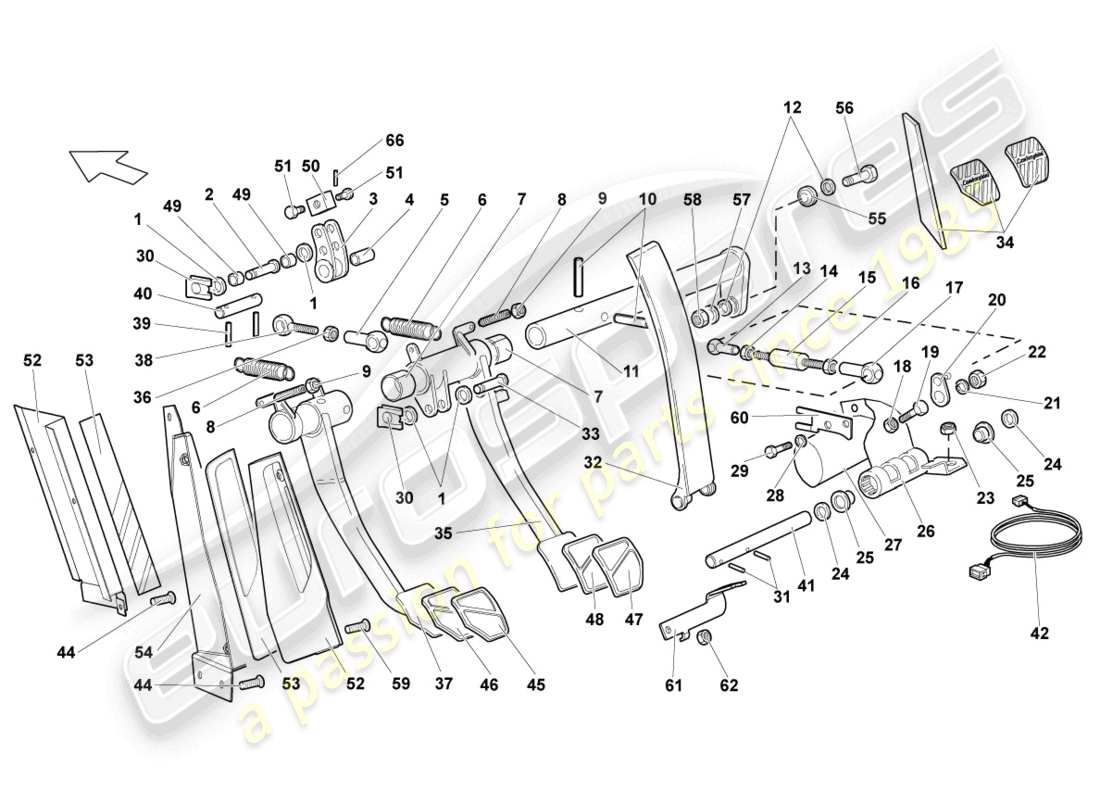

lamborghini murcielago coupe (2005) brake and accel. lever mech. part diagram
42.01.00

BRAKE AND ACCEL. LEVER MECH.

lamborghini murcielago coupe (2005) brake and accel. lever mech. part diagram
42.03.00

BRAKE AND ACCEL. LEVER MECH.

lamborghini murcielago coupe (2005) brake servo part diagram
42.03.74

BRAKE SERVO

lamborghini murcielago coupe (2005) steering col. combi switch part diagram
43.01.00

STEERING COL. COMBI SWITCH

lamborghini murcielago coupe (2005) steering column part diagram
43.02.00

STEERING COLUMN

lamborghini murcielago coupe (2005) steering gear part diagram
43.03.00

STEERING GEAR

lamborghini murcielago coupe (2005) steering wheel part diagram
43.04.00

STEERING WHEEL

lamborghini murcielago coupe (2005) lock cylinders part diagram
43.05.00

LOCK CYLINDERS

lamborghini murcielago coupe (2005) exhaust manifolds part diagram
44.01.00

EXHAUST MANIFOLDS

lamborghini murcielago coupe (2005) exhaust system part diagram
44.02.00

EXHAUST SYSTEM

lamborghini murcielago coupe (2005) exhaust system part diagram
44.02.71

EXHAUST SYSTEM

lamborghini murcielago coupe (2005) rear silencer part diagram
44.03.00

REAR SILENCER

lamborghini murcielago coupe (2005) rear silencer part diagram
44.03.71

REAR SILENCER

lamborghini murcielago coupe (2005) vacuum system part diagram
44.04.00

VACUUM SYSTEM

lamborghini murcielago coupe (2005) vacuum system part diagram
44.04.71

VACUUM SYSTEM

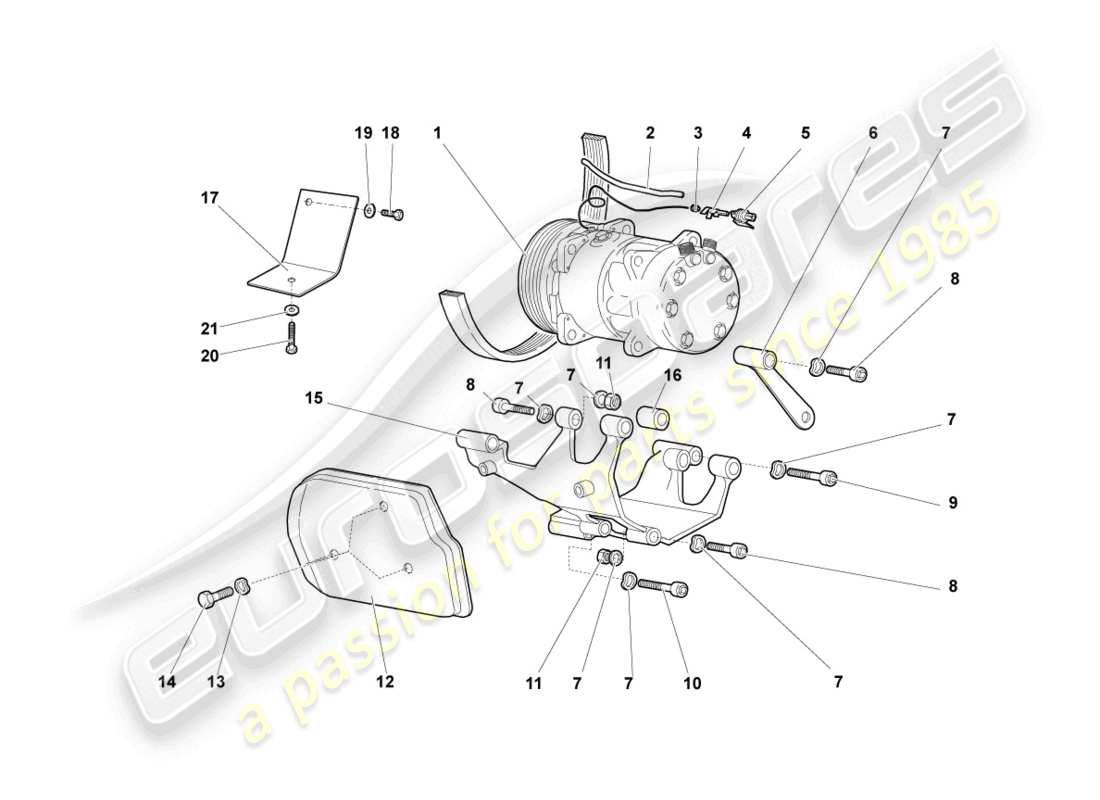

lamborghini murcielago coupe (2005) a/c compressor part diagram
45.01.00

A/C COMPRESSOR

lamborghini murcielago coupe (2005) a/c condenser part diagram
45.02.00

A/C CONDENSER

lamborghini murcielago coupe (2005) air and footwell heater ducts, air hoses and vents part diagram
45.03.00

AIR AND FOOTWELL HEATER DUCTS, AIR HOSES AND VENTS

lamborghini murcielago coupe (2005) air conditioning lhd part diagram
45.04.00

AIR CONDITIONING LHD

lamborghini murcielago coupe (2005) air conditioning rhd part diagram
45.04.74

AIR CONDITIONING RHD

lamborghini murcielago coupe (2005) secondary air pump part diagram
46.01.71

SECONDARY AIR PUMP

lamborghini murcielago coupe (2005) suspension front part diagram
51.02.00

SUSPENSION FRONT

lamborghini murcielago coupe (2005) central hydraulics part diagram
51.03.00

CENTRAL HYDRAULICS

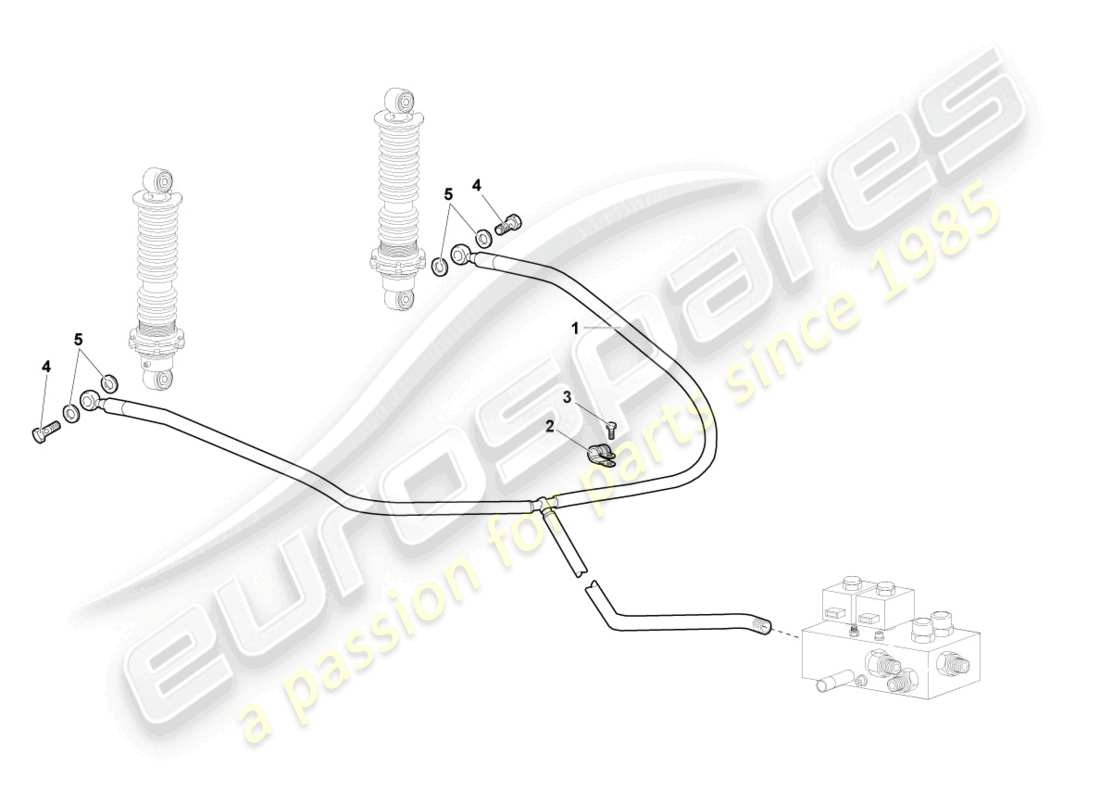

lamborghini murcielago coupe (2005) chassis (self-level. system) front part diagram
51.04.00

CHASSIS (SELF-LEVEL. SYSTEM) FRONT

lamborghini murcielago coupe (2005) wheel bearing housing front part diagram
51.05.00

WHEEL BEARING HOUSING FRONT

lamborghini murcielago coupe (2005) rear axle part diagram
52.02.00

REAR AXLE

lamborghini murcielago coupe (2005) wheel bearing housing rear part diagram
52.03.00

WHEEL BEARING HOUSING REAR

lamborghini murcielago coupe (2005) vehicle tools part diagram
59.01.00

VEHICLE TOOLS

lamborghini murcielago coupe (2005) electrical parts for audio system part diagram
59.02.00

ELECTRICAL PARTS FOR AUDIO SYSTEM

lamborghini murcielago coupe (2005) type plates part diagram
59.03.00

TYPE PLATES

lamborghini murcielago coupe (2005) type plates part diagram
59.03.71

TYPE PLATES

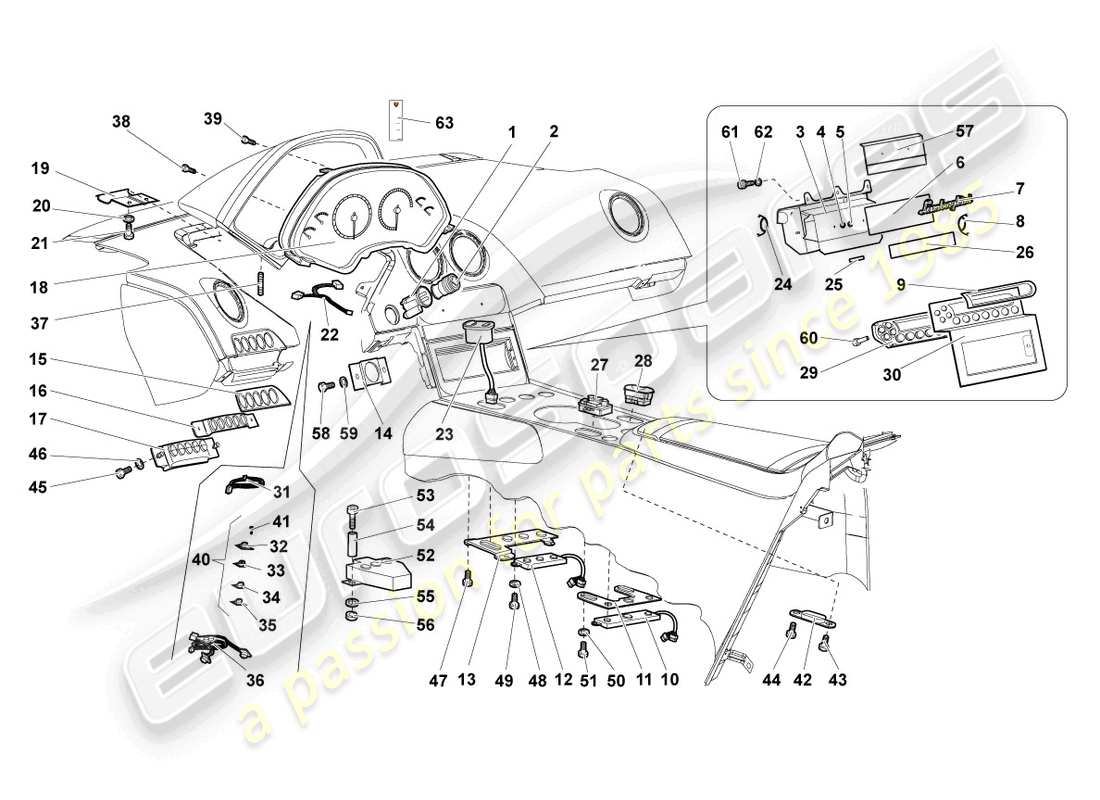

lamborghini murcielago coupe (2005) dashboard part diagram
60.01.00

DASHBOARD

lamborghini murcielago coupe (2005) central wiring set part diagram
60.01.74

CENTRAL WIRING SET

lamborghini murcielago coupe (2005) central wiring set part diagram
61.01.00

CENTRAL WIRING SET

lamborghini murcielago coupe (2005) central wiring set part diagram
61.01.74

CENTRAL WIRING SET

lamborghini murcielago coupe (2005) main fuse socket part diagram
61.02.00

MAIN FUSE SOCKET

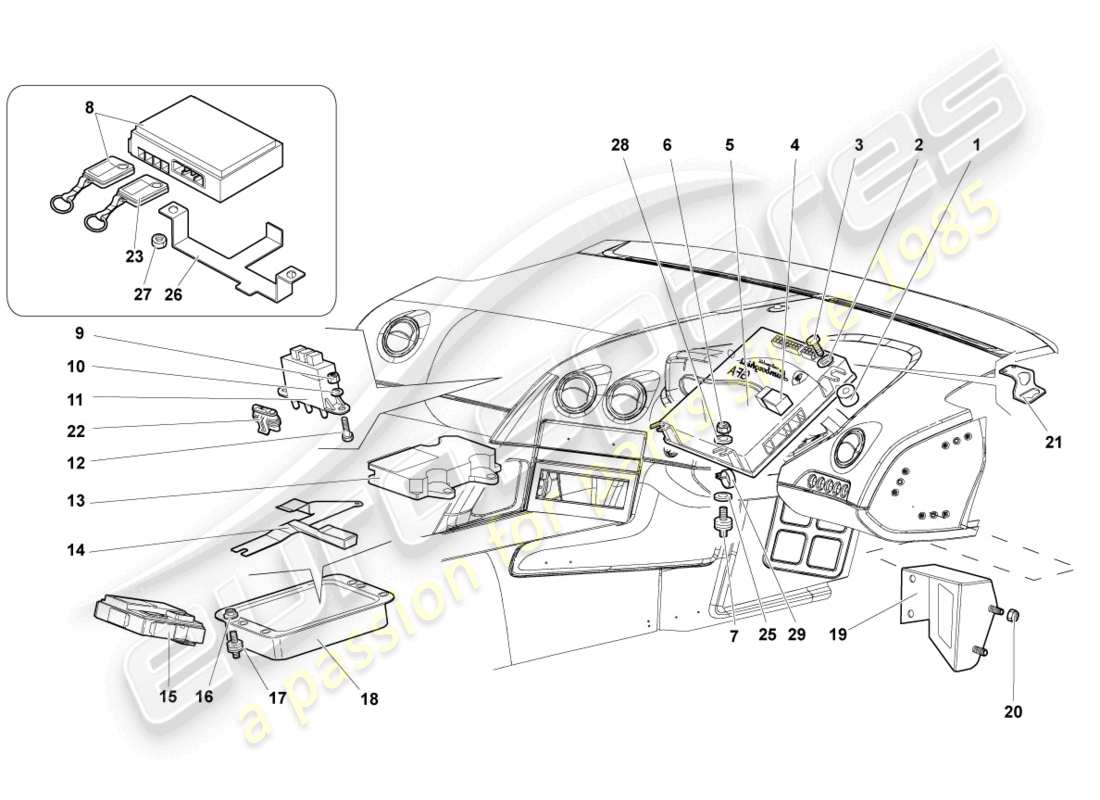

lamborghini murcielago coupe (2005) control modules for electrical systems part diagram
61.03.00

CONTROL MODULES FOR ELECTRICAL SYSTEMS

lamborghini murcielago coupe (2005) control modules for electrical systems part diagram
61.03.74

CONTROL MODULES FOR ELECTRICAL SYSTEMS

lamborghini murcielago coupe (2005) central electrics part diagram
61.04.00

CENTRAL ELECTRICS

lamborghini murcielago coupe (2005) central electrics part diagram
61.04.74

CENTRAL ELECTRICS

lamborghini murcielago coupe (2005) central electrics part diagram
61.05.00

CENTRAL ELECTRICS

lamborghini murcielago coupe (2005) central electrics part diagram
61.05.74

CENTRAL ELECTRICS

lamborghini murcielago coupe (2005) intake system part diagram
62.01.00

INTAKE SYSTEM

lamborghini murcielago coupe (2005) fuel line with breather pipe part diagram
62.02.00

FUEL LINE WITH BREATHER PIPE

lamborghini murcielago coupe (2005) fuel filler pipe with attachments part diagram
62.03.00

FUEL FILLER PIPE WITH ATTACHMENTS

lamborghini murcielago coupe (2005) fuel filler pipe with attachments part diagram
62.03.71

FUEL FILLER PIPE WITH ATTACHMENTS

lamborghini murcielago coupe (2005) fuel tank with attachments part diagram
62.04.00

FUEL TANK WITH ATTACHMENTS

lamborghini murcielago coupe (2005) activated charcoal container part diagram
62.05.00

ACTIVATED CHARCOAL CONTAINER

lamborghini murcielago coupe (2005) lighting part diagram
63.01.00

LIGHTING

lamborghini murcielago coupe (2005) heat deflector plate for bumper rear part diagram
66.01.00

HEAT DEFLECTOR PLATE FOR BUMPER REAR

lamborghini murcielago coupe (2005) fuel filler flap part diagram
66.02.00

FUEL FILLER FLAP

lamborghini murcielago coupe (2005) wing front part diagram
66.03.00

WING FRONT

lamborghini murcielago coupe (2005) wing front part diagram
66.03.71

WING FRONT

lamborghini murcielago coupe (2005) side member left part diagram
66.04.00

SIDE MEMBER LEFT

lamborghini murcielago coupe (2005) side member right part diagram
66.05.00

SIDE MEMBER RIGHT

lamborghini murcielago coupe (2005) heat shield for floor panel part diagram
68.01.00

HEAT SHIELD FOR FLOOR PANEL

lamborghini murcielago coupe (2005) sound absorbers part diagram
68.02.00

SOUND ABSORBERS

lamborghini murcielago coupe (2005) heat shield part diagram
68.03.00

HEAT SHIELD

lamborghini murcielago coupe (2005) window glasses part diagram
70.01.00

WINDOW GLASSES

lamborghini murcielago coupe (2005) windshield wiper part diagram
71.01.00

WINDSHIELD WIPER

lamborghini murcielago coupe (2005) door lock part diagram
72.01.00

DOOR LOCK

lamborghini murcielago coupe (2005) window regulator part diagram
72.02.00

WINDOW REGULATOR

lamborghini murcielago coupe (2005) window guide part diagram
72.03.00

WINDOW GUIDE

lamborghini murcielago coupe (2005) rear lid part diagram
73.01.00

REAR LID

lamborghini murcielago coupe (2005) side panel trim part diagram
74.01.00

SIDE PANEL TRIM

lamborghini murcielago coupe (2005) seat, complete part diagram
75.01.00

SEAT, COMPLETE

lamborghini murcielago coupe (2005) flame protection lhd part diagram
77.01.00

FLAME PROTECTION LHD

lamborghini murcielago coupe (2005) flame protection rhd part diagram
77.01.74

FLAME PROTECTION RHD

lamborghini murcielago coupe (2005) sound absorbers part diagram
77.02.00

SOUND ABSORBERS

lamborghini murcielago coupe (2005) dashboard part diagram
78.01.00

DASHBOARD

lamborghini murcielago coupe (2005) pillar trim part diagram
78.02.00

PILLAR TRIM

lamborghini murcielago coupe (2005) sound absorbers part diagram
78.03.00

SOUND ABSORBERS

lamborghini murcielago coupe (2005) flooring (carpet) part diagram
78.04.00

FLOORING (CARPET)

lamborghini murcielago coupe (2005) bonnet part diagram
79.01.00

BONNET

lamborghini murcielago coupe (2005) luggage boot trims part diagram
79.02.00

LUGGAGE BOOT TRIMS

lamborghini murcielago coupe (2005) flap for engine cover part diagram
92.01.00

FLAP FOR ENGINE COVER

lamborghini murcielago coupe (2005) bumper front and rear part diagram
93.01.00

BUMPER FRONT AND REAR

lamborghini murcielago coupe (2005) exterior mirror part diagram
97.01.00

EXTERIOR MIRROR

Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
