013 - Inside transmission control

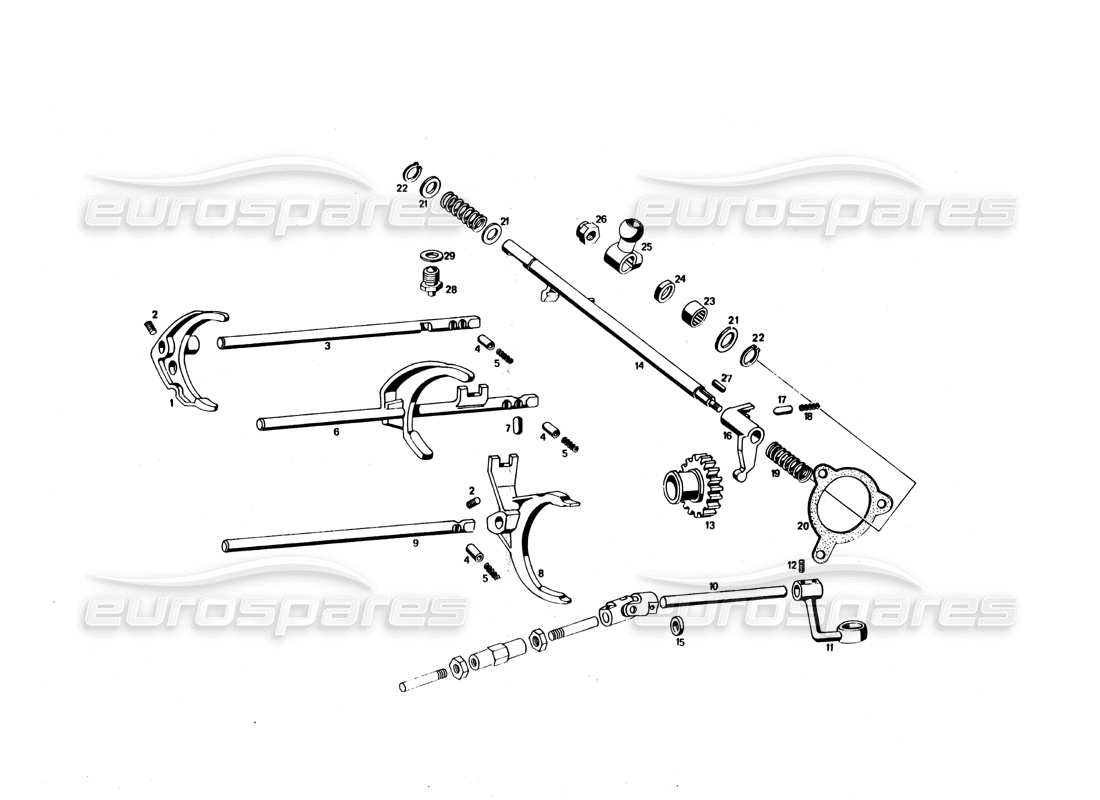

Maserati Bora Inside transmission control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
117 TC 77654
SELECTOR FORK 4 AND 5 SPEED
#
002
MPN:
117 TC 77655
Grub for gear control pawls
#
003
MPN:
117 TC 77656
ASTA COMANDO 4 E 5MARCIA
#
004
MPN:
117 TC 77657
GRAIN ROD STOP
#
005
MPN:
117 TC 77658
MOIRA FOR GRAIN ROD STOP
#
006
MPN:
117 TC 77659
ROD WITH CONTROL FORK 2 AND 3 VELOCITY
#
007
MPN:
117 TC 77660
PAWL FOR CONTROL ROD 2 AND 3 VELOCITY
#
008
MPN:
117 TC 77661
SELECTOR FORK 1 SPEED
#
009
MPN:
117 TC 77662
Asta comando 1 velocity
#
010
MPN:
117 TC 77663
EXTERNAL GEAR SELECTION CONTROL SHAFT
#
011
MPN:
117 TC 77664
ARM FOR GEAR ENGAGEMENT
#
012
MPN:
117 TC 77665
ARM FIXING SCREW FOR GEAR ENGAGEMENT
#
013
MPN:
117 TC 77666
INGRANAGGLO RETROMARCIA
#
014
MPN:
117 TC 77667
INTERNAL ROD FOR INSERTING GEARS
#
015
MPN:
117 TC 77668
BUSH
#
016
MPN:
117 TC 77669
LEVER
#
017
MPN:
117 TC 77670
ANCHOR FOR REVERSE GEAR CONTROL LEVER
#
018
MPN:
117 TC 77671
SPRING
#
019
MPN:
117 TC 77672
SPRING
#
020
MPN:
117 TC 77673
GASKET OR SEAL
#
021
MPN:
117 TC 77674
WASHER
#
022
MPN:
ART 41406
SEEGER RING
#
023
MPN:
CSC 77675
Cuscinetto Ø 18 X 24 X 16 sull'asta interna inserim. marce
#
024
MPN:
ANT 77676
SEALING RING
#
025
MPN:
117 TC 77677
LEVER
#
026
MPN:
DST 55215
NUT
#
027
MPN:
117 TC 77678
Tab Ø 5 X 5 X 14 on the internal gear insertion rod
#
028
MPN:
117 TC 77679
PIVOT
#
029
MPN:
GN 66992
GASKET OR SEAL
