aston martin db9 (2007) fuel pump modules parts diagram

100106-D1 - Fuel Pump Modules

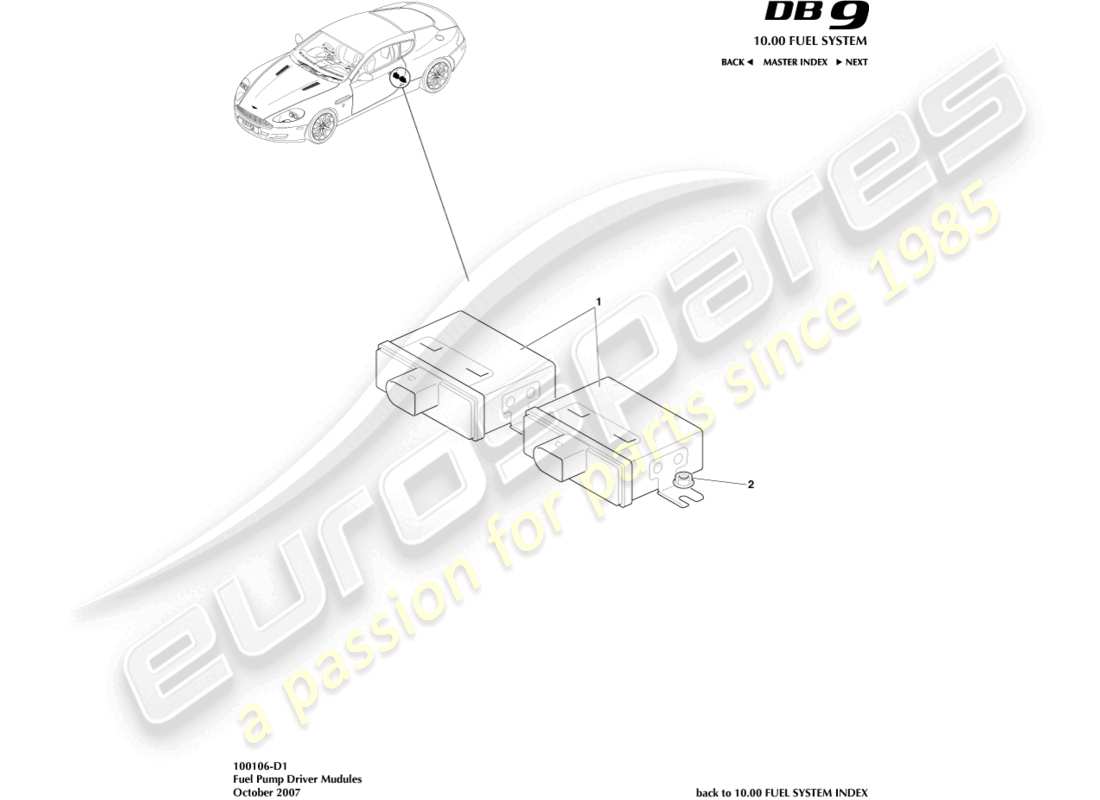

Aston Martin DB9 (2007) Fuel Pump Modules Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 1
MPN: 4G43-37-10925
MODULE, FUEL PUMP DRIVER
07MY
from £208.63
from £208.63
# 1
MPN: 7H42-9D372-AA
MODULE, FUEL PUMP DRIVER
08MY From (V) A09110
from £132.11
from £132.11
# 2
MPN: 702944
SCREW, M6 X 12
08MY From (V) A09110
from £0.58
from £0.58
