aston martin v8 virage (1999) components & wiring parts diagram

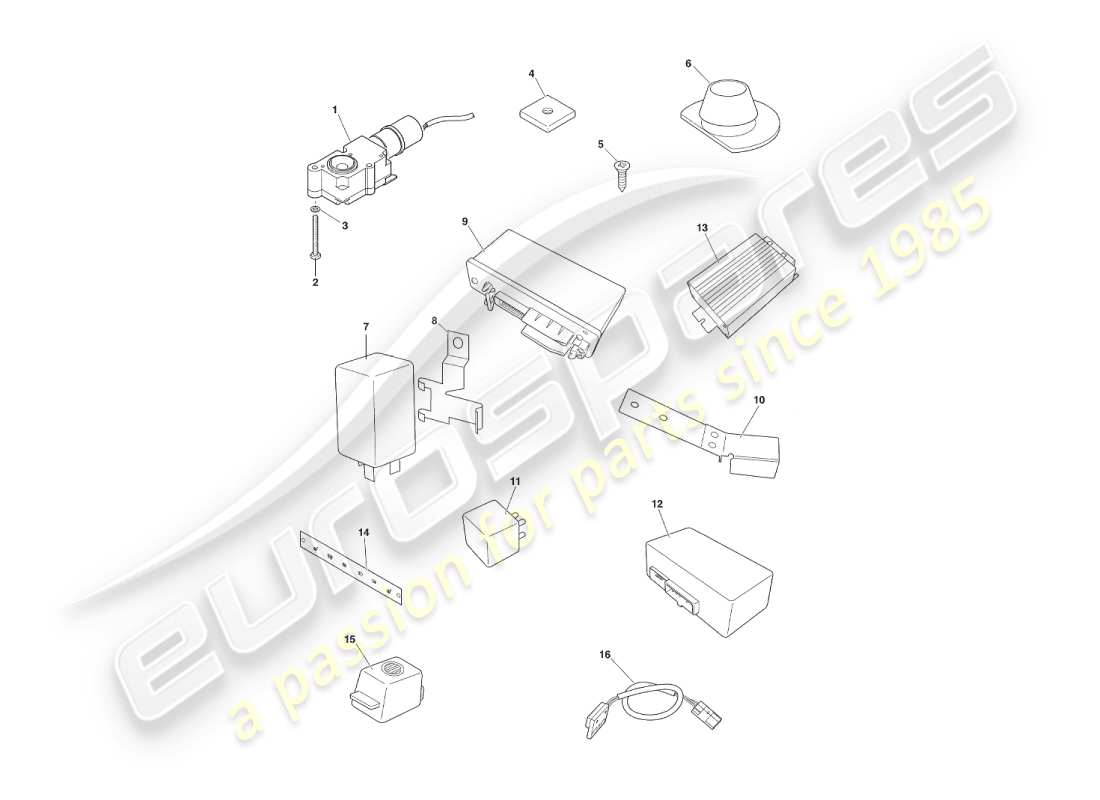

6.3D - Components & Wiring

Aston Martin V8 Virage (1999) Components & Wiring Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search

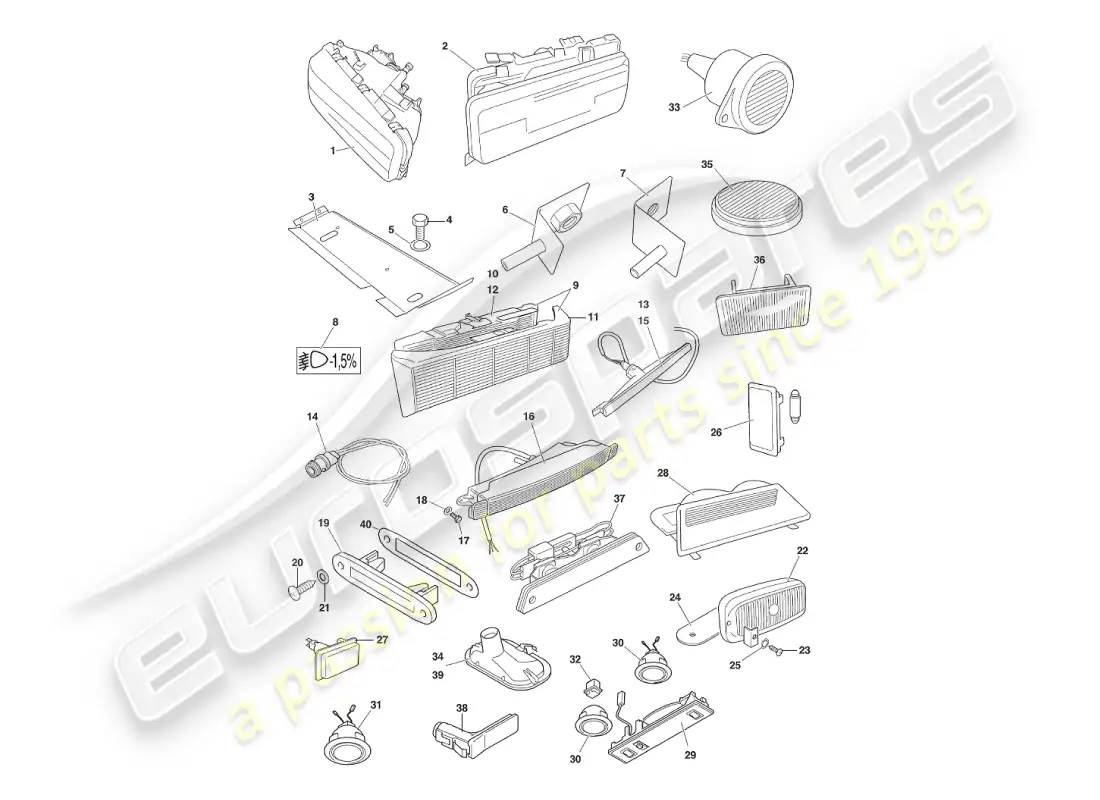

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 37-61405
          HOOD PULL-DOWN MOTOR
          HOOD PULL-DOWN MOTOR Genuine Aston Martin - New (to order)
          # 2
          MPN: 694173
          SCREW, M4 X 35
          Hood motor attach
          from £0.47
          from £0.47
          SCREW M4 X35 POZI PN Genuine Aston Martin - New (to order)
          # 3
          MPN: 692054
          WASHER, PLAIN, M4
          Hood motor attach
          from £0.47
          from £0.47
          WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
          # 3
          MPN: 93-60076
          SCREW SPIGOT, FRONT HEADER RAIL
          SPIGOT ASSEMBLY FRONT HEADER Genuine Aston Martin - New (to order)
          # 4
          MPN: 93-61901
          TAPPED PLATE, SCREW SPIGOT
          from £4.55
          from £4.55
          Tapped plate Genuine Aston Martin - New (to order)
          # 5
          MPN: 695646
          SCREW, M6 X 20, COUNTERSUNK HEAD
          Spigot attach
          from £0.47
          from £0.47
          SCREW M6 X 20 CSK Genuine Aston Martin - New (to order)
          # 5
          MPN: 696577
          SCREW, M6 X 20, COUNTERSUNK HEAD, BLACK
          Spigot attach. From Nov 1993
          from £0.47
          from £0.47
          SCREW M6 X 20 CSK Genuine Aston Martin - New (to order)
          # 6
          MPN: 93-62320
          LOCATION CONE, SCREW SPIGOT
          from £8.27
          from £8.27
          CONE LOCATN SPIG ASY Genuine Aston Martin - New (to order)
          # 7
          MPN: 37-54605
          RELAY, OVER-VOLTAGE PROTECTION
          ABS anti-lock brakes from (V) 60006
          from £52.69
          from £52.69
          OVER VOLT PROTEC RLY Genuine Aston Martin - New (to order)
          # 8
          MPN: 695388
          RELAY CLIP
          ABS anti-lock brakes from (V) 60006
          from £1.57
          from £1.57
          CLIP OVER VOLTAGE Genuine Aston Martin - New (to order)
          # 9
          MPN: 37-54606
          ELECTRONIC CONTROL UNIT
          ABS anti-lock brakes from (V) 60006
          from £1,838.16
          from £1,838.16
          ABS ECU Genuine Aston Martin - New (to order)
          # 10
          MPN: 80-61728
          BRACKET, ELECTRONIC CONTROL UNIT
          RHD ABS anti-lock brakes from (V) 60006
          from £12.52
          from £12.52
          BRKT-ABS ECU RET Genuine Aston Martin - New (to order)
          # 10
          MPN: 80-61729
          BRACKET, ELECTRONIC CONTROL UNIT
          LHD ABS anti-lock brakes from (V) 60006
          from £12.52
          from £12.52
          BRKT-ABS ECU RET Genuine Aston Martin - New (to order)
          # -
          -
          SCREW, M4 X 12 ECU BRACKET RETAINING
          # 11
          MPN: 37-54793
          RELAY, 12V 50A, INSIDE ABS MODULATOR
          ABS anti-lock brakes from (V) 60006
          from £47.08
          from £47.08
          MOTOR RELAY-12V 50A Genuine Aston Martin - New (to order)
          # 11
          MPN: 37-55752
          RELAY, 12V, INSIDE ABS MODULATOR
          ABS anti-lock brakes from (V) 60006
          from £37.27
          from £37.27
          RELAY-12V Genuine Aston Martin - New (to order)
          # 12
          MPN: 38-61096
          CONTROL UNIT, HOOD
          from £1,415.18
          from £1,415.18
          CONTROL UNIT-HOOD Genuine Aston Martin - New (to order)
          # 13
          MPN: 37-61991
          ELECTRONIC CONTROL UNIT, 4 SPEED AUTOMATIC GEARBOX
          From approx (V) 60043
          from £1,098.23
          from £1,098.23
          ECU-4 SPD AUTO G/BOX Genuine Aston Martin - New (to order)
          # 14
          MPN: 37-62602
          SWITCH PANEL, SELF ADHESIVE
          From approx (V) 60043
          from £26.28
          from £26.28
          SWITCH PNL GRAPHIC Genuine Aston Martin - New (to order)
          # -
          -
          BULB, 12V 2W, PANEL ILLUMINATION
          # -
          -
          BULB COVER, GREEN
          # -
          -
          Bulb retaining clip
          # 15
          MPN: 097-037-0014
          SEAT BELT WARNING BUZZER
          USA, Canada & Gulf from (V)60071
          from £109.14
          from £109.14
          PEKTRON UNIT Genuine Aston Martin - New (to order)
          # -
          -
          SCREW, M4 X 12
          # -
          -
          WASHER, PLAIN, M4
          # 16
          MPN: 37-62060
          SENSOR MAGNET AND LEAD
          Quarterlight dropping glass
          from £118.98
          from £118.98
          ASSEMBLY SENSOR & PLUG Genuine Aston Martin - New (to order)
