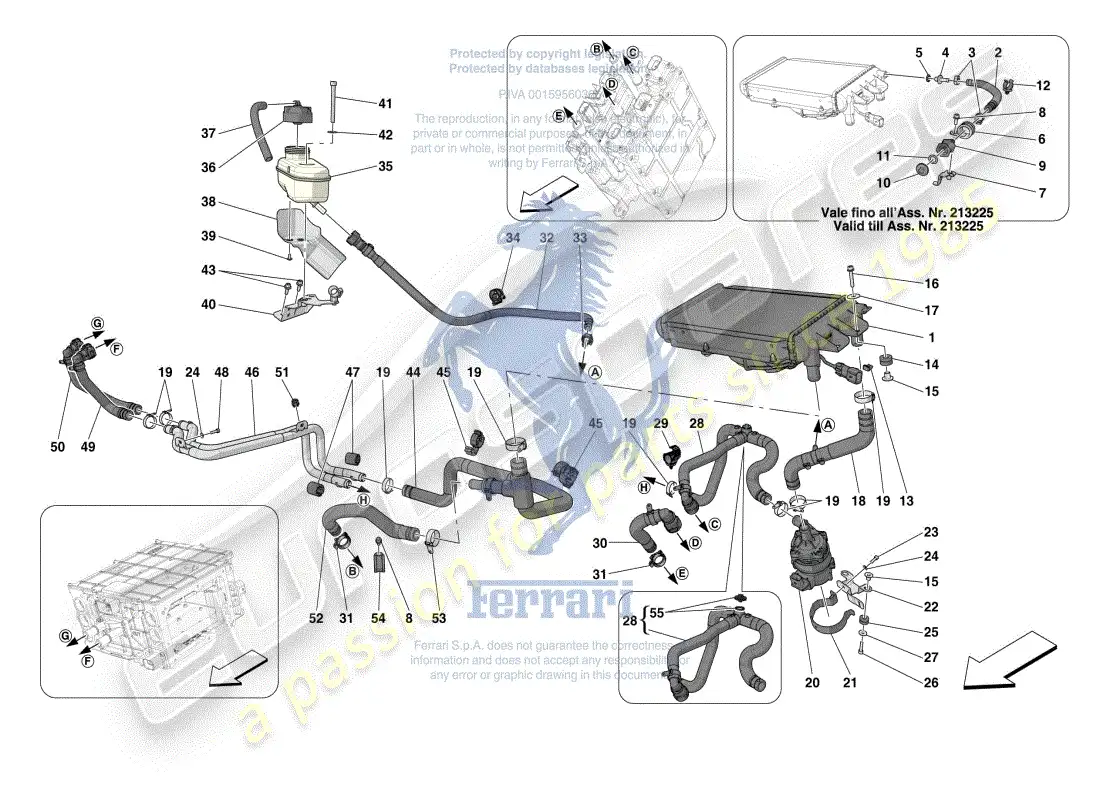

Ferrari 296 GTB INVERTER COOLING Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 916353
COMPL. INVERTER COOLING WATER RADIATOR
from £307.90
from £307.90
# 002
MPN: 742233
RADIATOR BREATHER HOSE
| After depletion, order cap 987355 ref. 56 | | Applies until depletion |
from £14.61
from £14.61
# 003
MPN: 13126970
COLLAR
from £0.76
from £0.76
# 004
MPN: 746792
RADIATOR SIDE HOSE
| After depletion, order cap 987355 ref. 56 | | Applies until depletion |
from £5.16
from £5.16
# 005
MPN: 746585
RADIATOR BREATHER GASKET
from £2.71
from £2.71
# 006
MPN: 10441790
BRACKET WITH SHEATH
from £0.54
from £0.54
# 007
MPN: 742124
BREATHER HOSE MOUNTING BRACKET
| After depletion, order cap 987355 ref. 56 | | Applies until depletion |
from £12.91
from £12.91
# 008
MPN: 797724
SCREW
from £0.47
from £0.47
# 009
MPN: 746806
VALVE SIDE HOSE
| After depletion, order cap 987355 ref. 56 | | Applies until depletion |
from £7.94
from £7.94
# 010
-
BLEED SCREW
| No longer supplied - Replaced by 851664 |
# 010
MPN: 851664
BLEED SCREW
| After depletion, order cap 987355 ref. 56 | | Applies until depletion |
from £8.93
from £8.93
# 011
MPN: 14457285
SEAL
| After depletion, order cap 987355 ref. 56 | | No longer supplied - Replaced by 784711 |
# 011
MPN: 784711
O-RING
| Applies until depletion |
from £7.15
from £7.15
# 012
MPN: 337907
CLIP
from £0.47
from £0.47
# 013
MPN: 773116
PIN
| No longer supplied |
# 014
MPN: 177576
CABLE GROMMET
from £1.41
from £1.41
# 015
MPN: 149707
SPACER
from £0.75
from £0.75
# 016
MPN: 797730
SCREW
from £0.47
from £0.47
# 017
MPN: 12647778
WASHER
from £0.53
from £0.53
This part replaces part number 12647777 which we have in stock
# 018
MPN: 870715
HOSE FROM RADIATOR OUTLET TO PUMP
from £34.77
from £34.77
# 019
MPN: 262111
JUBILEE CLAMP
from £0.83
from £0.83
This part replaces part number 13127770
# 020
MPN: 908587
PUMP
from £290.71
from £290.71
# 021
MPN: 798517
U-BOLT FOR WATER PUMP
from £21.63
from £21.63
# 022
MPN: 960250
INVERTER PUMP MOUNTING BRACKET
from £16.64
from £16.64
# 023
MPN: 14304287
SCREW
from £0.54
from £0.54
# 024
MPN: 12637878
WASHER
from £0.53
from £0.53
This part replaces part number 12637806
# 025
MPN: 103549
CABLE GROMMET
from £0.69
from £0.69
# 026
MPN: 14305487
SCREW
from £0.47
from £0.47
# 027
MPN: 12643778
WASHER
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
# 028
MPN: 870714
HOSE FROM PUMP TO DISCONNECTOR
from £68.82
from £68.82
# 029
MPN: 248061
CLIP
from £1.20
from £1.20
This part replaces part number 301064
# 030
MPN: 958817
HOSE
from £25.80
from £25.80
# 031
MPN: 292980
COLLAR
from £0.86
from £0.86
# 032
MPN: 798460
HOSE
from £53.58
from £53.58
# 033
MPN: 868787
COLLAR
from £1.58
from £1.58
# 034
MPN: 259508
CLIP
from £0.54
from £0.54
# 035
MPN: 828986
INVERTER COOLING TANK
from £56.00
from £56.00
# 036
MPN: 145030
CAP WITH BREATHER
from £12.51
from £12.51
# 037
MPN: 791804
RUBBER PIPE
from £14.01
from £14.01
# 038
MPN: 777874
INVERTER COOLING TANK SHIELD
from £30.56
from £30.56
# 039
MPN: 15689501
SCREW
from £0.53
from £0.53
# 040
MPN: 951756
INVERTER COOLING TANK MOUNTING BRACKET
from £70.71
from £70.71
# 041
MPN: 14303824
SCREW
from £1.27
from £1.27
This part replaces part number 224997
# 042
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 043
MPN: 256323
SCREW
from £0.53
from £0.53
# 044
MPN: 968516
RADIATOR INLET HOSE
from £111.12
from £111.12
# 045
MPN: 270085
CLIP
from £0.96
from £0.96
This part replaces part number 82328600
# 046
MPN: 928316
ALUMINIUM DELIVERY AND RETURN PIPES
from £140.50
from £140.50
# 047
MPN: 316986
SPACER
from £4.21
from £4.21
# 048
MPN: 14304387
SCREW
from £0.53
from £0.53
# 049
MPN: 958816
INVERTER OUTLET HOSE
from £35.72
from £35.72
# 050
MPN: 958821
INVERTER INLET HOSE
from £43.26
from £43.26
# 051
MPN: 180137
TEMPERATURE SENSOR
from £9.88
from £9.88
# 052
MPN: 788664
HOSE
from £24.67
from £24.67
# 053
MPN: 262109
COLLAR CLAMP
from £0.62
from £0.62
This part replaces part number 10860270 - and 1 more. Click to view details
# 054
MPN: 10441990
BRACKET WITH SHEATH
from £0.54
from £0.54
# 055
MPN: 799507
BLEED VALVE SCREW COMPL. WITH OR
from £7.97
from £7.97
# 056
MPN: 987355
CAP
