032 - Steering Column

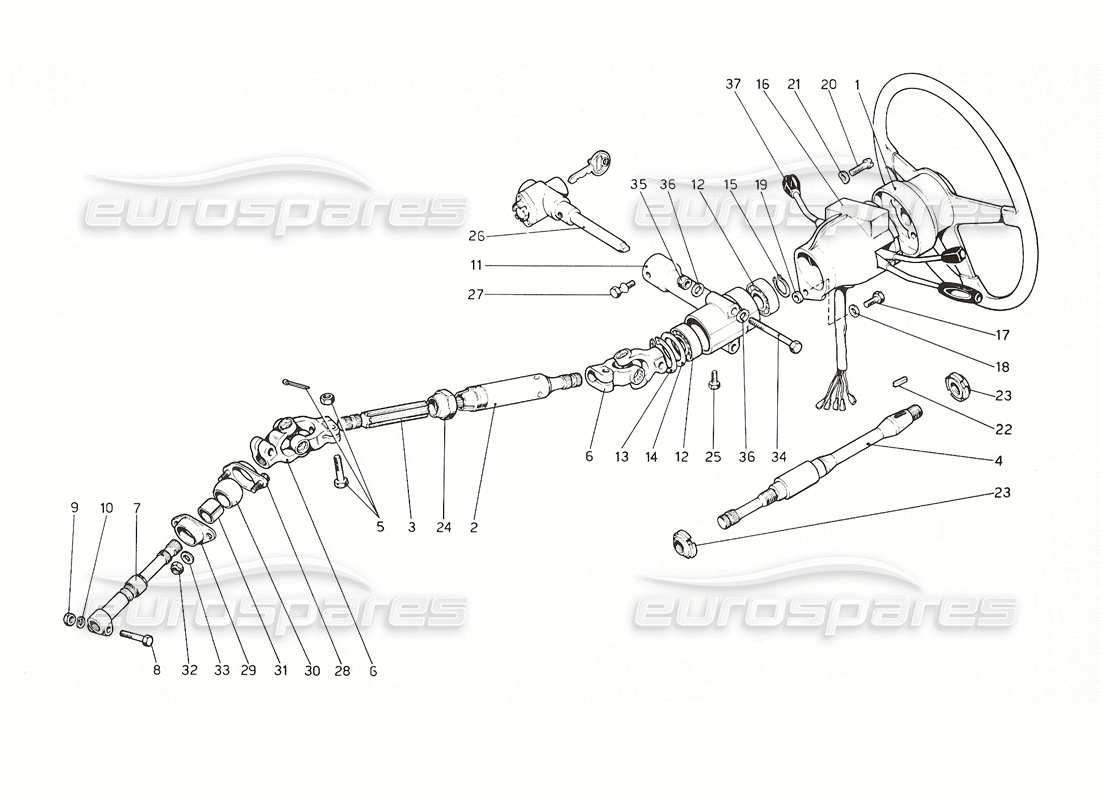

Ferrari 308 GT4 Dino (1976) Steering Column Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 106909
FLANGIA PER ARTICOLAZIONE SFERICA COMPLETA
# 000
MPN: 107484/A

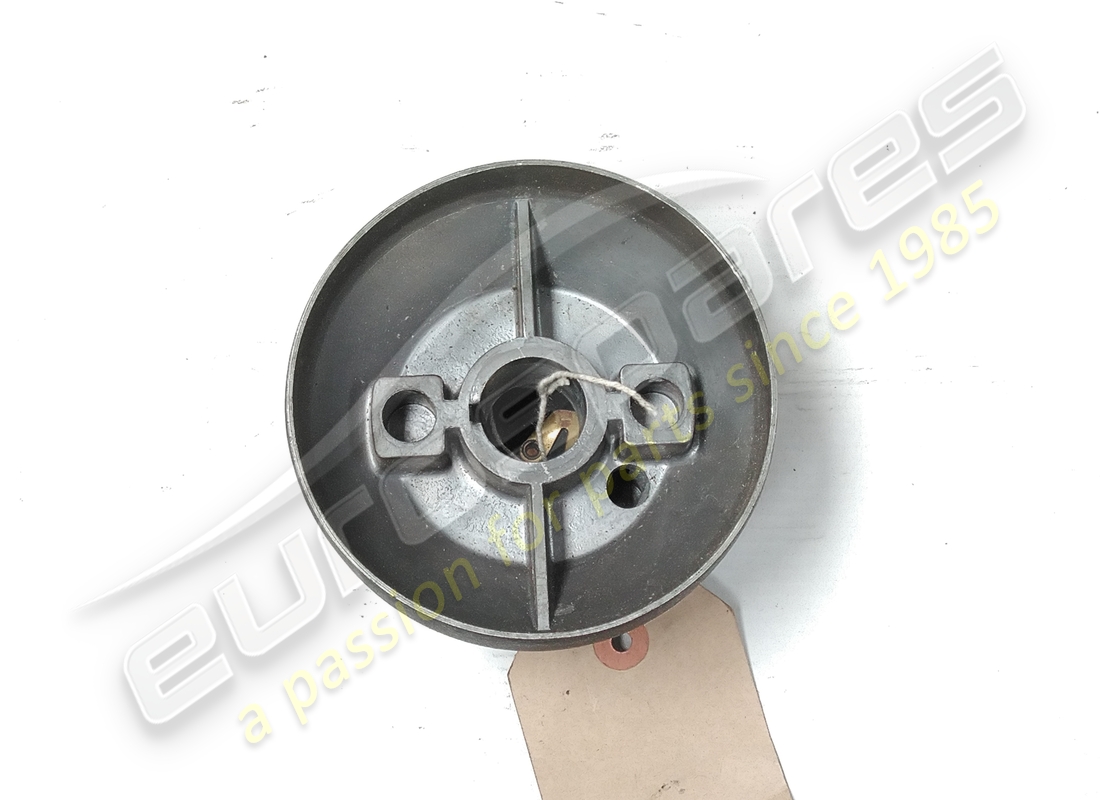

STEERING WHEEL HUB
from £420.00
from £420.00
# 000
MPN: 107880
TUBO GUIDA COMPLETE
# 000
MPN: 740302/A
HORN PUSH
from £78.75
from £78.75
# 001
MPN: 106564
ASSIEME VOLANTE GUIDA
Particolari modificati - Vale fino N. 12162
Supersession
Supersession
# 001
MPN: 107484

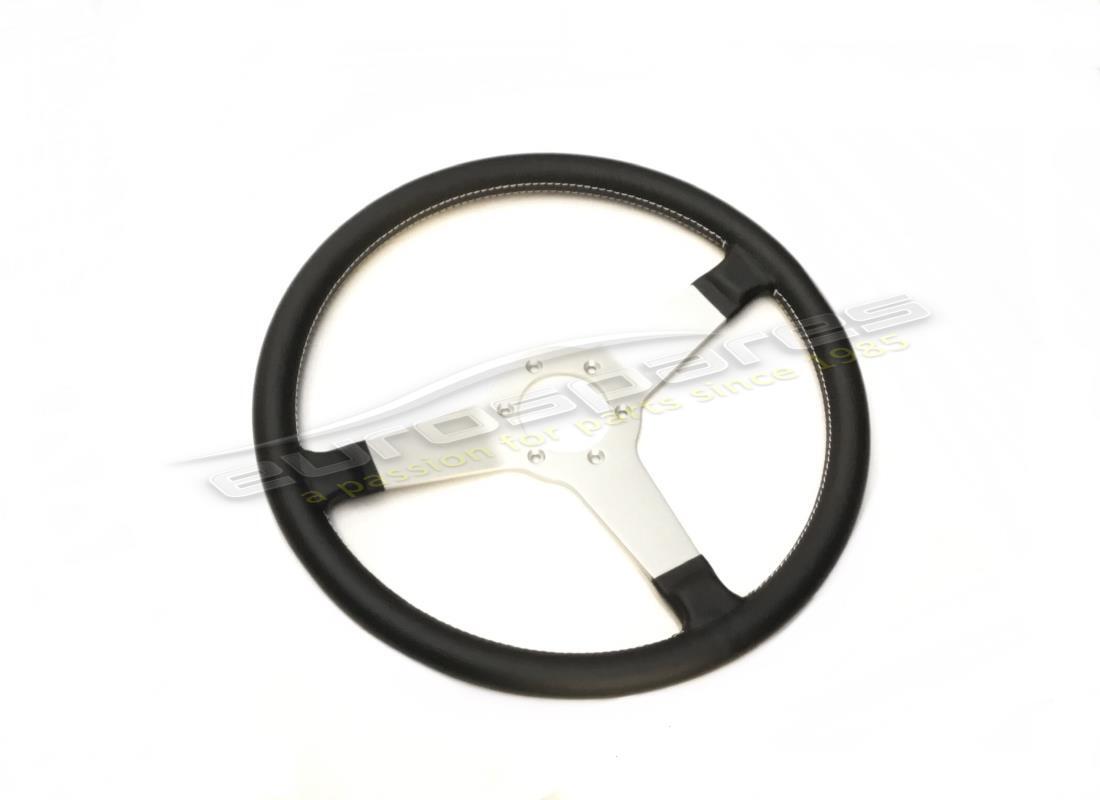

STEERING WHEEL ASSEMBLY
# 002
MPN: 106867
TUBO GUIDA
from £184.28
from £184.28
# 003
MPN: 106869
ALBERO GUIDA
from £289.31
from £289.31
# 004
MPN: 106609
PIANTONE GUIDA
from £124.05
from £124.05
# 005
MPN: 105032
ASSIEME FISSAGGIO SNODI
Particolari modificati - Serve per particolare N. 103343
from £30.71
from £30.71
This part replaces part number 740584 - and 2 more. Click to view details
# 006
MPN: 103343
SNODO SFERICO
from £498.77
from £498.77
This part replaces part number 108362 - and 11 more. Click to view details
# 006
MPN: 103343
SNODO SFERICO
Particolari modificati - In alternative a N. 103343
from £498.77
from £498.77
This part replaces part number 108362 - and 11 more. Click to view details
# 007
MPN: 107308
ESTENSIONE DEL PIGNONE SCATOLA GUIDA COMPLETE
from £527.58
from £527.58
This part replaces part number 103276 - and 1 more. Click to view details
# 008
MPN: 103371
BOLT
Supersession
Supersession
# 009
MPN: 103373
NUT
Supersession
Supersession
# 010
MPN: 103372
WASHER
Supersession
Supersession
# 011
MPN: 106611
SUPPORT
from £301.92
from £301.92
# 012
MPN: 101104
BEARING
from £5.25
from £5.25
This part replaces part number 114751 - and 1 more. Click to view details
# 013
MPN: 11060576
SEEGER RING
from £1.08
from £1.08
This part replaces part number 11060575
# 014
MPN: 101101
RONDEILA RASAMENTO 0,5 MM.
from £0.98
from £0.98
This part replaces part number 740333
# 014
MPN: 107488
IDEM SPESSORE MM. 0,4
from £1.81
from £1.81
# 014
MPN: 107489
IDEM SPESSORE MM. 0,3
from £6.75
from £6.75
# 014
MPN: 107490
IDEM SPESSORE MM. 0,2
from £6.75
from £6.75
# 015
MPN: 11067376
SEEGER RING
from £1.08
from £1.08
This part replaces part number 11067375
# 016
MPN: 106018
CANNOTTO PORTA COMMUTATORI
Particolari modificati - Vale fino ad esaurirnento
Supersession
Supersession
# 016
MPN: 108401
CANNOTTO PORTA COMMUTATORI
Particolari modificati - Dopo esaurirn.N. 106018
from £93.73
from £93.73
This part replaces part number 106018 - and 3 more. Click to view details
# 017
MPN: 10902221
BOLT
Particolari modificati - Dopo esaurim.N. 106018
from £0.58
from £0.58
# 017
MPN: 10902321
BULFONE FISSAGGIO CANNOTTO
Particolari modificati - Fino esaurim.N. 106018
from £0.71
from £0.71
# 018
MPN: 12601279
WASHER
from £0.54
from £0.54
This part replaces part number 12601271 - and 2 more. Click to view details
# 019
MPN: 103299
SPACER
Particolari modificati - Fino esaurim.N. 106018
from £9.09
from £9.09
This part replaces part number 740291
# 019
MPN: 12639701
SPACER
Particolari modificati - Dopo esaurim.N. 106018
Supersession
Supersession
This part replaces part number 12639704
# 020
MPN: 10389901
SCREW
from £0.47
from £0.47
# 021
MPN: 12541670
WASHER
from £0.72
from £0.72
This part replaces part number 12541671
# 022
MPN: 101106
Key
from £4.55
from £4.55
This part replaces part number 94628
# 023
MPN: 106610
RING NUT
from £19.32
from £19.32
# 024
MPN: 106870
NUT
from £9.52
from £9.52
# 025
MPN: 10979421
BOLT
from £0.47
from £0.47
# 026
MPN: 106664
ANTIFURTO
Varianti per versione USA
Supersession
Supersession
This part replaces part number 102333
# 026
MPN: 168785
STEERING LOCK ASSY
from £1,756.05
from £1,756.05
This part replaces part number 106614 which we have in stock - and 11 more. Click to view details
# 027
MPN: 168045
BOLT
from £39.95
from £39.95
This part replaces part number 106615
# 028
MPN: 105667
FLANGIA PER ARTICOLAZIONE SFERICA SUPERIORE
from £11.05
from £11.05
# 029
MPN: 103292
FLANGIA PER ARTICOLAZIONE SFERICA INFERIORE
from £6.75
from £6.75
This part replaces part number 660976 - and 6 more. Click to view details
# 030
MPN: 103297
SFERA PER ARTICOLAZIONE
from £19.56
from £19.56
This part replaces part number 740454 - and 3 more. Click to view details
# 031
MPN: 103370
BUSH
from £11.51
from £11.51
# 032
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 033
MPN: 10519621
WASHER
Supersession
Supersession
# 034
MPN: 103576
BOLT
from £10.61
from £10.61
This part replaces part number 95610
# 035
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 036
MPN: 10519621
WASHER
Supersession
Supersession
# 037
MPN: 116780
DEVIOSGANCIO
from £1,830.84
from £1,830.84
This part replaces part number 103518 - and 2 more. Click to view details
-part-diagram-033.webp "FERRARI 308 GT4 DINO (1976) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISCS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 308 GT4 DINO (1976) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 308 GT4 DINO (1976) REAR SUSPENSION - SHOCK ABSORBER & BRAKE DISC PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 308 GT4 DINO (1976) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 308 GT4 DINO (1976) WHEELS PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 308 GT4 DINO (1976) ENGINE IGNITION (2 DISTRIBUTORS) PARTS DIAGRAM")
-part-diagram-038a.webp "FERRARI 308 GT4 DINO (1976) ENGINE IGNITION (1 DISTRIBUTOR) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 308 GT4 DINO (1976) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 308 GT4 DINO (1976) AIR CONDITIONING SYSTEM (UP TO N. 12162) PARTS DIAGRAM")
-part-diagram-040a.webp "FERRARI 308 GT4 DINO (1976) AIR CONDITIONING SYSTEM (FROM NO. 12180) PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 308 GT4 DINO (1976) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 308 GT4 DINO (1976) TOOL KIT PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 308 GT4 DINO (1976) THROTTLE CONTROL (RH D VERSION) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 308 GT4 DINO (1976) PEDAL BOARD - CLUTCH CONTROL (RH D VERSION) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 308 GT4 DINO (1976) BRAKE HYDRAULIC SYSTEM (RH D VERSION) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 308 GT4 DINO (1976) FRONT AIR PUMP AND PIPINGS (U.S. 1976 VERSION) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 308 GT4 DINO (1976) REAR AIR PUMP AND PIPINGS (U.S. AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 308 GT4 DINO (1976) AIR PUMP GUARDS (US & AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 308 GT4 DINO (1976) FAST IDLE DEVICE (U.S. AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-050a.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (AUSTRALIAN 1976 VERSION) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 308 GT4 DINO (1976) FUEL SYSTEM USA SPEC (UP TO NO. 11462 - US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-051a.webp "FERRARI 308 GT4 DINO (1976) FUEL SYSTEM USA SPEC (FROM NO.11994 - US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 308 GT4 DINO (1976) EXHAUST SYSTEM (U.S. AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 308 GT4 DINO (1976) ENGINE IGNITION (US AND AUSTRALIAN VERSIONS 1976) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 308 GT4 DINO (1976) WATER RADIATOR - GEAR - LEVER HOUSING (US 1976 VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - INNER ELEMENTS (U.S.VERSION) PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 308 GT4 DINO (1976) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 308 GT4 DINO (1976) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 308 GT4 DINO (1976) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 308 GT4 DINO (1976) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 308 GT4 DINO (1976) DOORS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 308 GT4 DINO (1976) DOORS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 308 GT4 DINO (1976) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 308 GT4 DINO (1976) BUMPERS (U.S. VERSION) PARTS DIAGRAM")
-part-diagram-112a.webp "FERRARI 308 GT4 DINO (1976) BUMPERS (U.S. VERSION) PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 308 GT4 DINO (1976) GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 308 GT4 DINO (1976) INTERIOR TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 308 GT4 DINO (1976) INTERIOR TRIM AND 'ACCESSORIES PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 308 GT4 DINO (1976) SEATS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 308 GT4 DINO (1976) CARPETING PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 308 GT4 DINO (1976) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 308 GT4 DINO (1976) SEAT BELTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 308 GT4 DINO (1976) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 308 GT4 DINO (1976) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 308 GT4 DINO (1976) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 308 GT4 DINO (1976) LIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 308 GT4 DINO (1976) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 308 GT4 DINO (1976) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 308 GT4 DINO (1976) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 308 GT4 DINO (1976) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 308 GT4 DINO (1976) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 308 GT4 DINO (1976) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 308 GT4 DINO (1976) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 308 GT4 DINO (1976) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 308 GT4 DINO (1976) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 308 GT4 DINO (1976) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 308 GT4 DINO (1976) FUEL SYSTEM (EURO VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 308 GT4 DINO (1976) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (2 DISTRIBUTORS) PARTS DIAGRAM")
-part-diagram-011a.webp "FERRARI 308 GT4 DINO (1976) WEBER 40 DCNF CARBS (1 DISTRIBUTOR) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 308 GT4 DINO (1976) THROTTLE CONTROL (2 DISTRIBUTORS) PARTS DIAGRAM")
-part-diagram-012a.webp "FERRARI 308 GT4 DINO (1976) THROTTLE CONTROL (1 DISTRIBUTOR) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 308 GT4 DINO (1976) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 308 GT4 DINO (1976) BLOW-BY SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 308 GT4 DINO (1976) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 308 GT4 DINO (1976) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 308 GT4 DINO (1976) WATER PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 308 GT4 DINO (1976) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 308 GT4 DINO (1976) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 308 GT4 DINO (1976) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 308 GT4 DINO (1976) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 308 GT4 DINO (1976) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 308 GT4 DINO (1976) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 308 GT4 DINO (1976) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 308 GT4 DINO (1976) OUTSIDE GEARBOX CONTROLS (UP TO NO. 10114 GS - 10100 GD - 10358 U.S. VERSION) PARTS DIAGRAM")
-part-diagram-025a.webp "FERRARI 308 GT4 DINO (1976) OUTSIDE GEARBOX CONTROLS (FROM NO. 11324 GS - 11300 GD - 10360 U.S. VERSION) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 308 GT4 DINO (1976) DIFFERENTIAL & AXLE SHAFT (UP TO GEARBOX NO. 692) PARTS DIAGRAM")
-part-diagram-026a.webp "FERRARI 308 GT4 DINO (1976) DIFFERENTIAL & AXLE SHAFT (FROM GEARBOX NO. 693) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 308 GT4 DINO (1976) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 308 GT4 DINO (1976) BRAKE SYSTEM (UP TO NO. 11482 GS | 12... GD | 11462 USA) PARTS DIAGRAM")
-part-diagram-028a.webp "FERRARI 308 GT4 DINO (1976) BRAKE SYSTEM (FROM NO. 11506 GS | 12... GD | 11994 USA) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 308 GT4 DINO (1976) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 308 GT4 DINO (1976) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 308 GT4 DINO (1976) STREERING BOX AND LINKAGE PARTS DIAGRAM")
