ferrari 328 (1988) clutch and controls parts diagram

024 - Clutch and Controls

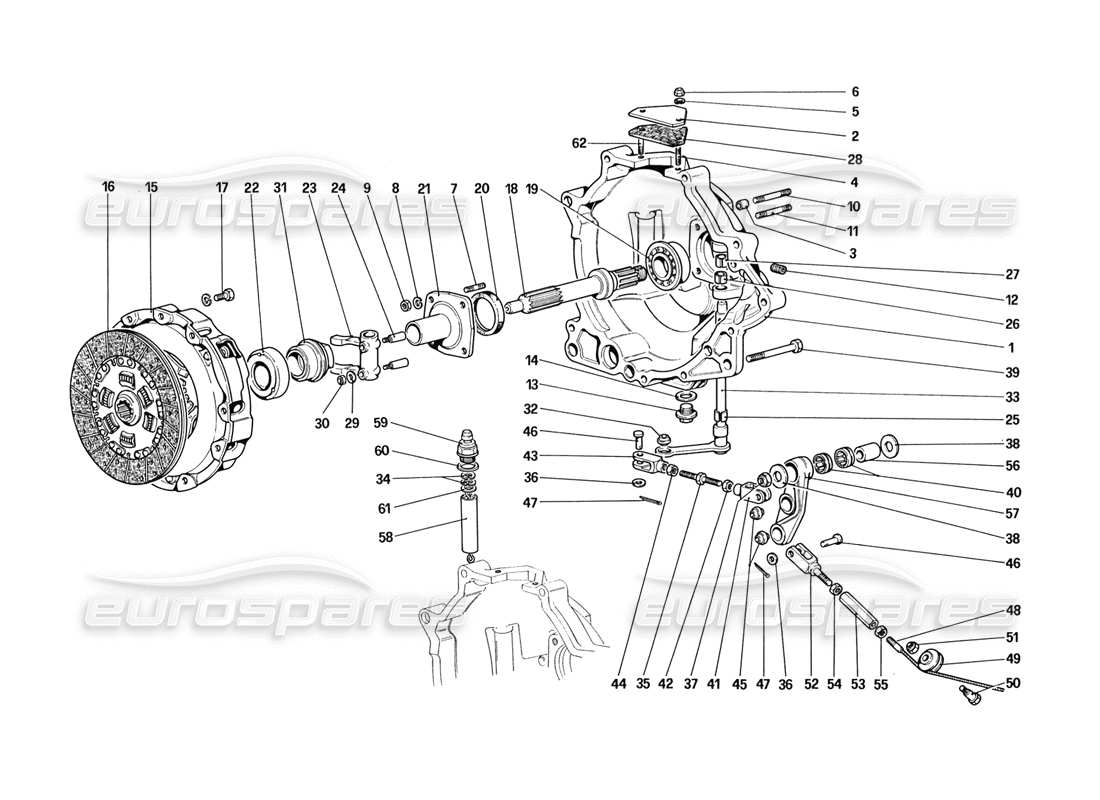

Ferrari 328 (1988) Clutch and controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                        #
                                                                                                                        Part number
                                                                                                                        Description
                                                                                                                        Key
                                                                                                                        Price
                                                                                                                        # 001
                                                                                                                        MPN: 126025
                                                                                                                        CLUTCH HOUSING - WITH ASSEMBLY NO. 127752
                                                                                                                        from £958.81
                                                                                                                        from £958.81
                                                                                                                        CLUTCH HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                        # 001
                                                                                                                        MPN: 127752
                                                                                                                        CLUTCH HOUSING
                                                                                                                        from £935.57
                                                                                                                        from £935.57
                                                                                                                        This part replaces part number 116801 - and 1 more. Click to view details
                                                                                                                        CLUTCH HOUSING COMPLETE Genuine Ferrari Part - New In stock
                                                                                                                        CLUTCH HOUSING COMPLETE Genuine Ferrari Part - Used In stock
                                                                                                                        # 002
                                                                                                                        MPN: 109404
                                                                                                                        INSPECTION COVER
                                                                                                                        from £36.46
                                                                                                                        from £36.46
                                                                                                                        This part replaces part number 40361107
                                                                                                                        INSPECTION COVER Genuine Ferrari Part - New (to order)
                                                                                                                        # 003
                                                                                                                        MPN: 102704
                                                                                                                        CENTERING DOWEL
                                                                                                                        from £1.77
                                                                                                                        from £1.77
                                                                                                                        This part replaces part number 500805
                                                                                                                        DOWEL BOLT Genuine Ferrari Part - New In stock
                                                                                                                        CENTERING DOWEL Genuine Maserati Part - New (to order)
                                                                                                                        # 004
                                                                                                                        MPN: 11000921
                                                                                                                        STUD
                                                                                                                        from £2.00
                                                                                                                        from £2.00
                                                                                                                        STUD Genuine Ferrari Part - New In stock
                                                                                                                        # 005
                                                                                                                        MPN: 12601171
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        WASHER Genuine Ferrari Part - New In stock
                                                                                                                        # 006
                                                                                                                        MPN: 15896411
                                                                                                                        NUT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 15896401
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        Genuine Maserati Part (no longer available to order)
                                                                                                                        # 007
                                                                                                                        MPN: 13516521
                                                                                                                        STUD
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 102682 - and 1 more. Click to view details
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 008
                                                                                                                        MPN: 106852
                                                                                                                        WASHER
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 009
                                                                                                                        MPN: 16102311
                                                                                                                        NUT
                                                                                                                        from £0.42
                                                                                                                        from £0.42
                                                                                                                        This part replaces part number 16102315
                                                                                                                        DADO EB M8 Genuine Ferrari Part - New In stock
                                                                                                                        Genuine Maserati Part (no longer available to order)
                                                                                                                        NUT FOR RUBBER PAD ON TRU Genuine Maserati Part - Used In stock
                                                                                                                        # 010
                                                                                                                        MPN: 13517621
                                                                                                                        STUD
                                                                                                                        from £9.04
                                                                                                                        from £9.04
                                                                                                                        STUD BOLT Genuine Ferrari Part - New In stock
                                                                                                                        # 011
                                                                                                                        MPN: 13517521
                                                                                                                        STUD
                                                                                                                        from £6.77
                                                                                                                        from £6.77
                                                                                                                        THREADED STUD 8X12 STEM 45MM Genuine Ferrari Part - New (to order)
                                                                                                                        # 012
                                                                                                                        MPN: 14326150
                                                                                                                        THREADED PLUG
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 12326150
                                                                                                                        PLUG Genuine Ferrari Part - New (to order)
                                                                                                                        TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                                        # 013
                                                                                                                        MPN: 14326540
                                                                                                                        OIL DRAIN PLUG
                                                                                                                        from £35.89
                                                                                                                        from £35.89
                                                                                                                        OIL DRAIN PLUG Genuine Ferrari Part - New In stock
                                                                                                                        OIL DRAIN PLUG Genuine Ferrari Part - Used In stock
                                                                                                                        # 014
                                                                                                                        MPN: 10261860
                                                                                                                        GASKET
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
                                                                                                                        COPPER OIL DRAIN SEAL GASKET Genuine Ferrari Part - New In stock
                                                                                                                        OIL DRAIN SEAL GASKET, 22 - 30 x 1.5 Genuine Maserati Part - New In stock
                                                                                                                        COPPER OIL DRAIN SEAL GASKET Original Equipment - New In stock
                                                                                                                        # 015
                                                                                                                        MPN: 121562
                                                                                                                        CLUTCH PRESSURE PLATE
                                                                                                                        from £138.99
                                                                                                                        from £138.99
                                                                                                                        This part replaces part number 101533 - and 5 more. Click to view details
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        CLUTCH PRESSURE PLATE V8 Eurospares Approved Part - New In stock
                                                                                                                        CLUTCH PRESSURE PLATE V8 Genuine Ferrari Part - Used In stock
                                                                                                                        # 015
                                                                                                                        MPN: 134997
                                                                                                                        CLUTCH ½ (NOT FOR SPARE)
                                                                                                                        CLUTCH ASSY Genuine Ferrari Part - New (to order)
                                                                                                                        # 015
                                                                                                                        MPN: FCLK001
                                                                                                                        Clutch Kit - 3 Piece
                                                                                                                        Pressure plate & bearing (121562-110558-100849)
                                                                                                                        Clutch Kit - 3 Piece Genuine Ferrari Part - New (to order)
                                                                                                                        # 015
                                                                                                                        MPN: FCLK001
                                                                                                                        CLUTCH KIT
                                                                                                                        use : FCLK001
                                                                                                                        Clutch Kit - 3 Piece Genuine Ferrari Part - New (to order)
                                                                                                                        # 016
                                                                                                                        MPN: 110558
                                                                                                                        CLUTCH DISC
                                                                                                                        Replaces 134996
                                                                                                                        from £220.34
                                                                                                                        from £220.34
                                                                                                                        This part replaces part number 105709 - and 4 more. Click to view details
                                                                                                                        CLUTCH DISC V8/V12 Genuine Ferrari Part - New (to order)
                                                                                                                        CLUTCH DISC V8/V12 Eurospares Approved Part - New In stock
                                                                                                                        # 016
                                                                                                                        MPN: 120482
                                                                                                                        CLUTCH DISC
                                                                                                                        not as spare part - use part number: 110558
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 016
                                                                                                                        MPN: 134996
                                                                                                                        CLUTCH DISC
                                                                                                                        Not as spare part - Replaced by 110558
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 110294 - and 3 more. Click to view details
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 017
                                                                                                                        MPN: 13825821
                                                                                                                        BOLT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 017
                                                                                                                        MPN: 13825821
                                                                                                                        BOLT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 018
                                                                                                                        MPN: 133398
                                                                                                                        CLUTCH SHAFT
                                                                                                                        from £735.94
                                                                                                                        from £735.94
                                                                                                                        This part replaces part number 126815
                                                                                                                        CLUTCH SHAFT Genuine Ferrari Part - New In stock
                                                                                                                        # 019
                                                                                                                        MPN: 103042
                                                                                                                        BEARING
                                                                                                                        from £153.66
                                                                                                                        from £153.66
                                                                                                                        DOUBLE BALL BEARING Genuine Ferrari Part - New (to order)
                                                                                                                        DOUBLE BALL BEARING Genuine Ferrari Part - Used In stock
                                                                                                                        # 020
                                                                                                                        MPN: 134714
                                                                                                                        OIL SEALS
                                                                                                                        from £10.35
                                                                                                                        from £10.35
                                                                                                                        This part replaces part number 110314
                                                                                                                        GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        OIL SEAL Eurospares Approved Part - New In stock
                                                                                                                        # 021
                                                                                                                        MPN: 105136
                                                                                                                        FLANGE WITH SLEEVE
                                                                                                                        from £199.66
                                                                                                                        from £199.66
                                                                                                                        FLANGE Genuine Ferrari Part - New (to order)
                                                                                                                        FLANGE Genuine Ferrari Part - Used In stock
                                                                                                                        # 022
                                                                                                                        MPN: 100849
                                                                                                                        THRUST BEARING
                                                                                                                        from £45.00
                                                                                                                        from £45.00
                                                                                                                        This part replaces part number 100845 - and 3 more. Click to view details
                                                                                                                        CLUTCH RELEASE BEARING Genuine Ferrari Part - New (to order)
                                                                                                                        Clutch Bearing Eurospares Approved Part - New In stock
                                                                                                                        CLUTCH RELEASE BEARING Genuine Ferrari Part - Used In stock
                                                                                                                        # 023
                                                                                                                        MPN: 108428
                                                                                                                        CLUTCH CONTROL LEVER - WITH ASSEMBLY NO. 116327
                                                                                                                        from £871.24
                                                                                                                        from £871.24
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        CLUTCH LEVER Genuine Ferrari Part - Used In stock
                                                                                                                        # 024
                                                                                                                        MPN: 108429
                                                                                                                        PIN
                                                                                                                        from £44.52
                                                                                                                        from £44.52
                                                                                                                        PIN Genuine Ferrari Part - New (to order)
                                                                                                                        # 025
                                                                                                                        MPN: 103226
                                                                                                                        OUTER BUSH
                                                                                                                        from £2.32
                                                                                                                        from £2.32
                                                                                                                        BUSH Genuine Ferrari Part - New (to order)
                                                                                                                        SELF-LUBRICATING BUSHING 18- Genuine Maserati Part - New (to order)
                                                                                                                        # 026
                                                                                                                        MPN: 103227
                                                                                                                        INNER BUSH
                                                                                                                        from £2.48
                                                                                                                        from £2.48
                                                                                                                        BUSH Genuine Ferrari Part - New (to order)

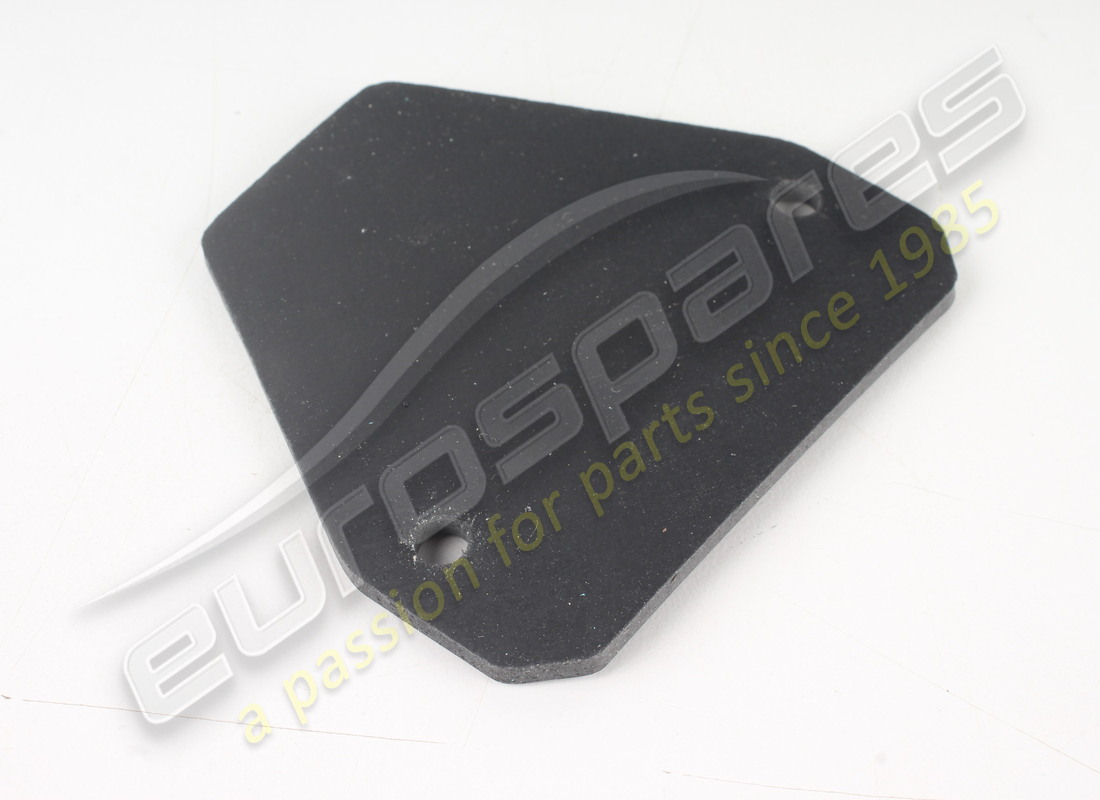

                                                                                                                        # 028
                                                                                                                        MPN: 109405
                                                                                                                        GASKET FOR COVER
                                                                                                                        from £9.48
                                                                                                                        from £9.48
                                                                                                                        GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 029
                                                                                                                        MPN: 108430
                                                                                                                        WASHER
                                                                                                                        from £4.61
                                                                                                                        from £4.61
                                                                                                                        WASHER Genuine Ferrari Part - New In stock
                                                                                                                        # 030
                                                                                                                        MPN: 12574121
                                                                                                                        NUT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 12574111 - and 2 more. Click to view details
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 031
                                                                                                                        MPN: 116326
                                                                                                                        BUSHING FOR BEARING
                                                                                                                        from £256.02
                                                                                                                        from £256.02
                                                                                                                        RELEASE CARRIER Genuine Ferrari Part - New (to order)
                                                                                                                        # 032
                                                                                                                        MPN: 100860
                                                                                                                        BALL JOINT
                                                                                                                        from £66.39
                                                                                                                        from £66.39
                                                                                                                        This part replaces part number SERIE SS6 - and 1 more. Click to view details
                                                                                                                        ROSE BEARING Genuine Ferrari Part - New (to order)
                                                                                                                        # 033
                                                                                                                        MPN: 116327
                                                                                                                        LEVER AND CONTROL SHAFT
                                                                                                                        from £170.96
                                                                                                                        from £170.96
                                                                                                                        SHAFT Genuine Ferrari Part - New (to order)
                                                                                                                        SHAFT Genuine Ferrari Part - Used In stock
                                                                                                                        # 034
                                                                                                                        MPN: 12604571
                                                                                                                        WASHER
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 035
                                                                                                                        MPN: 116329
                                                                                                                        TIE ROD
                                                                                                                        from £20.74
                                                                                                                        from £20.74
                                                                                                                        This part replaces part number 103999 which we have in stock - and 2 more. Click to view details
                                                                                                                        ADJUSTER Genuine Ferrari Part - New (to order)
                                                                                                                        ADJUSTER Genuine Ferrari Part - Used In stock
                                                                                                                        # 036
                                                                                                                        MPN: 12639701
                                                                                                                        WASHER
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 12639704
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 037
                                                                                                                        MPN: 148020
                                                                                                                        NUT
                                                                                                                        from £2.51
                                                                                                                        from £2.51
                                                                                                                        This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                        NUT Genuine Ferrari Part - New In stock
                                                                                                                        # 038
                                                                                                                        MPN: 108939
                                                                                                                        SPACER FOR LEVER
                                                                                                                        from £23.25
                                                                                                                        from £23.25
                                                                                                                        DISTANCE PLATE Genuine Ferrari Part - New (to order)
                                                                                                                        # 039
                                                                                                                        MPN: 15541121
                                                                                                                        SCREW
                                                                                                                        from £0.57
                                                                                                                        from £0.57
                                                                                                                        BOLT Genuine Ferrari Part - New (to order)
                                                                                                                        # 040
                                                                                                                        MPN: 103223
                                                                                                                        ROLLER CAGE
                                                                                                                        from £44.75
                                                                                                                        from £44.75
                                                                                                                        ROLLER BEARING Genuine Ferrari Part - New (to order)
                                                                                                                        # 041
                                                                                                                        MPN: 100855
                                                                                                                        FORK. LH THREAD
                                                                                                                        from £47.25
                                                                                                                        from £47.25
                                                                                                                        This part replaces part number 500631
                                                                                                                        FORK LH THREAD Genuine Ferrari Part - New (to order)
                                                                                                                        # 042
                                                                                                                        MPN: 100862
                                                                                                                        NUT. LH THREAD
                                                                                                                        from £5.20
                                                                                                                        from £5.20
                                                                                                                        This part replaces part number 100861
                                                                                                                        LH THREAD NUT Genuine Ferrari Part - New In stock
                                                                                                                        # 043
                                                                                                                        MPN: 10-32-38
                                                                                                                        FORK
                                                                                                                        from £20.64
                                                                                                                        from £20.64
                                                                                                                        This part replaces part number 500599 - and 1 more. Click to view details
                                                                                                                        PARCEL SHELF Genuine Ferrari Part - New (to order)
                                                                                                                        PARCEL SHELF Genuine Ferrari Part - Used In stock
                                                                                                                        # 044
                                                                                                                        MPN: 100861
                                                                                                                        LOCKNUT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 100862 which we have in stock
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 045
                                                                                                                        MPN: 100860
                                                                                                                        BALL JOINT
                                                                                                                        from £66.39
                                                                                                                        from £66.39
                                                                                                                        This part replaces part number SERIE SS6 - and 1 more. Click to view details
                                                                                                                        ROSE BEARING Genuine Ferrari Part - New (to order)
                                                                                                                        # 046
                                                                                                                        MPN: 103218
                                                                                                                        PIN
                                                                                                                        from £25.41
                                                                                                                        from £25.41
                                                                                                                        This part replaces part number 100857 - and 1 more. Click to view details
                                                                                                                        CLEVIS PIN Genuine Ferrari Part - New (to order)
                                                                                                                        # 047
                                                                                                                        MPN: 10734201
                                                                                                                        SPLIT PIN
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 048
                                                                                                                        MPN: 106745

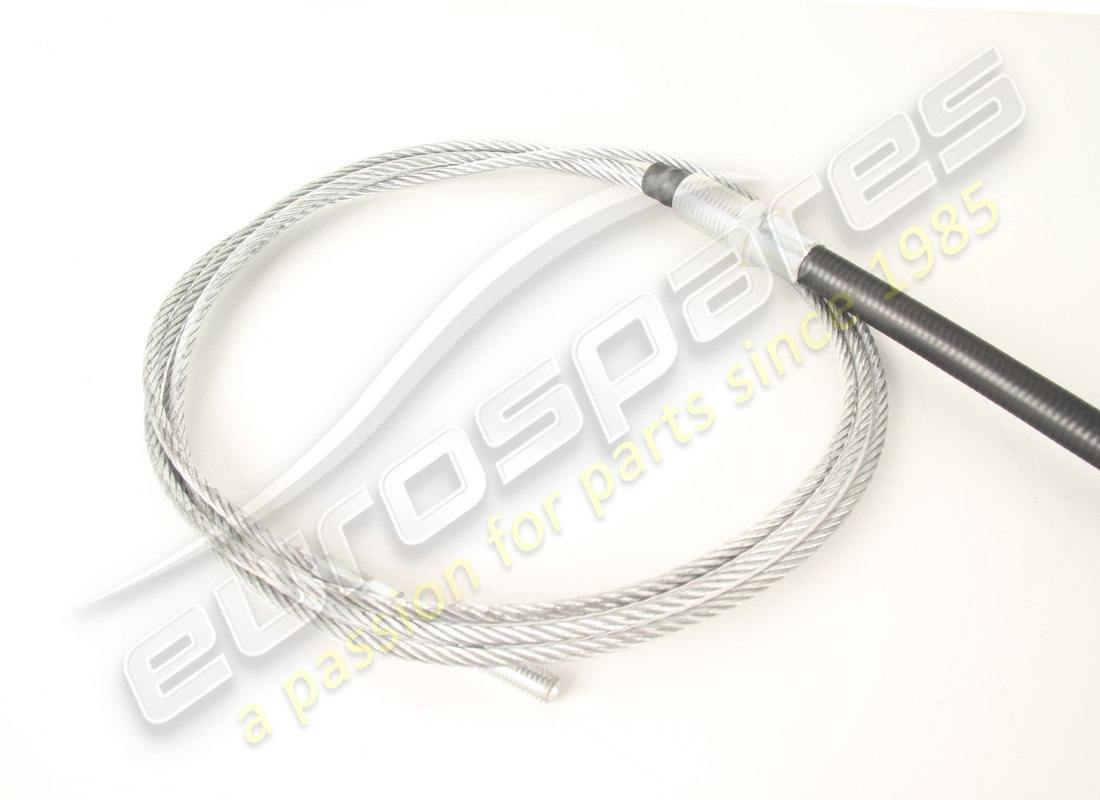

                                                                                                                        CLUTCH CONTROL CABLE
                                                                                                                        LHD (RHD = 108342)
                                                                                                                        from £45.47
                                                                                                                        from £45.47
                                                                                                                        CLUTCH CABLE LHD Genuine Ferrari Part - New In stock
                                                                                                                        # 049
                                                                                                                        MPN: 157557
                                                                                                                        SHEAVE
                                                                                                                        from £11.42
                                                                                                                        from £11.42
                                                                                                                        This part replaces part number 105665 - and 4 more. Click to view details
                                                                                                                        CARRUCOLA CON CUSCINETTO AUT Genuine Ferrari Part - New (to order)
                                                                                                                        CARRUCOLA CON CUSCINETTO AUT Genuine Ferrari Part - Used In stock
                                                                                                                        # 050
                                                                                                                        MPN: 10902621
                                                                                                                        BOLT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 10902611 which we have in stock
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        Genuine Maserati Part (no longer available to order)
                                                                                                                        # 052
                                                                                                                        MPN: 138523
                                                                                                                        FORK
                                                                                                                        from £26.19
                                                                                                                        from £26.19
                                                                                                                        FORK Genuine Ferrari Part - New (to order)
                                                                                                                        # 053
                                                                                                                        MPN: 10091014
                                                                                                                        SLEEVE
                                                                                                                        from £45.00
                                                                                                                        from £45.00
                                                                                                                        This part replaces part number 10091011 - and 1 more. Click to view details
                                                                                                                        ADJUSTER Genuine Ferrari Part - New (to order)
                                                                                                                        ADJUSTER Genuine Ferrari Part - Used In stock
                                                                                                                        COMES WITH FORK
                                                                                                                        # 054
                                                                                                                        MPN: 10725911
                                                                                                                        LOCKNUT
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 95900403
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 055
                                                                                                                        MPN: 10727311
                                                                                                                        LOCKNUT (LH THREAD)
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 95560
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 056
                                                                                                                        MPN: 107437
                                                                                                                        BUSHING FOR LEVER
                                                                                                                        from £39.86
                                                                                                                        from £39.86
                                                                                                                        STEEL BUSH Genuine Ferrari Part - New (to order)
                                                                                                                        # 057
                                                                                                                        MPN: 116472
                                                                                                                        CLUTCH CONTROL LEVER
                                                                                                                        from £541.62
                                                                                                                        from £541.62
                                                                                                                        This part replaces part number 106750
                                                                                                                        LEVER Genuine Ferrari Part - New (to order)
                                                                                                                        # 058
                                                                                                                        MPN: 126044
                                                                                                                        PIPE
                                                                                                                        from £203.83
                                                                                                                        from £203.83
                                                                                                                        TUBE Genuine Ferrari Part - New (to order)
                                                                                                                        TUBE Genuine Ferrari Part - Used In stock
                                                                                                                        COMPLETE NO,59
                                                                                                                        # 059
                                                                                                                        MPN: 126046
                                                                                                                        PLUG FOT BREATHER
                                                                                                                        BUSH Genuine Ferrari Part - New (to order)
                                                                                                                        # 060
                                                                                                                        MPN: 10263460
                                                                                                                        GASKET
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 95119
                                                                                                                        GASKET Genuine Ferrari Part - New In stock
                                                                                                                        GASKET 22- 28X 1.5 Genuine Maserati Part - New In stock
                                                                                                                        # 062
                                                                                                                        MPN: 11001121
                                                                                                                        STUD
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        STUD Genuine Ferrari Part - New (to order)
                                                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
