0013 - Exhaust System

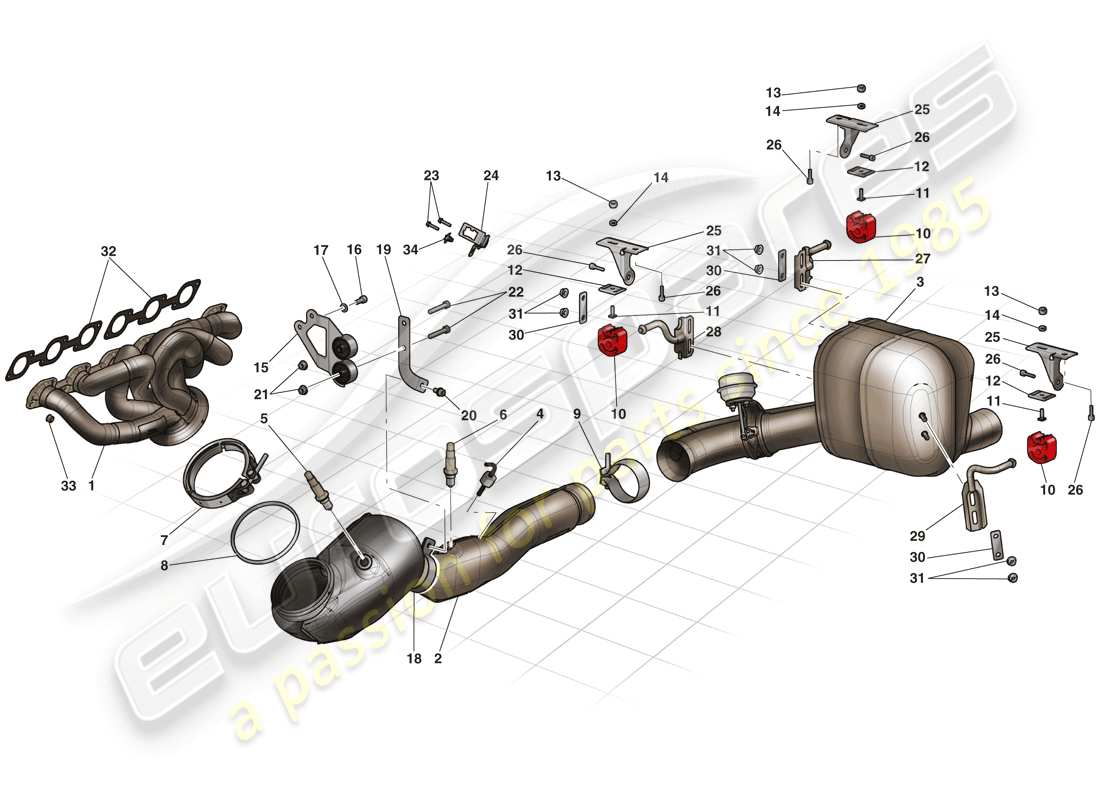

Ferrari LaFerrari (Europe) EXHAUST SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 293540
RH EXHAUST MANIFOLD
from £7,071.59
from £7,071.59
# 001
MPN: 293541
LH EXHAUST MANIFOLD
from £7,071.59
from £7,071.59
# 002
MPN: 303154
RH CATALYTIC CONVERTER
from £9,069.63
from £9,069.63
# 002
MPN: 303156
LH CATALYTIC CONVERTER.
from £9,069.63
from £9,069.63
# 003
MPN: 306022
REAR RH SILENCER
-Not for J- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 306024
REAR LH SILENCER
-Not for J- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 306437
REAR RH SILENCER
-Not for J- -Applicable after depletion of 306022- -No longer supplied- -Replaced by 317317-
Supersession
Supersession
This part replaces part number 306022
# 003
MPN: 306438
REAR LH SILENCER
-Not for J- -Applicable after depletion of 306024- -No longer supplied- -Replaced by 317318-
Supersession
Supersession
This part replaces part number 306024
# 003
MPN: 306946
REAR RH SILENCER
-Applicable for J- -Applicable after depletion of 312956- -No longer supplied- -Replaced by 320270-
Supersession
Supersession
# 003
MPN: 306947
REAR LH SILENCER
-Applicable for J- -Applicable after depletion of 312957- -No longer supplied- -Replaced by 320271-
Supersession
Supersession
# 003
MPN: 312956
REAR RH SILENCER
-Applicable for J- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 312957
REAR LH SILENCER
-Applicable for J- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 317317
REAR RH SILENCER
-Not for Taiwan- -Not for J-
from £4,412.19
from £4,412.19
This part replaces part number 306437
# 003
MPN: 317318
REAR LH SILENCER
-Not for Taiwan- -Not for J-
from £4,412.19
from £4,412.19
This part replaces part number 306438
# 003
MPN: 320270
REAR RH SILENCER
-Applicable for Taiwan- -Applicable for J-
from £4,412.19
from £4,412.19
This part replaces part number 306946 - and 1 more. Click to view details
# 003
MPN: 320271
REAR LH SILENCER
-Applicable for Taiwan- -Applicable for J-
from £4,412.19
from £4,412.19
This part replaces part number 306947 - and 1 more. Click to view details
# 004
MPN: 200934
EXHAUST GAS TEMPERATURE SENSOR
-No longer supplied-
from £66.96
from £66.96

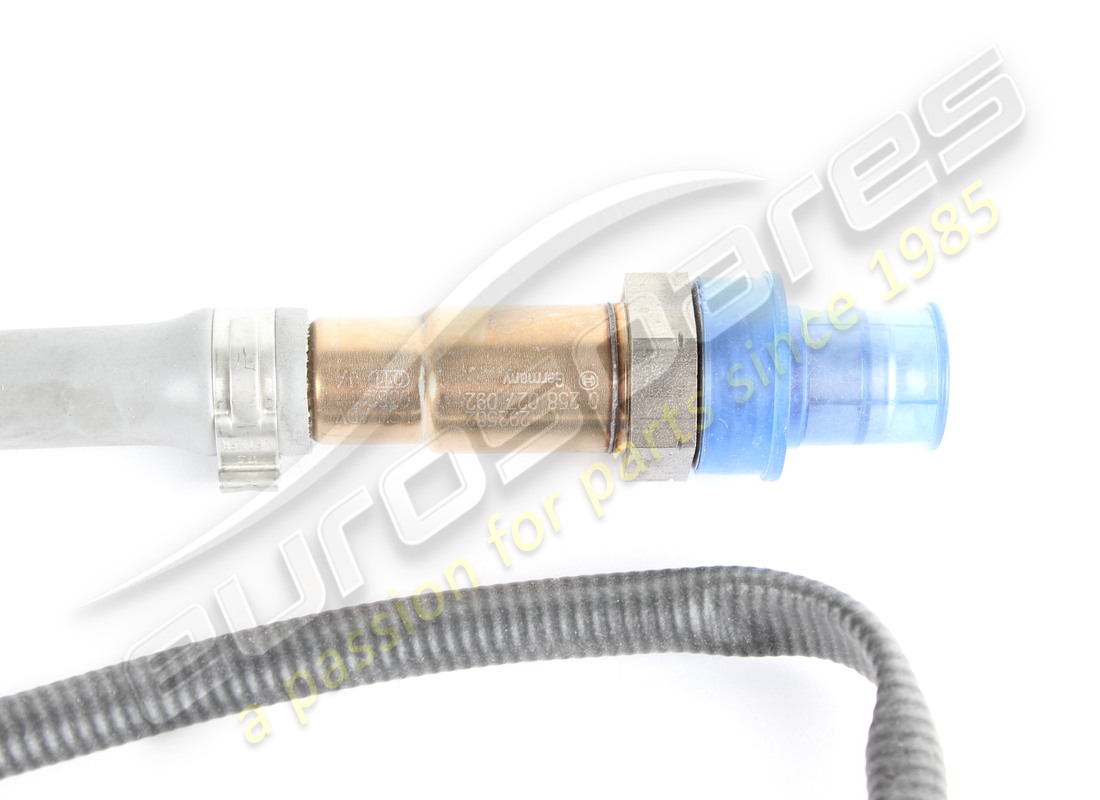

# 005
MPN: 292582
FRONT OXYGEN SENSOR
from £61.15
from £61.15

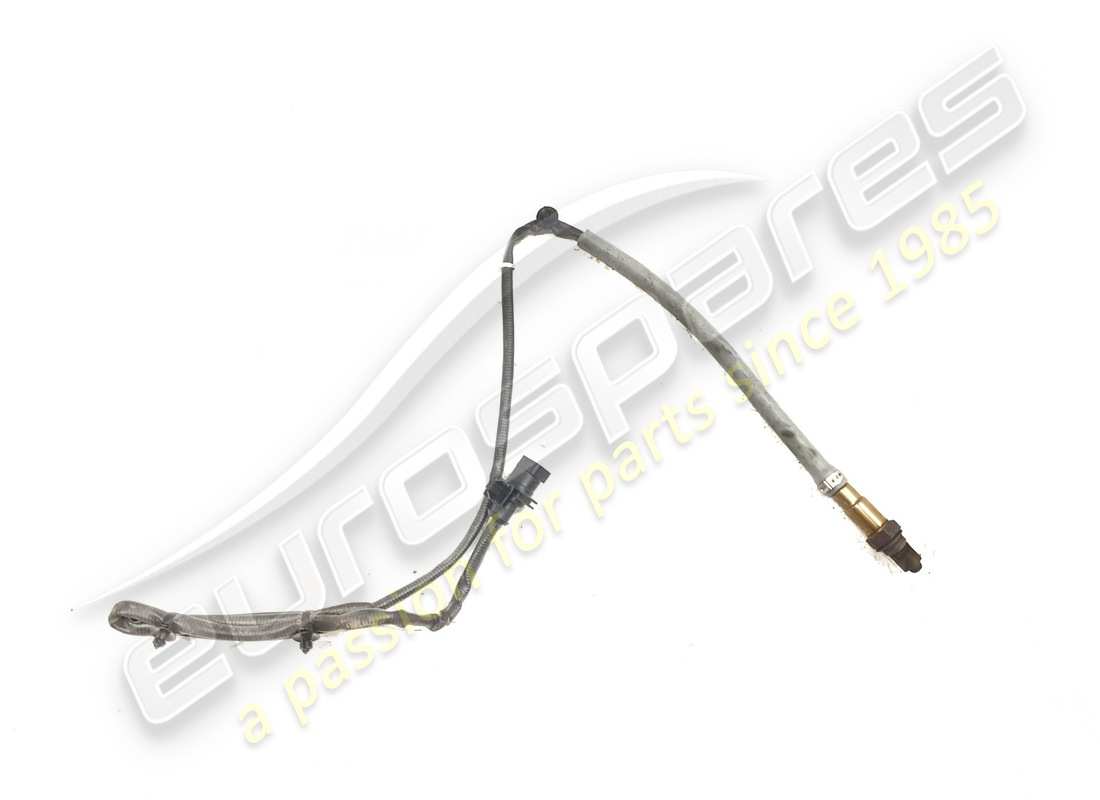

# 006
MPN: 180915
REAR OXYGEN SENSOR
from £26.25
from £26.25
This part replaces part number 177674 - and 3 more. Click to view details
# 007
MPN: 290743
V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD
from £31.71
from £31.71

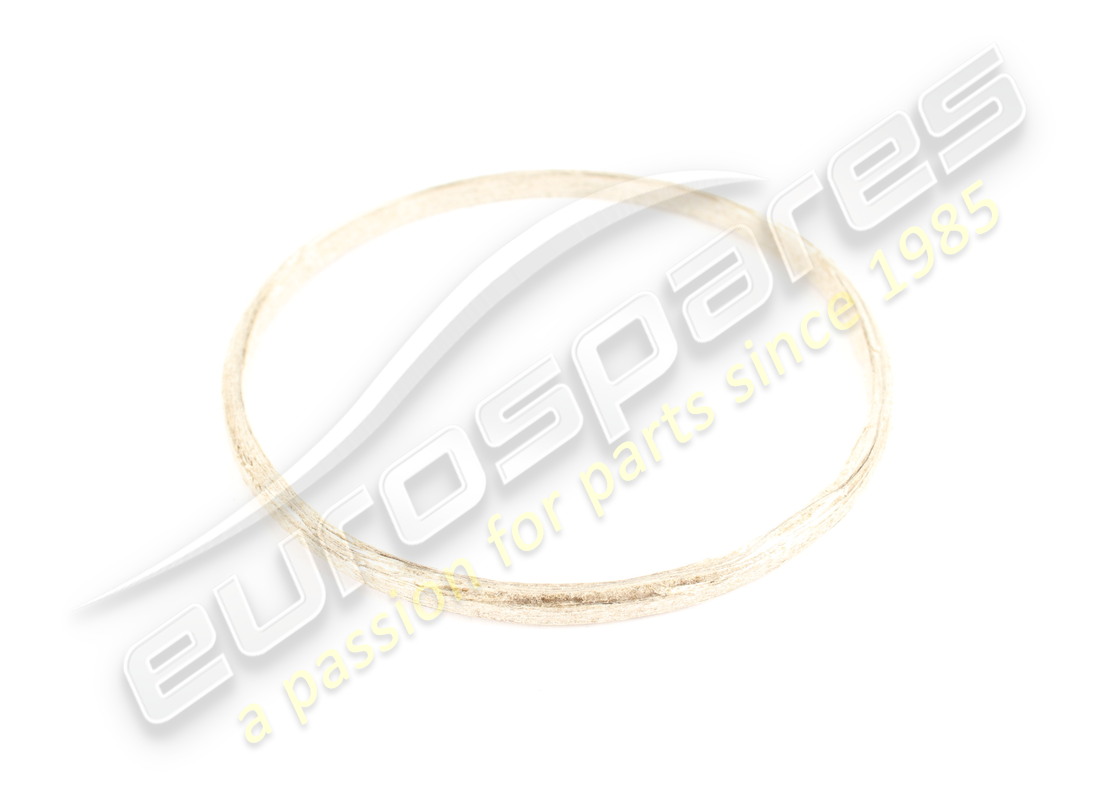

# 008
MPN: 275465
GASKET
from £35.75
from £35.75
# 009
MPN: 270454
RING CLAMP
from £6.89
from £6.89
# 010
MPN: 239798
FLEXIBLE SILENCER MOUNTING BUSH
from £39.87
from £39.87
# 011
MPN: 250222
SQUARE HEADED SCREW
from £1.58
from £1.58
# 012
MPN: 240598
PLATE
from £7.62
from £7.62
This part replaces part number 799014
# 013
MPN: 14059214
NUT
from £0.52
from £0.52
# 014
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 015
MPN: 288389
RH BRACKET
from £151.34
from £151.34
# 015
MPN: 288391
LH BRACKET
from £151.34
from £151.34
# 016
MPN: 14302824
SCREW
from £0.53
from £0.53
# 017
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 018
MPN: 279015
RING CLAMP
from £7.95
from £7.95
# 019
MPN: 294867
BRACKET
from £18.02
from £18.02
# 019
MPN: 294868
BRACKET
from £18.02
from £18.02
# 020
MPN: 231627
SCREW
-M8 X 16-
from £0.53
from £0.53
# 021
MPN: 14059311
NUT
from £0.53
from £0.53
# 022
MPN: 16044224
SCREW
-M8 X 50-
from £0.51
from £0.51
This part replaces part number 16044221 which we have in stock
# 023
MPN: 302723
SCREW
-M5 X 15-
from £2.53
from £2.53
This part replaces part number 302724
# 023
MPN: 302724
SCREW
-M5 X 20- -No longer supplied- -Replaced by 302723-
Supersession
Supersession
# 024
MPN: 302185
BRACKET
from £20.17
from £20.17
# 025
MPN: 283476
BRACKET
from £43.23
from £43.23
# 026
MPN: 231617
SCREW
-M6 X 18-
from £0.50
from £0.50
This part replaces part number 14433124 which we have in stock
# 027
MPN: 284542
CENTRAL REAR BRACKET ON RH SILENCER
from £34.22
from £34.22
# 027
MPN: 284543
CENTRAL REAR BRACKET ON LH SILENCER
from £34.22
from £34.22
# 028
MPN: 291664
CENTRAL FRONT BRACKET ON RH SILENCER
from £34.22
from £34.22
# 028
MPN: 291665
CENTRAL FRONT BRACKET ON LH SILENCER
from £34.22
from £34.22
# 029
MPN: 284544
LATERAL BRACKET ON RH SILENCER
from £33.88
from £33.88
# 029
MPN: 284545
LATERAL BRACKET ON LH SILENCER
from £33.88
from £33.88
# 030
MPN: 240597
PLATE
from £5.70
from £5.70
# 031
MPN: 14059311
NUT
from £0.50
from £0.50
# 032
MPN: 212702
GASKET
from £6.84
from £6.84
# 033
MPN: 210971
NUT
from £1.12
from £1.12
# 034
MPN: 288378
CLIP
from £0.53
from £0.53
-part-diagram-0014.webp "FERRARI LAFERRARI (EUROPE) LUBRICATION SYSTEM AND OIL VAPOUR RECOVERY SYSTEM PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI LAFERRARI (EUROPE) OIL PUMP PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI LAFERRARI (EUROPE) HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI LAFERRARI (EUROPE) COOLIN SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI LAFERRARI (EUROPE) COMPLETE GEARBOX PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI LAFERRARI (EUROPE) ELECTRIC MOTOR PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI LAFERRARI (EUROPE) ELECTRIC MOTOR COOLING PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI LAFERRARI (EUROPE) GEARBOX OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI LAFERRARI (EUROPE) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI LAFERRARI (EUROPE) HYDRAULIC BRAKE CONTROLS AND POWER BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI LAFERRARI (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI LAFERRARI (EUROPE) FRONT AND REAR BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI LAFERRARI (EUROPE) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI LAFERRARI (EUROPE) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI LAFERRARI (EUROPE) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI LAFERRARI (EUROPE) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI LAFERRARI (EUROPE) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI LAFERRARI (EUROPE) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI LAFERRARI (EUROPE) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI LAFERRARI (EUROPE) WHEELS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI LAFERRARI (EUROPE) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI LAFERRARI (EUROPE) LIFTING THE VEHICLE PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI LAFERRARI (EUROPE) STARTER BATTERY PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI LAFERRARI (EUROPE) BATTERY COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI LAFERRARI (EUROPE) INVERTER AND COOLING PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI LAFERRARI (EUROPE) STARTER MOTOR AND ELECTRIC MOTOR 2 PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI LAFERRARI (EUROPE) INVERTER-ME1-ME2 REPAIR KIT PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI LAFERRARI (EUROPE) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI LAFERRARI (EUROPE) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI LAFERRARI (EUROPE) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI LAFERRARI (EUROPE) FRONT COMPARTMENT AND TOOLS SUPPLIED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI LAFERRARI (EUROPE) MONOCOQUE TUB - FRONT SUBCHASSIS - CENTRAL FLAT UNDERTRAY PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI LAFERRARI (EUROPE) REAR SUBCHASSIS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI LAFERRARI (EUROPE) EXTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI LAFERRARI (EUROPE) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI LAFERRARI (EUROPE) HEAT SHIELDS AND INSULATION PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI LAFERRARI (EUROPE) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI LAFERRARI (EUROPE) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI LAFERRARI (EUROPE) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI LAFERRARI (EUROPE) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI LAFERRARI (EUROPE) FRONT LID AND RELEASE MECHANISM PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI LAFERRARI (EUROPE) ENGINE COMPARTMENT LID AND RELEASE MECHANISM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI LAFERRARI (EUROPE) FUELLING AND CHARGING PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI LAFERRARI (EUROPE) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI LAFERRARI (EUROPE) DOORS - OPENING MECHANISMS AND HINGES PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI LAFERRARI (EUROPE) DOORS - POWER WINDOW AND REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI LAFERRARI (EUROPE) WINDOWS AND SCREENS PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI LAFERRARI (EUROPE) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI LAFERRARI (EUROPE) PASSENGER COMPARTMENT TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI LAFERRARI (EUROPE) DASHBOARD PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI LAFERRARI (EUROPE) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI LAFERRARI (EUROPE) AIRBAGS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI LAFERRARI (EUROPE) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI LAFERRARI (EUROPE) SEATS AND SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI LAFERRARI (EUROPE) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI LAFERRARI (EUROPE) SHIELDS AND TRIM PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI LAFERRARI (EUROPE) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI LAFERRARI (EUROPE) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI LAFERRARI (EUROPE) HV BATTERY AND WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI LAFERRARI (EUROPE) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI LAFERRARI (EUROPE) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI LAFERRARI (EUROPE) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI LAFERRARI (EUROPE) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI LAFERRARI (EUROPE) AUDIO - INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI LAFERRARI (EUROPE) TELEMETRY - DATA ACQUISITION PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI LAFERRARI (EUROPE) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI LAFERRARI (EUROPE) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI LAFERRARI (EUROPE) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI LAFERRARI (EUROPE) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI LAFERRARI (EUROPE) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI LAFERRARI (EUROPE) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI LAFERRARI (EUROPE) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI LAFERRARI (EUROPE) TIMING SYSTEM - TAPPETS AND SHAFTS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI LAFERRARI (EUROPE) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI LAFERRARI (EUROPE) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI LAFERRARI (EUROPE) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI LAFERRARI (EUROPE) FUEL TANK - FILLER NECK AND PUMPS PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI LAFERRARI (EUROPE) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI LAFERRARI (EUROPE) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI LAFERRARI (EUROPE) AIR INTAKES PARTS DIAGRAM")
