410 - Front Wheels Braking Parts

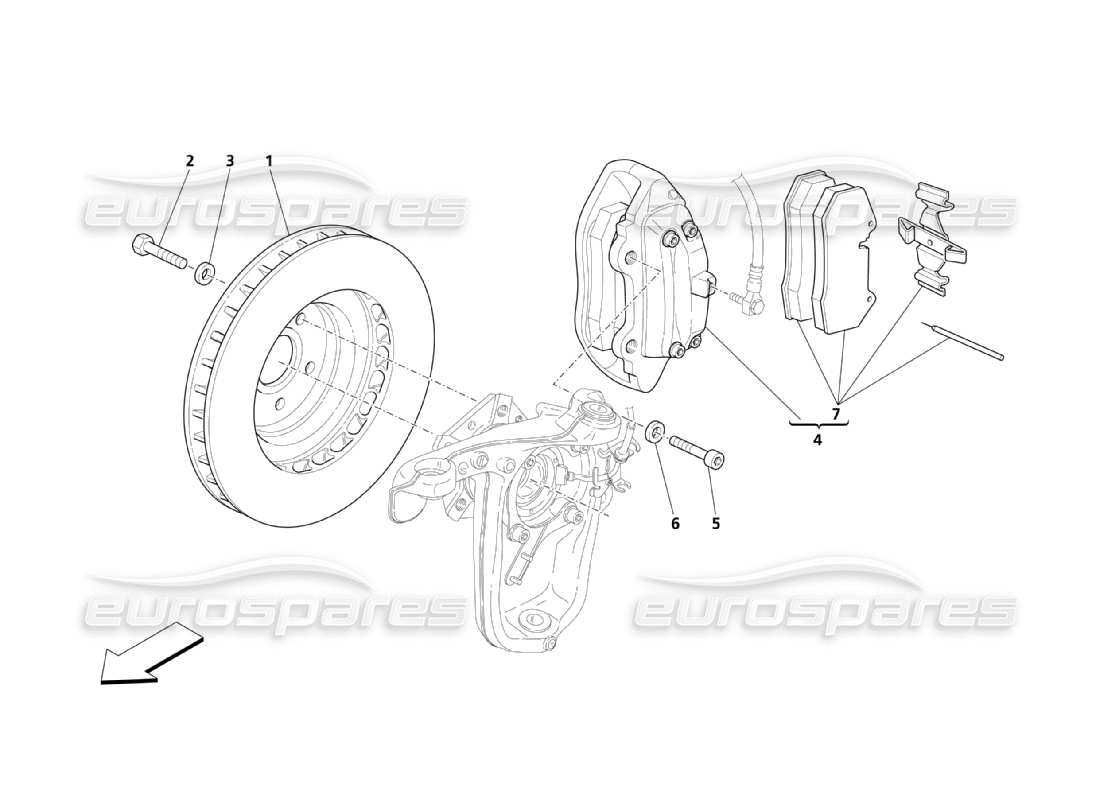

Maserati QTP. (2003) 4.2 Front Wheels Braking Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 202016/A
FRONT BRAKE KIT
includes 1x 216226 and 2x202016 Pack sport version, Manufactured In Italy Chassis Number Required
# 001
MPN: 194982
FRONT BRAKE DISC
STANDARD
from £163.64
from £163.64
# 001
MPN: 202016
FRONT BRAKE DISC
Pack sport version (priced per disc) Chassis Number Required O/D 330MM, Thickness 30mm
from £195.00
from £195.00
# 002
MPN: 16043424
SCREW
from £0.51
from £0.51
# 003
MPN: 12601374
WASHER
from £0.53
from £0.53
# 004
MPN: 197742
COMPLETE RH FRONT CALIPER
Black
from £417.90
from £417.90
# 004
MPN: 201296
COMPLETE LH FRONT CALIPER
red
from £501.90
from £501.90
# 004
MPN: 201297
COMPLETE LH FRONT CALIPER
Silver
Supersession
Supersession
# 004
MPN: 201298
COMPLETE RH FRONT CALIPER
red
from £461.29
from £461.29
# 004
MPN: 201299
COMPLETE RH FRONT CALIPER
Silver
from £455.65
from £455.65
# 004
MPN: 203028
COMPLETE RH FRONT CALIPER
Dark green - Pack sport version
from £262.50
from £262.50
# 004
MPN: 203029
COMPLETE LH FRONT CALIPER
Dark green - Pack sport version
from £262.50
from £262.50
# 004
MPN: 82337000
COMPLETE LH FRONT CALIPER
Black
from £256.88
from £256.88
This part replaces part number 197743 - and 1 more. Click to view details
# 005
MPN: 14311734
SCREW
from £20.29
from £20.29
# 006
MPN: 11194174
WASHER
from £1.94
from £1.94
# 007
MPN: 216226
KIT OF FRONT PADS
Manufactured In Italy Chassis Number Required
from £408.30
from £408.30
This part replaces part number 206675
# 007
MPN: 9835916485
WEAR SENSOR
BRAKE PADS NOT INCLUDED
from £23.80
from £23.80
