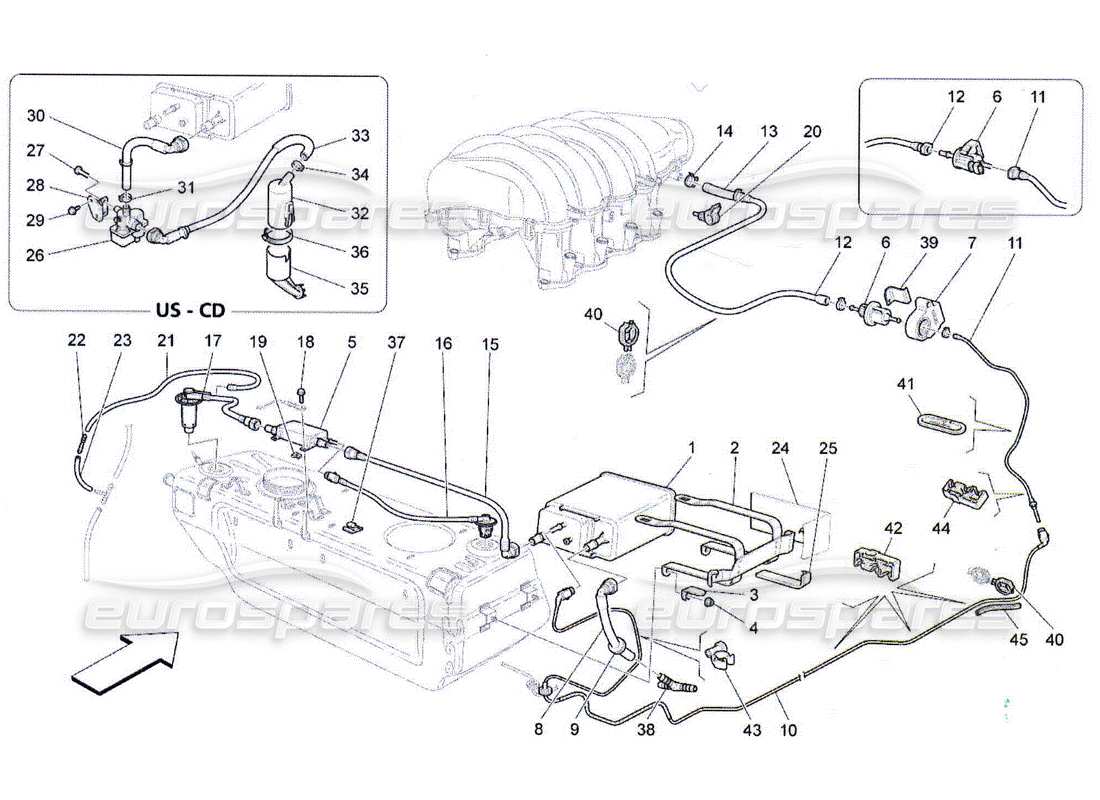

014 - fuel vapour recirculation system
Maserati QTP. (2010) 4.2 Fuel Vapour Recirculation System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 220074
FUEL VAPOR FILTER
from £60.51
from £60.51
This part replaces part number 212961 - and 1 more. Click to view details
# 001
MPN: 220074
FUEL VAPOR FILTER
from £60.51
from £60.51
This part replaces part number 212961 - and 1 more. Click to view details
# 002
MPN: 200002
FUEL VAPOR FILTER SUPPORT BRACKET
from £10.42
from £10.42
# 002
MPN: 212003
FUEL VAPOR FILTER SUPPORT BRACKET
from £59.70
from £59.70
# 003
MPN: 192330
ANGLE PIECE BRACKET
from £61.93
from £61.93
# 004
MPN: 14059211
NUT
from £0.53
from £0.53
This part replaces part number 675000181
# 005
MPN: 192101
DISAREATOR
from £153.10
from £153.10
# 006
MPN: 237683
WASHER VALVE
from £30.71
from £30.71
# 008
MPN: 211925
VAPOR PIPE FROM CANISTER TO WHEELHOUSE
from £10.27
from £10.27
# 009
MPN: 10396880
CABLE GROMMET
from £2.31
from £2.31
# 010
MPN: 219430
VAPOR PIPE FROM CANISTER TO WHEEL COMPARTMENT
from £62.52
from £62.52
# 011
MPN: 241365
VAPOR PIPE
from £206.44
from £206.44
# 012
MPN: 241362
VAPOR PIPE
from £658.02
from £658.02
# 013
MPN: 204968
SLEEVE
from £96.93
from £96.93
# 014
MPN: 13433570
SCREW COLLAR
from £0.53
from £0.53
# 015
MPN: 192210
PIPE FROM SEPARATOR TO CANISTER
from £199.86
from £199.86
# 016
MPN: 192100
EXHAUST VALVE WITH PIPE
from £202.21
from £202.21
# 017
MPN: 217194
MULTIFUNCTION VALVE WITH PIPE
from £254.21
from £254.21
This part replaces part number 192099 which we have in stock - and 1 more. Click to view details
# 018
MPN: 16296924
SCREW
from £0.52
from £0.52
# 019
MPN: 14369274
BRACKET
from £0.47
from £0.47

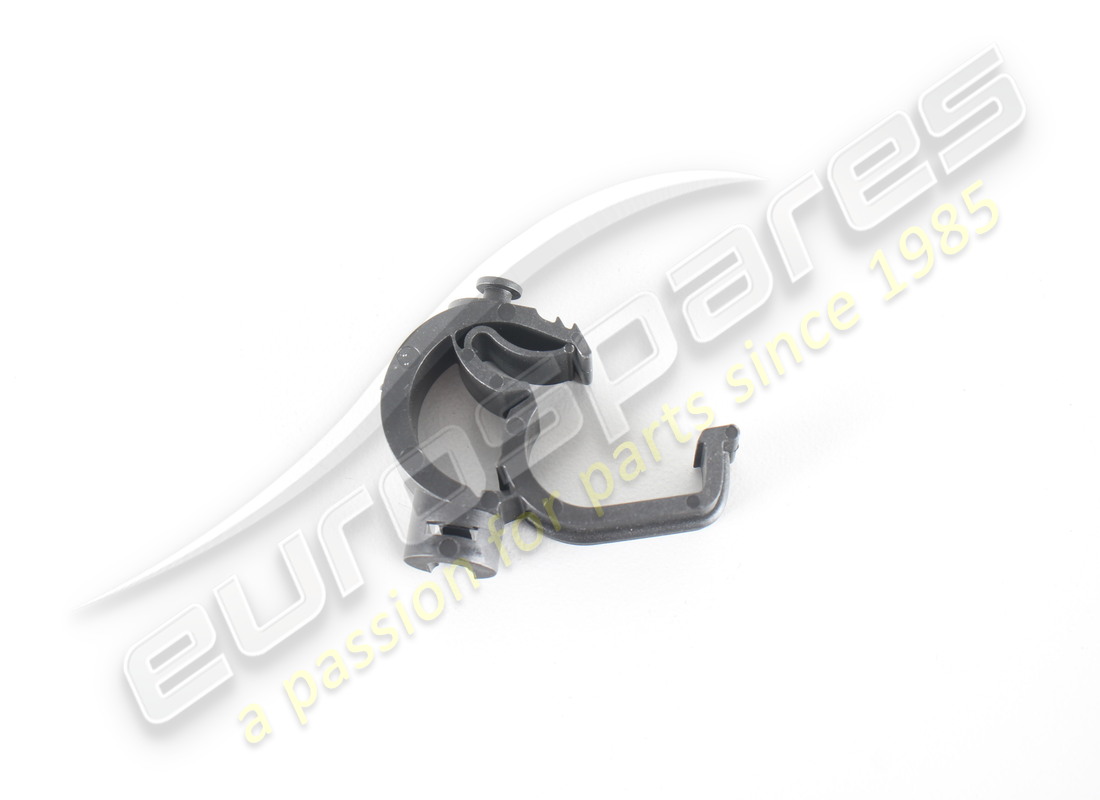

# 020
MPN: 198264
CLIP
from £1.69
from £1.69
# 021
MPN: 199880
PIPE
from £4.62
from £4.62
# 022
MPN: 204955
TWO-WAY UNION
from £1.20
from £1.20
# 023
MPN: 68085100
PIPE
from £1.61
from £1.61
# 024
MPN: 197800
RUBBER THICKNESS
from £8.16
from £8.16
# 025
MPN: 180789
RUBBER THICKNESS
from £0.69
from £0.69
# 037
MPN: 198671
CLIP
from £2.31
from £2.31
# 038
MPN: 211389
UNION
from £2.39
from £2.39
# 040
MPN: 191907
CLIP
from £0.92
from £0.92
# 041
MPN: 221727
GASKET
from £4.16
from £4.16
# 042
MPN: 213603
CLIP
from £1.55
from £1.55
# 043
MPN: 201426
CLIP
from £3.63
from £3.63
# 044
MPN: 195052
CLIP
from £1.08
from £1.08
# 045
MPN: 219563
PROTECTION SHEATH
from £3.63
from £3.63
