-Valid for USA MY 2000,2001, 2002,2003,2004
ferrari 360 spider secondary air system parts diagram

009 - secondary air system

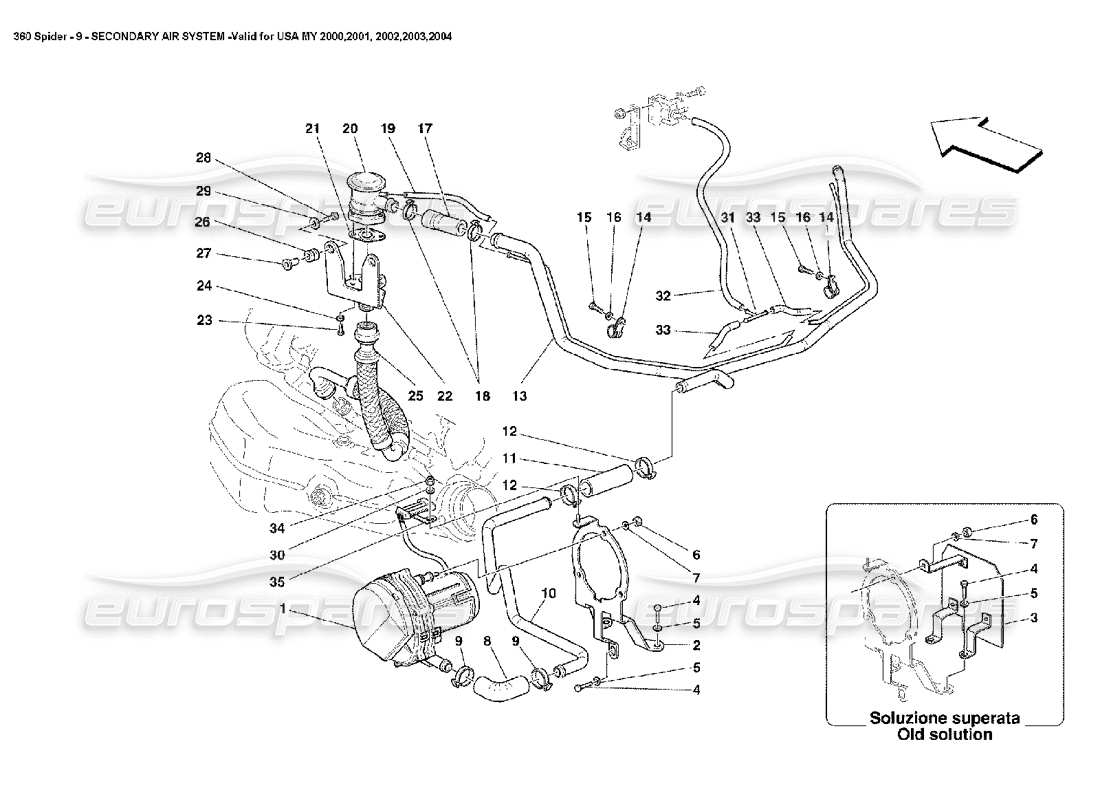

Ferrari 360 Spider Secondary Air System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 181197
                                                                    Secondary Air Pump
                                                                    from £159.14
                                                                    from £159.14
                                                                    # 002
                                                                    MPN: 182759
                                                                    BRACKET FOR PUMP
                                                                    from £8.11
                                                                    from £8.11
                                                                    # 003
                                                                    MPN: 181988
                                                                    SHIELD FOR PUMP PROTECTION
                                                                    from £125.68
                                                                    from £125.68
                                                                    # 004
                                                                    MPN: 10902224
                                                                    SCREW
                                                                    from £0.52
                                                                    from £0.52
                                                                    # 005
                                                                    MPN: 12601274
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                    # 006
                                                                    MPN: 15896214
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 15896211
                                                                    # 007
                                                                    MPN: 12601274
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                    # 008
                                                                    MPN: 181994
                                                                    AIR PUMP CONNECTION SLEEVE
                                                                    from £44.26
                                                                    from £44.26
                                                                    # 009
                                                                    MPN: 178054
                                                                    CLAMP
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 010
                                                                    MPN: 181963
                                                                    PIPE FROM PUMP TO SLEEVE
                                                                    from £199.24
                                                                    from £199.24
                                                                    # 011
                                                                    MPN: 155116
                                                                    SLEEVE
                                                                    from £5.44
                                                                    from £5.44
                                                                    # 012
                                                                    MPN: 178054
                                                                    CLAMP
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 013
                                                                    MPN: 183326
                                                                    AIR DELIVERY TUBE
                                                                    from £107.10
                                                                    from £107.10
                                                                    # 014
                                                                    MPN: 10441990
                                                                    BRACKET WITH SHEATH
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 015
                                                                    MPN: 10902224
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 016
                                                                    MPN: 12620474
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 12620479 - and 1 more. Click to view details
                                                                    # 017
                                                                    MPN: 175223
                                                                    SLEEVE
                                                                    from £5.11
                                                                    from £5.11
                                                                    This part replaces part number 122842
                                                                    # 018
                                                                    MPN: 178054
                                                                    CLAMP
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 019
                                                                    MPN: 148205
                                                                    RUBBER HOSE
                                                                    from £9.92
                                                                    from £9.92
                                                                    # 020
                                                                    MPN: 171175
                                                                    SECONDARY AIR VALVE
                                                                    from £107.56
                                                                    from £107.56
                                                                    # 021
                                                                    MPN: 172303
                                                                    GASKET
                                                                    from £0.93
                                                                    from £0.93
                                                                    # 022
                                                                    MPN: 179489
                                                                    COMPLETE BRACKET
                                                                    from £50.15
                                                                    from £50.15
                                                                    # 023
                                                                    MPN: 10902224
                                                                    SCREW
                                                                    from £0.51
                                                                    from £0.51
                                                                    # 024
                                                                    MPN: 127494
                                                                    WASHER
                                                                    (minimum order quantity = 20)
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                    # 025
                                                                    MPN: 183730
                                                                    CONNECTION PIPE
                                                                    from £539.69
                                                                    from £539.69
                                                                    # 026
                                                                    MPN: 177576
                                                                    CABLE GROMMET
                                                                    from £1.16
                                                                    from £1.16
                                                                    # 027
                                                                    MPN: 149707
                                                                    SPACER
                                                                    from £0.64
                                                                    from £0.64
                                                                    # 028
                                                                    MPN: 10902824
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10902821 which we have in stock
                                                                    # 029
                                                                    MPN: 12643724
                                                                    WASHER
                                                                    from £0.51
                                                                    from £0.51
                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                    # 030
                                                                    MPN: 10519224
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 10519201 which we have in stock
                                                                    # 031
                                                                    MPN: 146972
                                                                    3 - WAY UNION
                                                                    from £2.90
                                                                    from £2.90
                                                                    # 032
                                                                    MPN: 147127
                                                                    RUBBER HOSE
                                                                    from £26.91
                                                                    from £26.91
                                                                    # 033
                                                                    MPN: 147129
                                                                    RUBBER HOSE
                                                                    - Valid till stock exhaustion
                                                                    from £3.20
                                                                    from £3.20
                                                                    # 033
                                                                    MPN: 193028
                                                                    RUBBER HOSE
                                                                    - Valid after stock exhaustion of 147129
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 147129 which we have in stock
                                                                    # 034
                                                                    MPN: 62790300
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 12574011 - and 1 more. Click to view details
                                                                    # 035
                                                                    MPN: 156198
                                                                    CLIP
                                                                    from £8.65
                                                                    from £8.65
