ferrari 360 spider fuel pumps and pipes parts diagram

010 - fuel pumps and pipes

Ferrari 360 Spider Fuel Pumps and Pipes Parts Diagram

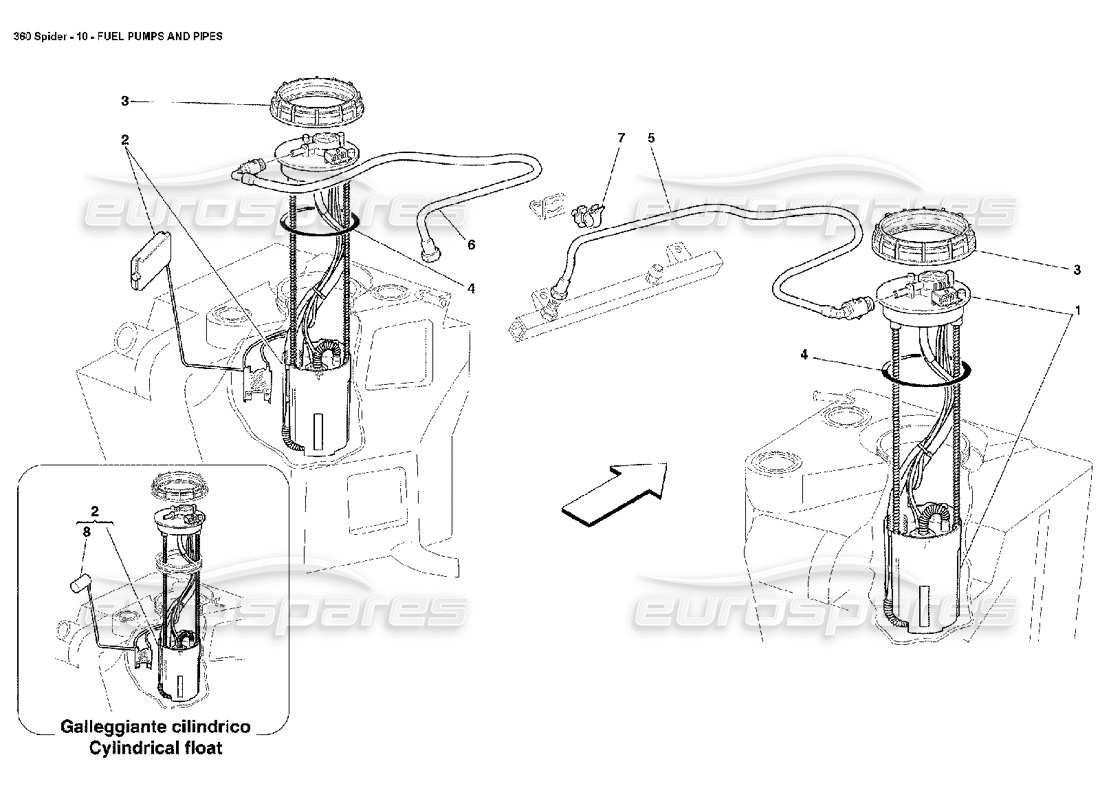

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 239811
                RH COMPLETE FUEL PUMP
                from £164.21
                from £164.21
                This part replaces part number 180477 - and 1 more. Click to view details
                # 002
                MPN: 239812
                LH COMPLETE FUEL PUMP
                from £187.73
                from £187.73
                This part replaces part number 195841 - and 1 more. Click to view details
                # 003
                MPN: 181682
                RING NUT
                from £7.74
                from £7.74
                # 004
                MPN: 181681
                GASKET
                from £11.61
                from £11.61

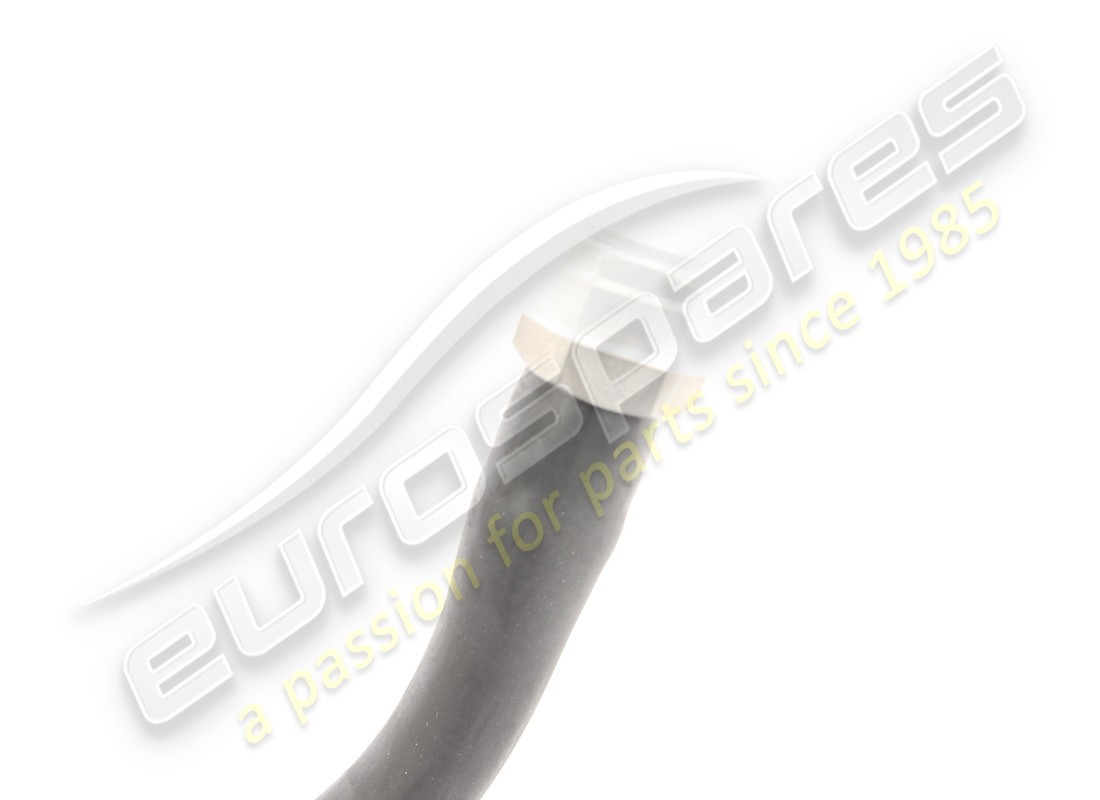

                # 005
                MPN: 182640
                RH FUEL DELIVERY TUBE
                from £118.52
                from £118.52
                # 006
                MPN: 182641
                LH FUEL DELIVERY TUBE
                from £118.52
                from £118.52
                # 007
                MPN: 178430
                CLIP
                from £0.53
                from £0.53
                # 008
                MPN: 194140
                FUEL LEVEL INDICATOR
                - Cylindrical float - Valid for LH fuel pump 193725 ref. 2
                from £90.41
                from £90.41
                This part replaces part number 177233
