025 - Clutch and Controls

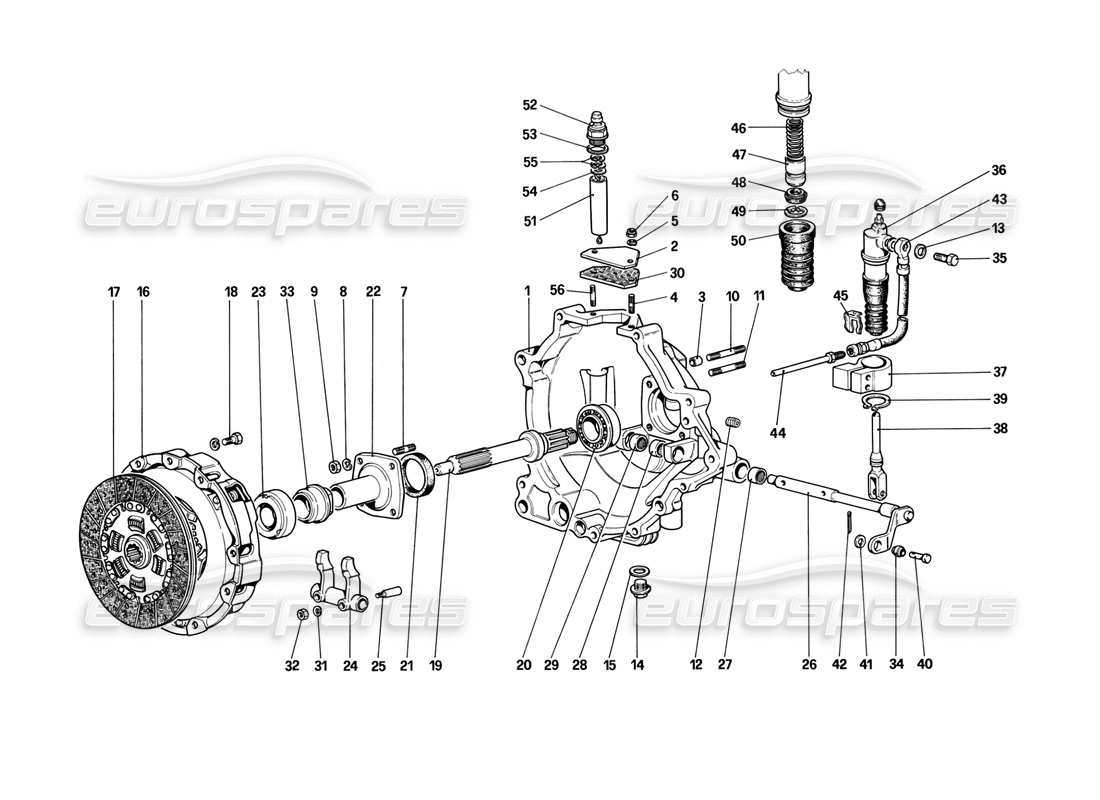

Ferrari Mondial 3.2 QV (1987) Clutch and Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 126026

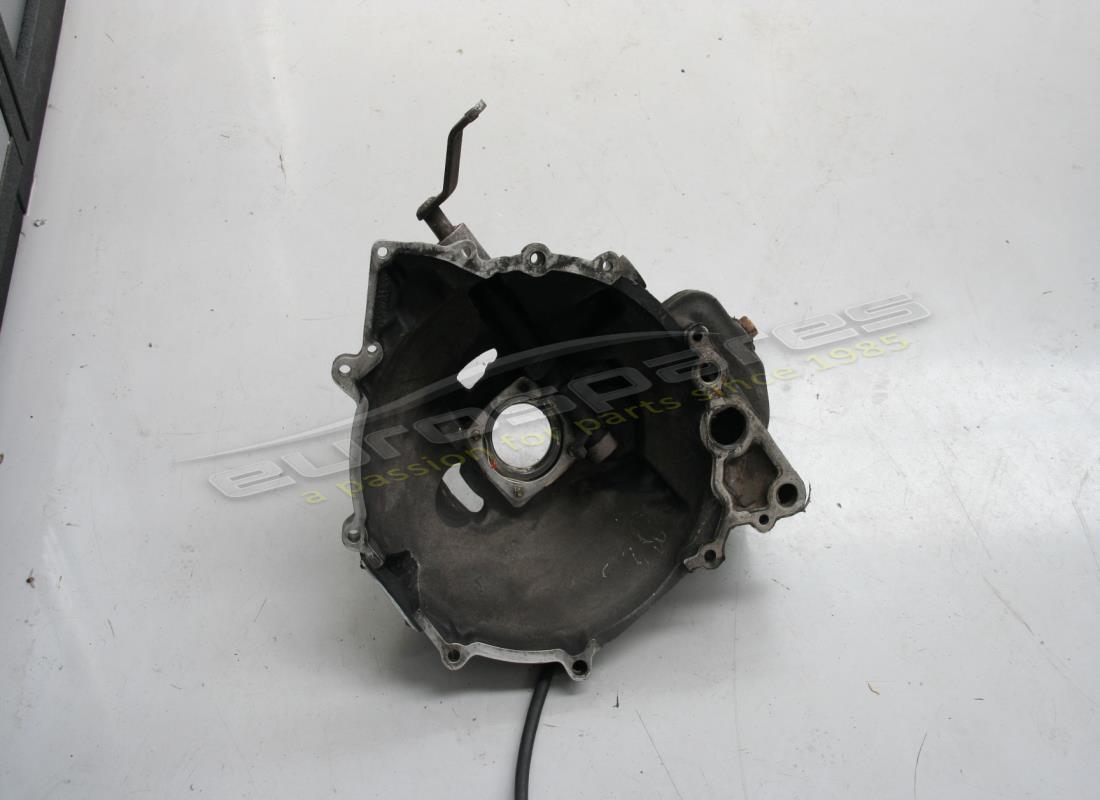

CLUTCH HOUSING
With assembly no. 130525
Supersession
Supersession
# 001
MPN: 130525
CLUTCH HOUSING, COMPLETE
from £834.75
from £834.75
This part replaces part number 118069 - and 3 more. Click to view details
# 002
MPN: 109404
INSPECTION COVER
from £36.46
from £36.46
This part replaces part number 40361107
# 003
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 004
MPN: 11000921
SHORT STUD
from £2.00
from £2.00
# 005
MPN: 12601171
WASHER
from £0.47
from £0.47
# 006
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 007
MPN: 13516521
STUD
Supersession
Supersession
This part replaces part number 102682 - and 1 more. Click to view details
# 008
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 009
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 010
MPN: 13517621
STUD
from £9.04
from £9.04
# 011
MPN: 13517521
STUD
from £6.77
from £6.77
# 012
MPN: 14326150
PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 013
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 014
MPN: 14326540
OIL DRAIN PLUG
from £35.89
from £35.89
# 015
MPN: 10261860
GASKET
from £0.54
from £0.54
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
# 016
MPN: 121562
CLUTCH PRESSURE PLATE
from £138.99
from £138.99
This part replaces part number 101533 - and 5 more. Click to view details
# 016
MPN: FCLK001
Clutch Kit - 3 Piece
Pressure plate & bearing (121562-110558-100849)
# 016
MPN: FCLK001
CLUTCH KIT
use : FCLK001
# 017
MPN: 110558
CLUTCH DISC
Replaces 134996
from £220.34
from £220.34
This part replaces part number 105709 - and 4 more. Click to view details
# 017
MPN: 120482
CLUTCH DISC
not as spare part - use part number: 110558
Supersession
Supersession
# 017
MPN: 134996
CLUTCH DISC
Not as spare part - Replaced by 110558
Supersession
Supersession
This part replaces part number 110294 - and 3 more. Click to view details
# 017
MPN: 134997
CLUTCH 1/2 (NOT FOR SPARE)
For C8-C7
# 018
MPN: 13825821
BOLT
Not for C8-C10
Supersession
Supersession
# 018
MPN: 13825821
BOLT
For C8-C10
Supersession
Supersession
# 019
MPN: 133398
CLUTCH SHAFT
from £735.94
from £735.94
This part replaces part number 126815
# 020
MPN: 103042
BEARING
from £153.66
from £153.66
# 021
MPN: 134714
OIL SEALS
from £10.35
from £10.35
This part replaces part number 110314
# 022
MPN: 112399
FLANGE WITH SLEEVER
from £126.78
from £126.78
# 023
MPN: 100849
THRUST BEARING
from £45.00
from £45.00
This part replaces part number 100845 - and 3 more. Click to view details
# 024
MPN: 108428
CLUTCH CONTROL LEVER
With assembly no. 112398
from £871.24
from £871.24
# 025
MPN: 108429
PIN
from £44.52
from £44.52
# 026
MPN: 112398
CLUTCH CONTROL LEVER AND SHAFT
from £387.73
from £387.73
# 027
MPN: 107924
OUTER BUSH
from £18.87
from £18.87
# 028
MPN: 107925
INTERMEDIATE BUSH
from £16.65
from £16.65
# 029
MPN: 107926
INNER BUSH
from £4.98
from £4.98
# 030
MPN: 109405
GASKET FOR INSPECTION COVER
from £9.48
from £9.48
# 031
MPN: 108430
WASHER
from £4.61
from £4.61
# 032
MPN: 12574121
NUT
Supersession
Supersession
This part replaces part number 12574111 - and 2 more. Click to view details
# 033
MPN: 116326
BUSHING FOR BEARING
from £256.02
from £256.02
# 034
MPN: 100860
QBALL JOINT
from £66.39
from £66.39
This part replaces part number SERIE SS6 - and 1 more. Click to view details
# 035
MPN: 108868
UNION
from £39.10
from £39.10
# 036
MPN: 107867
CLUTCH SLAVE CYLINDER Ø 13/16
from £211.85
from £211.85
This part replaces part number 111272 - and 1 more. Click to view details
# 037
MPN: 112393
SUPPORT
from £324.30
from £324.30
# 038
MPN: 109527
PUSH ROD
from £119.07
from £119.07
# 039
MPN: 11068475
STOP RING
Supersession
Supersession
# 040
MPN: 103218
PIN
from £25.41
from £25.41
This part replaces part number 100857 - and 1 more. Click to view details
# 041
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 042
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 043
MPN: 108865
FLEXI PIPE
from £170.27
from £170.27
This part replaces part number 4035953
# 044
MPN: 112895
(1 B) HOSE
from £75.11
from £75.11
# 044
MPN: 122024
(2B)HOSE-LHD
# 044
MPN: 124153
(2B) HOSE - RHD
# 044
MPN: 132220
(1A)HOSE-LHD
from £67.43
from £67.43
# 044
MPN: 134472
(1A) HOSE - RHD
from £64.76
from £64.76
# 044
MPN: 134473
(2A) HOSE - LHD
from £71.78
from £71.78
# 044
MPN: 134474
(2A) HOSE - RHD
from £64.76
from £64.76
# 045
MPN: 110810
PLATE FOR TUBE
from £1.40
from £1.40
This part replaces part number 994922
# 046
MPN: 111273
SPRING
from £8.91
from £8.91
# 047
MPN: 107867
CLUTCH SLAVE CYLINDER Ø 13/16
from £211.85
from £211.85
This part replaces part number 111272 - and 1 more. Click to view details
# 048
MPN: 111275
SEAL RING
from £65.17
from £65.17
# 049
MPN: 111277
SEEGER RING
from £0.98
from £0.98
# 050
MPN: 111276
BELLOWS
from £29.44
from £29.44
# 051
MPN: 126044
BREATHER PIPE
from £203.83
from £203.83
# 052
MPN: 126046
PLUG
# 053
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 054
MPN: 12625201
WASHER
from £1.08
from £1.08
# 055
MPN: 12604571
WASHER
Supersession
Supersession
# 056
MPN: 11001121
LONG STUD
from £0.47
from £0.47
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
