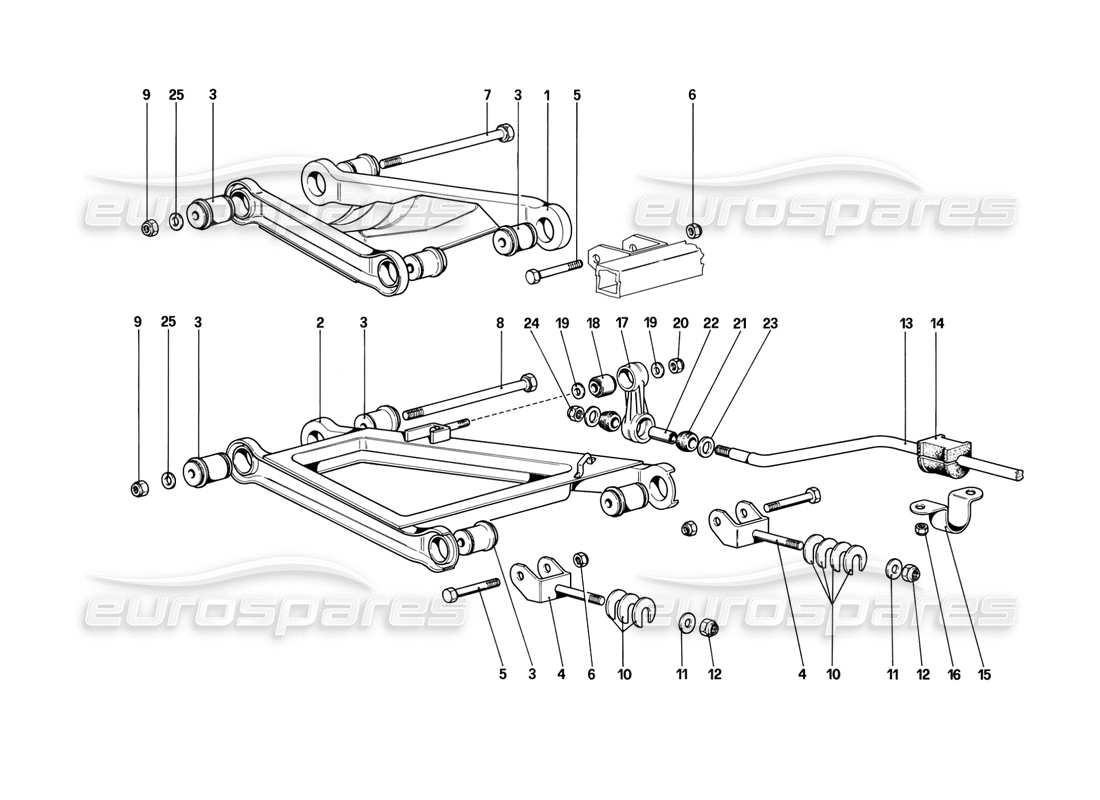

047 - Rear Suspension - Wishbones
Ferrari Mondial 3.2 QV (1987) Rear Suspension - Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115715
UPPER LEVER, LEFT
from £117.43
from £117.43
# 001
MPN: 115716
UPPER LEVER, RIGHT
from £108.22
from £108.22
# 002
MPN: 117805
LOWER LEVER, RIGHT
from £288.09
from £288.09
# 002
MPN: 117806
LOWER LEVER, LEFT
from £1,387.73
from £1,387.73
# 003
MPN: 163038
BUSHES
from £38.54
from £38.54
This part replaces part number 157701
# 004
MPN: 127641
LOWERFORK
Supersession
Supersession
# 005
MPN: 121693
BOLT
from £79.23
from £79.23
This part replaces part number 127849
# 006
MPN: 148020
NUT
from £2.30
from £2.30
This part replaces part number 102825 - and 3 more. Click to view details
# 007
MPN: 112439
BOLT
from £43.71
from £43.71
# 008
MPN: 112440
BOLT
from £30.65
from £30.65
# 009
MPN: 148020
NUT
from £2.43
from £2.43
This part replaces part number 102825 - and 3 more. Click to view details
# 010
MPN: 101039
DITTO, THICKNESS 1 MM.
from £1.78
from £1.78
This part replaces part number 107025 - and 1 more. Click to view details
# 010
MPN: 107338
DITTO, THICKNESS 1,5 MM.
from £12.70
from £12.70
This part replaces part number 107418
# 010
MPN: 107339
DITTO, THICKNESS 2 MM.
from £1.15
from £1.15
This part replaces part number 107419
# 010
MPN: 107340
SHIM FOR LOWER FORK, THICKNESS 2,5 MM.
(possible fitting)
from £1.21
from £1.21
This part replaces part number 107420
# 010
MPN: 107341
DITTO, THICKNESS 3 MM.
from £2.84
from £2.84
This part replaces part number 107421
# 010
MPN: 107342
DITTO, THICKNESS 3,25 MM.
from £0.52
from £0.52
This part replaces part number 107422
# 011
MPN: 101041
WASHER
from £0.53
from £0.53
This part replaces part number 10730821
# 012
MPN: 150238
NUT
from £0.53
from £0.53
This part replaces part number 12575821 - and 2 more. Click to view details
# 013
MPN: 116075
STABILIZER ROD
Not for US and C7
from £444.15
from £444.15
# 013
MPN: 118119
STABILIZER ROD
For US and C7
from £447.76
from £447.76

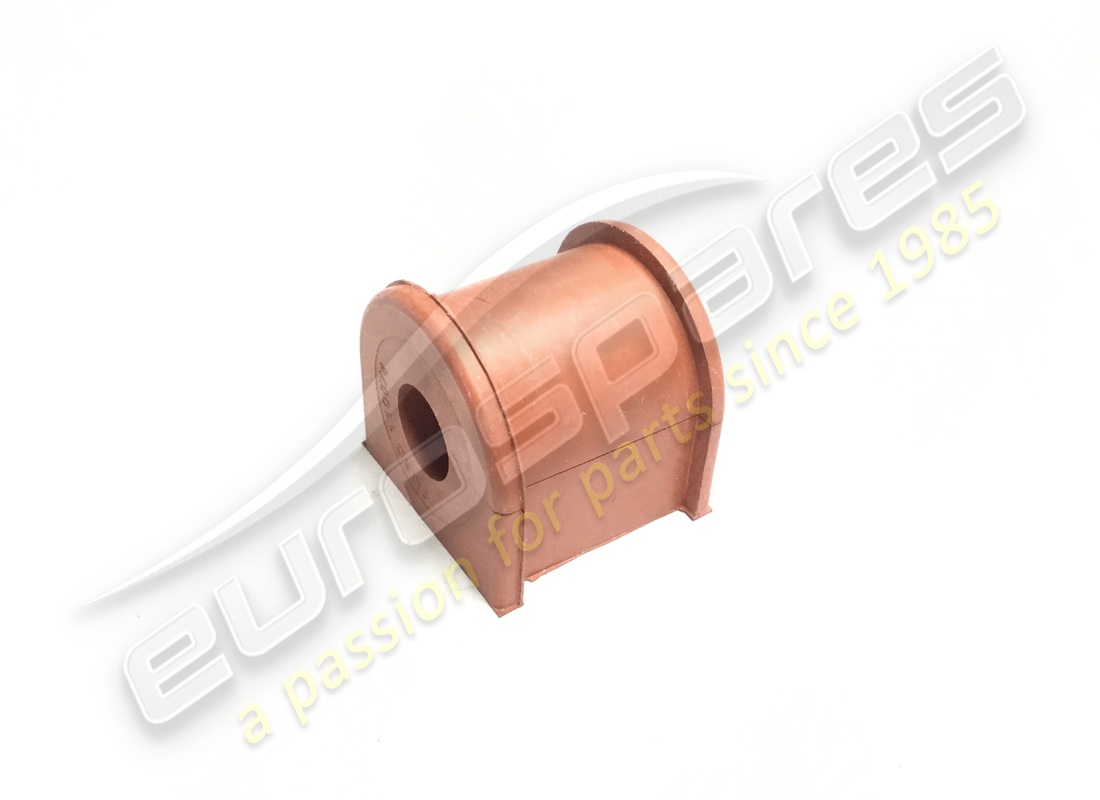

# 014
MPN: 110874
PAD
For US and C7
from £12.59
from £12.59
This part replaces part number 640878 - and 1 more. Click to view details
# 014
MPN: 116381
PAD
Not for US and C7
from £106.21
from £106.21
# 015
MPN: 104417
ROD RETAINER
from £20.83
from £20.83
This part replaces part number 64429 - and 5 more. Click to view details
# 016
MPN: 12575621
NUT
from £1.37
from £1.37
# 017
MPN: 108432
ROD LINK
from £141.14
from £141.14
This part replaces part number 107334 - and 5 more. Click to view details
# 018
MPN: 100773
SILENTBLOCK FOR LINK
from £19.44
from £19.44
This part replaces part number 60220 - and 1 more. Click to view details
# 019
MPN: 108913
SHIM
from £11.68
from £11.68
# 020
MPN: 148020
NUT
from £2.50
from £2.50
This part replaces part number 102825 - and 3 more. Click to view details
# 021
MPN: 107335
RUBBER GROMMET
Heavy Duty Type - Replace as Set
from £11.11
from £11.11
# 022
MPN: 108294
SPACER TUBE
from £44.69
from £44.69
This part replaces part number 107336 - and 1 more. Click to view details
# 023
MPN: 117285
WASHER
from £1.07
from £1.07
# 024
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 025
MPN: 106616
WASHER
from £0.75
from £0.75
